NetPanel

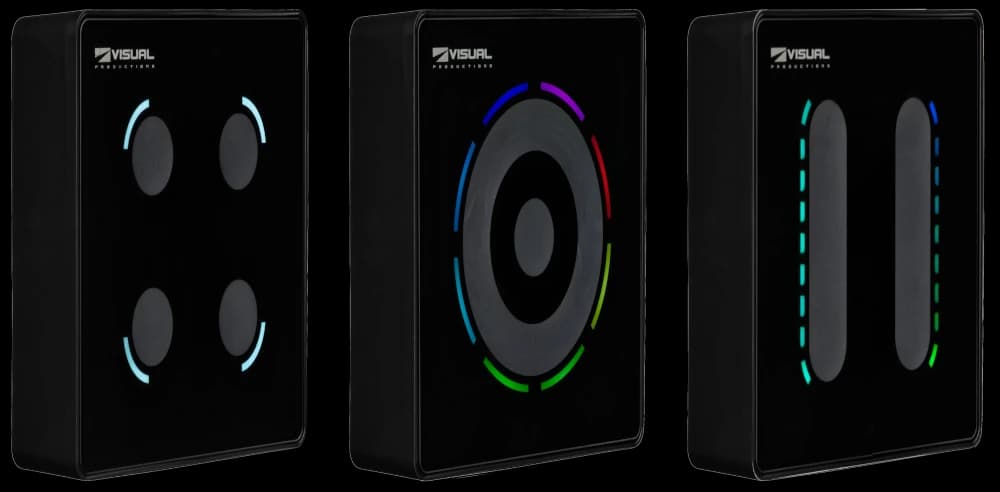

Wall-mounted capacitive touch interface for lighting control and AV control, in 3 different versions

Applications

ArchitecturalHospitalityMuseumsTheme parks

Features

Glass-front capacitive touch with RGB LED feedback and haptic response

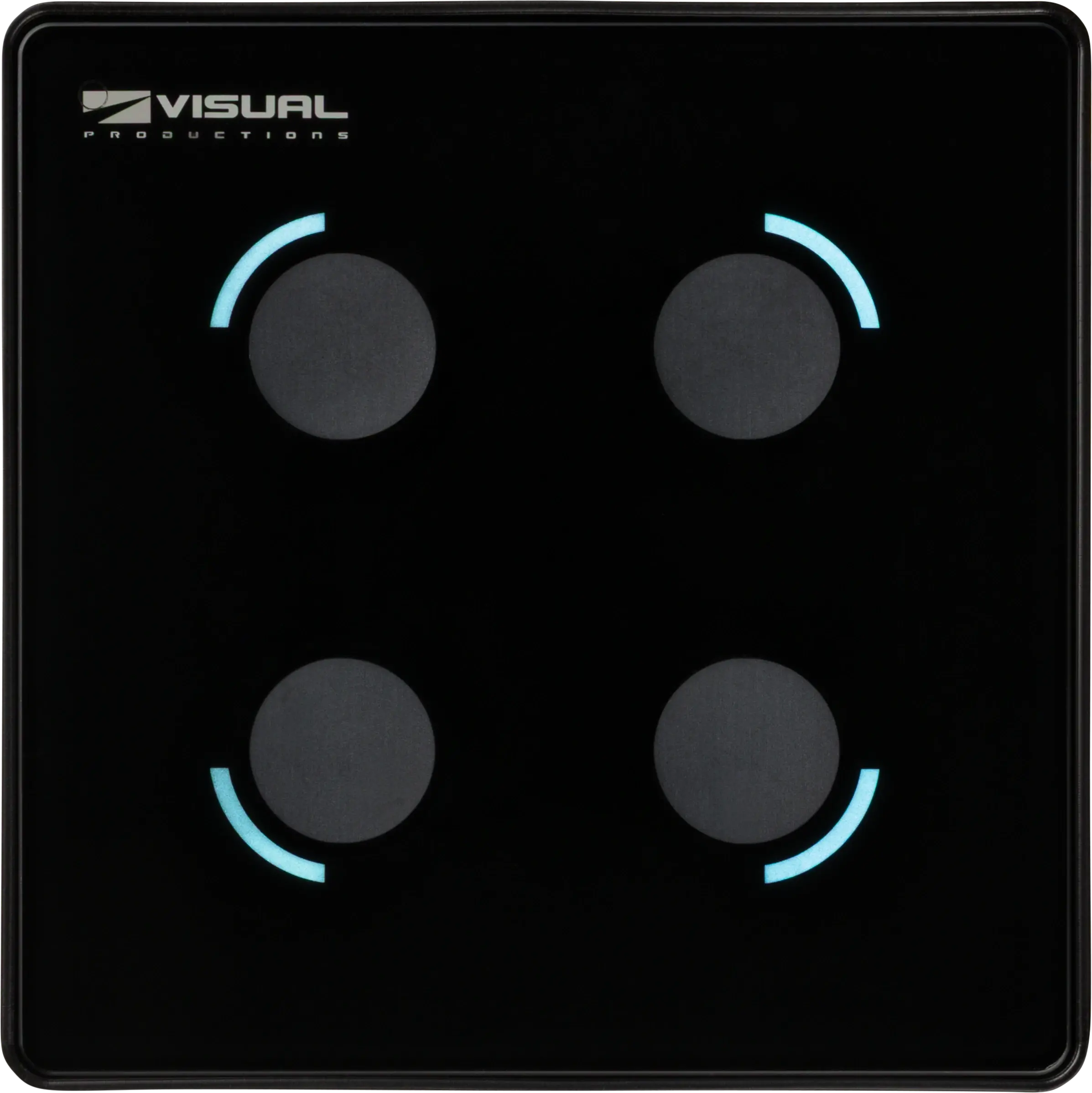

3 versions: B4 4 button, E1 rotatory, F2 2-fader layouts
OSC, UDP and TCP control over a single PoE (Class I) connection
Predefined modes for colour spectrum, CCT and intensity control
Automatic adjustment to ambient light
Easy-to-use API for third-party lighting and AV integration
Programmed via web-interface; bundled with vManager software
Powerful integration with CueCore3

Specifications

Type

Wall-mount capacitive touch interface

Variants

B4 4 button · E1 rotatory · F2 2-fader

Feedback

RGB status LEDs · haptic

Input

Capacitive touch · ambient-light sensing

Connectivity

Ethernet

Protocols

OSC · UDP · TCP

Power

PoE Class I

Programming

Web-interface · vManager

Mounting

Wall-mount

Dimensions

89 × 89 × 25.5 mm

Operating temperature

−20 to 50 °C

Compliance

EN55103-1 / EN55103-2
