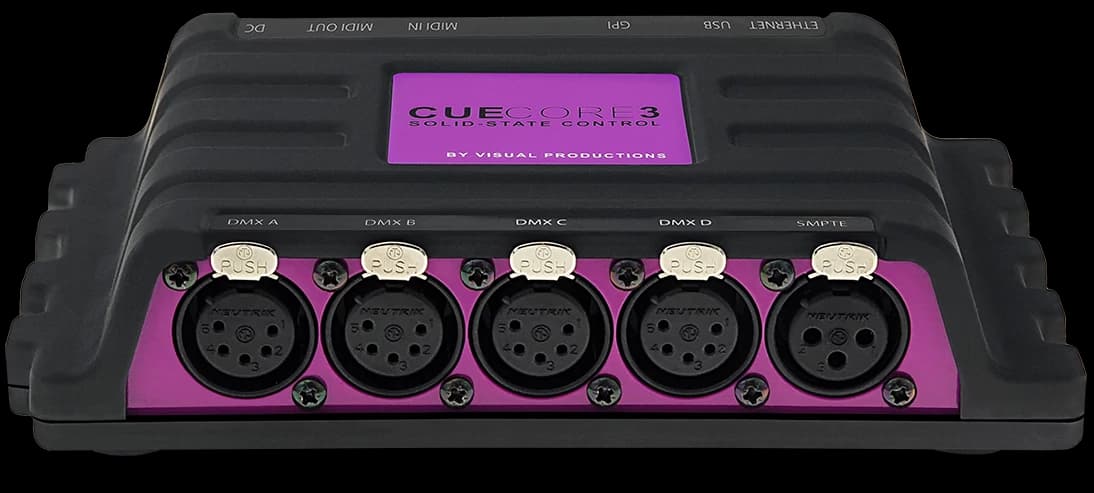

CueCore3
Powerful solid-state architectural lighting controller with integrated console functionality.
Applications
ArchitecturalHospitalityMuseumsTheme parks
Features
- Four optically-isolated, bi-directional DMX ports
- RDM
- Recording and playback (16) with 1 GB of memory
- Integrated console functionality, programmed via web interface
- SMPTE timecode, MIDI (MTC/MMC) and full Art-Net / sACN / KiNet support
- Master/slave scaling up to 32 universes
- Purple Cloud enabled for worldwide remote management
Specifications
Ethernet
10/100 Mbit/s
Programming
Via web-interface
Universes
Max.32 (4 standard)
4 DMX512-A (ANSI E1.11) port
Optically isolated, bi-directional
RDM
(ANSI E1.20)
MIDI IN + OUT
including MTC, MSC MMC
Timecode
SMPTE
4 x GPI Port
(contact-closure or 0-10V)
Clock
RTC, 15-day backup
Protocols
Art-Net · sACN · KiNet
Control
HTTP · TCP · UDP · OSC
Recording and playbacks
(16) with 1 GB memory
9-24V DC 500mA
(PSU included)
Power
DC + PoE Class III
Cloud
Purple Cloud enabled
Mounting
19″ rack optional
Operating temperature
-20°C to +50°C (-4°F to 122°F)
Compliance
CE, ROHS, UKCA, FCC
