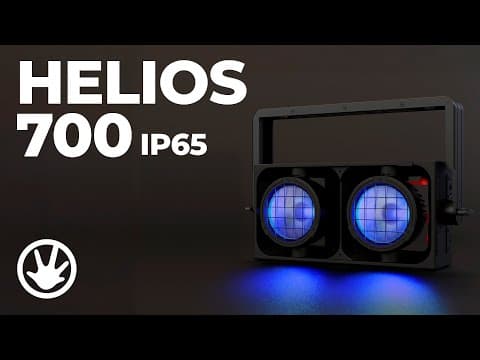

Helios 700
IP65 outdoor blinder — 2 × 300 W RGBAWW COB, 2000–10000 K.
Applications
ConcertFestivalsLive eventsTouring
Features
- 2 × 300 W COB LED modules with RGBAWW colour mixing for 600 W total
- IP65 rated for harsh outdoor conditions
- 50° beam angle at 26,000 lux @ 1 m, 16,250 lumens
- Colour temperature adjustable 2000 K – 10000 K with CRI 86
- Adjustable dimmer frequency from 800 Hz to 25 kHz for flicker-free camera work
- Four dimmer curves — linear, square law, logarithmic and S-curve
- Dedicated strobe channels and independent pixel/cell control in extended modes
- DMX512, RDM, Art-Net and sACN across 17 DMX modes
Specifications
Light source
2 × 300 W COB LED, RGBAWW
Colour temperature
2000 K – 10000 K (adjustable)
CRI
86
Luminous flux
16,250 lm
Light intensity
26,000 lux @ 1 m
LED lifespan
50,000 hours
Beam angle
50°
Lens
118 mm diameter
Colour mixing
RGBAWW
Control resolution
8 or 16 bit
Dimmer curves
Linear · square law · logarithmic · S-curve
Dimmer frequency
800 / 1200 / 2000 / 3600 / 12000 / 25000 Hz
Effects
Dedicated strobe channels · independent pixel/cell control
Body
Die-cast aluminium alloy, black
Ingress protection
IP65
Noise level
49 dBA (auto mode)
Protocols
DMX512 · RDM · Art-Net · sACN
DMX modes
17 modes, 1 to 41 channels
Dimensions
192 x 212 x 400 mm
Weight
8.15 kg
