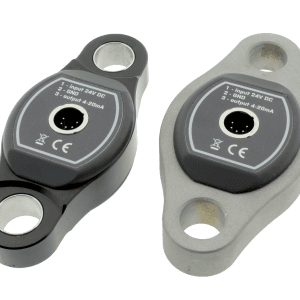

TLC Load Cell
Precision rigging load cell — 0.5 T, 3 T and 5 T capacities at an 8:1 safety factor, feeding the NLP over 5-pin XLR.
Applications
Large venuesLive eventsRiggingTouring
Features
- Capacities of 0.5 T, 3 T and 5 T
- 0.5 T in lightweight aluminium; 3 T and 5 T in robust stainless steel
- Safety factor of 8:1
- Analogue load reading from 4 mA to 20 mA
- One device per hanging point for full load management
- Connects to the Network Load Cell Processor (NLP) via 5-pin XLR
Specifications
Type
Rigging load cell
Capacities
0.5 T · 3 T · 5 T
Material
0.5 T aluminium · 3 T / 5 T stainless steel
Safety factor
8:1
Output
Analogue 4–20 mA
Connection
5-pin XLR to NLP
