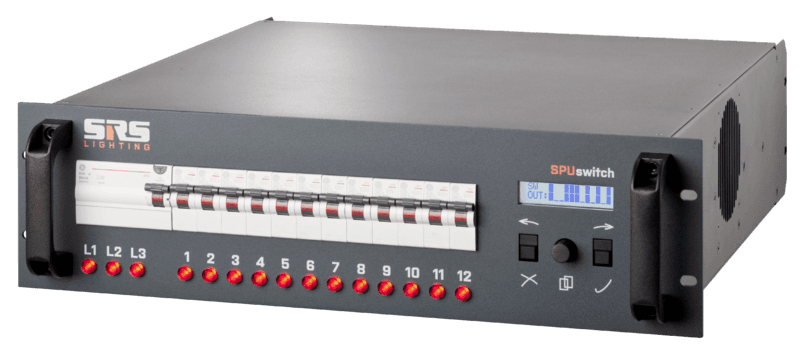

SPU12
Twelve-way DMX switch pack with a safety channel per output, scene-call and sequence-start inputs.
Applications
Large venuesLive eventsTheatreTouringTV / Broadcast
Features
- Main switch or 30 mA GFI
- SFX mode — a safety channel for each output
- DMX A 3- and 5-pin input
- Analogue input
- Sequence-start trigger
- Scene-call input
- Software patch of outputs
Specifications
Type
DMX switching unit (12-way switch pack)
Mains
3 × 230 / 400 V, up to 3 × 63 A
Protection
Main switch or 30 mA GFI · 1P / 1P+N
Inputs
DMX 3- & 5-pin · analogue · sequence start · scene call
Safety
SFX safety channel per output
Format
19″ rack (~3U)
Dimensions
483 × 132 × 303 mm (W × H × D)
