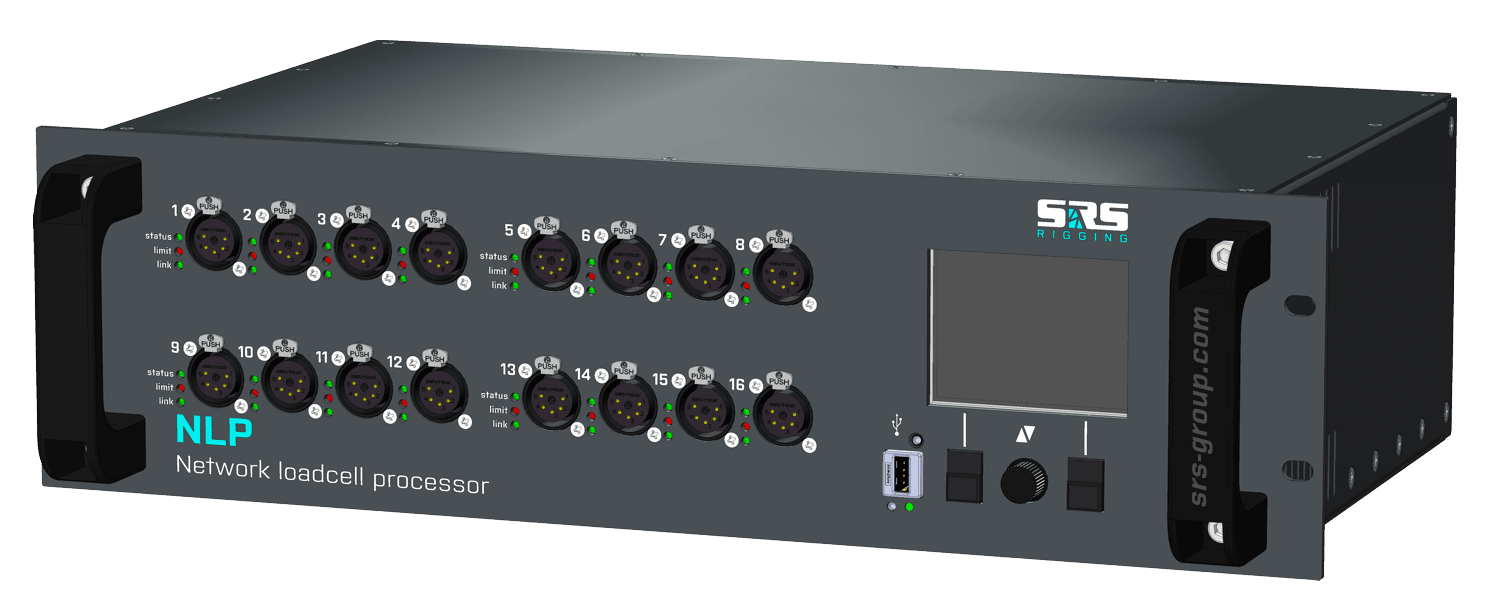

Network Load Cell Processor
Stand-alone load-monitoring processor — reads analogue load cells, shows loads on a TFT, with a SIL-3 E-STOP output.
Applications
Features
- Processes accurate load measurements for rigging and load-bearing applications
- Reads analogue load cells with 4–20 mA outputs (load cells supplied separately)
- Direct E-STOP output for SIL-3 systems
- Loads and groups shown on a front-panel TFT colour display
- Runs fully independently — no PC or Mac needed in operation
- Network Group Sync calculates loads across all connected devices
- Supplied with MAC/PC software suite and cables
- Available in two variants – 12ch (3U unit), 24ch (4U unit)
- Dry contact connectors to connect external device such as alarm / signal light / etc
Specifications
Type
Network load cell processor
Inputs
Analogue load cells, 4–20 mA
Safety
Direct E-STOP output for SIL-3
Display
Front-panel TFT colour
Networking
Ethernet · Network Group Sync
Format
19″ rack-mount (3U)
Supplied with
NLP · software suite · cables (load cell separate)
