DST5-RDM

Truss-mount five-output DMX/RDM splitter — M10 thread for a C-clamp and a lifetime warranty.

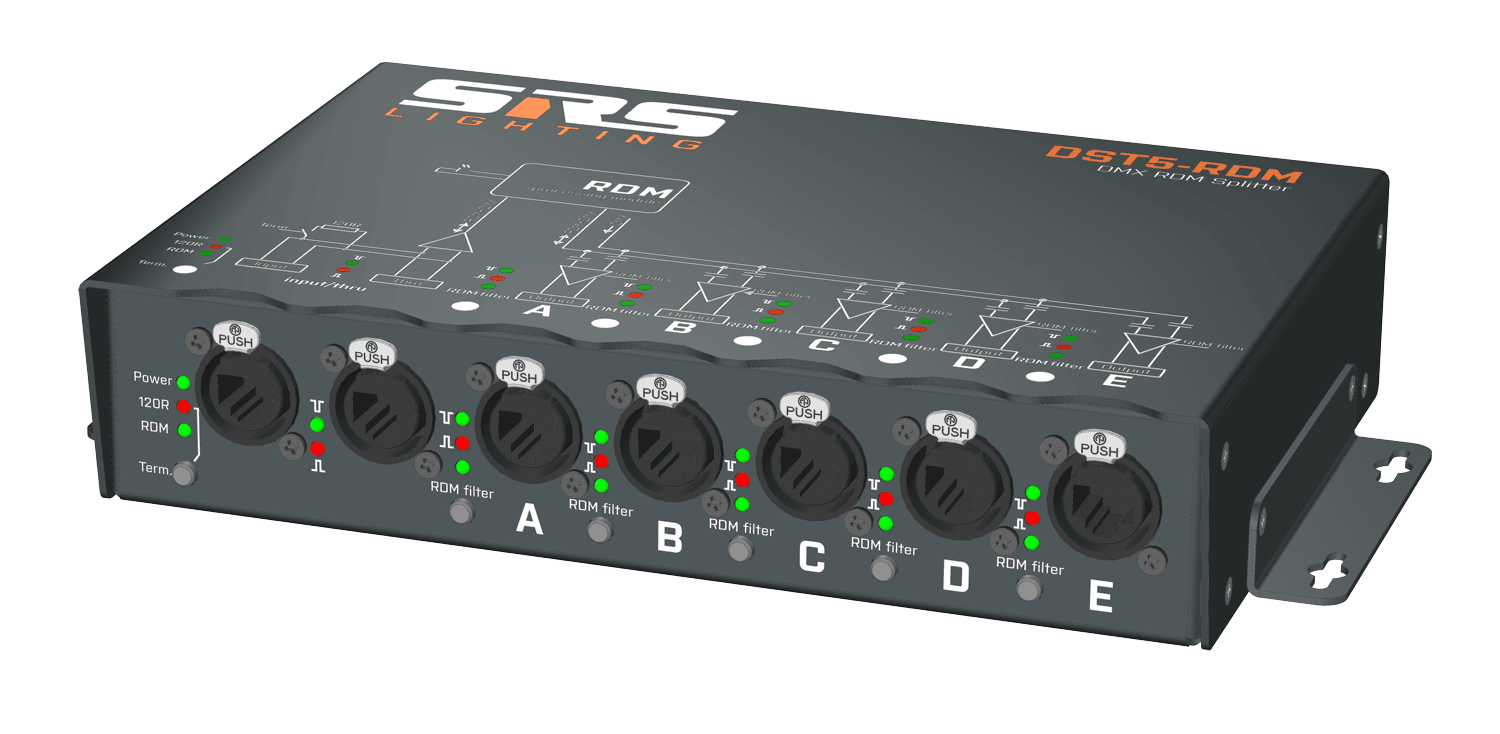

SRS DST5-RDM truss-mount DMX/RDM splitter, front view

Applications

ConcertLive eventsRiggingTheatreTouring

Features

  • 5-channel DMX/RDM splitter/booster
  • Optically isolated outputs to 1000 V
  • Amplification of each output
  • Two DMX/RDM status LEDs per output
  • Termination switch with LED indication
  • Truss / wall-mount with M10 thread for a C-clamp
  • Full-range power supply: 85–264 V, 50/60 Hz, 5 W
  • Neutrik PowerCon (optional PowerCon TRUE1 TOP); RJ45, 5-pin or 3-pin XLR
  • Lifetime warranty

Specifications

Type

DMX/RDM splitter / booster

Channels

5

Isolation

Optical, 1000 V

Mounting

Truss / wall (M10 thread for C-clamp)

Power

85–264 V, 50/60 Hz, 5 W

Power connector

Neutrik PowerCon (opt. TRUE1 TOP)

Data connectors

RJ45 · 5-pin XLR · 3-pin XLR

Warranty

Lifetime
