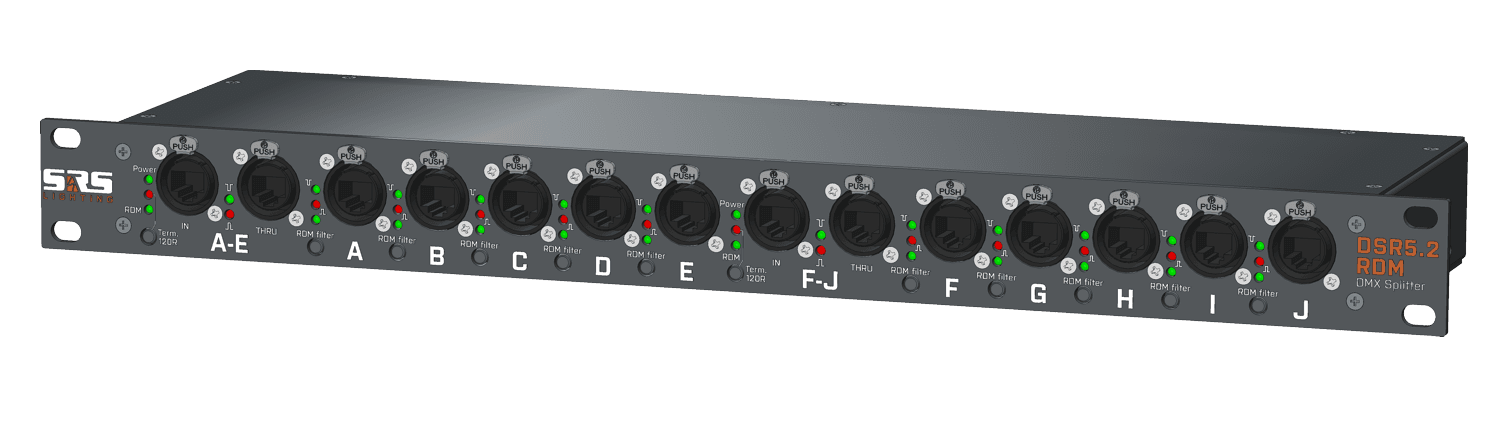

DSR5.2-RDM
Dual-universe DMX/RDM splitter — two banks of five optically isolated outputs in 1U.
Applications
ConcertLive eventsTheatreTouringTV / Broadcast
Features
- 2× 5-channel DMX/RDM splitter/booster, double universe
- Optically isolated outputs to 1000 V
- Amplification of each output
- Two DMX/RDM status LEDs per output
- Termination switch with LED indication
- Full-range power supply: 85–264 V, 50/60 Hz, 10 W
- Neutrik PowerCon (optional PowerCon TRUE1 TOP)
- RJ45, 5-pin XLR or 3-pin XLR; optional wall-mount adapters
- Lifetime warranty
Specifications
Type
DMX/RDM splitter / booster
Channels
2 × 5 (double universe)
Isolation
Optical, 1000 V
Format
1U, 19″ rack-mount
Power
85–264 V, 50/60 Hz, 10 W
Power connector
Neutrik PowerCon (opt. TRUE1 TOP)
Data connectors
RJ45 · 5-pin XLR · 3-pin XLR
Warranty
Lifetime
