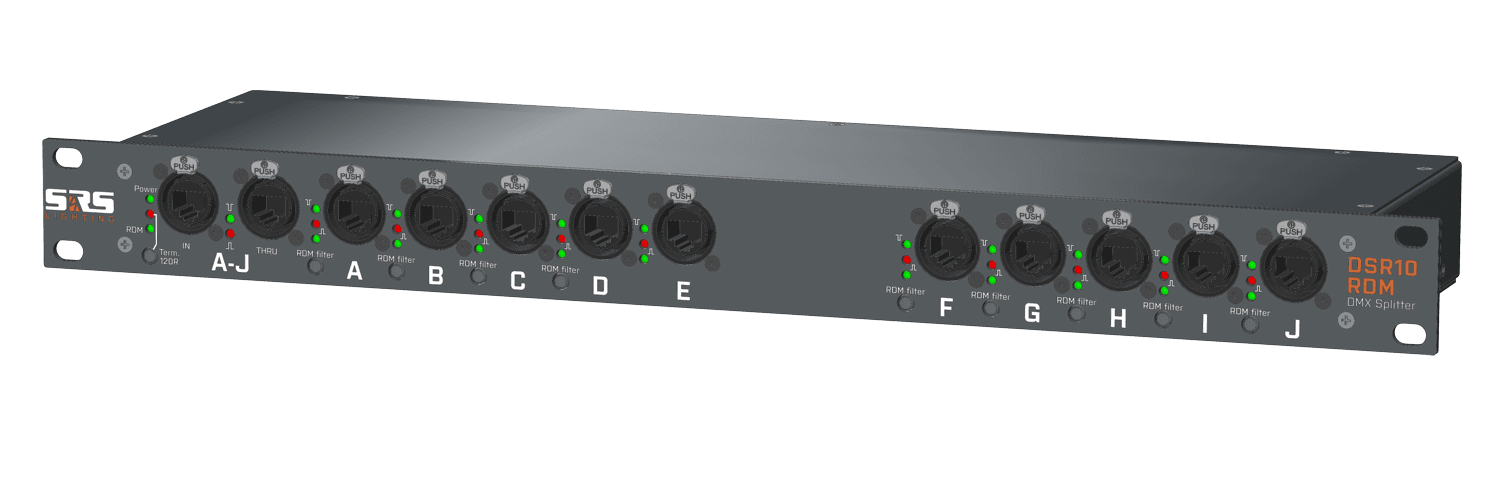

DSR10-RDM

Ten-output DMX/RDM splitter-booster in 1U — 1000 V optically isolated outputs and a lifetime warranty.

Applications

Features

  • 10-channel DMX/RDM splitter/booster, single universe
  • Optically isolated outputs to 1000 V
  • Amplification of each output
  • Two DMX/RDM status LEDs per output
  • Termination switch with LED indication
  • Full-range power supply: 85–264 V, 50/60 Hz, 10 W
  • Neutrik PowerCon (optional PowerCon TRUE1 TOP)
  • RJ45, 5-pin XLR or 3-pin XLR; optional wall-mount adapters
  • Lifetime warranty

Specifications

Type

DMX/RDM splitter / booster

Channels

10 (single universe)

Isolation

Optical, 1000 V

Format

1U, 19″ rack-mount

Power

85–264 V, 50/60 Hz, 10 W

Power connector

Neutrik PowerCon (opt. TRUE1 TOP)

Data connectors

RJ45 · 5-pin XLR · 3-pin XLR

Warranty

Lifetime
