P2 EVO

Creative, linear, bendable decorative blinder that gives freedom of form and function.

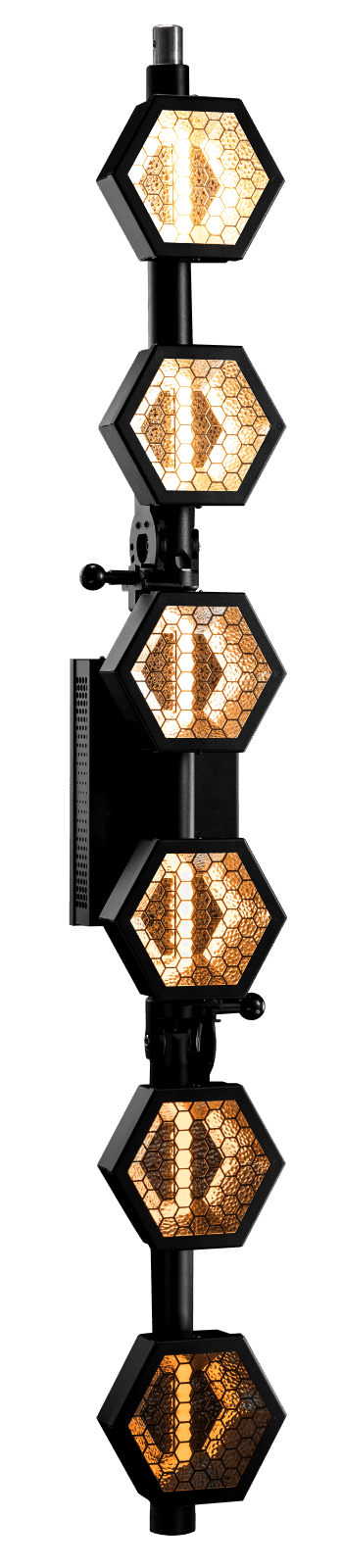

Portman P2 EVO linear bendable blinder — full studio render

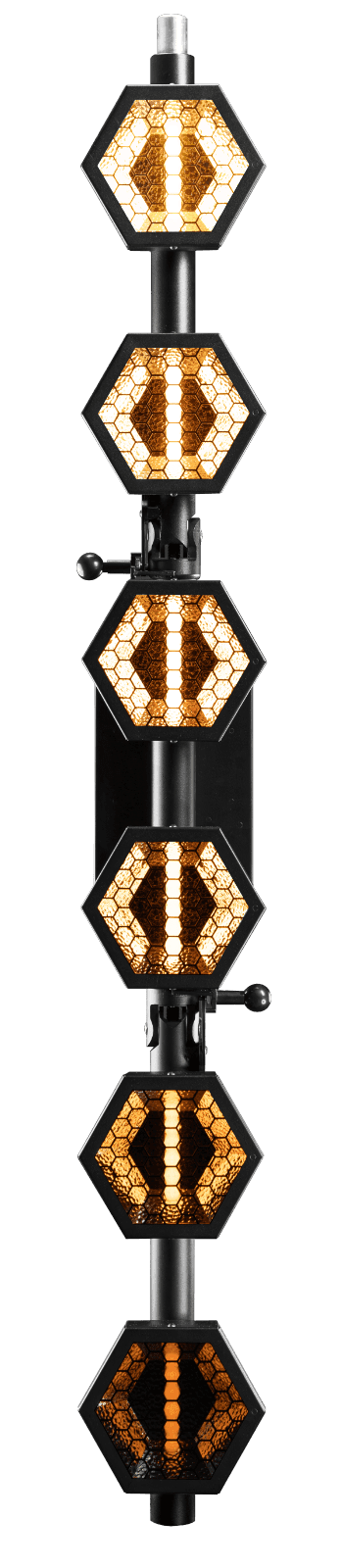

Portman P2 EVO — tungsten-emulation mode

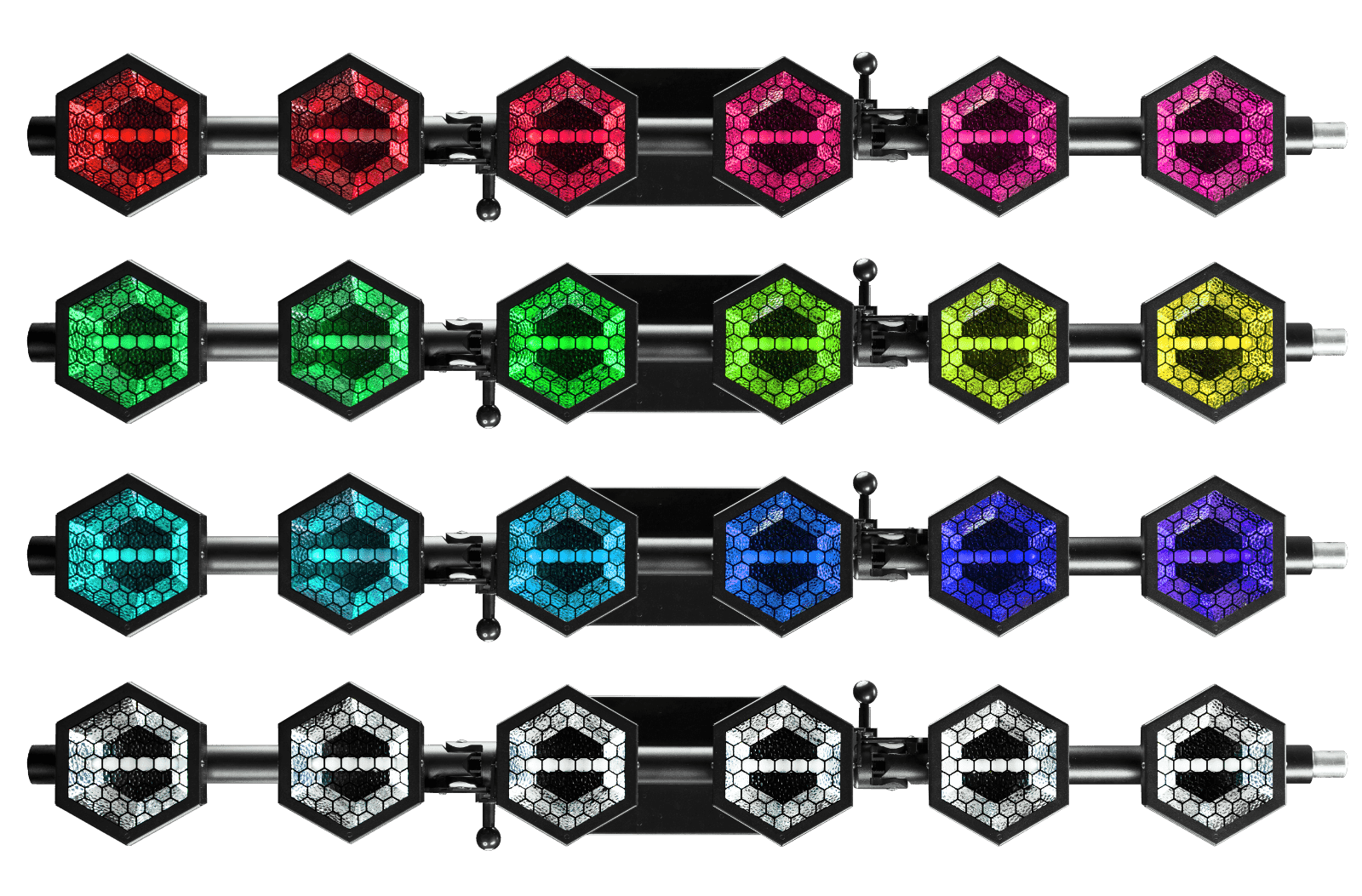

Portman P2 EVO — RGBW colour mode

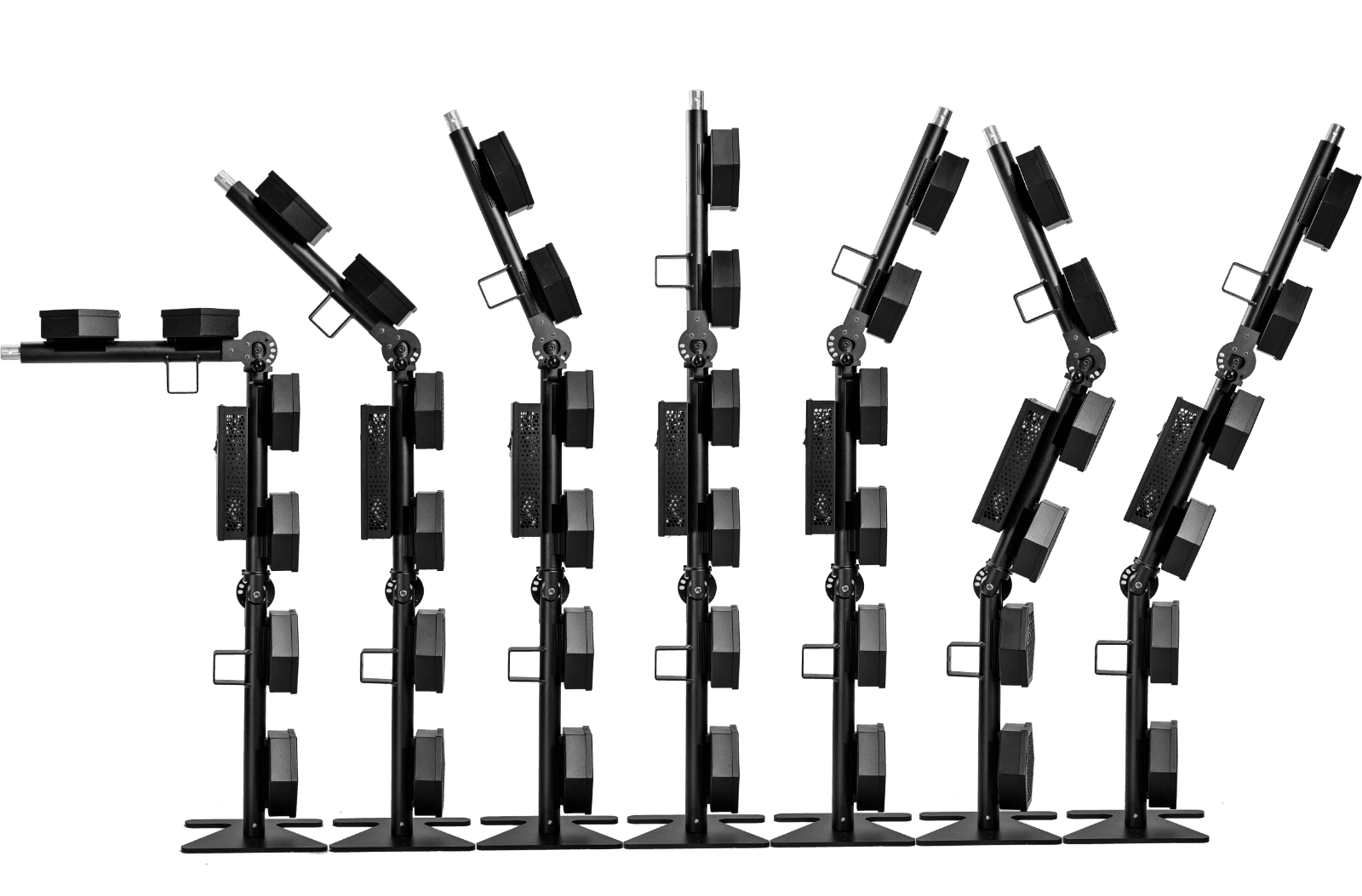

Portman P2 EVO — bent / hinged construction

Applications

ArchitecturalConcertFestivalsLive eventsStage designTouring

Features

  • Linear, bendable decorative blinder for architectural and structural stage designs
  • 6× portman haloLED (60 W) with true tungsten emulation (1,600–3,200 K)
  • 6× 12 W RGBW glow for full colour
  • Two “P2 hinges” allow bendable construction and freedom of form
  • 16-bit dimming and colour mixing; Portman Flicker Free
  • Portman Colour Feedback System for consistent colour
  • Combine with the optional E-CONN 4-way connector to build larger structures

Specifications

Type

Linear bendable decorative blinder

Main source

6× 60 W haloLED dim-to-warm, 1,600–3,200 K

Colour source

6× 12 W RGBW glow

CRI

>90

Dimming

16-bit dimming and colour mixing

Optics

High-reflective hammered reflector + opal diffuser

Construction

Bendable, 2× P2 hinge

Control

6 DMX modes (12–67 ch) · DMX512/RDM · optional W-DMX

Connectors

powerCON TRUE1 (AC) · 5-pin XLR (DMX in/out)

Power

max 300 W; 100–240 V, 50/60 Hz

IP rating

IP20 (indoor)

Compatible accessory

E-CONN 4-way connector

Mounting

Any position; 2× 12 mm holes; hanging adaptor included

Dimensions

1,720 × 210 × 170 mm

Weight

12.5 kg
