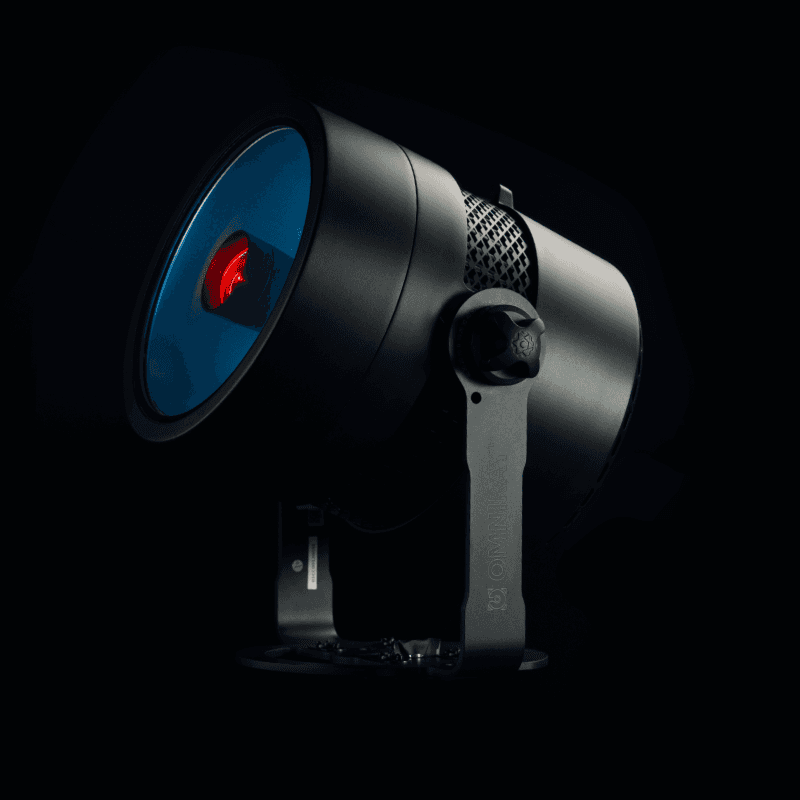

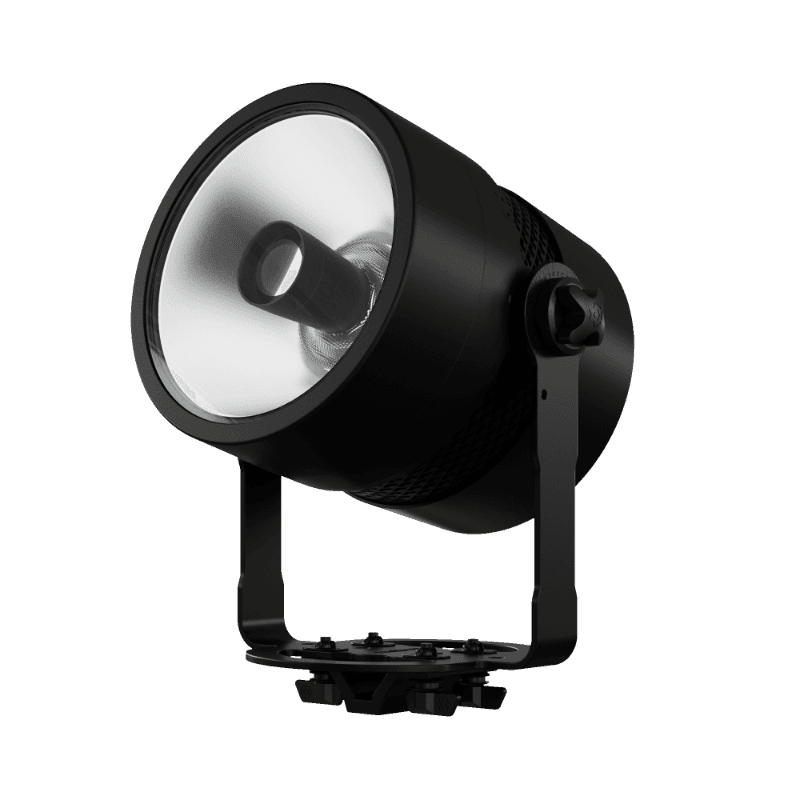

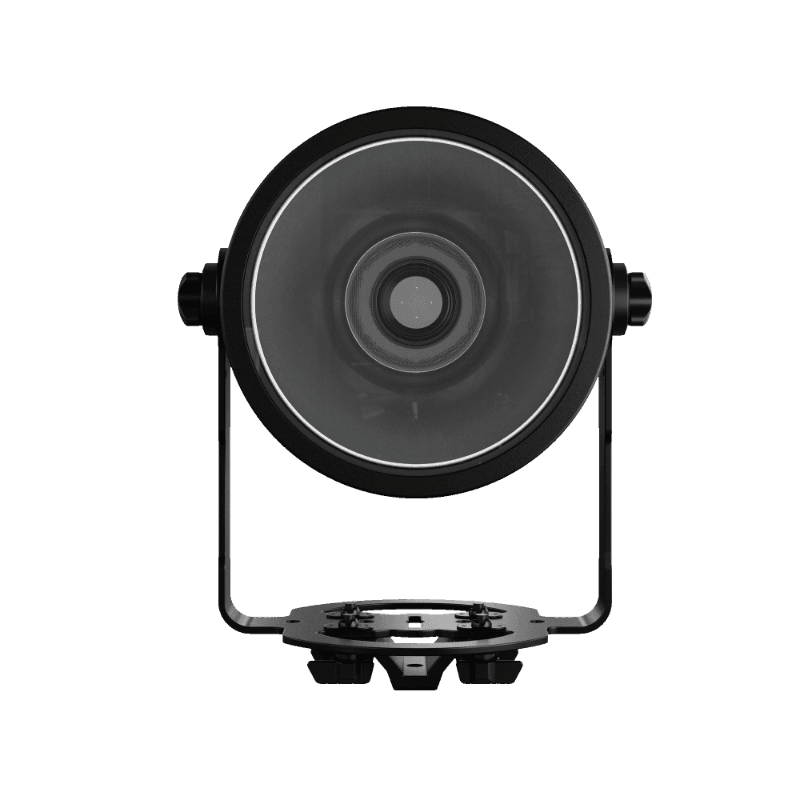

OMNIRAY
The world’s first hybrid utility fixture — par, blinder, narrow beam and eye-candy in one IP65 body.
Applications
Features
- Two light sources in one — 440 W RGBWLA wide source (85°, >95 CRI) plus a 40 W RGBW narrow beam (3.8°)
- IP65-rated for indoor and outdoor use
- Tungsten blinder emulation with smooth, flicker-free dimming and mid-air effects
- Range of magnetic lens overlays and accessories — diffusers, Fresnel and decorative covers
- Precision tilt system locks every 5°; large yoke plate with cam locks for fast, stable setup
- 16-bit dimming and colour mixing; 12.5 kHz refresh for on-camera use
- DMX and RDM control (8 modes, 8–28 channels); optional CRMX wireless
Specifications
Type
Hybrid utility fixture — par / blinder / narrow beam / eye-candy (IP65)
Wide source
440 W RGBWLA, 85° beam, >95 CRI
Narrow source
40 W RGBW, 3.8° beam, 6,000 K
Luminous flux
approx. 8,000 lm
CCT range
2,000–6,500 K (wide) · 6,000 K (narrow)
CRI
>95 (calibrated)
Dimming
16-bit; 12.5 kHz refresh (flicker-free)
Control
8 DMX modes (8–28 ch) · DMX/RDM · optional CRMX wireless
Connectors
powerCON TRUE1 (AC) · 5-pin XLR (DMX/RDM)
Power
max 450 W; 100–240 V, 50/60 Hz
IP rating
IP65
Cooling
Managed fan with silent mode
Mounting

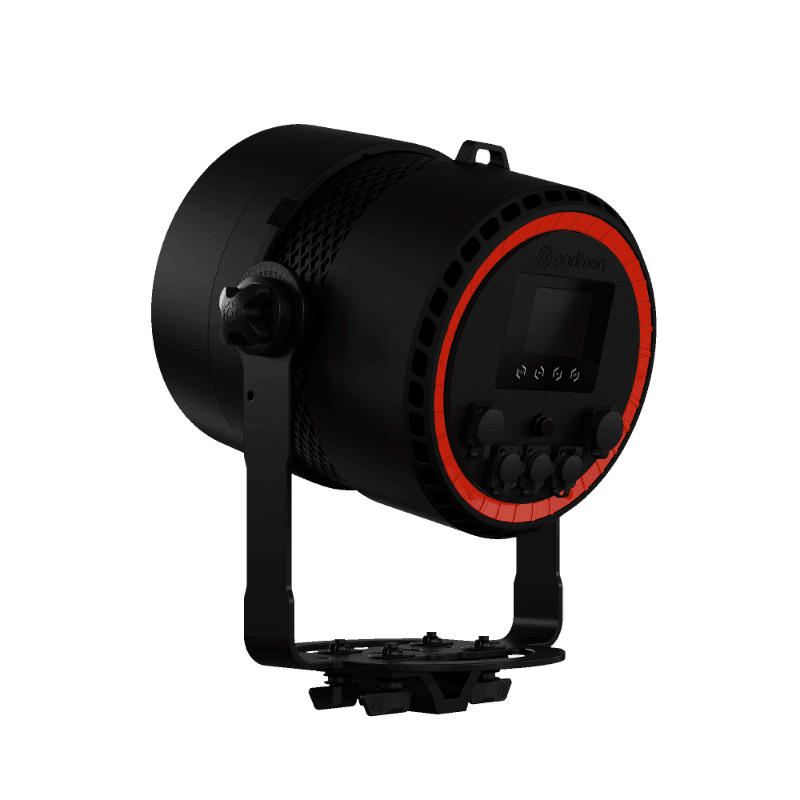

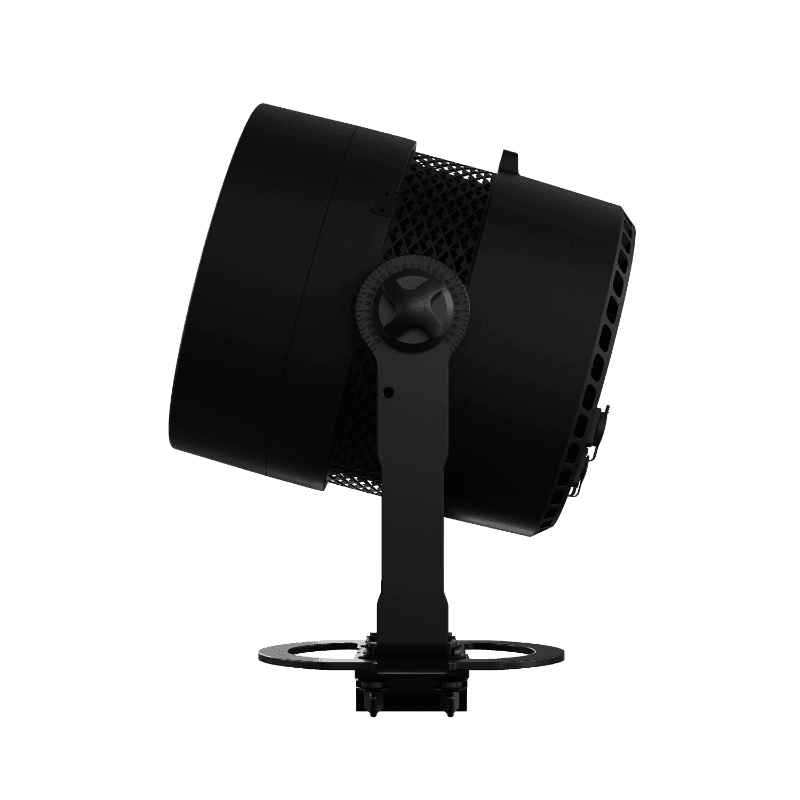

Big-plate yoke, omega brackets with quarter-turn locks; 5° tilt locking
Accessories
Magnetic lens overlays — diffusers, Fresnel, decorative covers
Weight
14 kg
