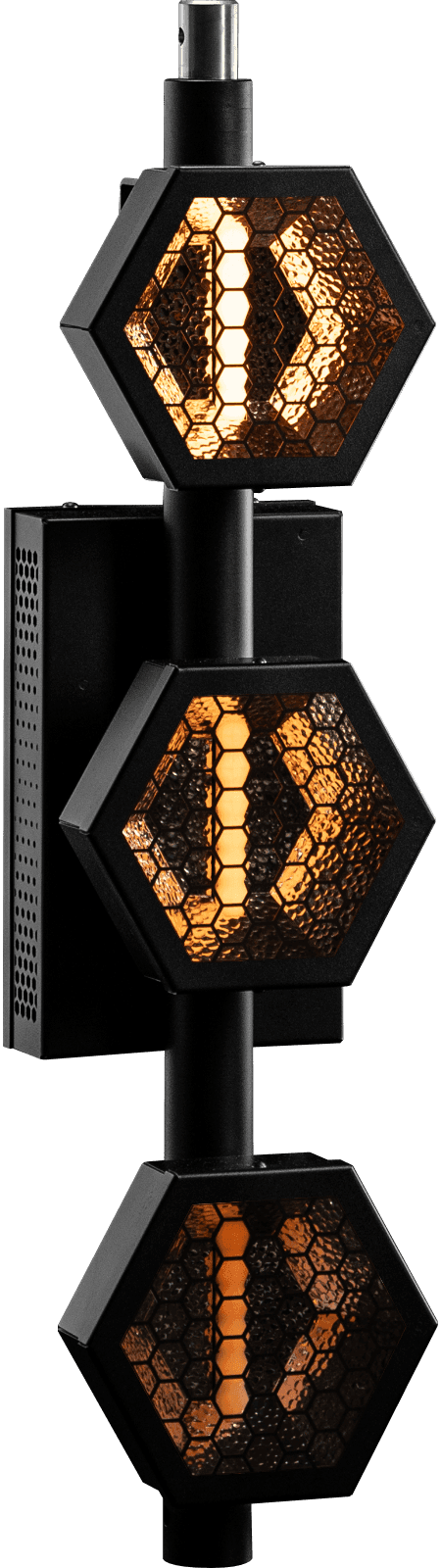

EVO ELEMENT
Modular, very strong blinder with LED tungsten emulation and RGBW glow.
Applications
ArchitecturalConcertFestivalsLive eventsStage designTouring
Features
- Super-modular blinder element for building custom structures
- 3× portman haloLED (60 W) with true tungsten emulation (1,600–3,200 K)

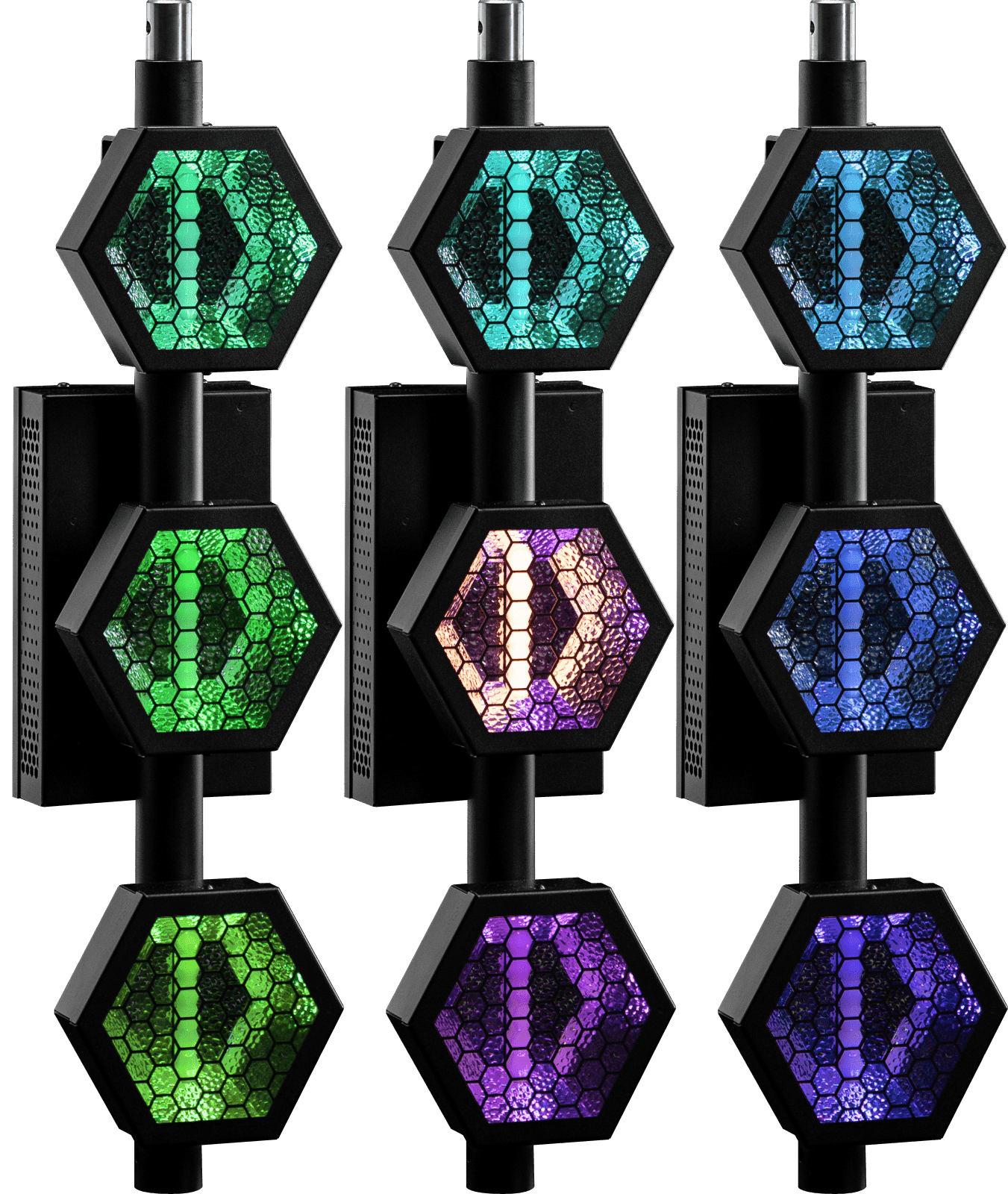

- 3× 12 W RGBW glow for full colour
- 16-bit colour mixing; Portman Flicker Free
- Portman Colour Feedback System for consistent colour

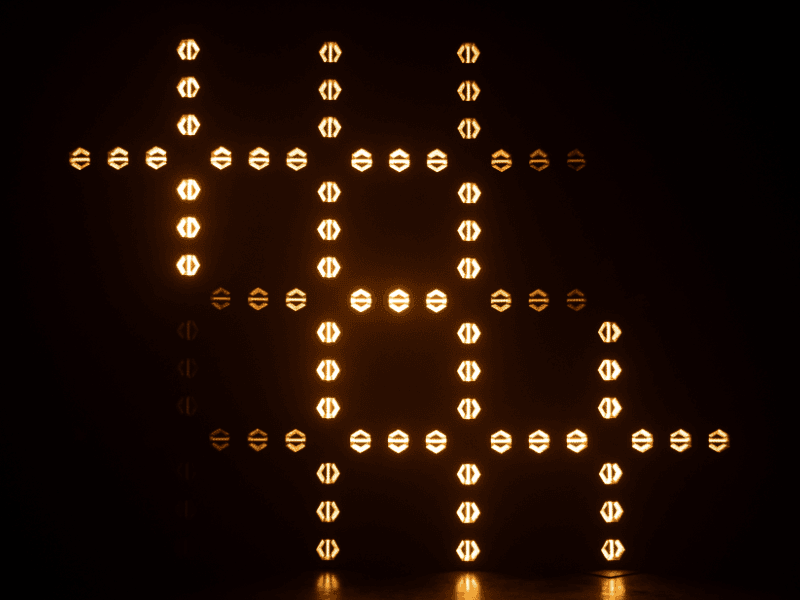

- Combine with the E-CONN 4-way connector for endless structures
- Compact and light (5.2 kg) for fast rigging
Specifications
Type
Modular decorative blinder element
Main source
3× 60 W haloLED dim-to-warm, 1,600–3,200 K
Colour source
3× 12 W RGBW glow
CRI
>90
Dimming
16-bit colour mixing
Optics
High-reflective hammered reflector + opal diffuser
Control
6 DMX modes (9–39 ch) · DMX/RDM · optional W-DMX
Connectors
powerCON TRUE1 (AC) · 5-pin XLR (DMX in/out)
Power
max 240 W; 100–240 V, 50/60 Hz
IP rating
IP20 (indoor)
Compatible accessory
E-CONN 4-way connector
Mounting
Any position; 2× 12 mm holes; hanging adaptor included
Dimensions
866 × 205 × 189 mm
Weight
5.2 kg
