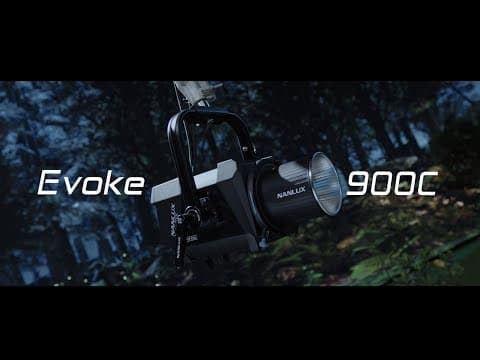

Evoke 900C

Full-color LED Spotlight

Features

  • Full‑color LED spotlight equipped with RGBLAC six‑color mixing system
  • Ultra‑high Brightness Output — 12,940 lux @ 3m (5600K, 45° reflector), rated output 940W
  • Ultra‑wide CCT Range — 1800K–20000K with G/M ±200 adjustment
  • Excellent colour rendition with both CRI/TLCI rated at 96, TM-30 Rf Avg.94, TM-30 Rg Avg.100, SSI (5600K) :73, SSI (3200K): 81
  • Intuitive operation with 3.5 inch full-color screen, 4-buttons and 3-knobs UI design
  • Comprehensive Wired & Wireless Control — On‑board, Remote Controller, NANLINK APP, Wired Controller, DMX/RDM, LumenRadio CRMX, Art‑Net/sACN
  • More Color Modes — Advanced HSI, RGBW, XY Coordinate, and GEL mode
  • IP55 Weather Resistant — Sturdy build quality; fixture and power supply both IP55 rated
  • Fully Dimmable Lighting — 0–100% with ultra‑precise 0.1% increments
  • Built‑in Effects — 15 customizable practical effects

Specifications

Rated Power

940W

Input Voltage/Current

DC48V/18.75A Max, AC100-240V 50/60Hz

CCT

1800K-20000K(G/M±200)

CRI

Average 96

TLCI

Average 96

TM-30Rf

Average 94

TM-30Rg

Average 100

SSI（3200K）

81

SSI（5600K）

73

Dimming

0-100%, 0.1% increment

IP Rating

IP55

Control

On-board, Remote Control, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN

Effect

HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/File, Disco, Bad Bulb, Firework, Explosion and Welding

Product Size

Light Fixture(without COB protective cap)：330 × 241 × 210mm / 13.0 × 9.5 × 8.3" Power Supply：146 × 125 × 344mm / 5.7 × 4.9 × 13.5"

Product Weight

Light Fixture：7.7kg / 16.98lb Yoke：1.84kg / 4.06lb Power Supply：4.5kg /9.92lb RF-NLM-45 Reflector：0.62kg / 1.37lb DC Connection Cable 7.5M：2.62kg /4.98lb AC Power Cable 6M：0.88kg / 1.94lb

Certifications

CE, UKCA, RoHS, IP55, PSE, FCC-ID, KCC, BIS, ETL, cETL, NCC

Package Contents

1x Evoke 900C 1x Yoke 1x Power Supply 1x RF-NLM-45 Reflector 1x DC Connection Cable 7.5M 1x AC Power Cable 6M 1x AS-CP-QR-EV Quick Release Clamp 1x USB Flash Drive 1x WS-RC-C2 Remote Controller 1x User Manual 1x CC-ST-EV900C Trolley Case
