VDO Sceptron XB

IP65 high-output RGBW pixel-batten — more than triple the output of VDO Sceptron 10.

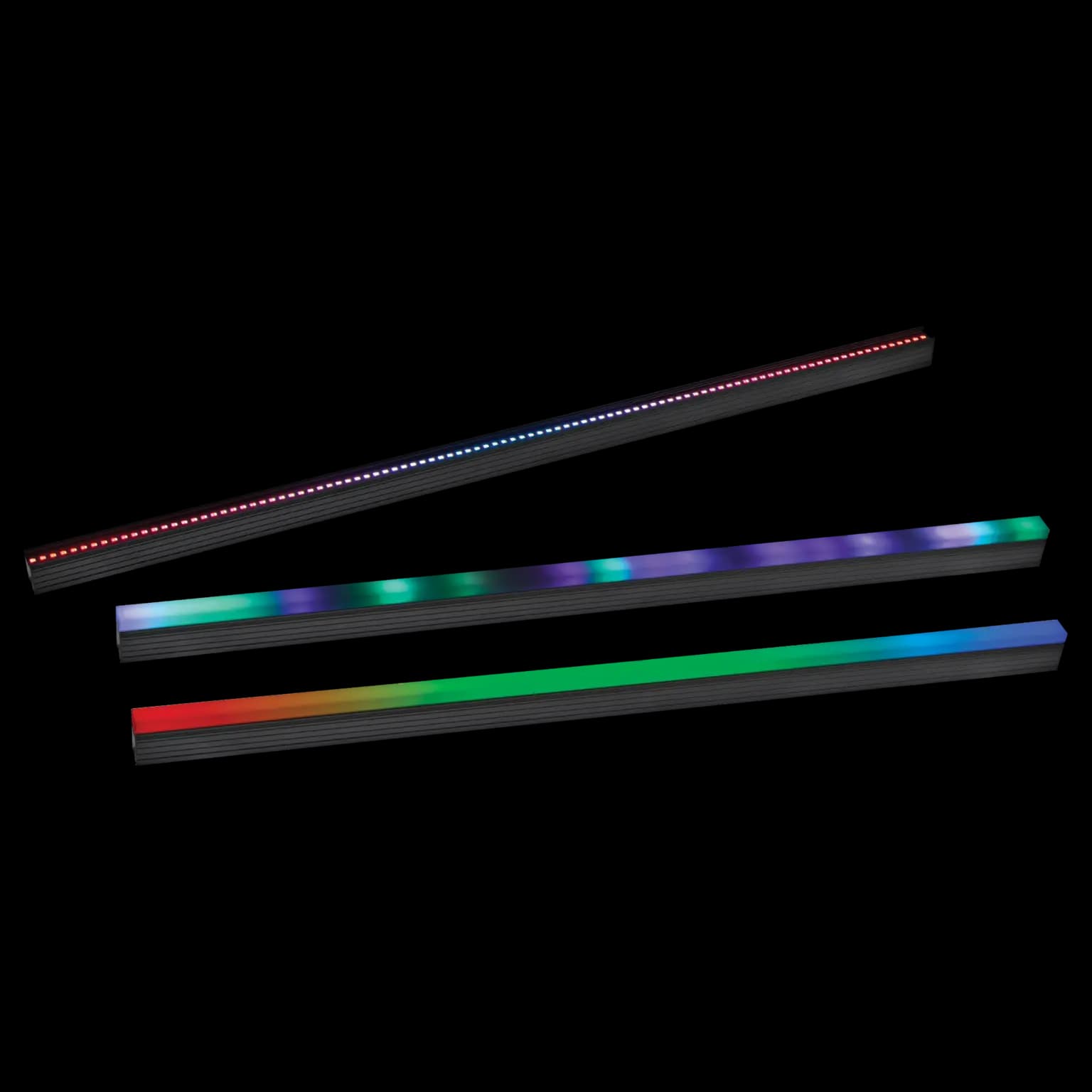

Martin VDO Sceptron XB IP65 RGBW pixel-batten — studio view

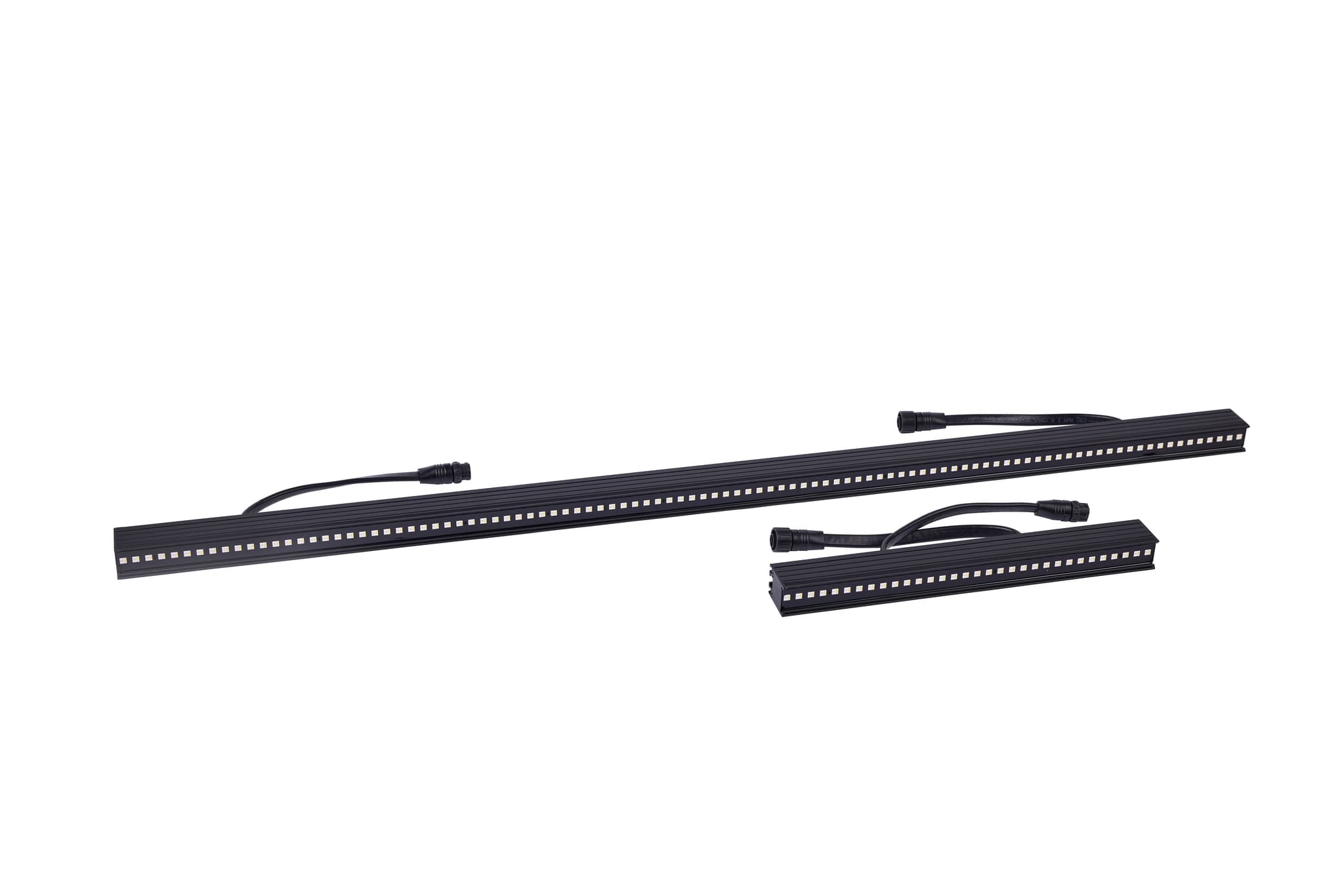

Martin VDO Sceptron XB — the length range

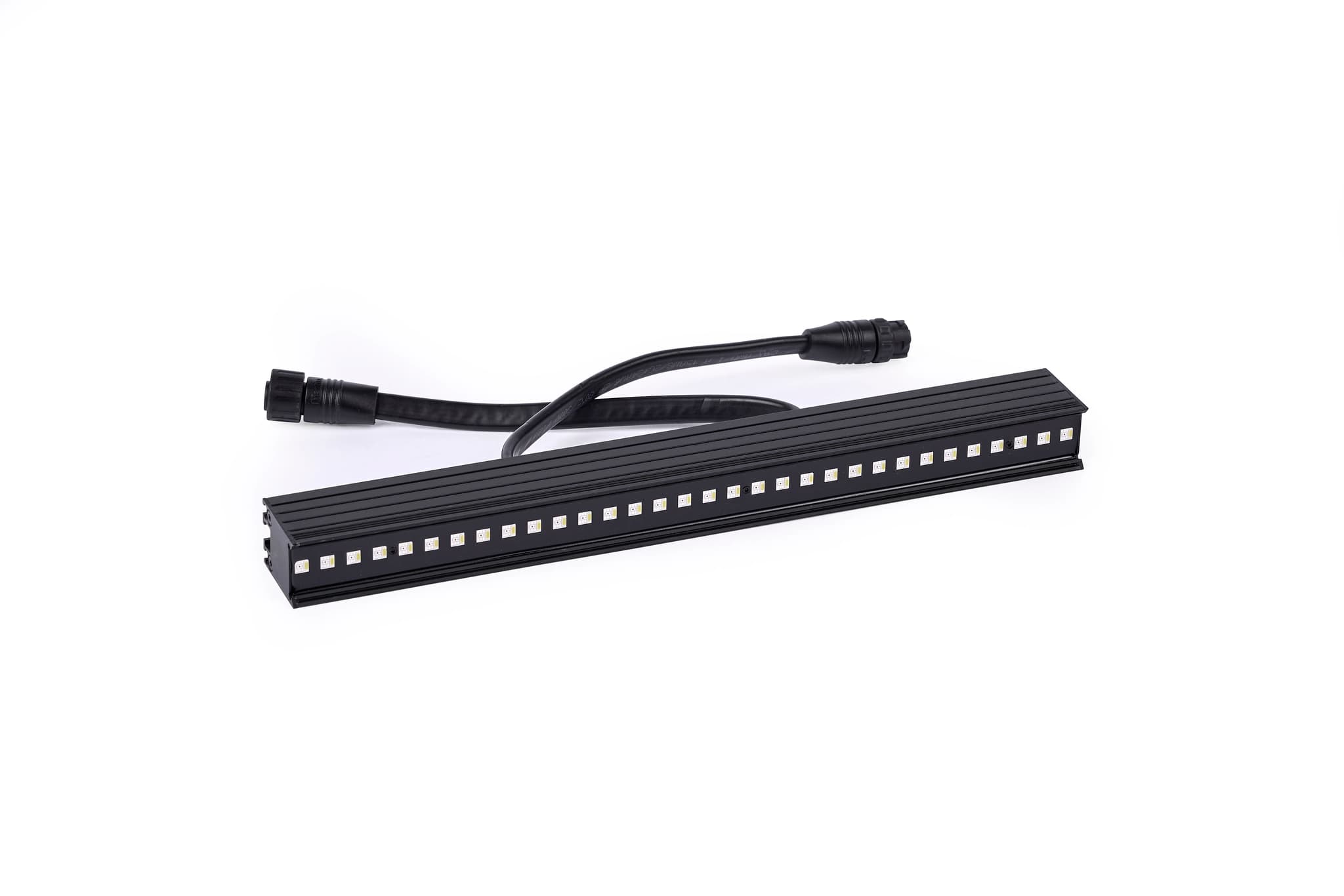

Martin VDO Sceptron XB — 320 mm variant

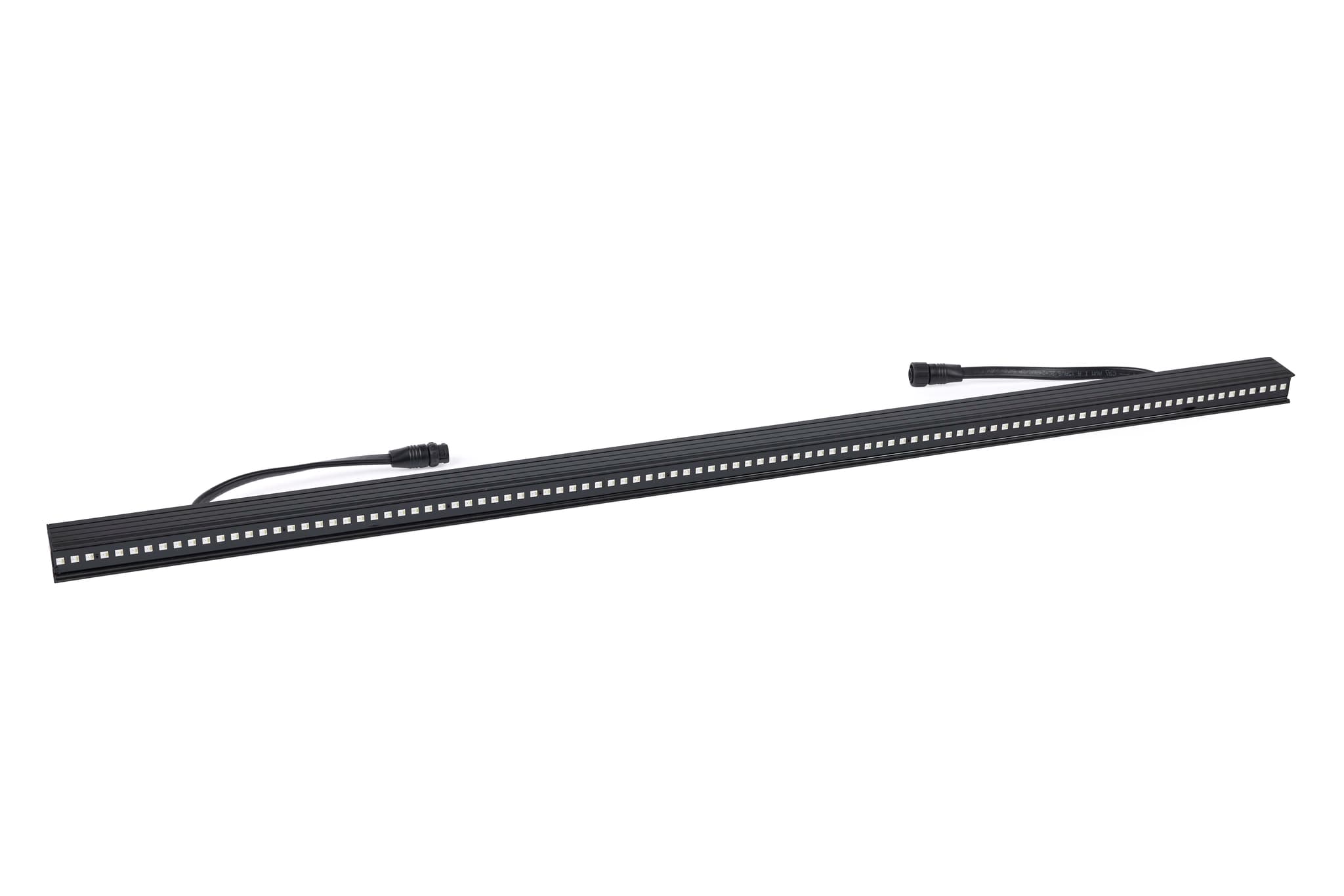

Martin VDO Sceptron XB — 1000 mm variant
Martin VDO Sceptron XB grazing a wall with the graze lens

Applications

ArchitecturalLED wallsLive eventsOutdoor / InstallStage designTheme parks

Features

  • More than triples the output of VDO Sceptron 10 — a true lighting fixture
  • RGBW pixels with Color Boost Technology (3–7× brighter colours)
  • Triple control: Art-Net/sACN lighting, Martin P3 video, or both via P3 Mix
  • Full Gamut Pixel Calibration for pixel-to-pixel and fixture-to-fixture consistency
  • IP65-rated for temporary outdoor use; fanless convection cooling
  • Wide range of clip-on optical accessories (diffusers, graze/blade lenses, glare shields)
  • Compact and light; available in 320 mm and 1000 mm lengths

Specifications

Light source

RGBW LED per pixel (10 mm pitch)

Pixels

32 (320 mm) / 100 (1000 mm)

Light output

up to ~2,300 lm/m (mixed white)

Colour temperature

Variable 1,800–12,850 K (±200 K) CTC

CRI

≥78

Calibration

Full Gamut Pixel Calibration; Color Boost Technology

Optical accessories

Flat/round/square/tube diffusers, graze + blade lenses, glare shield

Control

Art-Net · sACN · RDM over Art-Net · Martin P3 · P3 Mix

Power

48 V DC (P3 PowerPort / DCE PSU); DCE hybrid connector

Cooling

Convection (fanless); −20 °C to +50 °C

Ingress protection

IP65 (temporary outdoor)

Dimensions

320 or 1000 × 27 × 37 mm

Weight

0.6 kg (320 mm) / 1.6 kg (1000 mm)
