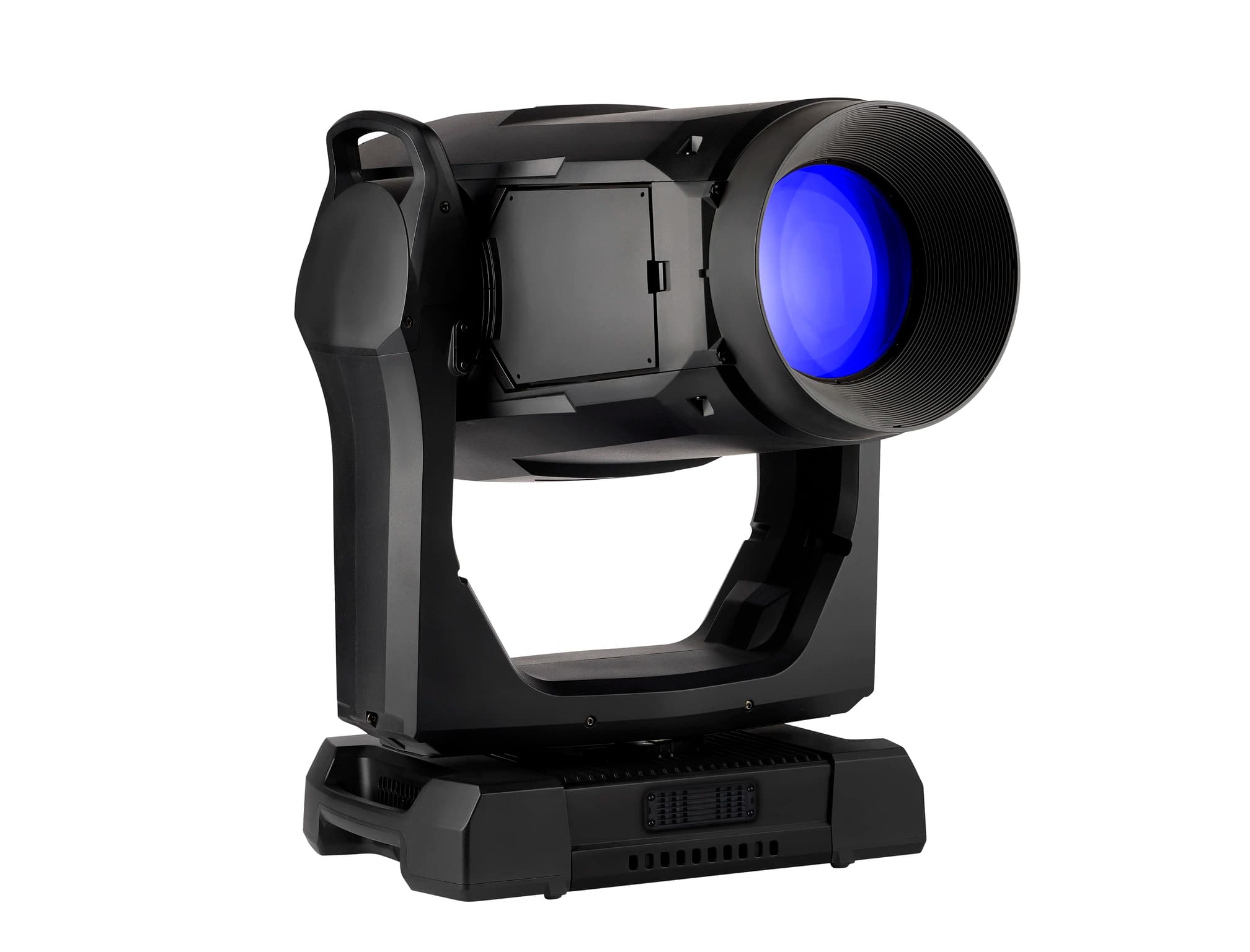

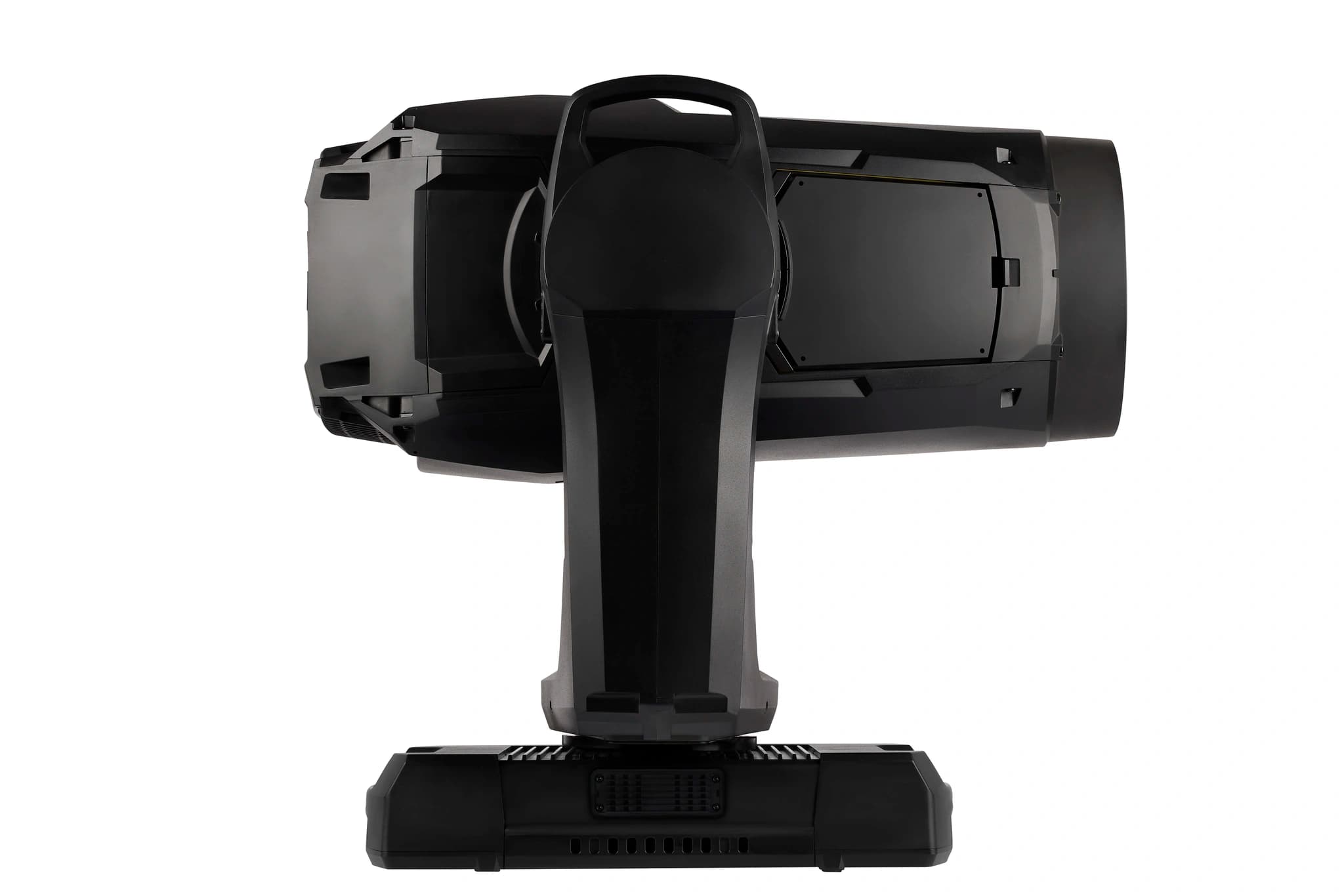

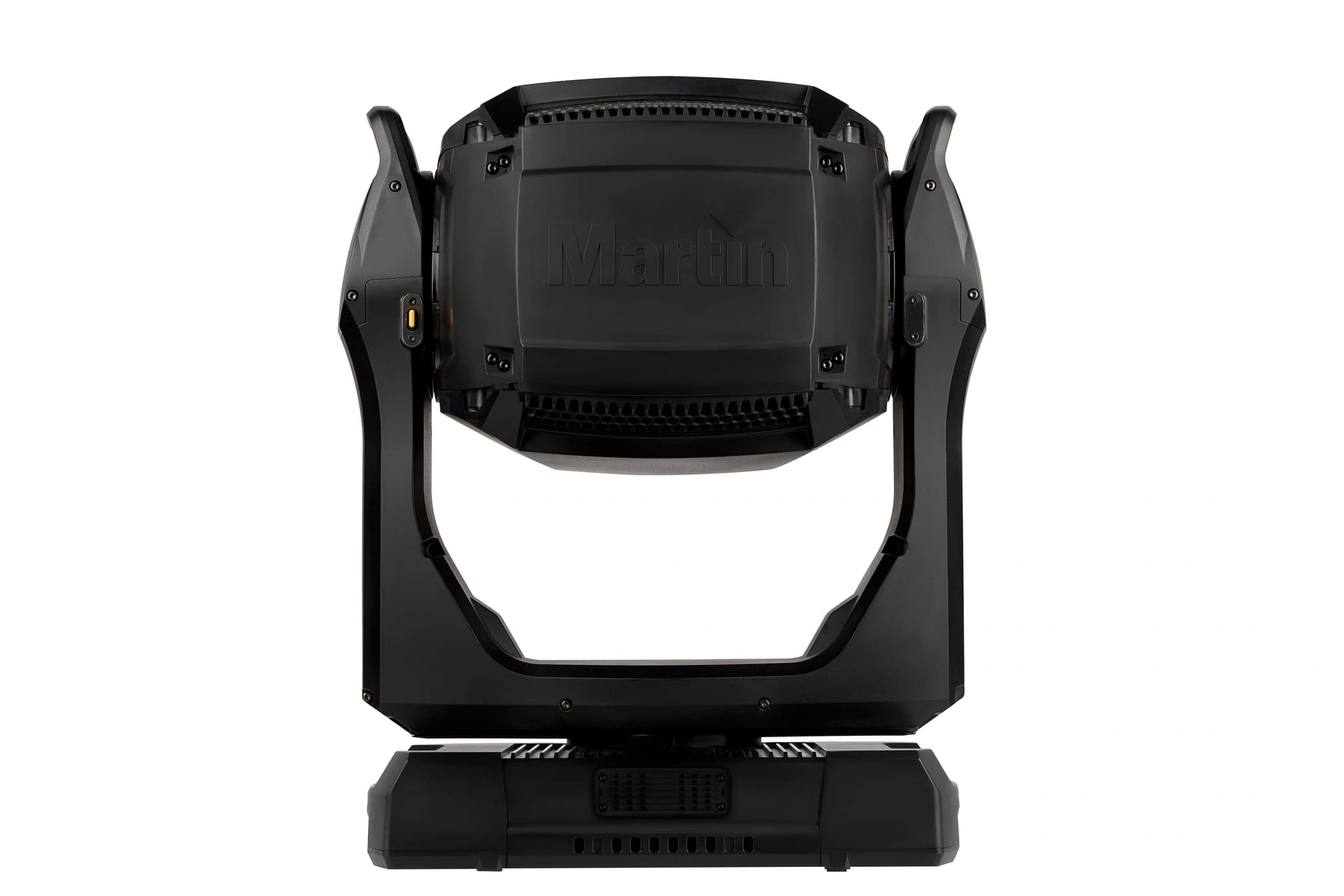

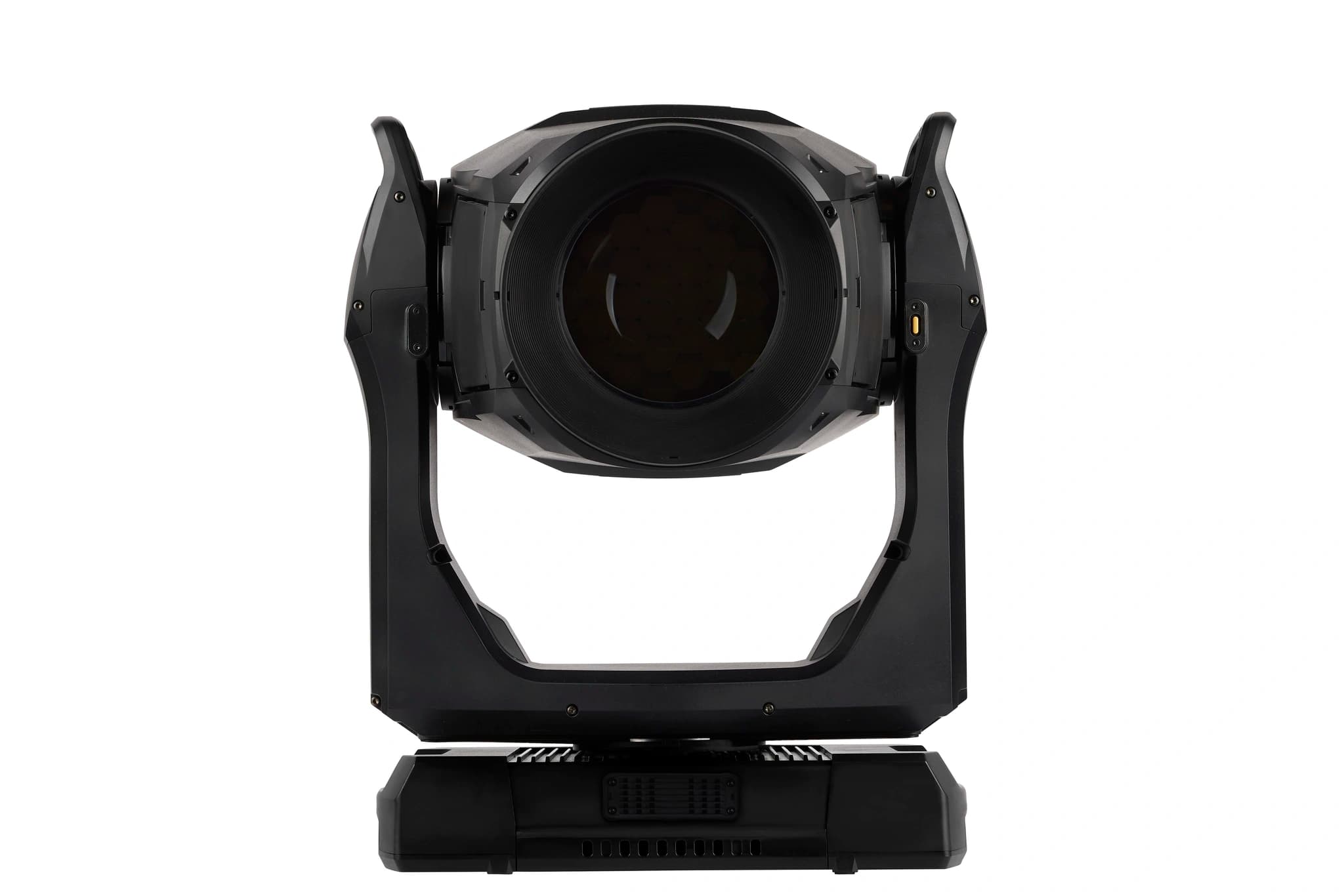

MAC Viper XIP

Outdoor-rated next-generation profile — 28,000 lm from a 760 W engine, XIP weatherproof.

Applications

Patent-pending XIP smart weatherproofing (IP54) for temporary year-round outdoor use
Viper-class 28,000 lm output with low-noise, indoor-grade running
Industry-leading lumen maintenance across the full 1:9 zoom
High-contrast optics with razor-sharp mid-air effects and gobo framing
Gobo light-recycling that boosts output by up to 25%
NFC smartphone setup and a wireless-DMX-ready Universal Connect Module slot
Extended Framing, two rotating gobo wheels, animation wheel, prism, iris and dual frost

Light source

760 W LED engine (55 × 20 W white LEDs)

Light output

28,000 lm

Colour temperature

5,800 K (±250 K); virtual CTC 2,000–12,850 K

CRI

Up to 90 (with Spectral Enhancement Filter)

Zoom

5.7°–51° (1:9); Ø 150 mm front lens

Colour

CMY + virtual CTC, green/magenta shift, 5-filter colour wheel

Gobos

2 rotating gobo wheels (7 each); animation wheel

Effects

4-facet prism, iris, light + heavy frost

Framing

Extended Framing, 4 blades, ±83° rotation

Movement

Pan 540° / tilt 268°

Control

DMX · RDM · Art-Net · sACN · Martin P3 · NFC; wireless-DMX ready

Power

100–240 V; powerCON TRUE1 TOP / etherCON TOP

Ingress protection

IP54 (XIP, temporary outdoor)

Weight

36.8 kg
