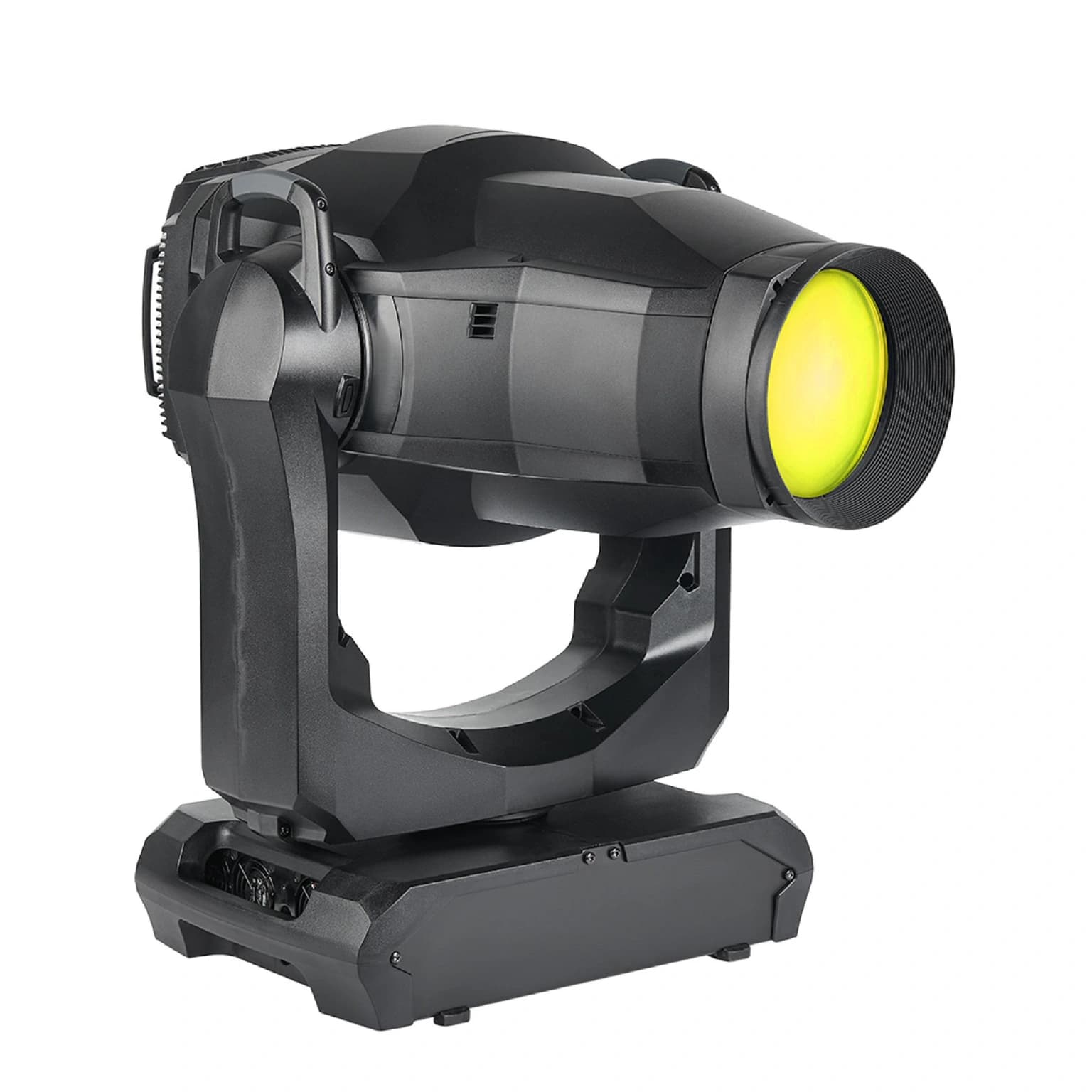

MAC Ultra Performance
High-output 1,150 W LED profile moving head — 46,500 lm with next-gen Extended Framing.
Applications
ConcertLarge venuesLive eventsStage designTouringTV / Broadcast
Features
- 46,500 lm projection output sustained across the full 1:7 zoom
- All-new proprietary 6,000 K engine of 84 × 20 W white LEDs, 50,000+ hour life
- Next-generation Extended Framing with full-curtain shutter angling
- High-definition optics with auto-tracking focus and a flat field
- Two rotating gobo wheels, full-function animation wheel, prism, iris and frost
- Ultra-quiet cooling down to 32 dB(A) for broadcast and theatre
- Full Martin P3 video-mapping plus Art-Net / sACN networking
Specifications
Light source
1,150 W LED engine (84 × 20 W white LEDs)
Light output
46,500 lm
Colour temperature
6,000 K (±250 K); variable CTC 6,000–2,850 K
CRI
Up to 90 (with Spectral Enhancement Filter)
Zoom
7.7°–53° (1:7); Ø 160 mm front lens
Colour
CMY + variable CTO, 6-filter colour wheel
Gobos
2 rotating gobo wheels; animation wheel
Effects
4-facet prism, iris, frost
Framing
Extended Framing, 4 blades, ±83° rotation
Movement
Pan 540° / tilt 268°
Control
DMX · RDM · Art-Net · sACN · Martin P3 (48 ch)
Power
200–240 V; Neutrik powerCON TRUE1
Ingress protection
IP20
Dimensions
660 × 520 × 876 mm (max)
Weight
44.0 kg
