MAC Aura XIP

Outdoor-rated wash with the signature aura backlight — 6,000 lm, IP54 weatherproof.

Applications

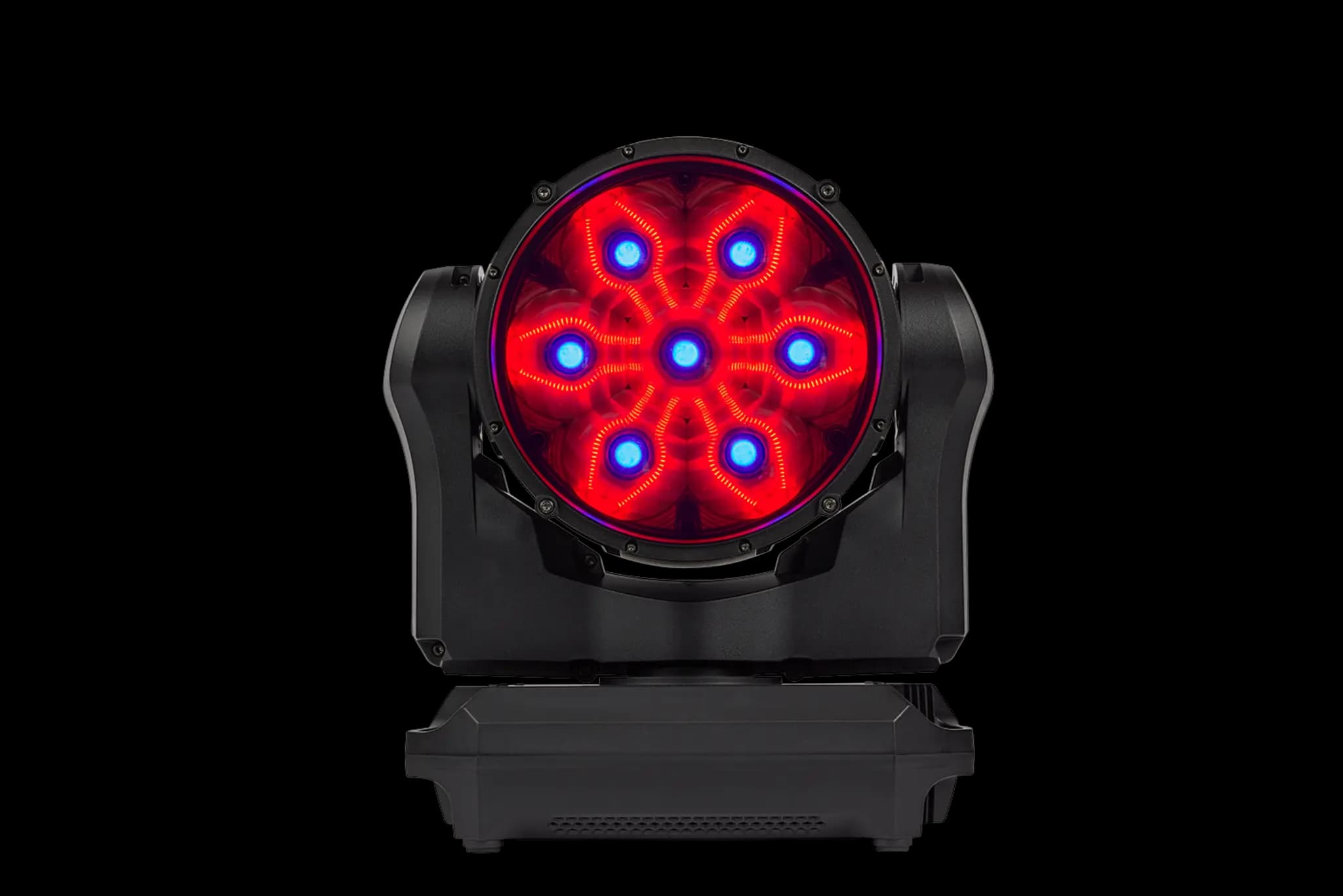

Signature pixel-mapped aura backlight around a 7-LED RGBW beam engine
First wash in its class rated for outdoor use (IP54), with little size or weight penalty
Individual pixel control of beam and aura, plus Martin P3 video-mapping
Wide colour-temperature range with green/magenta tint control
Flicker-free for broadcast; whisper-quiet down to 25.2 dB(A)
More than 200 built-in FX macros with foreground/background colour, speed and direction
DMX · RDM · Art-Net · sACN · Martin P3 with fail-safe Ethernet bypass

Beam source

7 × 60 W RGBW LEDs (pixel-mapped)

Aura source

234 RGB LEDs (pixel-mapped backlight)

Light output

6,000 lm

Colour temperature

Variable 1,000–12,850 K (CTC)

CRI

≥71

Zoom

6°–50° motorised

Colour

RGBW; green/magenta tint; 48-preset virtual colour wheel

Movement

Pan 540° / tilt 220°

Control

DMX · RDM · Art-Net · sACN · Martin P3

Power

100–240 V; powerCON TRUE1 TOP

Acoustic

25.2 dB(A) ultra-low fan

Ingress protection

IP54 (XIP, indoor or temporary outdoor)

Weight

8.5 kg
