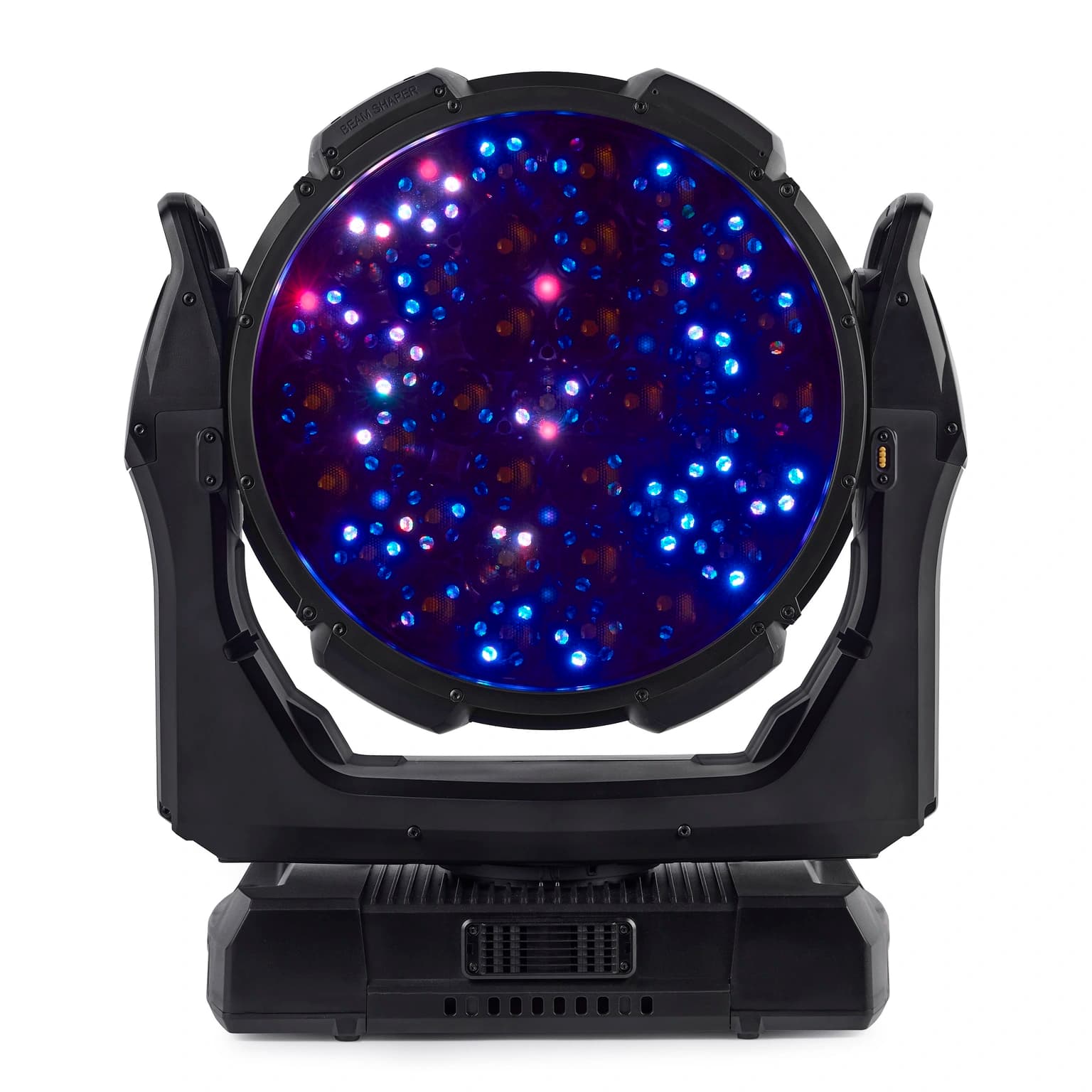

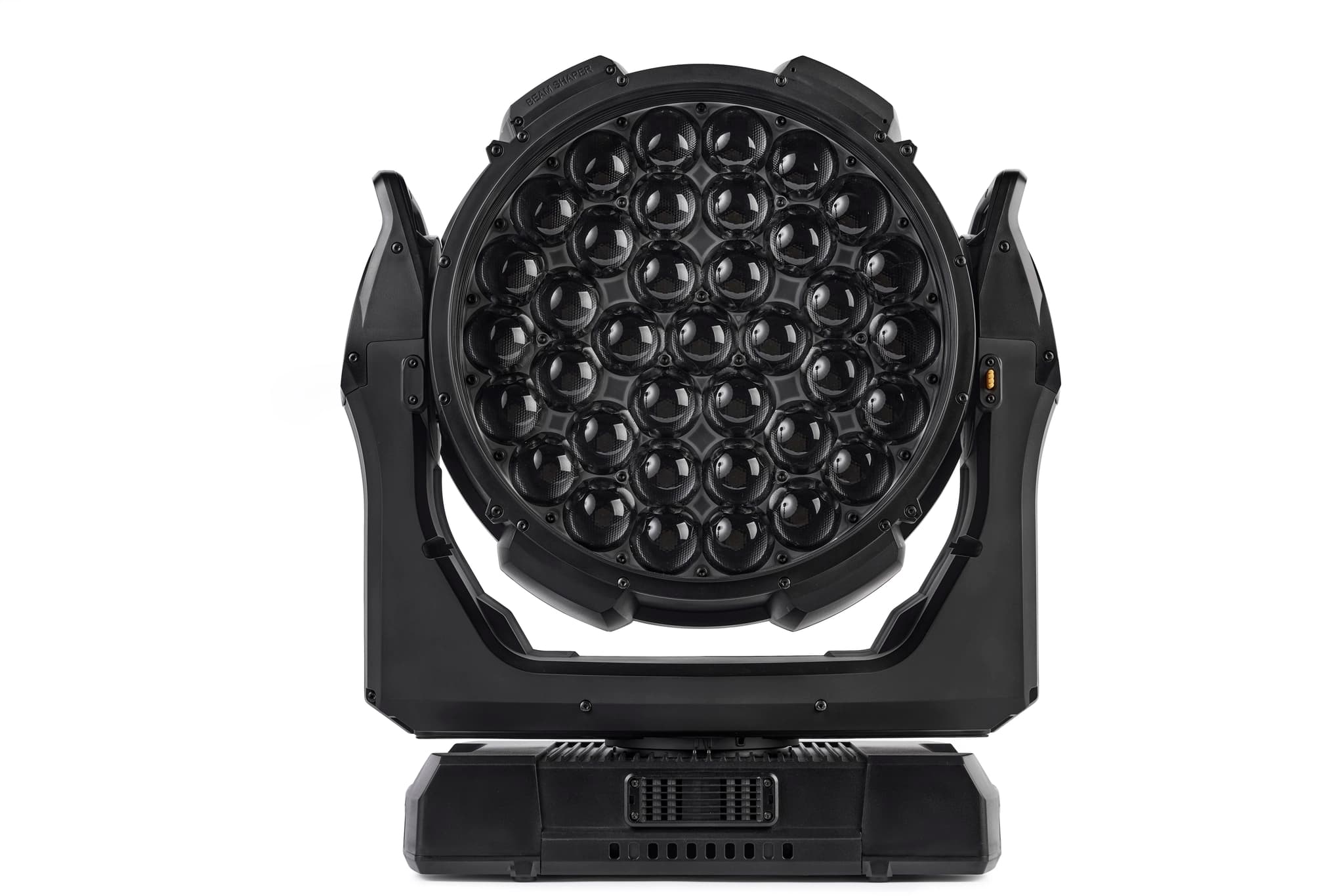

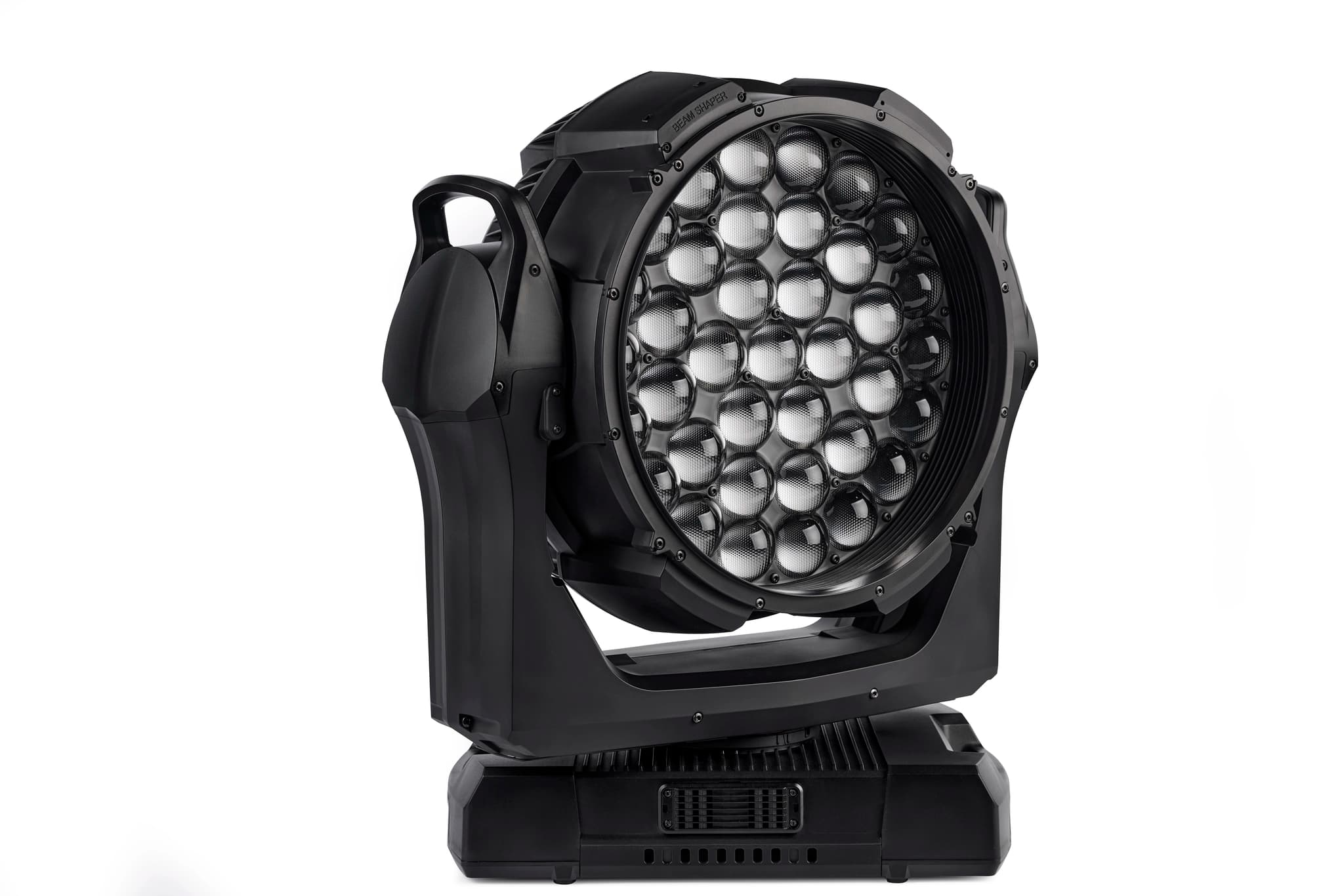

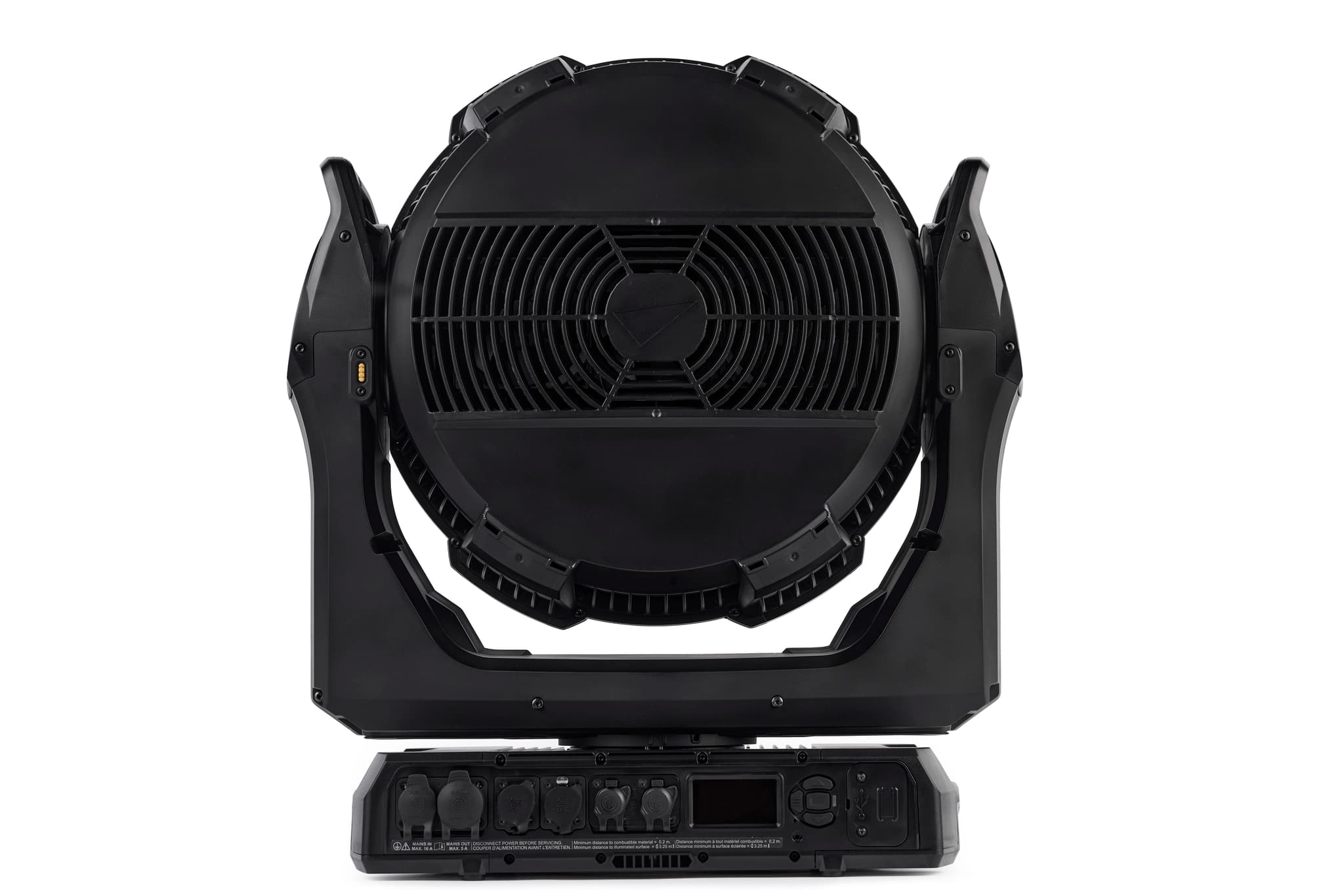

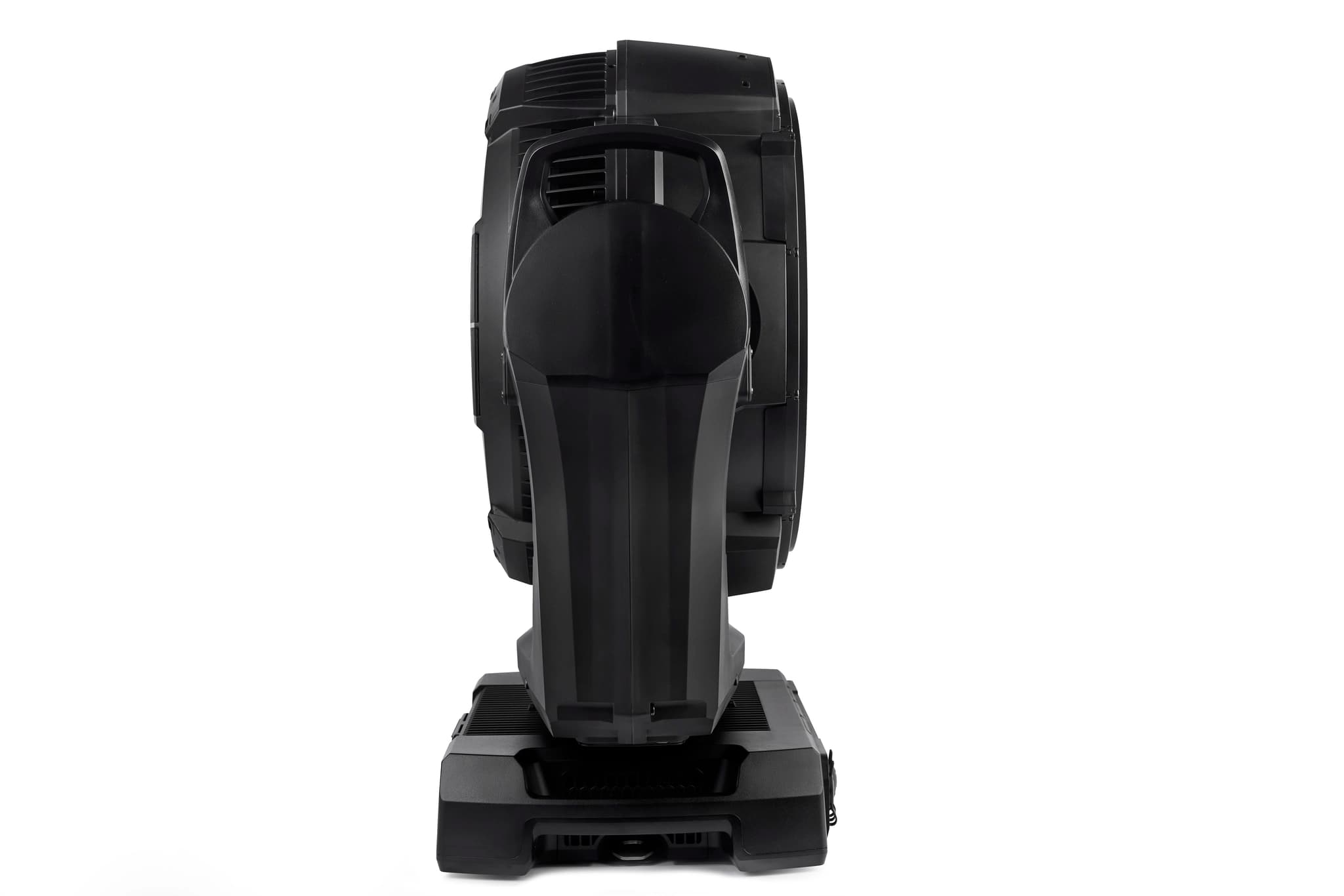

MAC Aura Raven XIP
The biggest, brightest Aura — 24,000 lm RGBL wash with a 343 mm pixelated aura backdrop, IP54.
Applications
ConcertFestivalsLive eventsOutdoor / InstallStage designTouring
Features
- 24,000 lm RGBL (red/green/blue/lime) engine for the widest spectrum and superior skin tones
- Massive 343 mm front lens with a 234-LED pixelated aura backlight and dark-lens contrast
- XIP smart weatherproof (IP54) for indoor and temporary-outdoor use
- Fast, near-silent belt-driven zoom (6°–50°)
- Full pixel control of beam and aura LEDs, plus Martin P3 video-mapping
- Universal Connect Module slot, NFC and Companion-app setup, and yoke handles
- DMX · RDM · Art-Net · sACN · Martin P3 control
Specifications
Beam source
37 × 40 W RGBL LEDs (pixel-controlled)
Aura source
234 × 0.25 W RGB LEDs (pixel-controlled backlight)
Light output
24,000 lm
Colour temperature
Variable 2,000–12,850 K (±200 K) CTC
CRI
>75
Zoom
6°–50° motorised (belt-driven); Ø 343 mm front lens
Colour
RGBL beam / RGB aura; 48-preset virtual colour wheel
Movement
Pan 540° / tilt 250° (16-bit)
Control
DMX · RDM · Art-Net · sACN · Martin P3
Power
100–240 V; powerCON TRUE1 TOP in/thru
Ingress protection
IP54 (XIP, indoor or temporary outdoor)
Weight
28.8 kg
