ERA 700 Performance IP

Weatherproof 680 W LED profile moving head — 20,000 lm with full-curtain framing, IP65+.

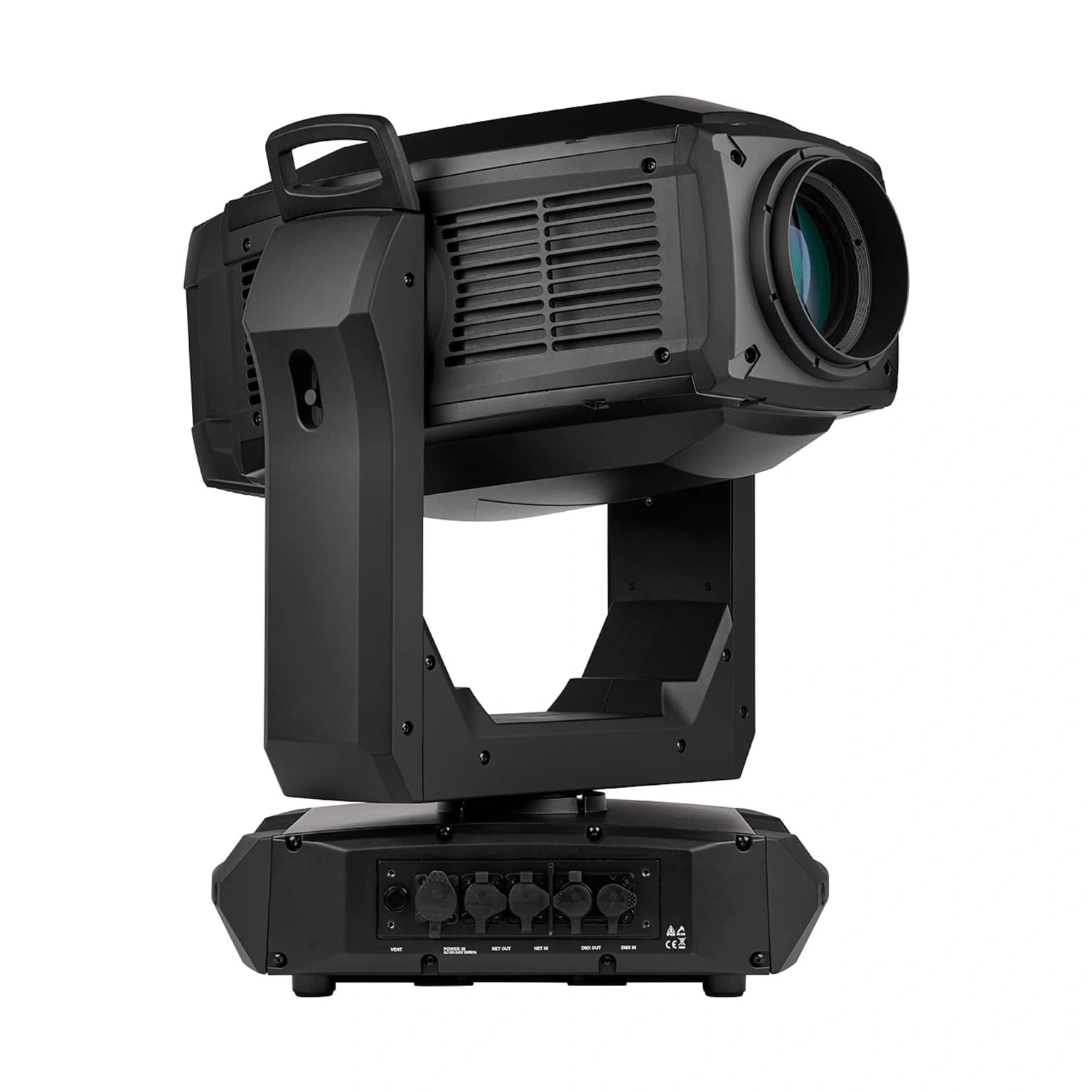

Martin ERA 700 Performance IP weatherproof LED profile moving head — three-quarter studio view

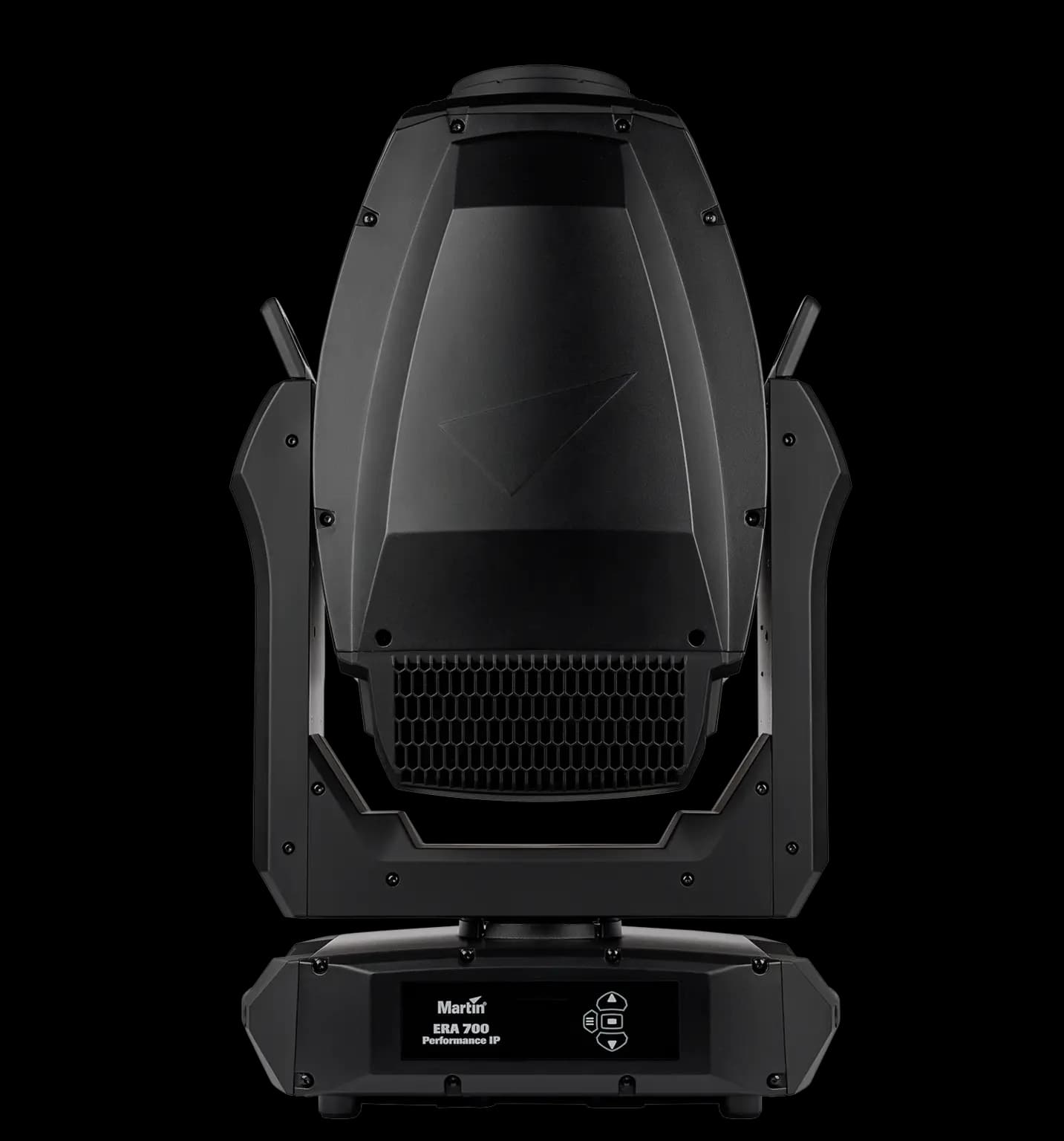

Martin ERA 700 Performance IP — front view

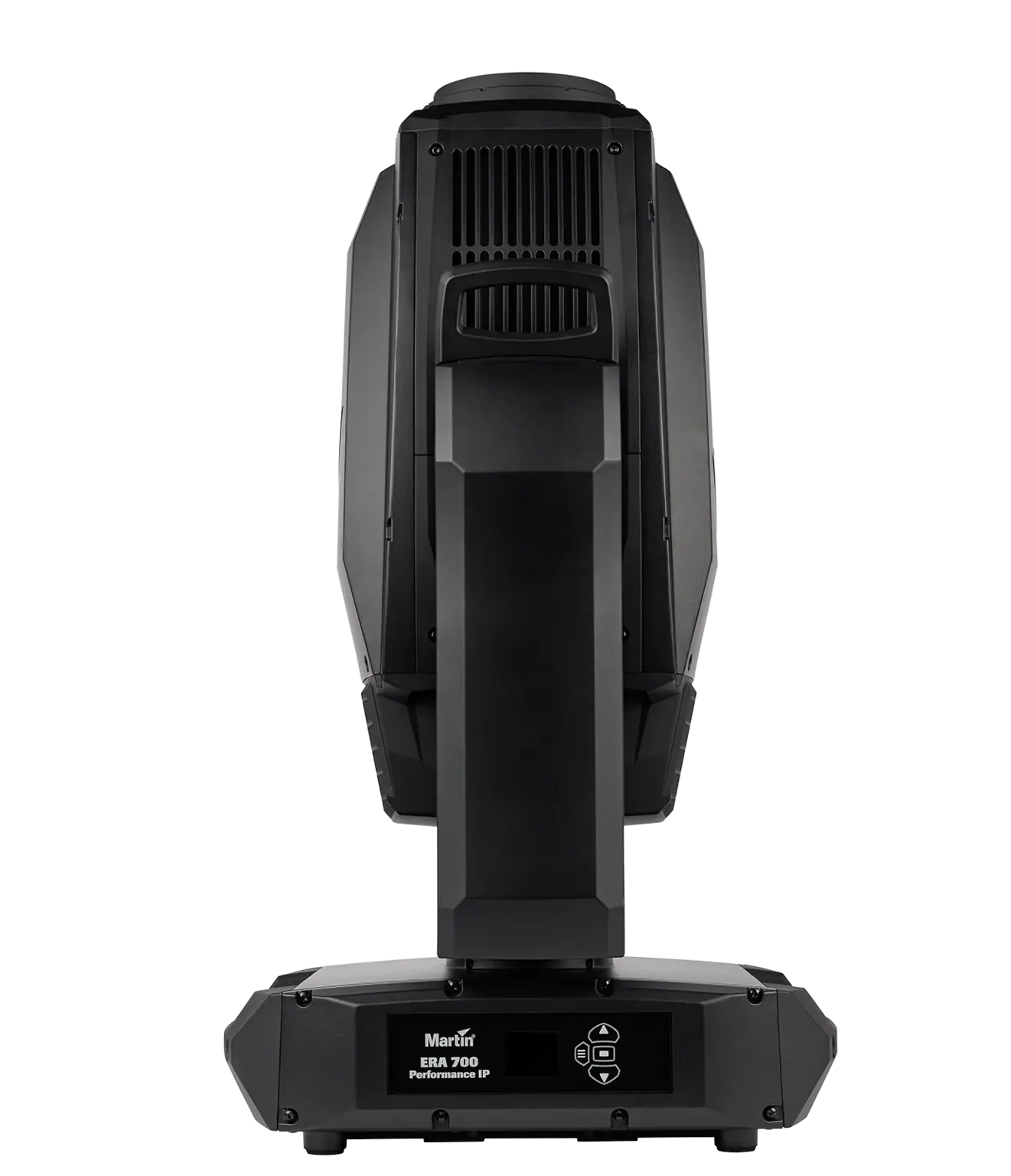

Martin ERA 700 Performance IP — alternate angle

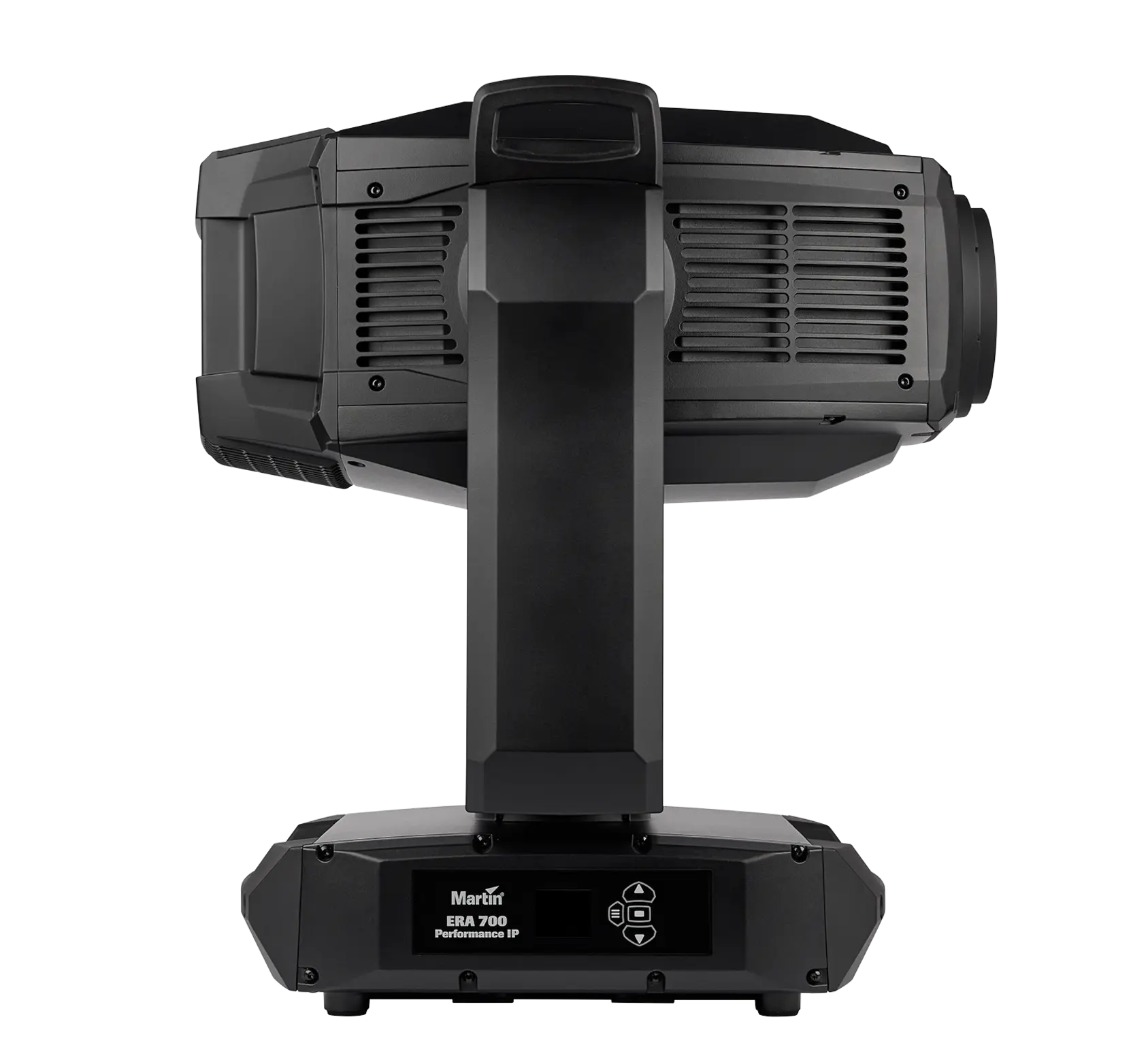

Martin ERA 700 Performance IP — rear and connections

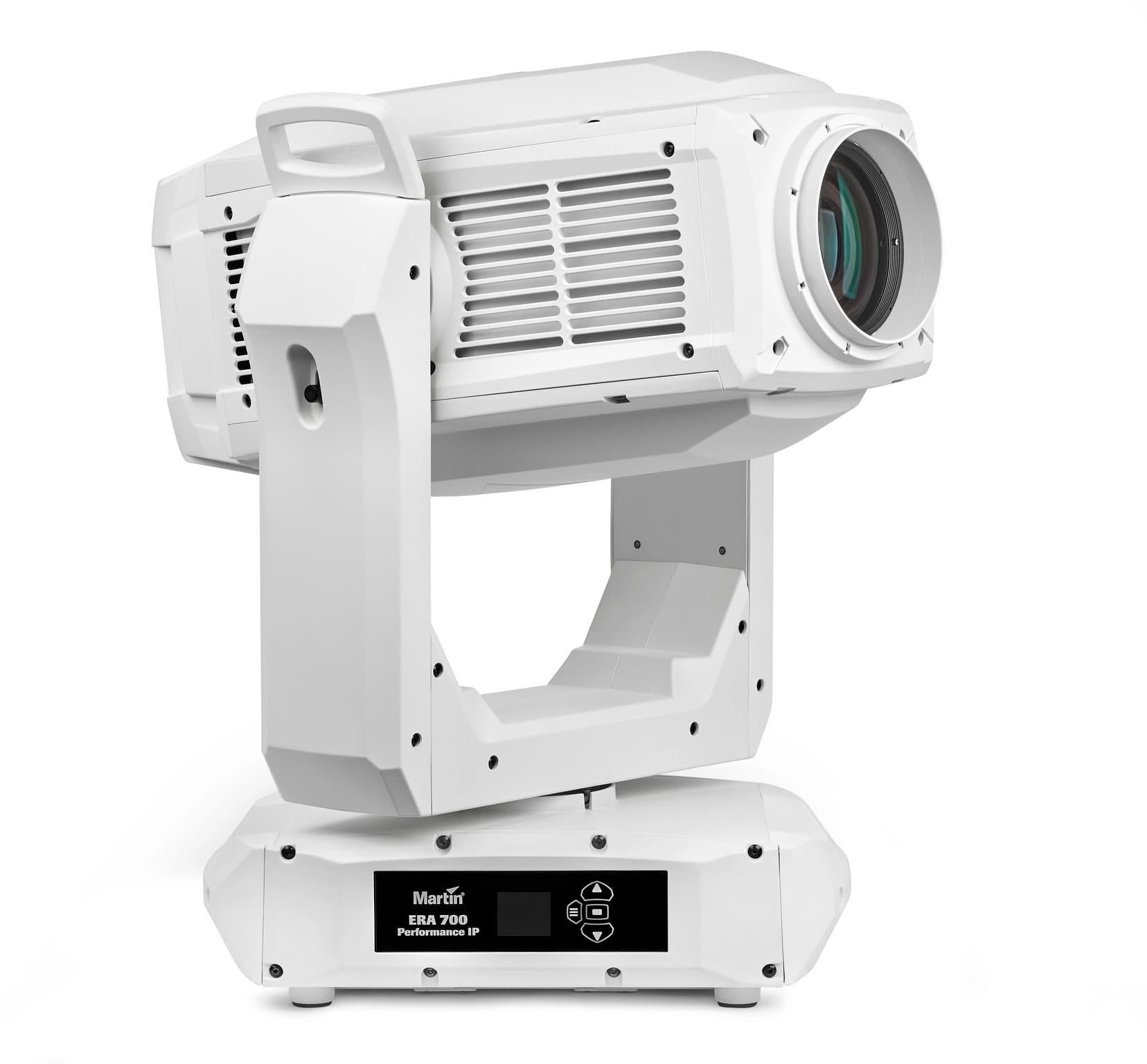

Martin ERA 700 Performance IP in the white finish

Applications

ArchitecturalFestivalsLive eventsOutdoor / InstallTheme parksTouring

Features

  • All-weather IP65+ build (IP66 with the supplied anti-tamper box) and C5-High corrosion protection
  • Active humidity and heating control protects the optics from condensation
  • 20,000 lm from a 680 W LED engine
  • CMY colour mixing with an optional Spectral Enhancement Filter for CRI 90
  • Full toolkit: dual gobo wheels, two prisms, dual frost, animation wheel, iris and full-curtain framing
  • Art-Net / sACN networking with fail-safe bypass for uninterrupted data passthrough
  • Compact and light for its class — under 40 kg, in black or white

Specifications

Light source

680 W LED engine

Light output

20,000 lm

Colour temperature

6,500 K (±350 K)

CRI

Up to 90 (with Spectral Enhancement Filter)

Zoom

5.4°–44° (1:8) motorised

Colour

CMY + variable CTO, colour wheel with Spectral Enhancement Filter

Gobos

7 rotating + 8 static

Effects

Animation wheel, 2 rotating prisms, iris, soft + heavy frost

Framing

Full curtain, 4 blades, module rotation ±60°

Movement

Pan 540° / tilt 270° (16-bit)

Control

DMX · RDM · Art-Net · sACN with fail-safe bypass

Power

100–240 V; powerCON TRUE1 TOP; etherCON

Ingress protection

IP65+ (IP66 with anti-tamper box); C5-High; −20 °C to +40 °C

Weight

39.7 kg
