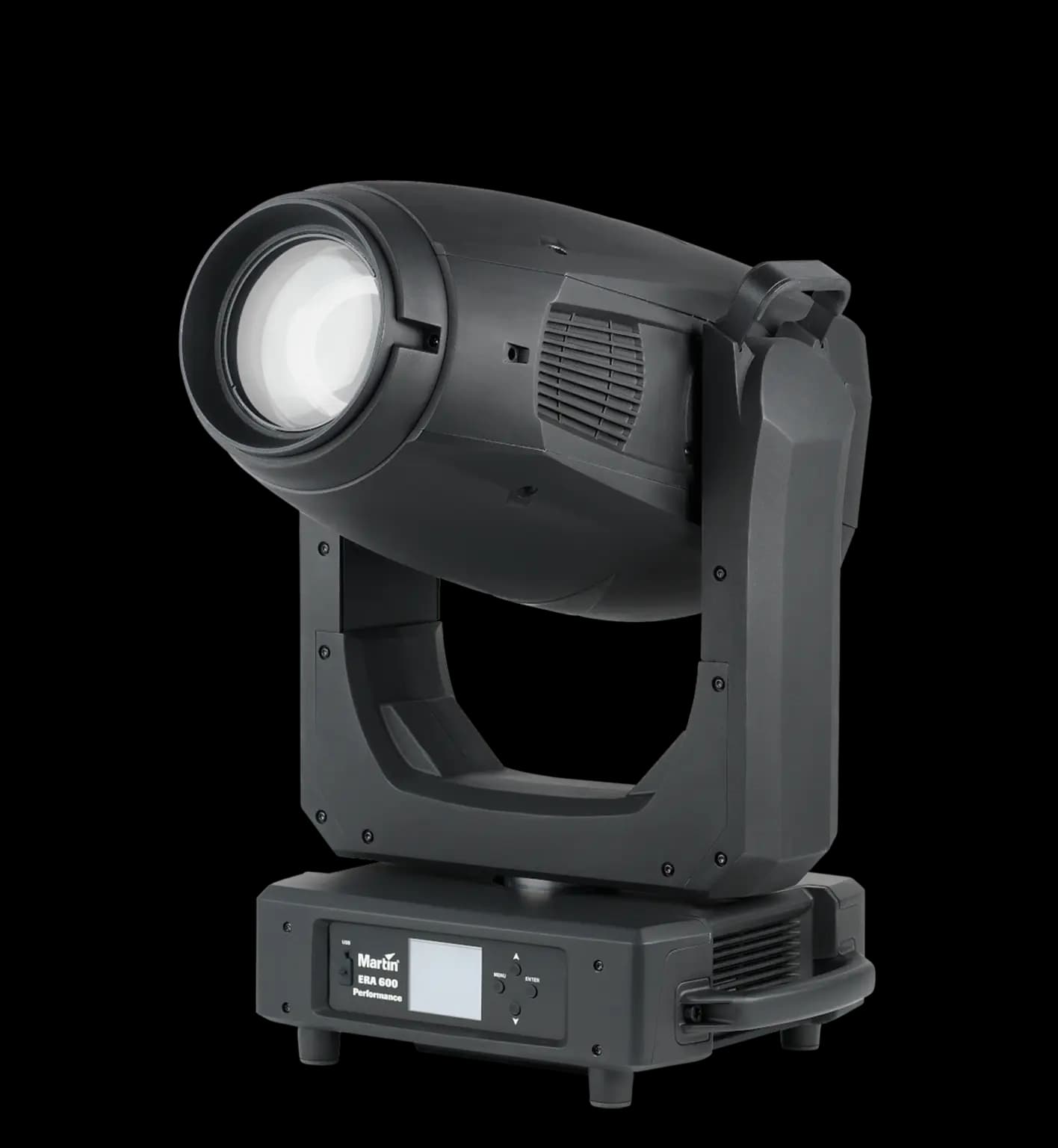

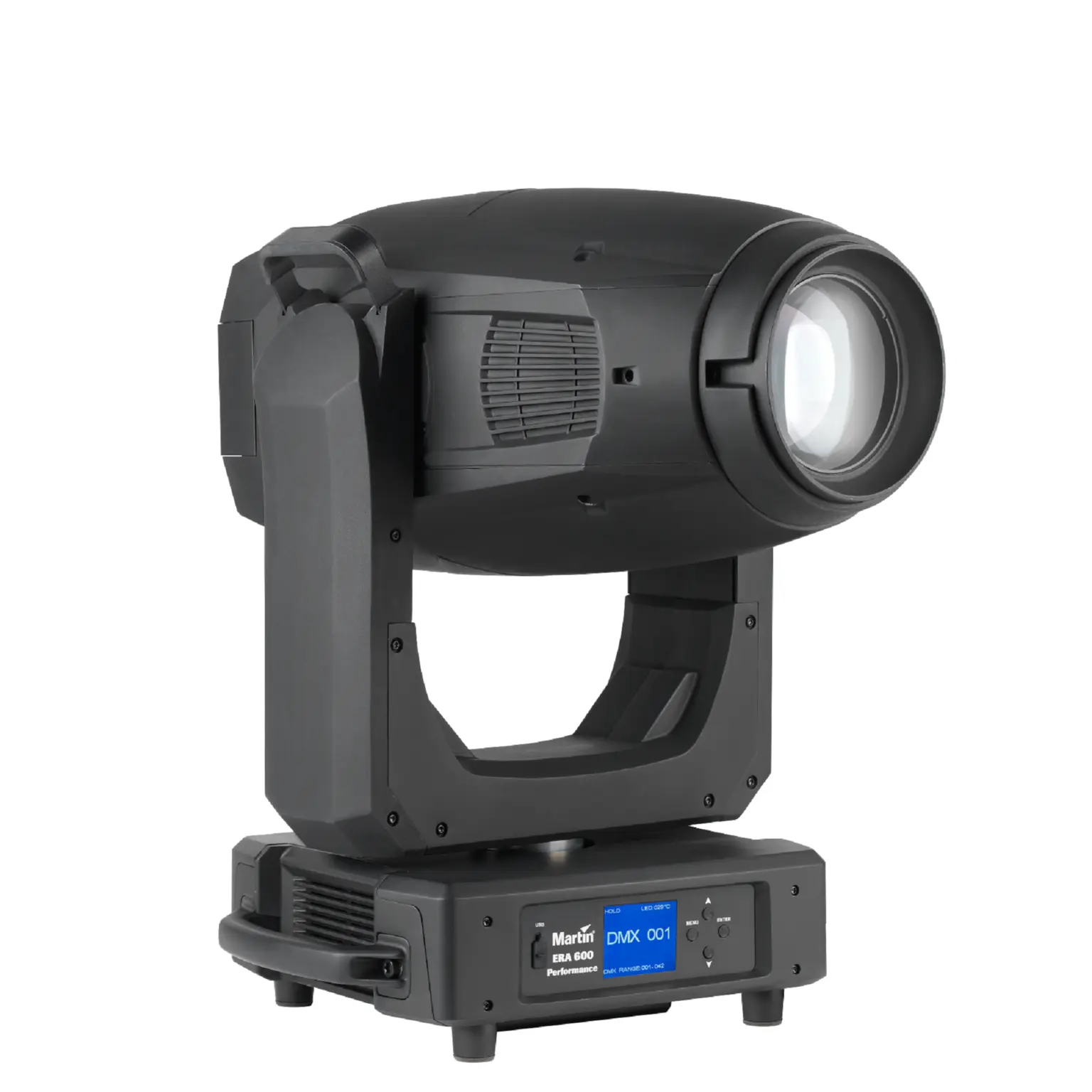

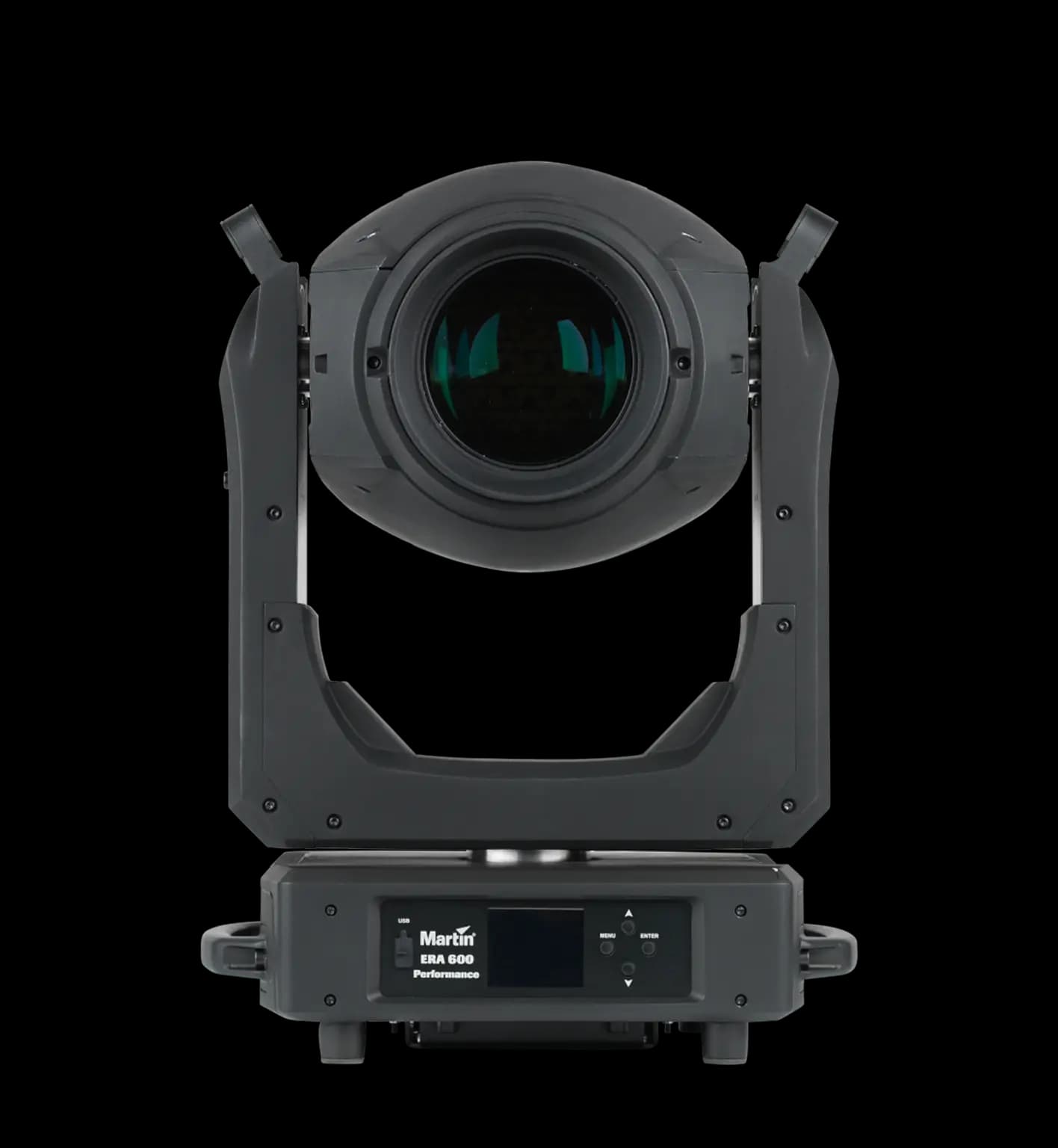

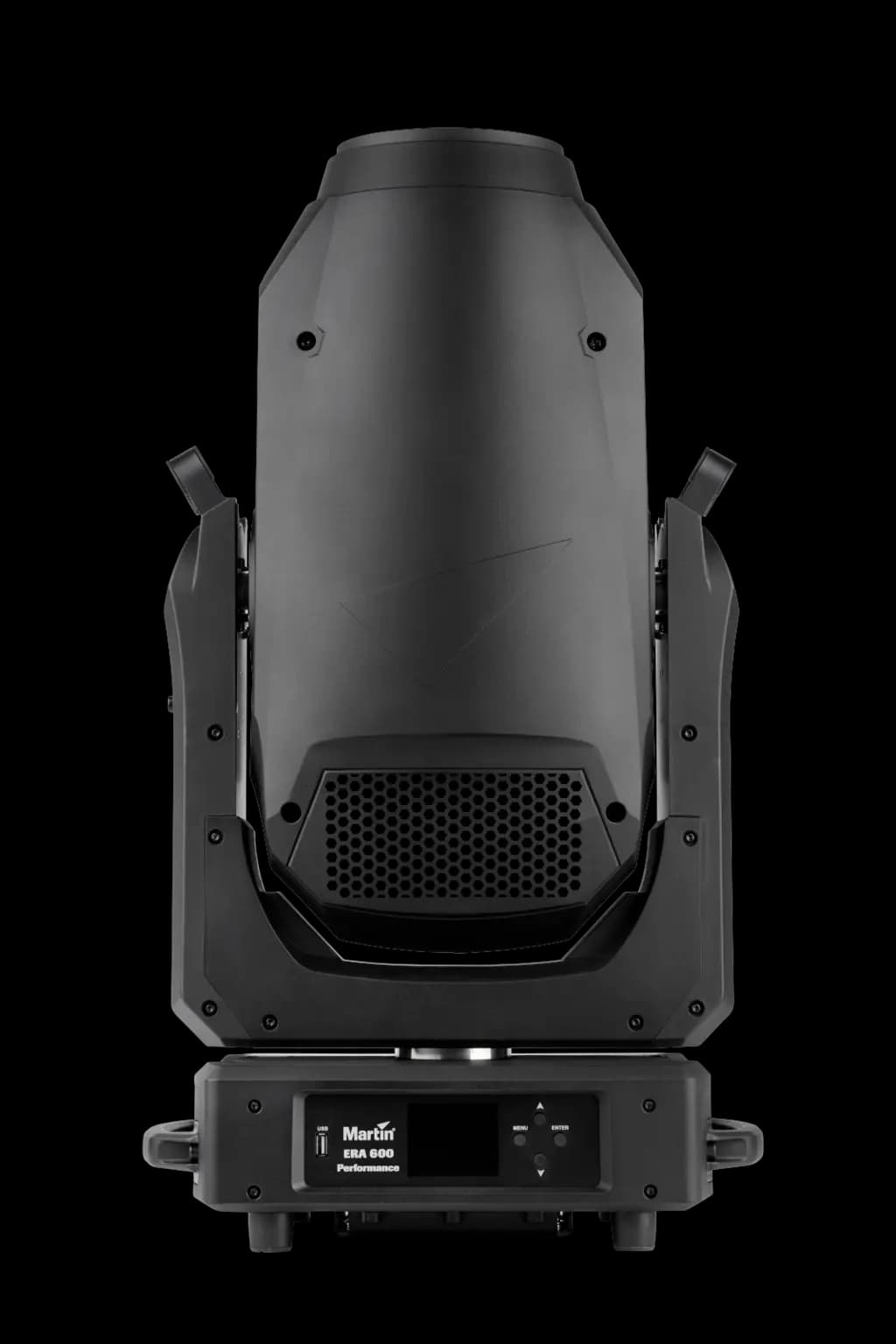

ERA 600 Performance
Compact 550 W LED profile moving head — 19,000 lm with full framing and CMY colour mixing.
Applications
ConcertLarge venuesLive eventsStage designTheatreTouring
Features
- 19,000 lm from an efficient 550 W / 6,500 K white LED engine
- Fast 1:8 (6°–45°) motorised zoom that holds output across the range
- Full CMY colour mixing with variable CTO and a 7-position colour wheel
- Four-blade full-curtain framing with ±60° rotation of the whole module
- 7 rotating + 8 static glass gobos, animation wheel and two rotating prisms
- Iris and heavy frost for tight beams through to soft washes
- Compact, road-ready design with effect modules that swap in under a minute
Specifications
Light source
550 W white LED
Light output
19,000 lm
Colour temperature
6,500 K (±350 K)
CRI
Up to 79
Zoom
6°–45° (1:8) motorised
Colour
CMY + variable CTO, 7-position colour wheel
Gobos
7 rotating/indexing + 8 static
Effects
Animation wheel, 2 rotating prisms, iris, heavy frost
Framing
Full curtain, 4 blades, module rotation ±60°
Movement
Pan 540° / tilt 260° (16-bit)
Control
DMX · RDM (41 ch)

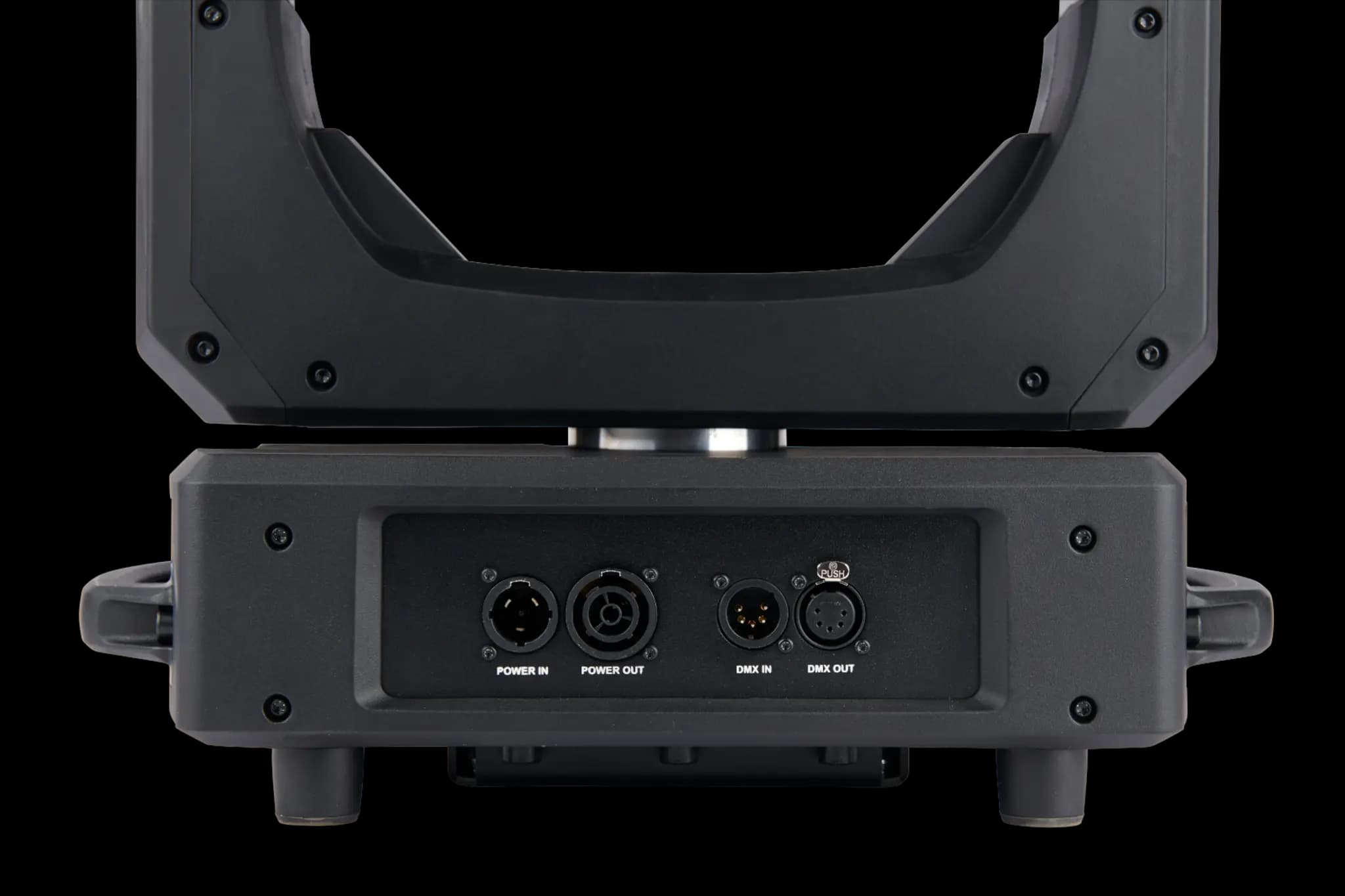

Power
100–240 V; Neutrik powerCON TRUE1
Ingress protection
IP20
Dimensions
416 × 290 × 734 mm
Weight
32.3 kg
