ERA 150 Wash

Compact LED wash moving head — 3,900 lm, wide 4.2°–58° zoom and a punchy narrow beam.

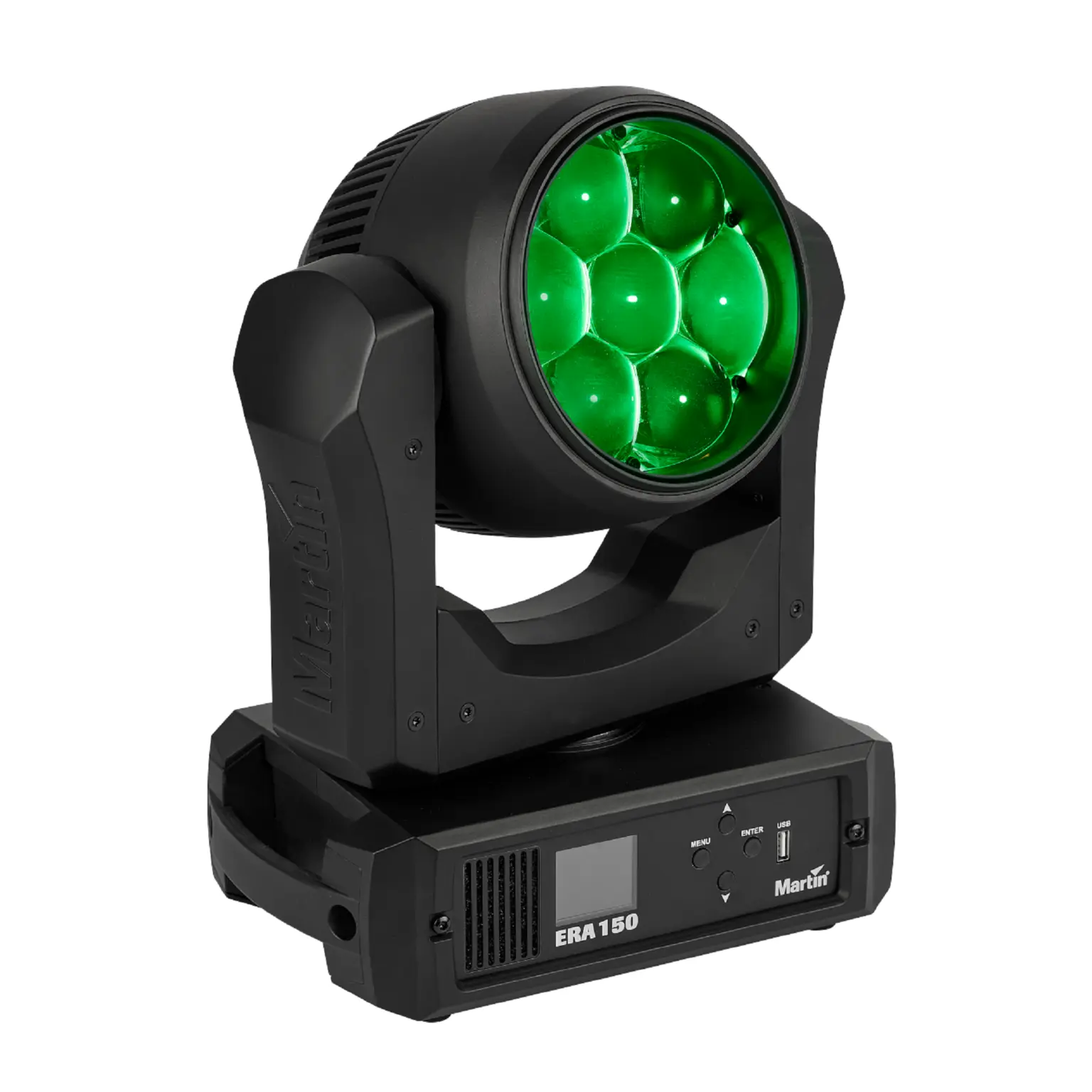

Martin ERA 150 Wash compact LED wash moving head — three-quarter studio view

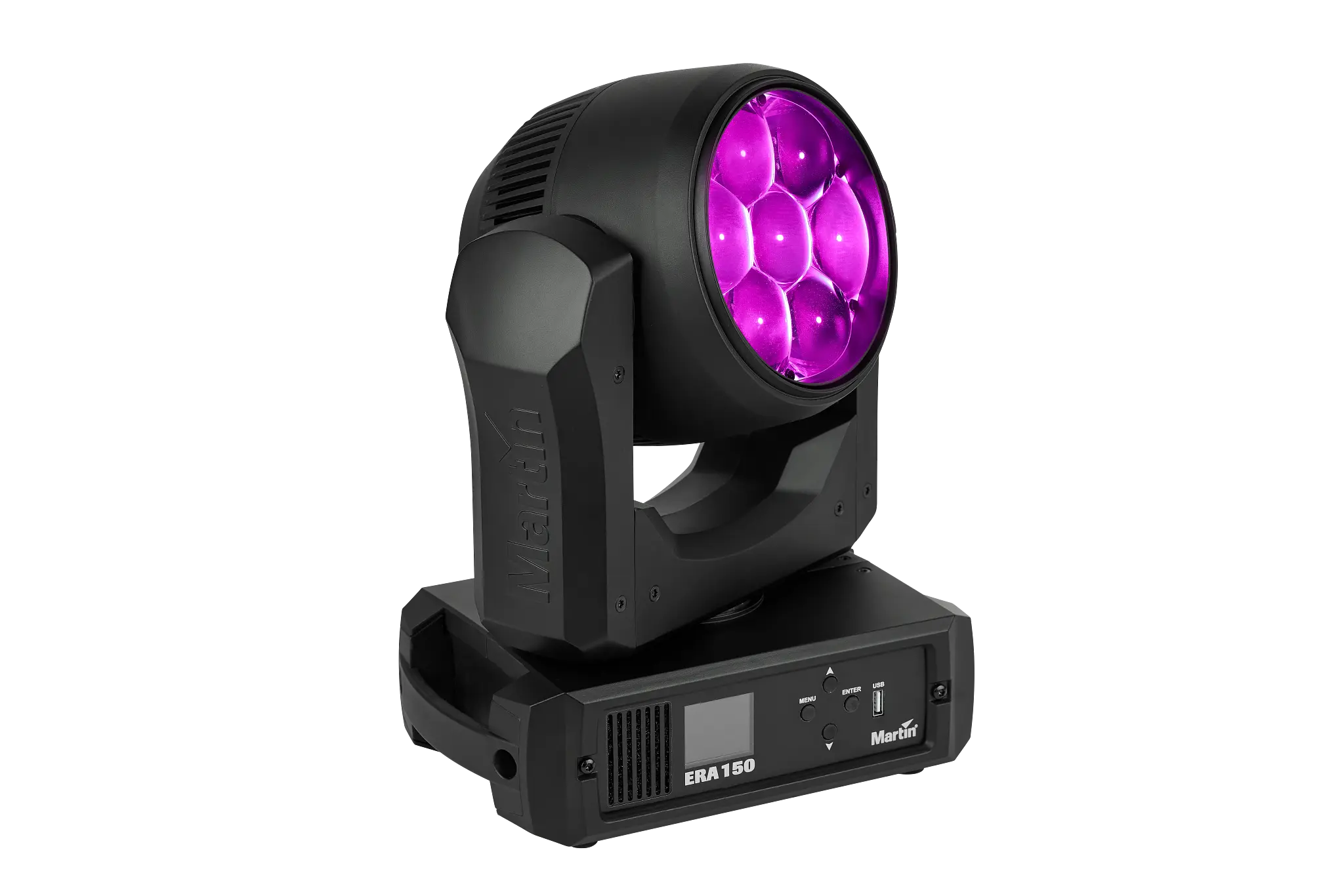

Martin ERA 150 Wash — angled view

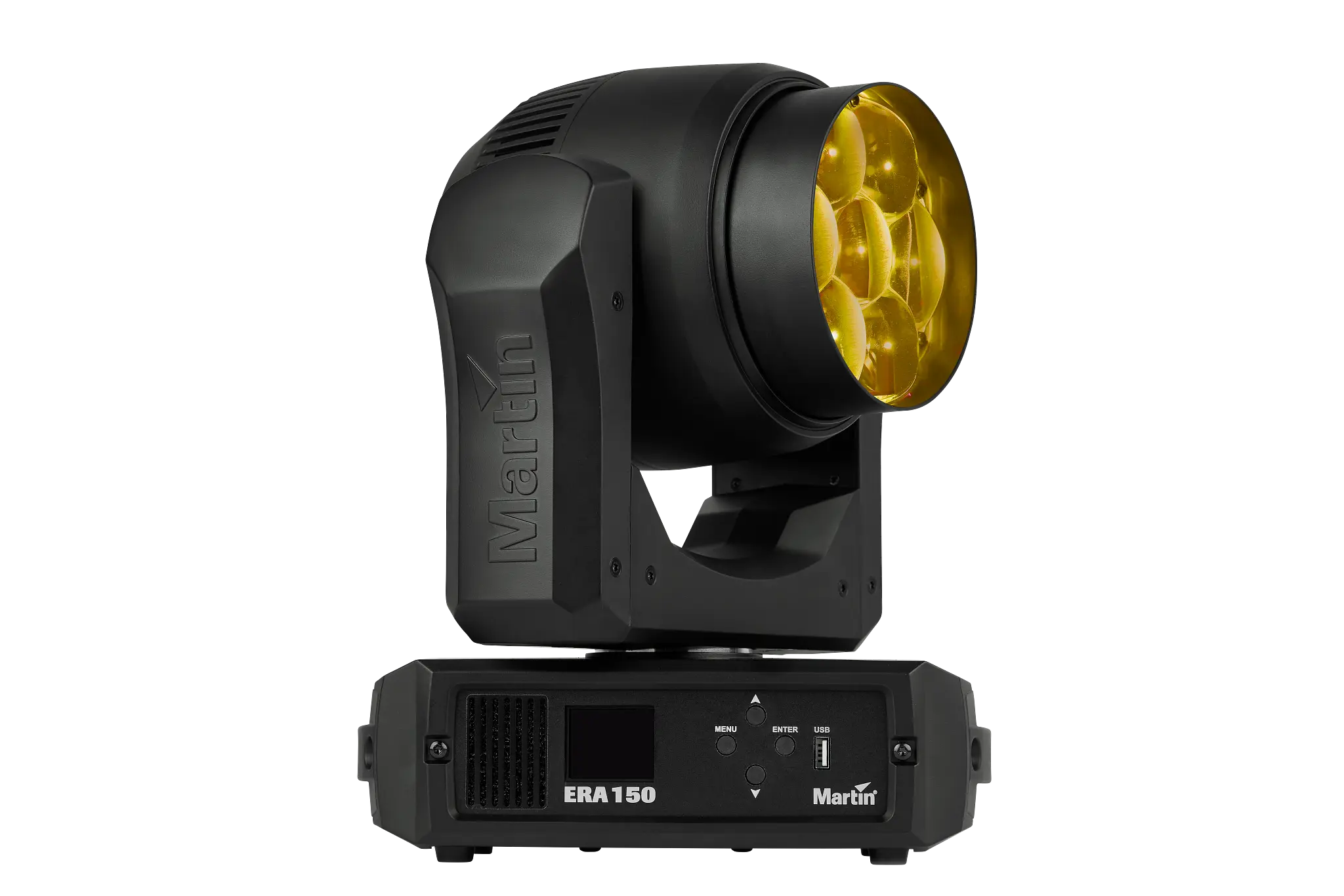

Martin ERA 150 Wash — alternate angle

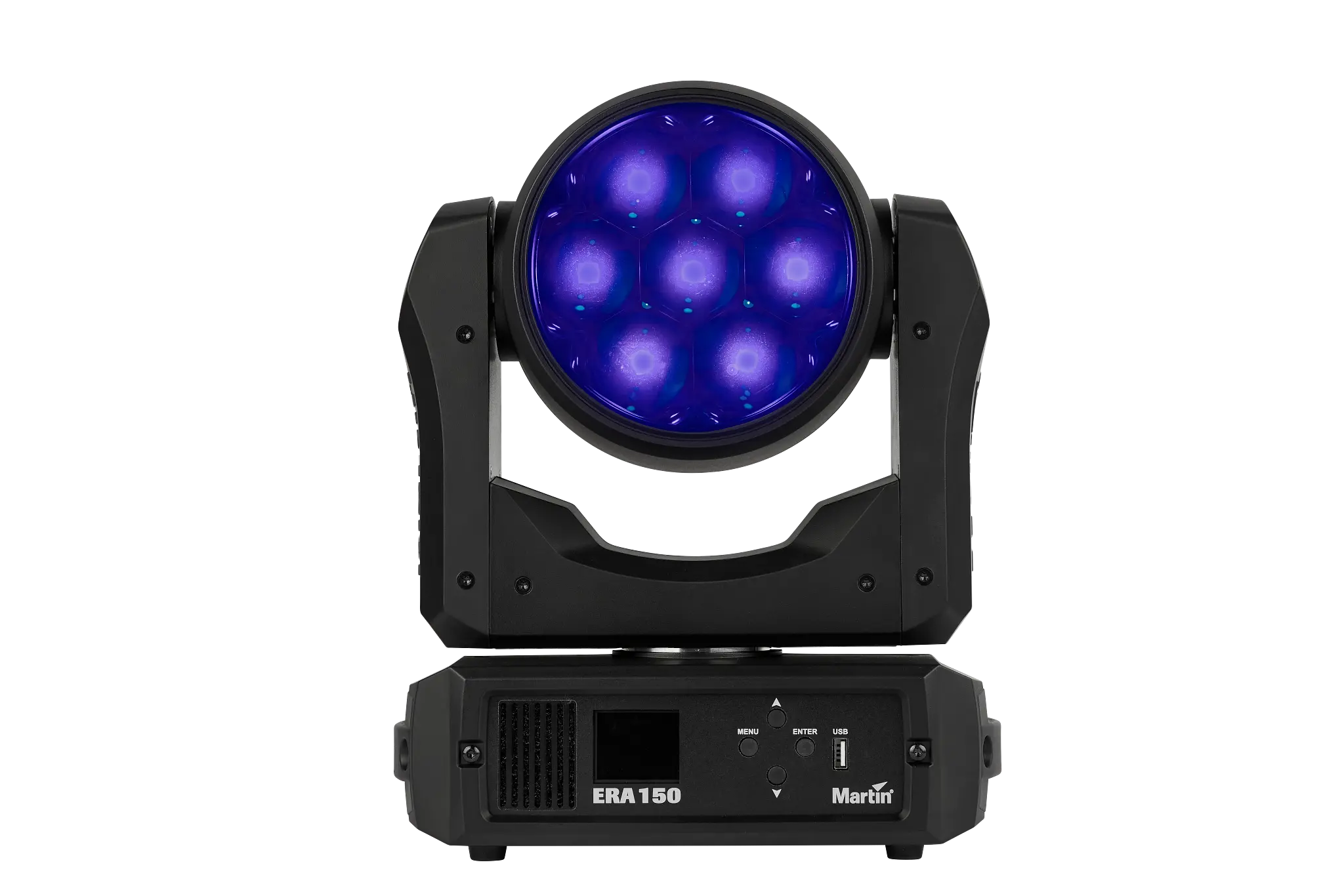

Martin ERA 150 Wash — front view

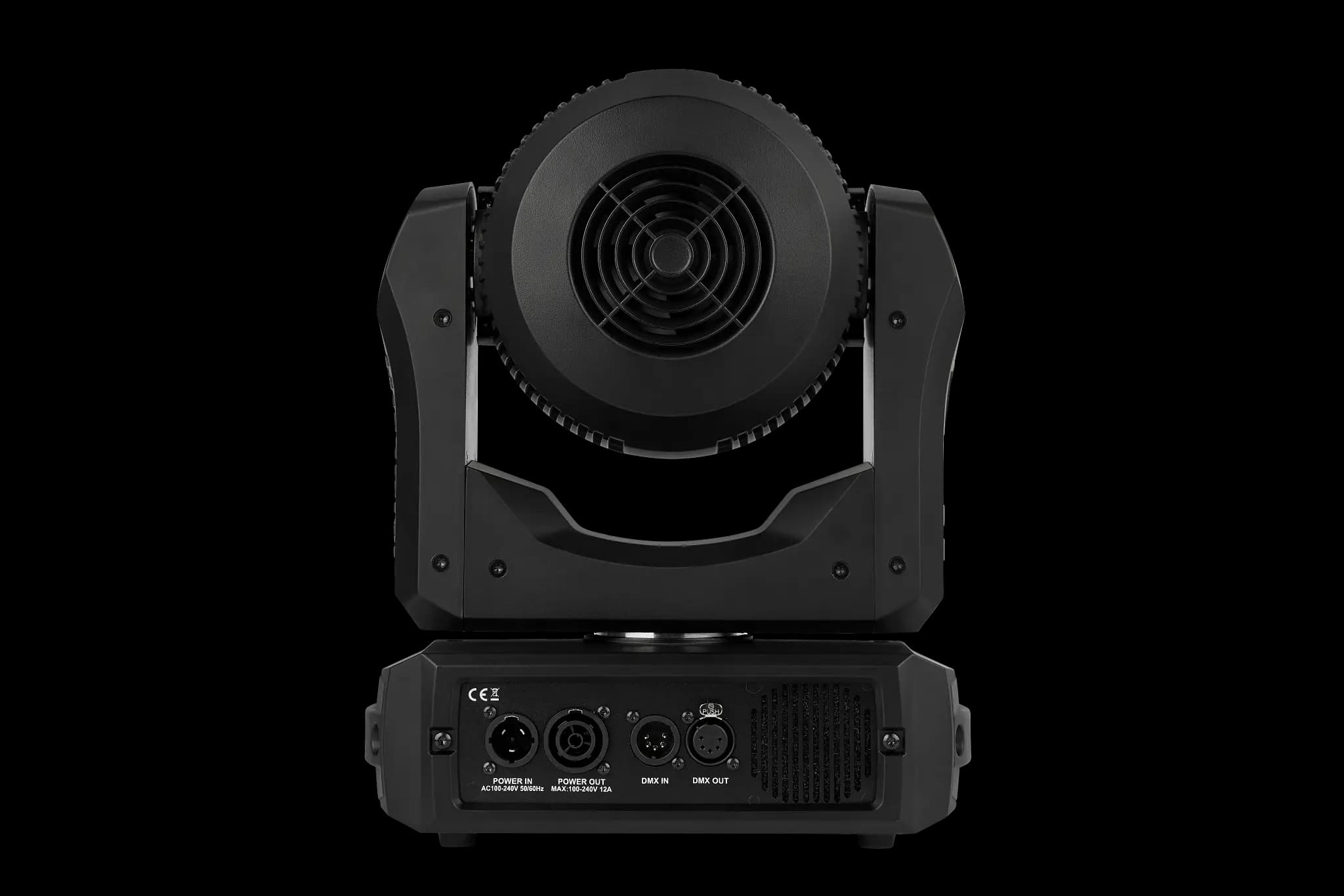

Martin ERA 150 Wash — rear and connections

Applications

ConcertLive eventsStage designTheatreTouringTV / Broadcast

Features

  • 3,900 lm — roughly double the previous compact-wash generation
  • Newly designed 7 × 40 W RGBW Osram engine with a wide, even field
  • High-intensity narrow zoom delivering over 370,000 cd
  • Wide 4.2°–58° motorised zoom range
  • Full Gamut Colour Calibration plus a 1,800–12,850 K CTC channel
  • Near-silent theatre-mode operation, as low as around 33 dB
  • Lightweight 7.3 kg chassis with USB firmware updates and battery-backup display

Specifications

Light source

7 × 40 W RGBW Osram LEDs

Light output

3,900 lm

Colour temperature

Variable 1,800–12,850 K (CTC)

CRI

70

Zoom

4.2°–58° motorised

Colour

RGBW; 48 presets + virtual colour wheel; Full Gamut Calibration

Movement

Pan 540° / tilt 260° (16-bit)

Control

DMX · RDM (18 ch)

Power

100–240 V; powerCON TRUE1 TOP

Acoustic

as low as ~33 dB (theatre mode)

Ingress protection

IP20

Dimensions

276 × 176 × 356 mm

Weight

7.3 kg
