ELP PAR

Static RGBW LED PAR with motorised zoom — 3,500 lm, 4.2°–58° zoom, IP20 (IP65 option).

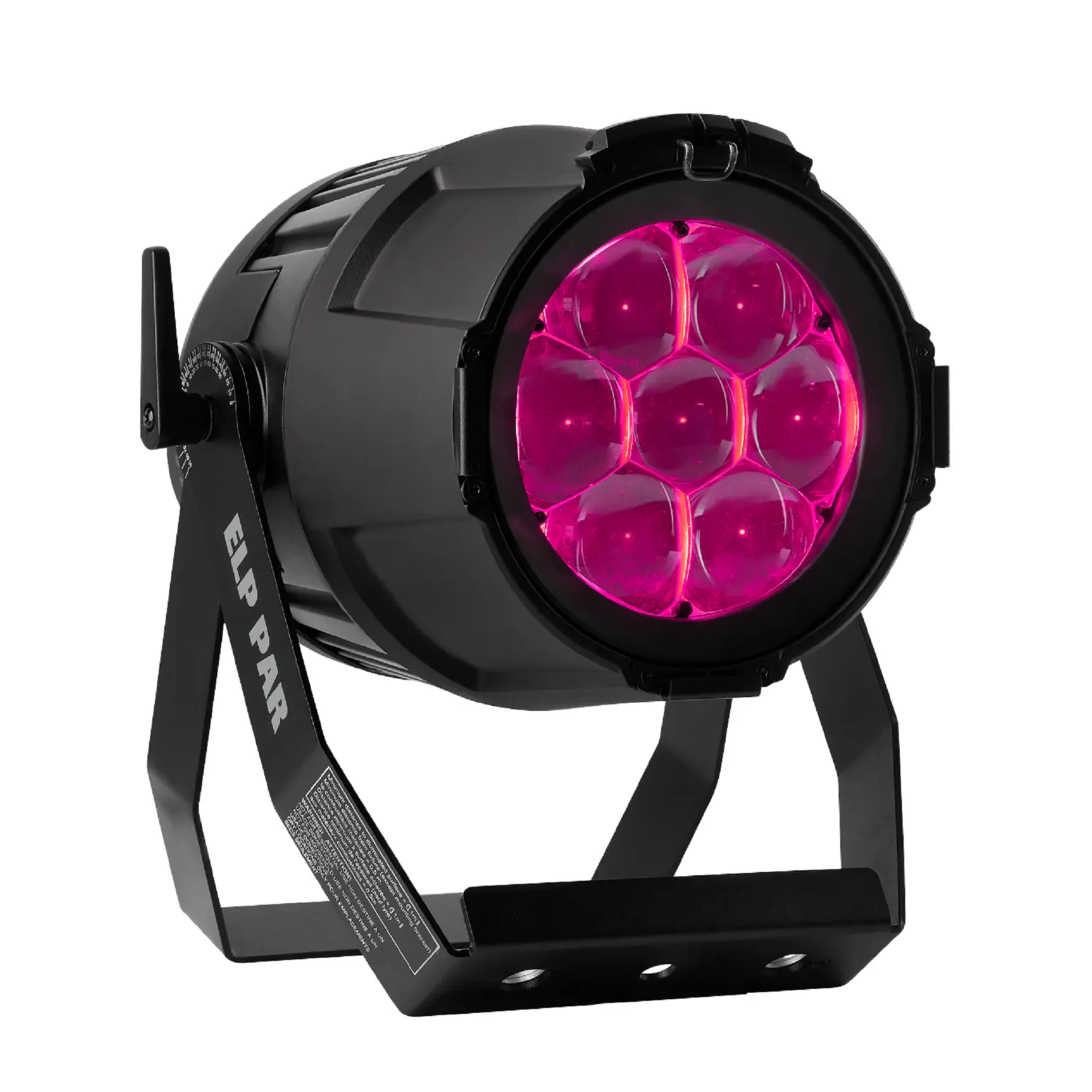

Martin ELP PAR static RGBW LED PAR with zoom — three-quarter studio view

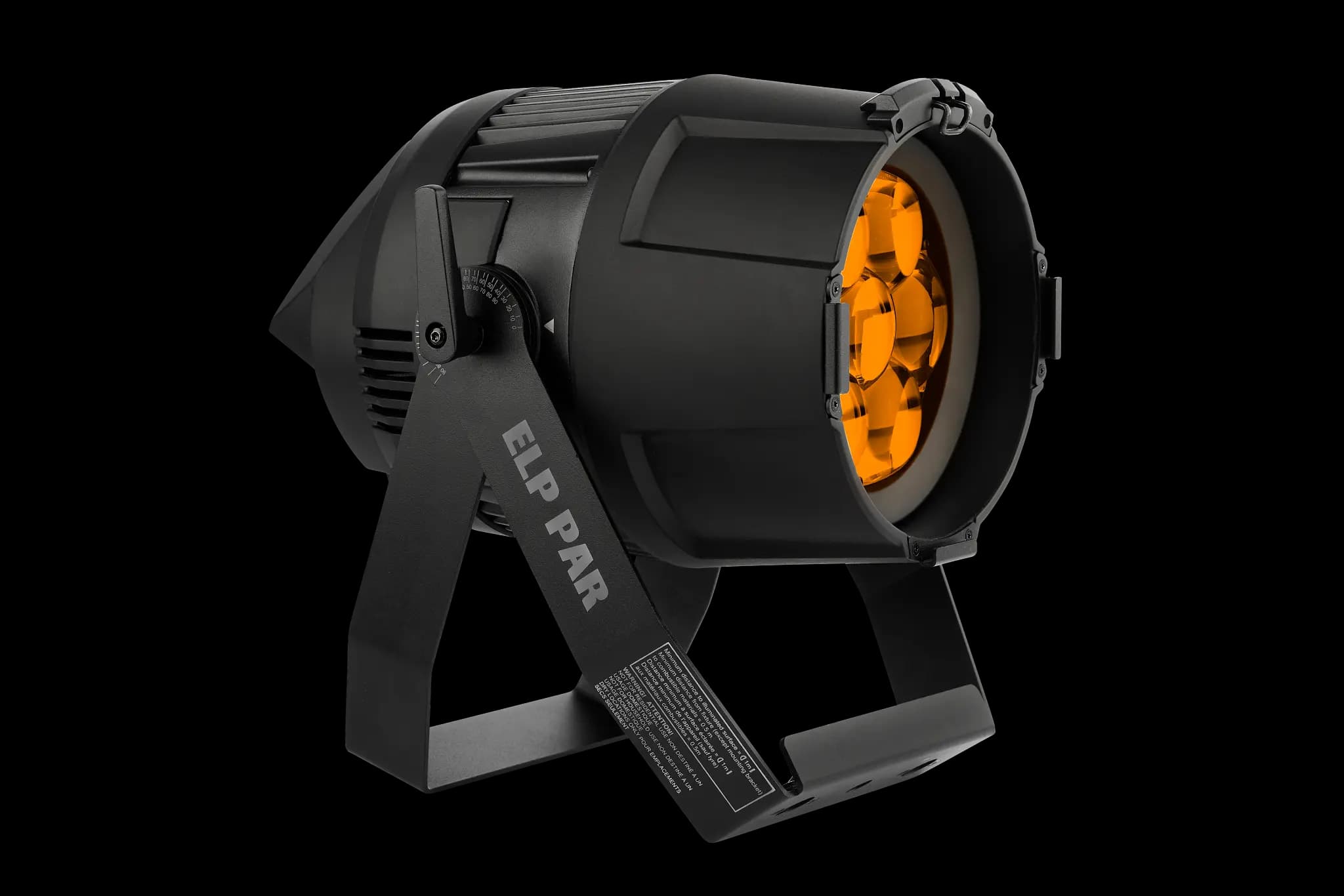

Martin ELP PAR — angled view

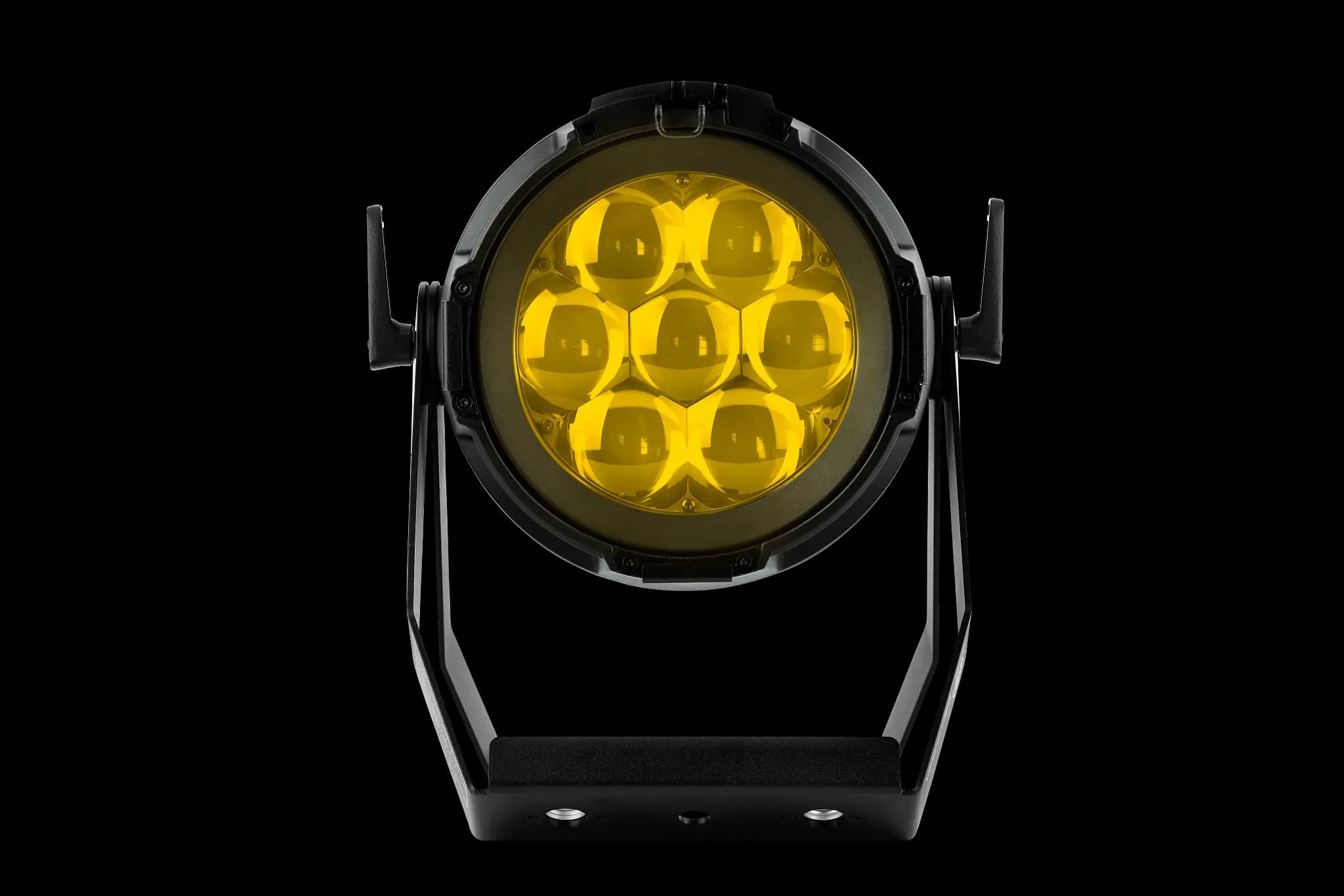

Martin ELP PAR — front view

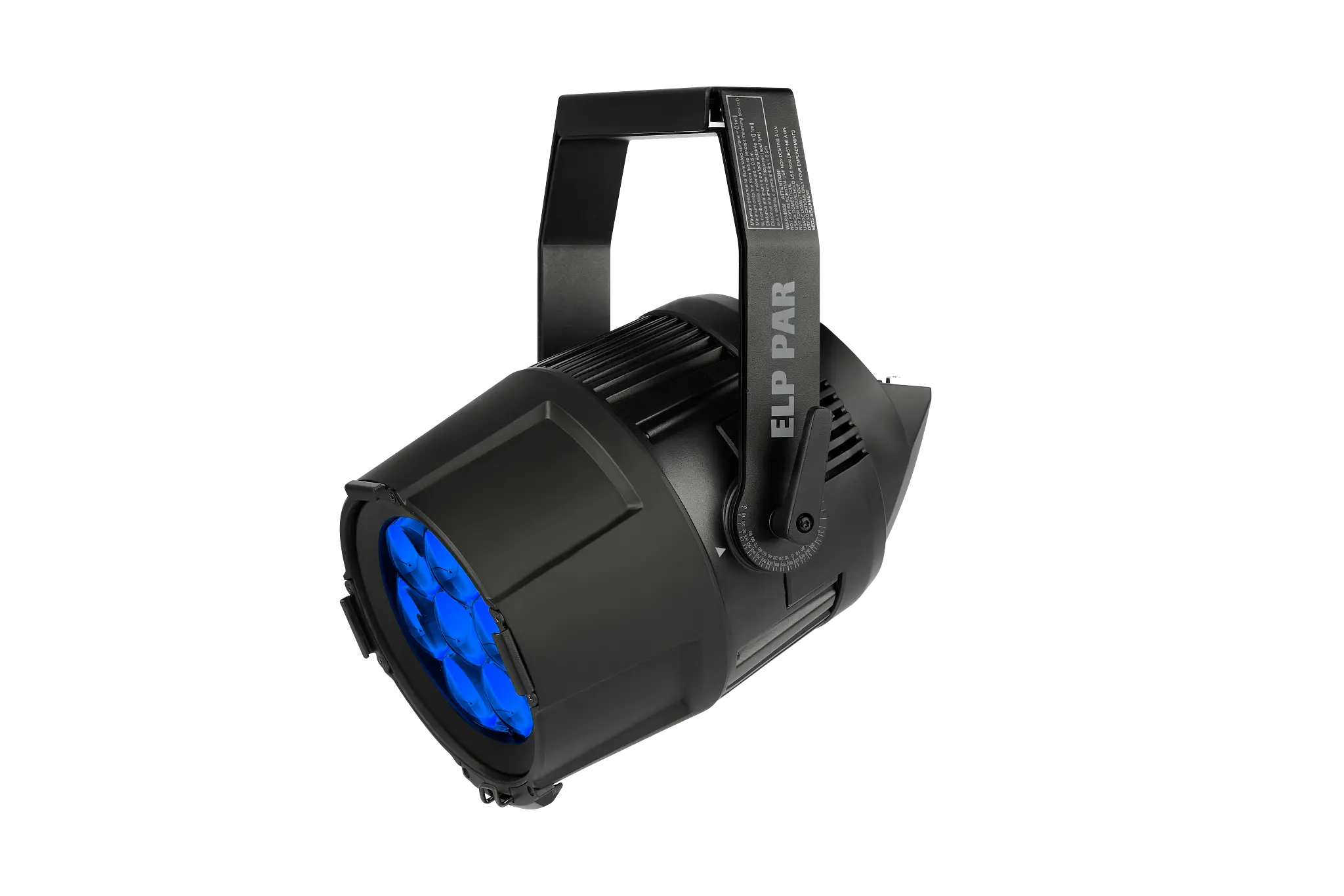

Martin ELP PAR — alternate angle

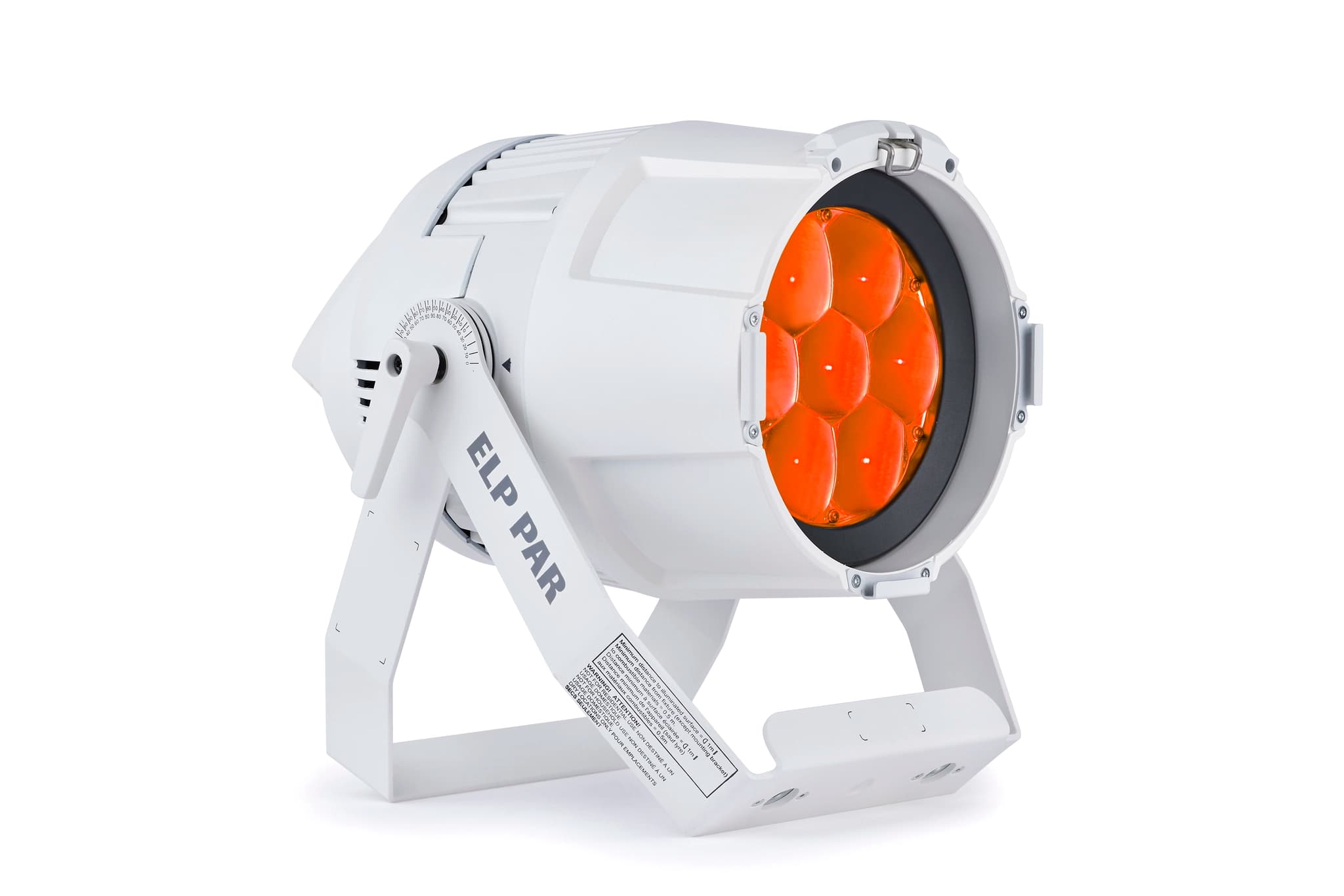

Martin ELP PAR — detail view

Applications

ConcertFestivalsLive eventsStage designTheatreTV / Broadcast

Features

  • Class-leading 3,500 lm — double the previous generation — from a 7 × 40 W RGBW engine
  • Motorised zoom (4.2°–58°) for broad washes and tight mid-air beams
  • Full-gamut colour calibration with a dedicated CTC channel and 48 presets
  • One-button Quick Focus: full-power open white for instant focus confirmation
  • Smart rigging: omega-bracket connectivity and angle-of-projection indicator marks
  • Low-noise cooling with a quiet theatre mode (around 33 dB)
  • 191 × 191 mm filter mount; black or white; IP20 (IP65 option)

Specifications

Light source

7 × 40 W RGBW Osram LEDs

Light output

3,500 lm

Colour temperature

Variable 2,800–10,000 K (CTC)

CRI

70+

Zoom

4.2°–58° motorised

Colour

RGBW; 48 presets + virtual colour wheel; full-gamut calibration

Filter mount

191 × 191 mm (7.5 × 7.5 in)

Control

DMX · RDM (14 ch)

Power

100–240 V; powerCON TRUE1 TOP in/thru

Acoustic

low-noise theatre mode (~33 dB)

Ingress protection

IP20 (IP65 variant available)

Dimensions

312 × 287 × 401 mm

Weight

7.8 kg
