ELP CL

Full-colour LED ellipsoidal profile — 6,900 lm RGBAL engine, CRI up to 90.

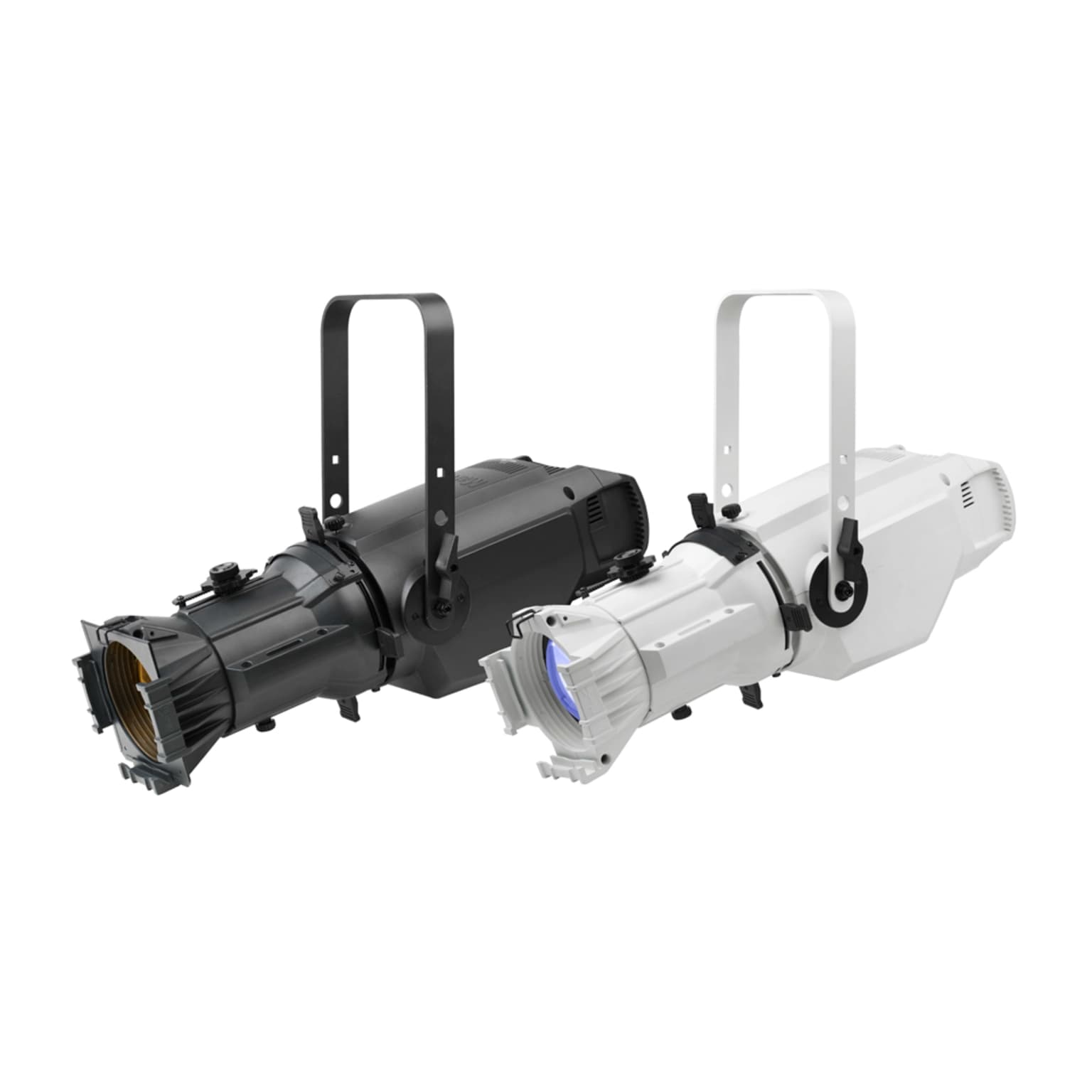

Martin ELP CL full-colour LED ellipsoidal profile in black and white finishes

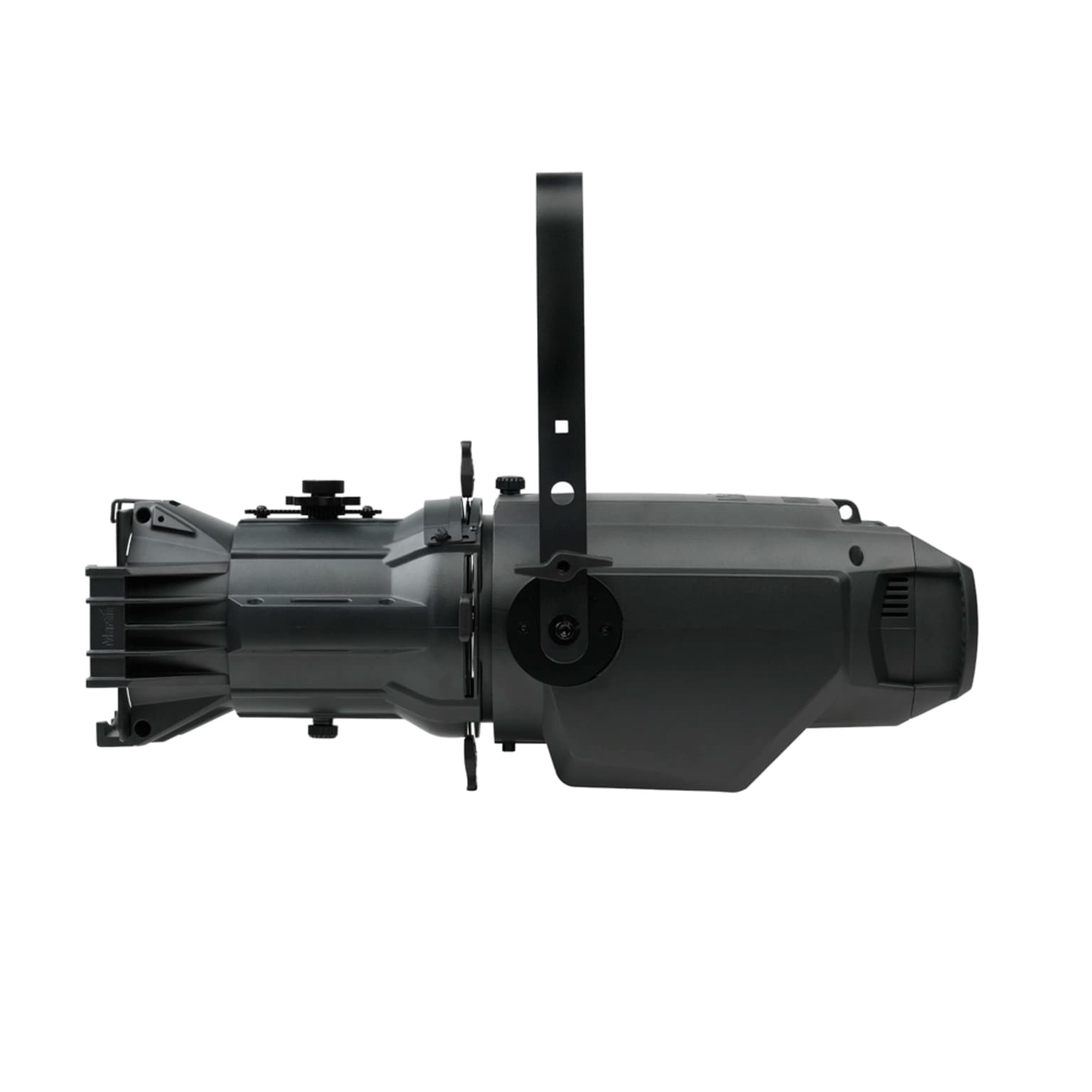

Martin ELP CL — three-quarter view

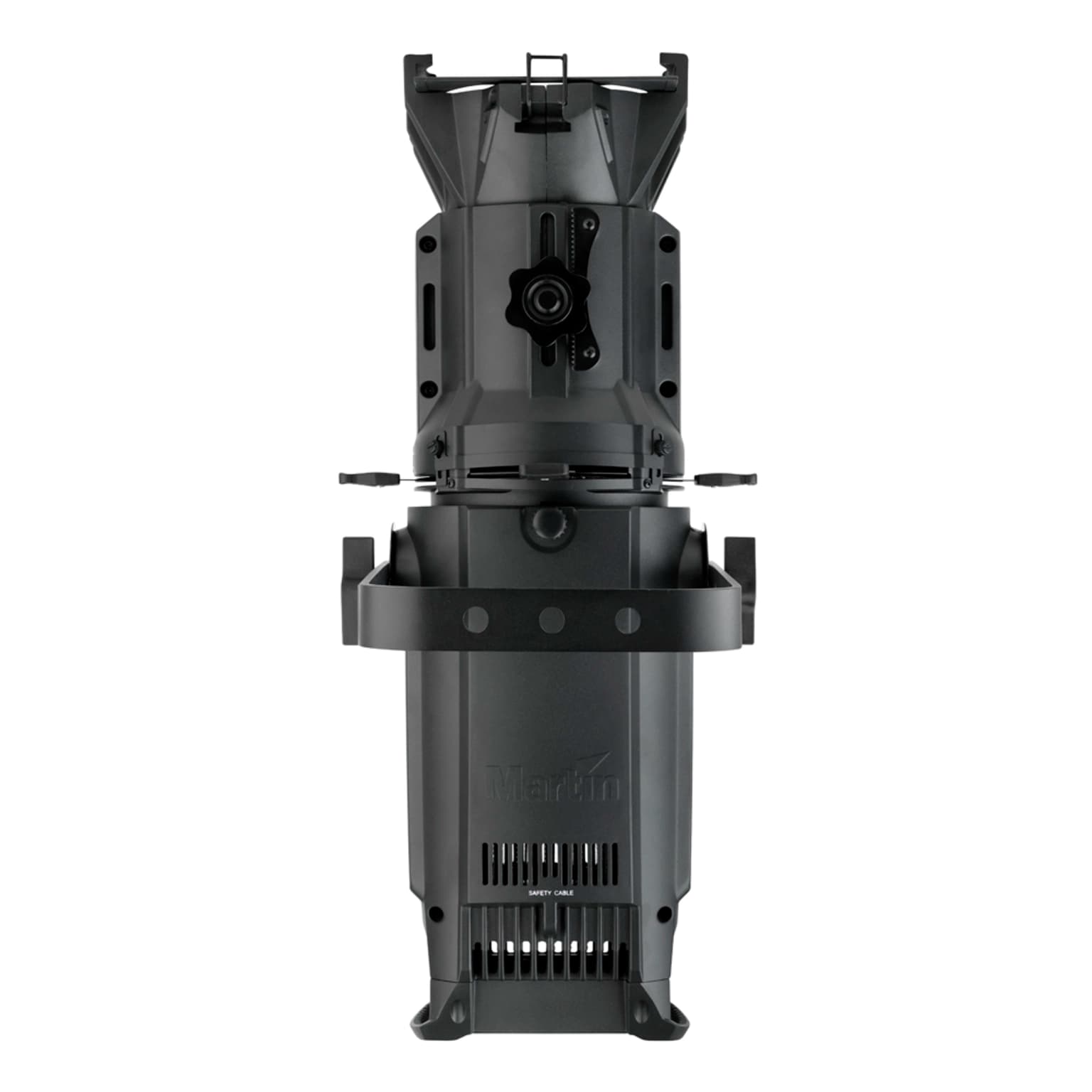

Martin ELP CL — side view

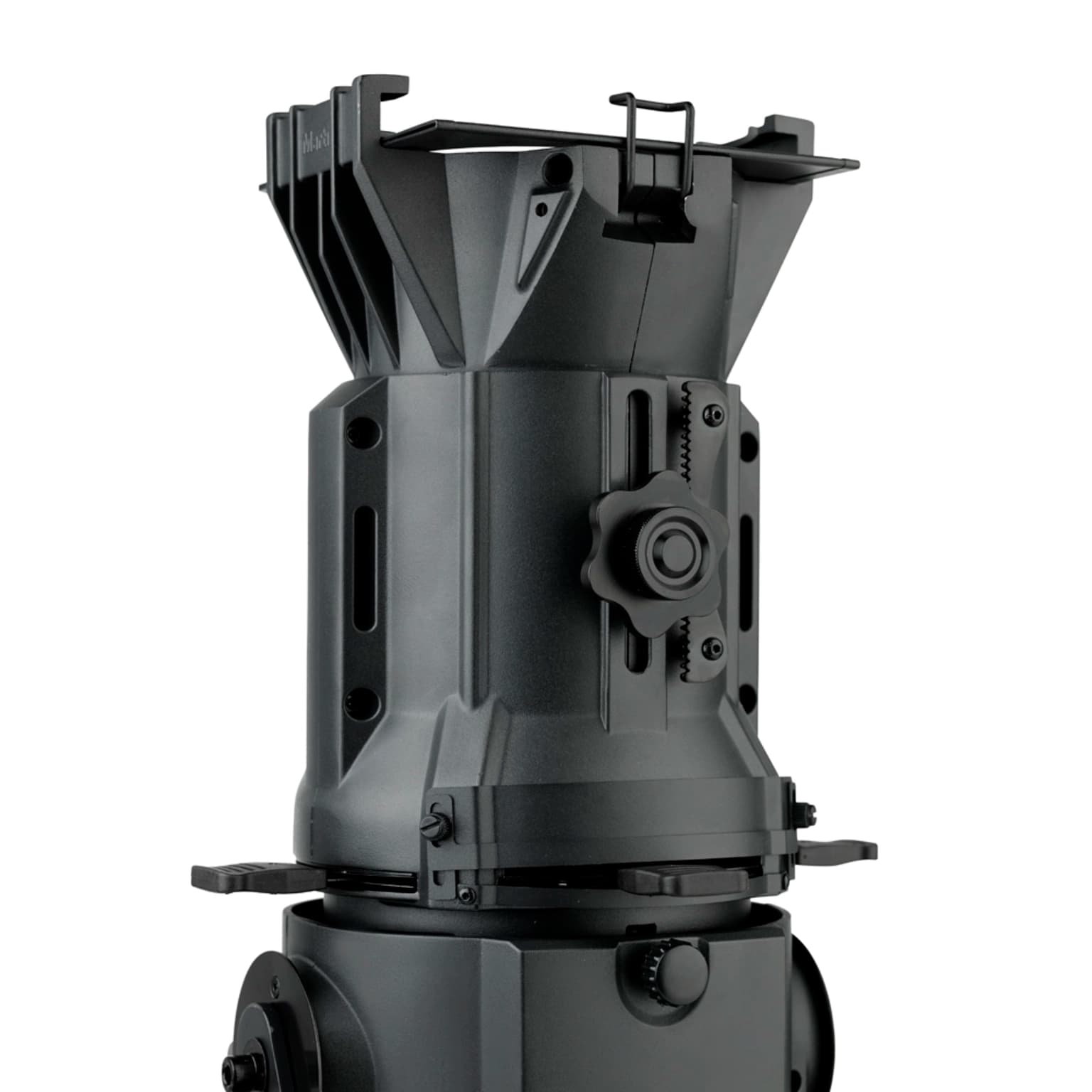

Martin ELP CL — front lens
Martin ELP CL — rear and connections

Applications

ArchitecturalLive eventsMuseumsStage designTheatreTV / Broadcast

Features

  • 6,900 lm and CRI up to 90 from a 91-LED RGBAL engine
  • Industry-first gear-driven Fine Focus plus on-board Fast Focus (no DMX needed)
  • MAC Encore optics deliver a flat, even field for smooth fixture-to-fixture blending
  • Six lens-tube options: four fixed (19/26/36/50°) and two zoom (15–30°, 25–50°)
  • 16-bit dimming with four selectable curves; flicker-free on and off camera
  • 26 colour presets matching industry-standard gel filters
  • A/B-size gobos, 159 × 159 mm colour frame; compatible with universal accessories

Specifications

Light source

91 × RGBAL Luxeon Rebel LEDs

Light output

6,900 lm (High Output); 5,900 lm at CRI 90 (High Quality)

Colour temperature

Variable 2,000–10,000 K (CTC)

CRI

Up to 90 (High Quality mode)

Colour

RGBAL mixing; 26 presets matching standard filters

Lens tubes

Fixed 19° / 26° / 36° / 50°; zoom 15–30° and 25–50°

Gobo size

A and B

Colour frame

159 × 159 mm (6.25 × 6.25 in)

Dimming

16-bit, 4 curves; flicker-free

Control

DMX · RDM; stand-alone (1/10/17 ch)

Power

100–240 V; powerCON TRUE1 in/thru

Ingress protection

IP20

Weight

7.7 kg (body only)
