JEM ZR35

Mid-sized 1,500 W professional fog machine — 800 m³/min for mid-to-large stages.

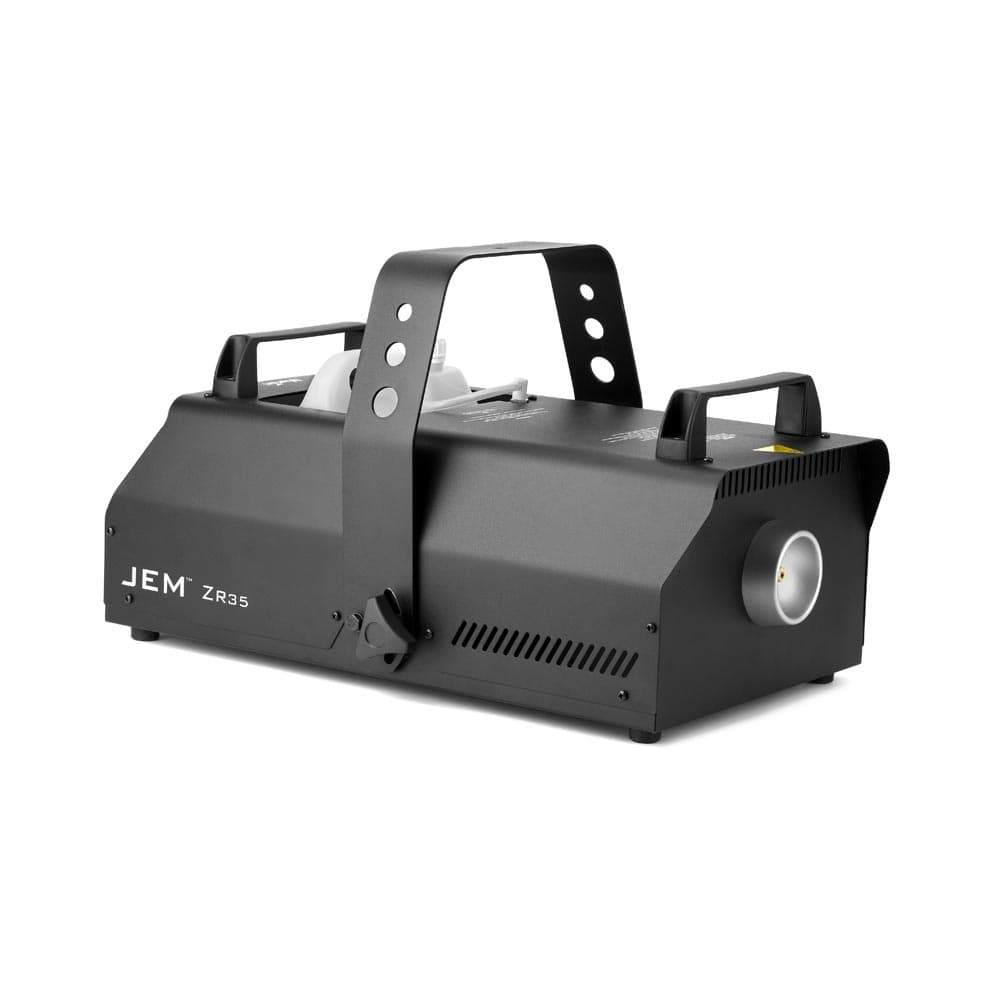

Martin JEM ZR35 mid-sized professional fog machine — three-quarter studio view

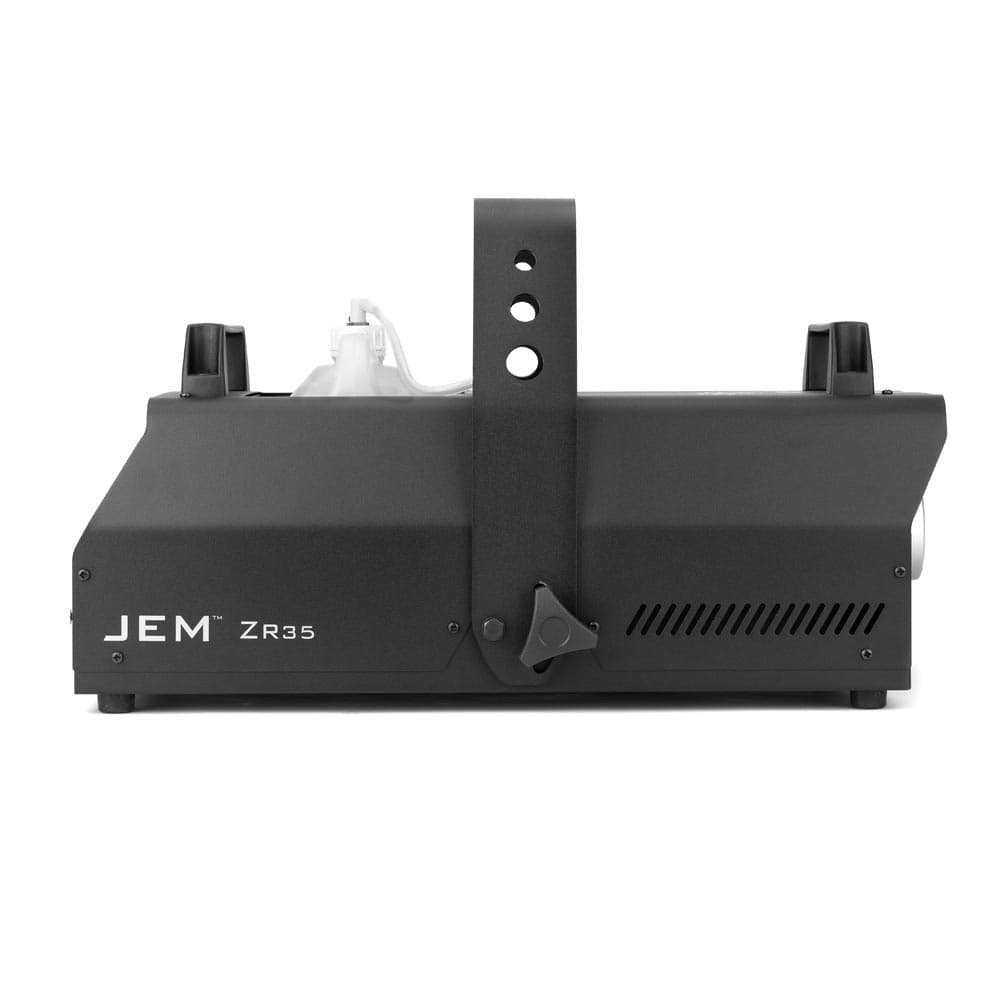

Martin JEM ZR35 — alternate angle

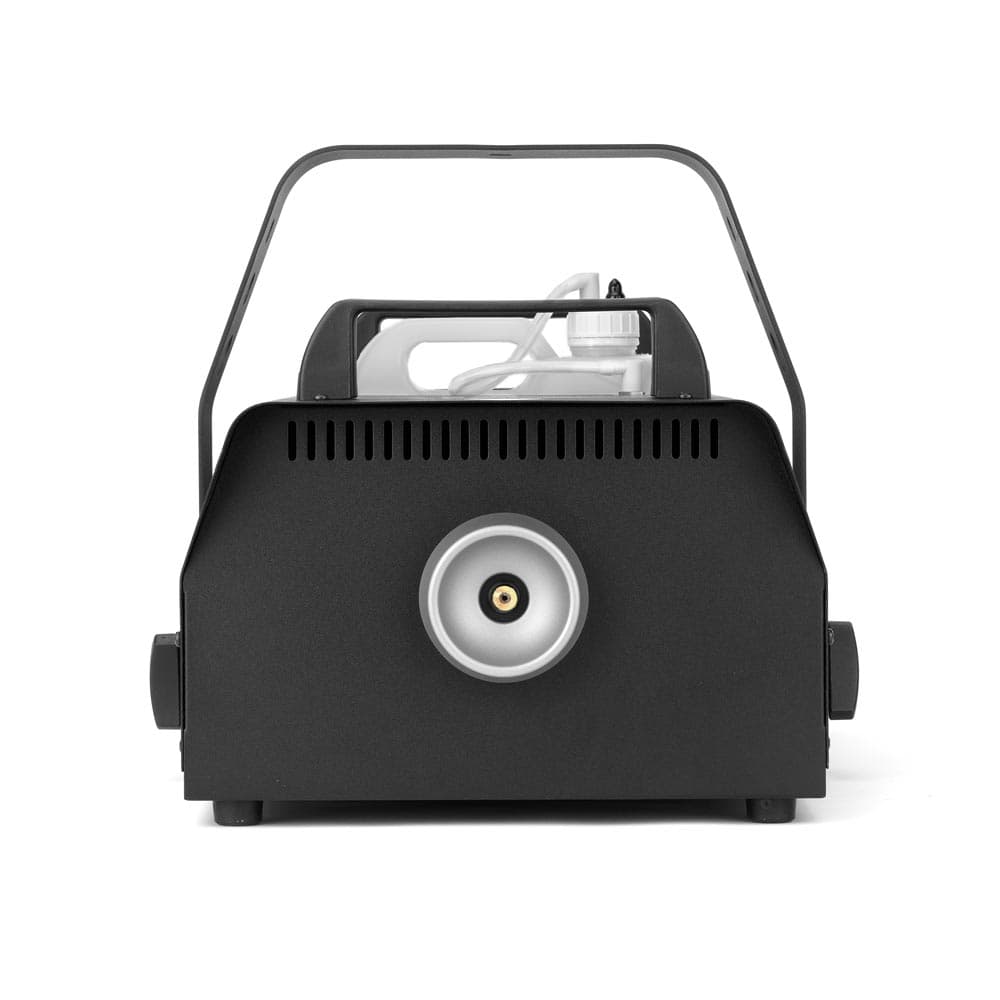

Martin JEM ZR35 — front and nozzle

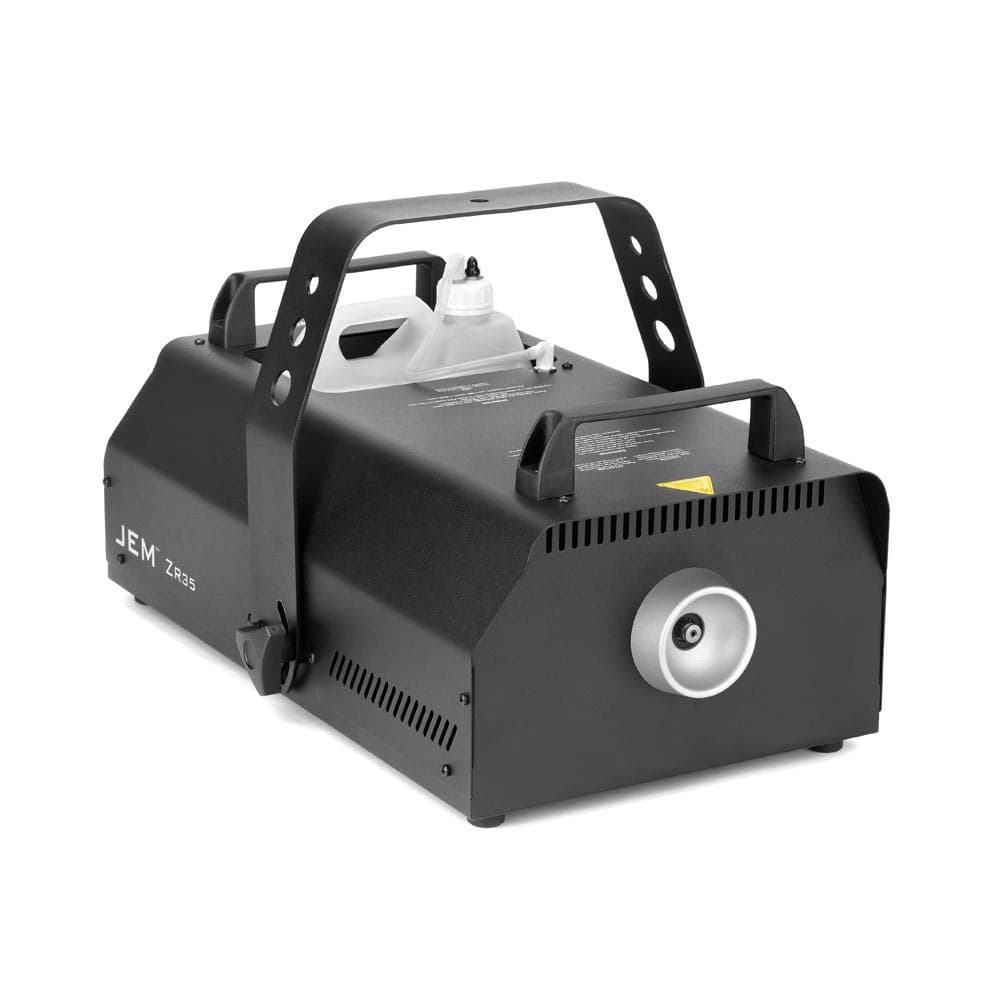

Martin JEM ZR35 — control panel and connections

Applications

ConcertLive eventsStage designTheatreTouring

Features

  • Robust, roadworthy design
  • Integrated digital remote control
  • DMX with RDM
  • Floor-standing or truss mounting (hanging bracket included)
  • 1,500 W heat exchanger; 800 m³ (28,252 ft³) per-minute output
  • Variable output control; continuous effect output
  • Quick-connect reservoir; compatible with JEM Pro-Fog fluids (optional ducting kit)

Specifications

Type

Professional fog machine (mid-sized)

Heat exchanger

1,500 W, thermally protected

Fog output

800 m³ (28,252 ft³) per minute

Warm-up time

approx. 9 minutes

Tank capacity

4 l reservoir, quick-connect (5 l bottle compatible)

Fluids

JEM Pro-Fog fluids

Control

Integrated digital remote · DMX with RDM · master/slave

Connectors

powerCON TRUE1 (AC) · 5-pin XLR (DMX) · 3-pin XLR (remote)

Power

1,500 W / 6.8 A (230 V); 1,450 W / 12.1 A (120 V)

Dimensions

590 × 395 × 264 mm

Weight

15.1 kg dry / 19.1 kg filled
