JEM ZR25

Compact 1,150 W professional fog machine — 600 m³/min from a small, road-ready body.

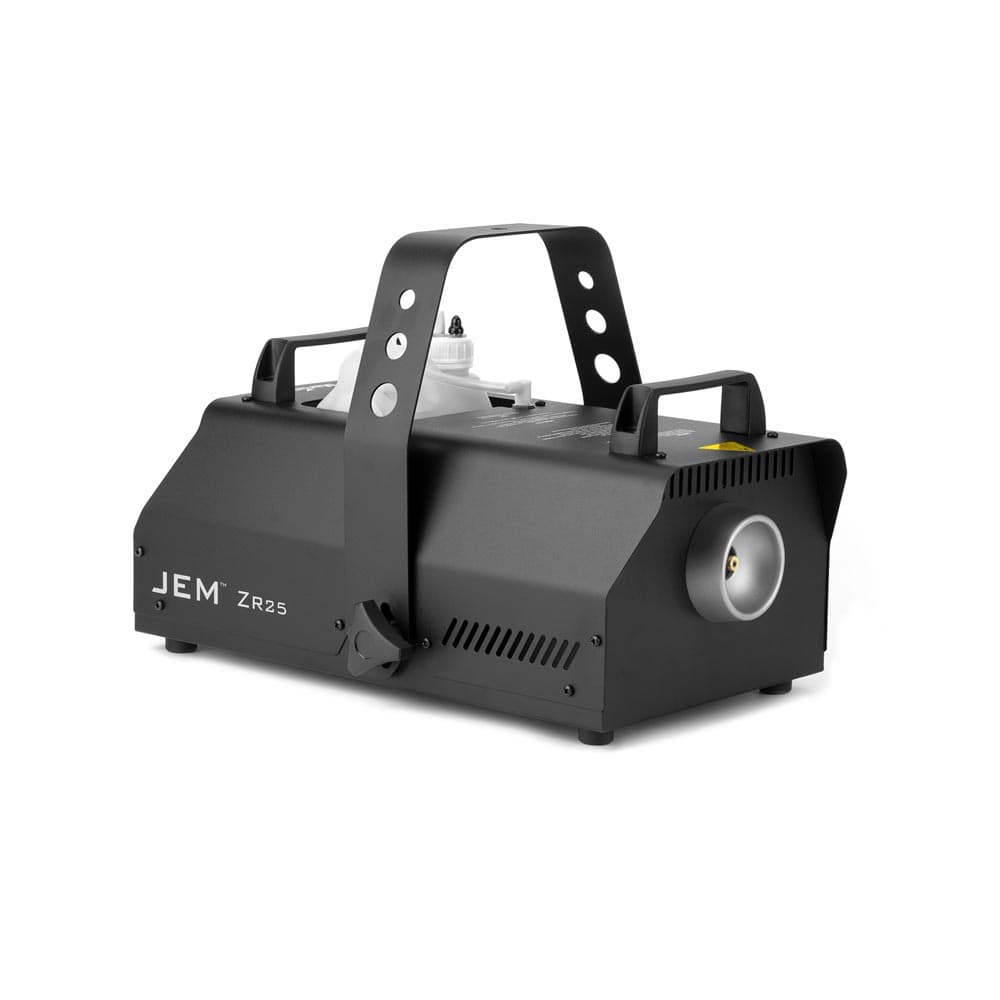

Martin JEM ZR25 compact professional fog machine — three-quarter studio view

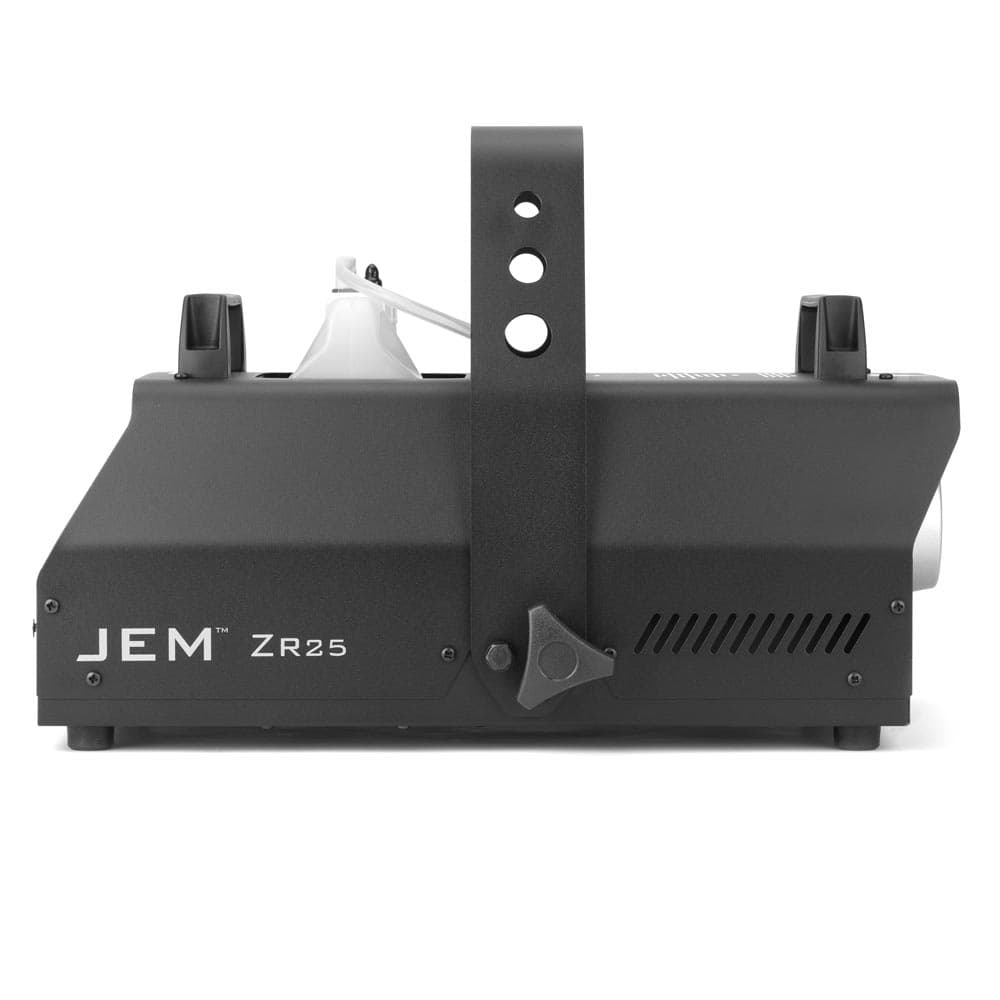

Martin JEM ZR25 — alternate angle

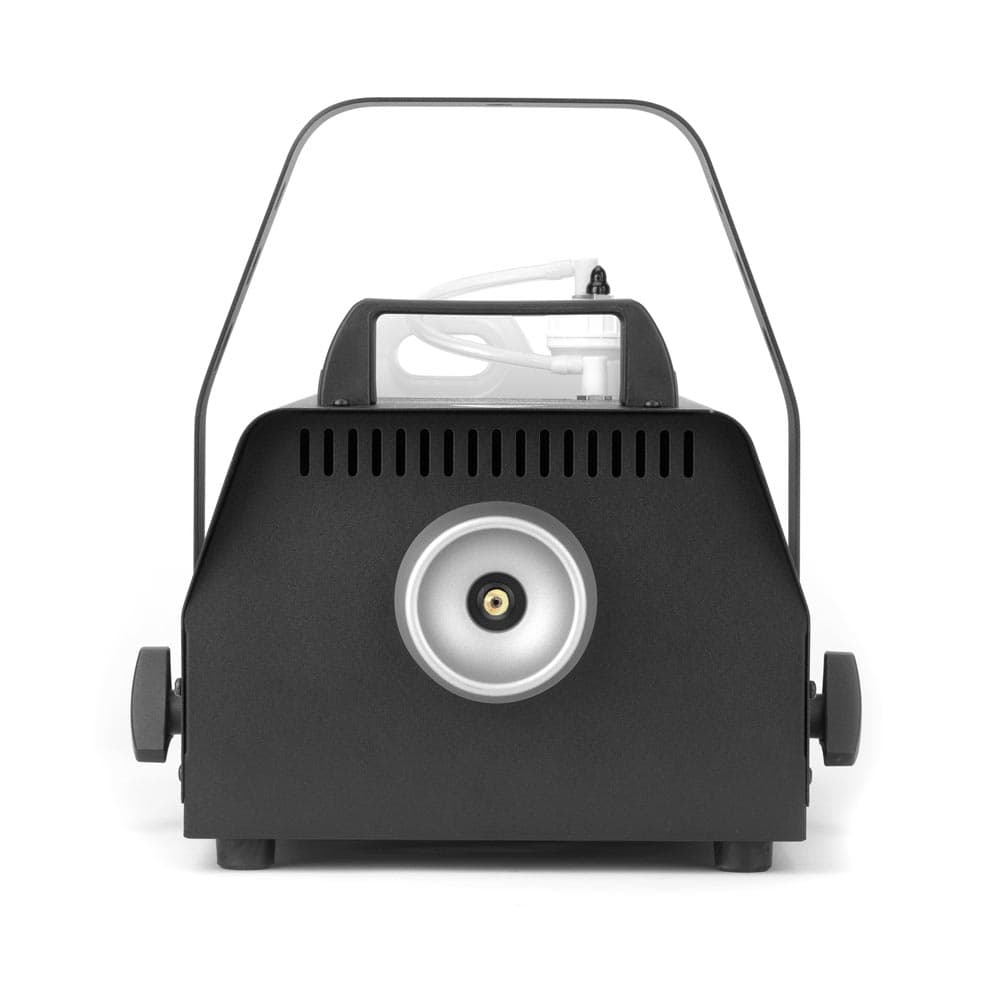

Martin JEM ZR25 — front and nozzle

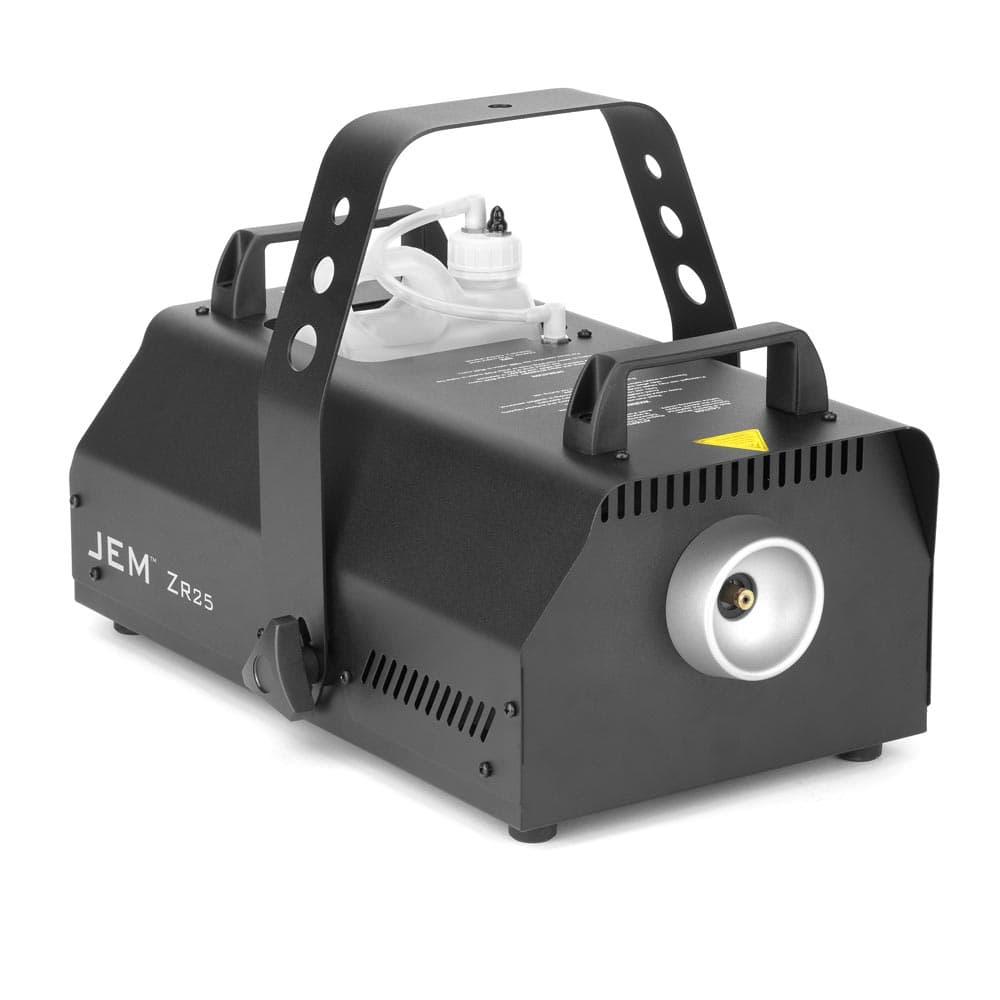

Martin JEM ZR25 — control panel and connections

Applications

ConcertLive eventsStage designTheatreTouring

Features

  • Robust, roadworthy design
  • Integrated digital remote control
  • DMX with RDM
  • Floor-standing or truss mounting (hanging bracket included)
  • 1,150 W heat exchanger; 600 m³ (21,189 ft³) per-minute output
  • Variable output control; continuous effect output
  • 2.5 l reservoir with quick-connect; compatible with JEM Pro-Fog fluids (optional ducting kit)

Specifications

Type

Professional fog machine (compact)

Heat exchanger

1,150 W, thermally protected

Fog output

600 m³ (21,189 ft³) per minute

Warm-up time

approx. 7 minutes

Tank capacity

2.5 l drop-in, quick-connect

Fluids

JEM Pro-Fog fluids

Control

Integrated digital remote · DMX with RDM · master/slave

Connectors

powerCON TRUE1 (AC) · 5-pin XLR (DMX) · 3-pin XLR (remote)

Power

1,200 W / 5.3 A (230 V); 1,050 W / 8.8 A (120 V)

Dimensions

485 × 335 × 242 mm

Weight

11.2 kg dry / 13.7 kg filled
