JEM Glaciator Dynamic

All-in-one self-contained low-fog machine — dense low-lying fog, no ice, gas or external fans.

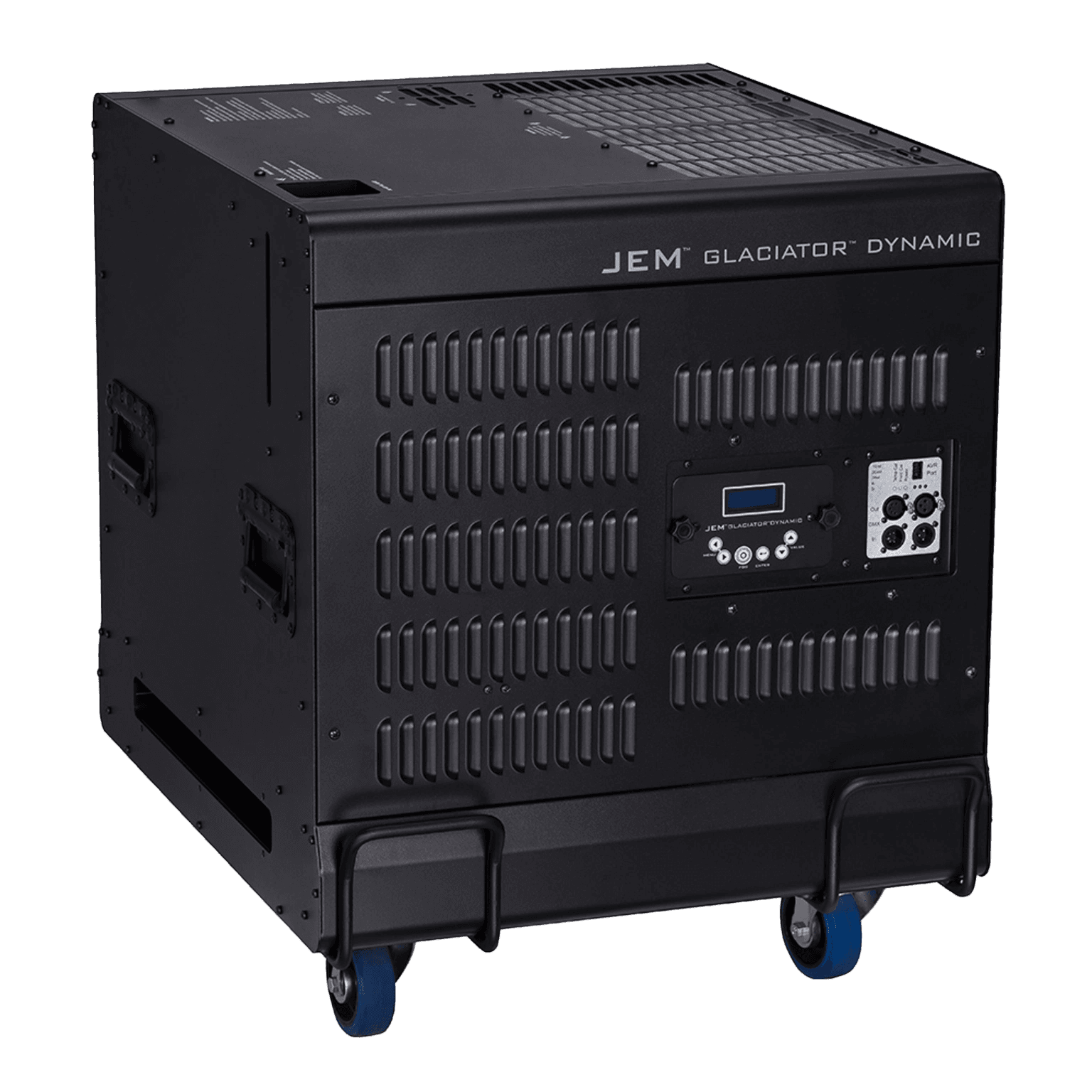

Martin JEM Glaciator Dynamic self-contained low-fog machine — front three-quarter view

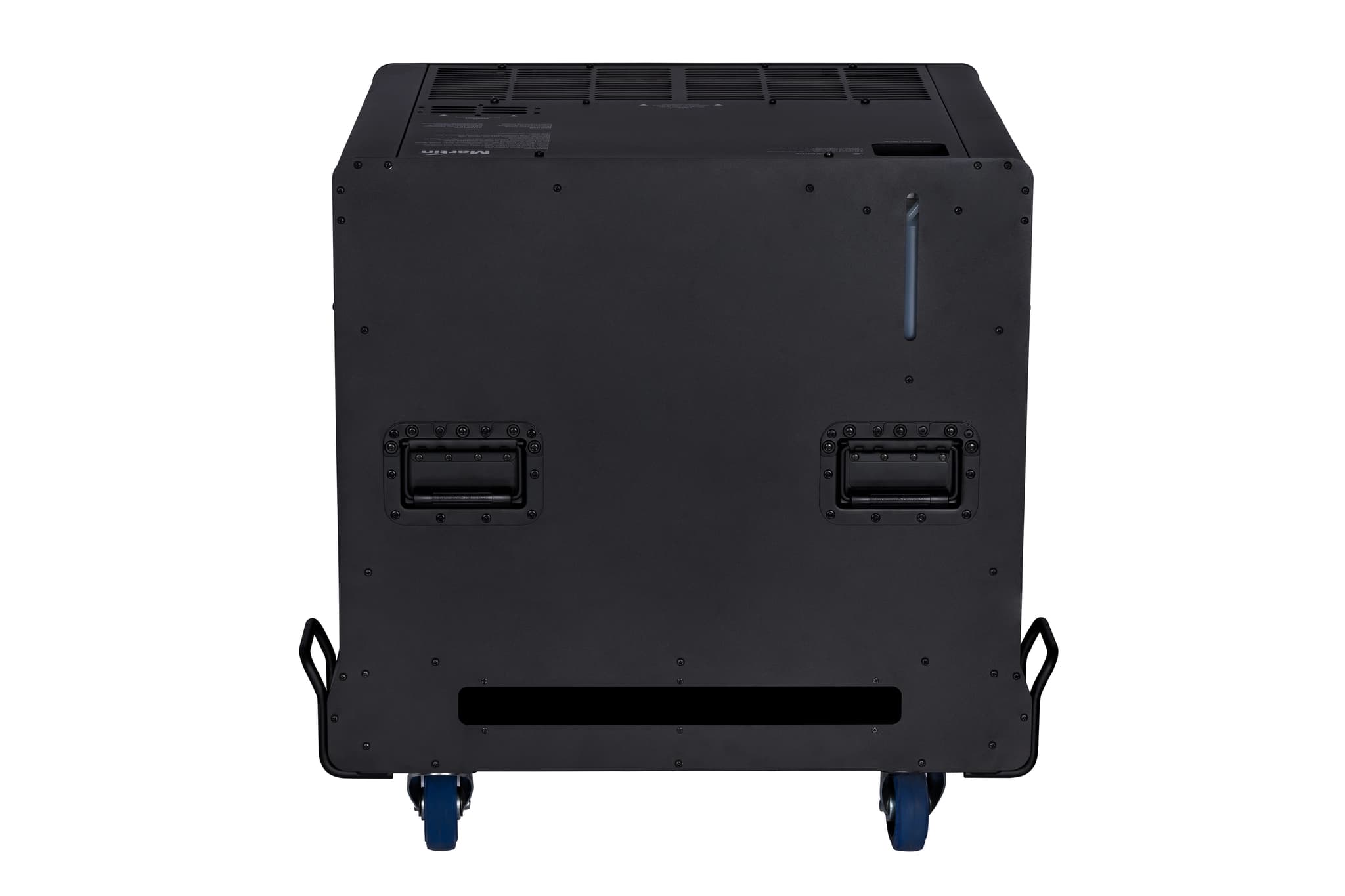

Martin JEM Glaciator Dynamic — side view

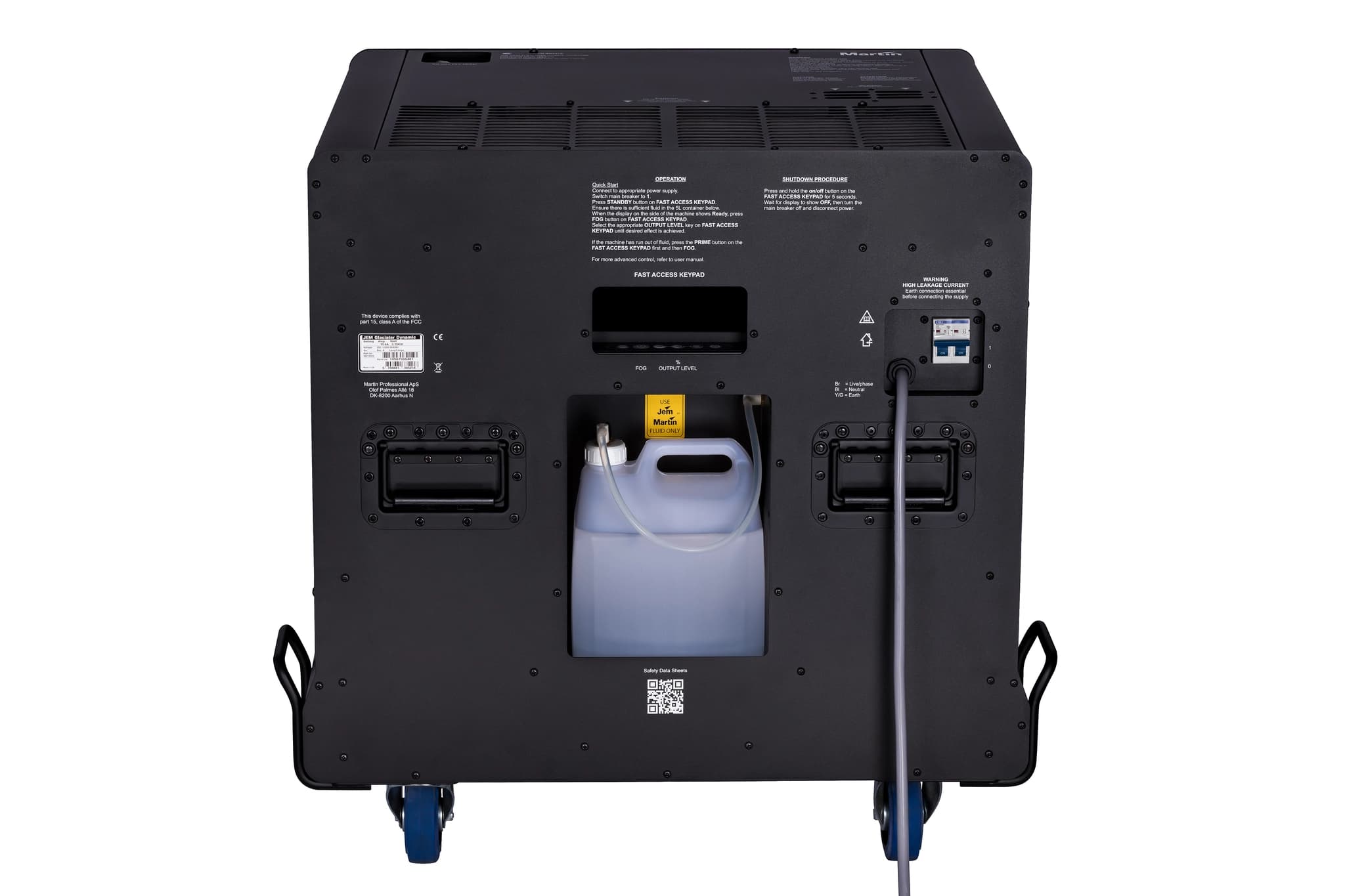

Martin JEM Glaciator Dynamic — rear and connections

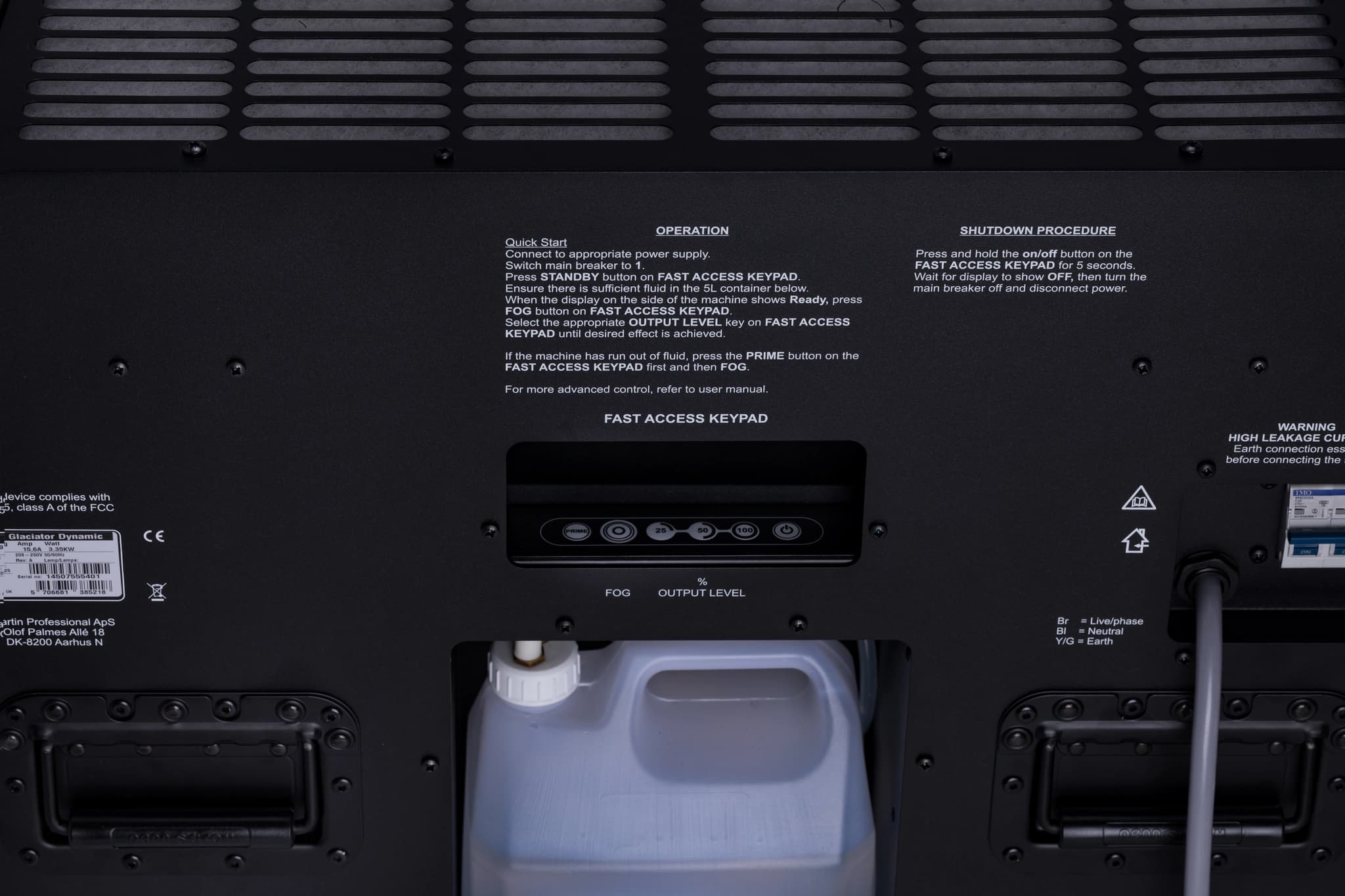

Martin JEM Glaciator Dynamic — Fast Access Keypad and fluid bay

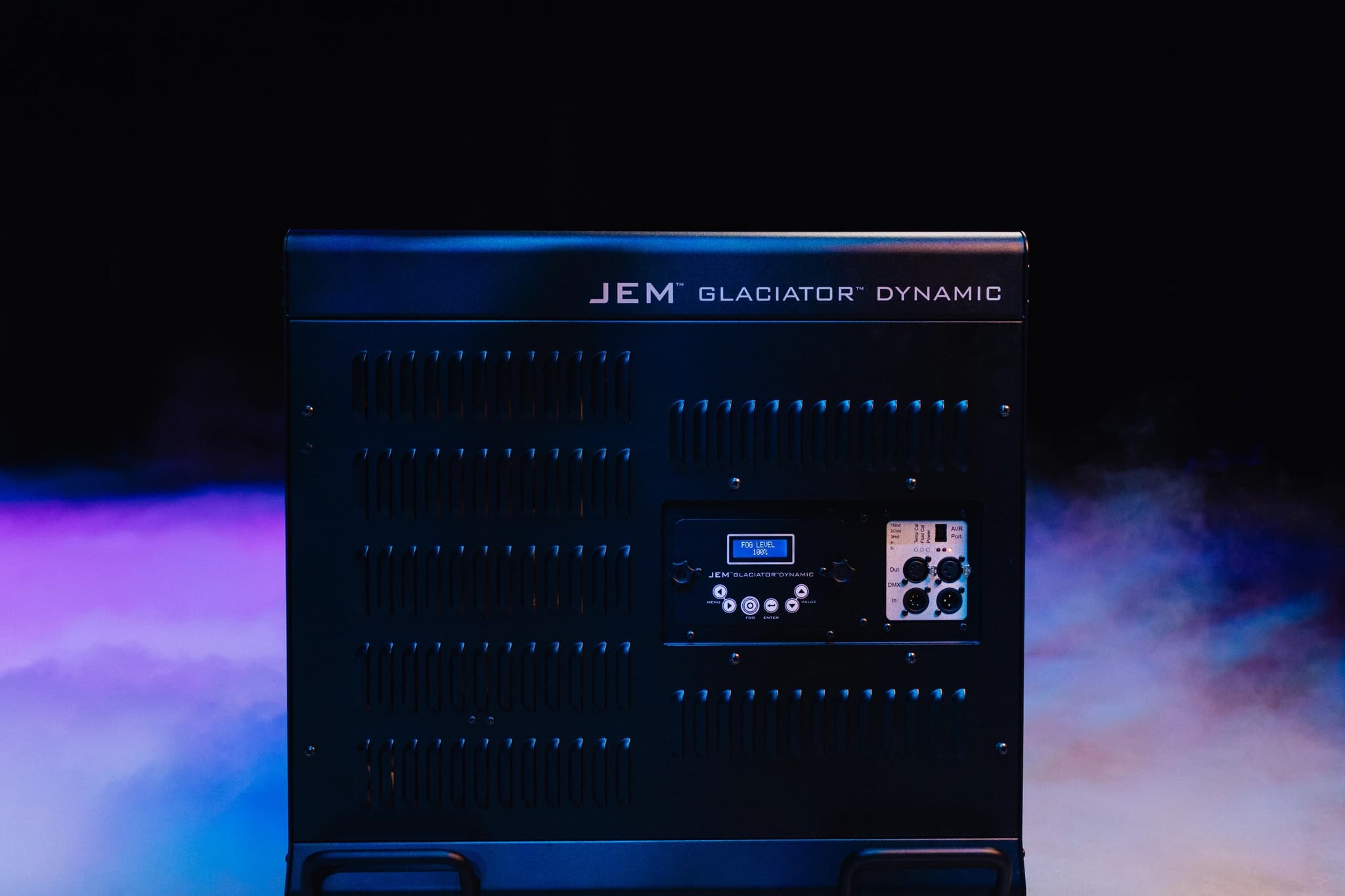

Martin JEM Glaciator Dynamic producing low-lying fog on stage

Applications

ConcertLive eventsStage designTheatreTV / Broadcast

Features

  • All-in-one self-contained low fog — no external fans, gas tanks or ice
  • All-new electronic inverter drive and improved closed-loop refrigeration for colder, slower-dissipating fog
  • Continuous 80 m³ (2,825 ft³) per-minute output through a low-fog outlet
  • Universal 208–250 V power supply for world touring
  • 5 l internal reservoir with one-touch fluid priming
  • Fast Access Keypad, integrated remote, or 3- & 5-pin DMX with RDM
  • Tour-ready steel chassis with easy-grip bumper bars; quiet operation

Specifications

Type

Self-contained low-fog machine (closed-loop refrigeration)

Power consumption

up to 3,500 W

AC power

208–250 V single-phase, 50/60 Hz (auto-ranging)

Output

80 m³ (2,825 ft³) per minute

Warm-up time

5–7 minutes

Internal reservoir

5 l (expandable to 25 l externally)

Fluids

JEM Low-Fog Fluid (Quick Dissipating / standard / High Density); Pro-Clean and Storage Fluid

Control

Integrated digital remote · Fast Access Keypad · DMX with RDM

Connectors

Hardwired mains · 3- & 5-pin XLR (DMX/RDM) · 3-pin XLR (remote)

Ingress protection

IP20

Dimensions

785 × 648 × 769 mm

Weight

124 kg
