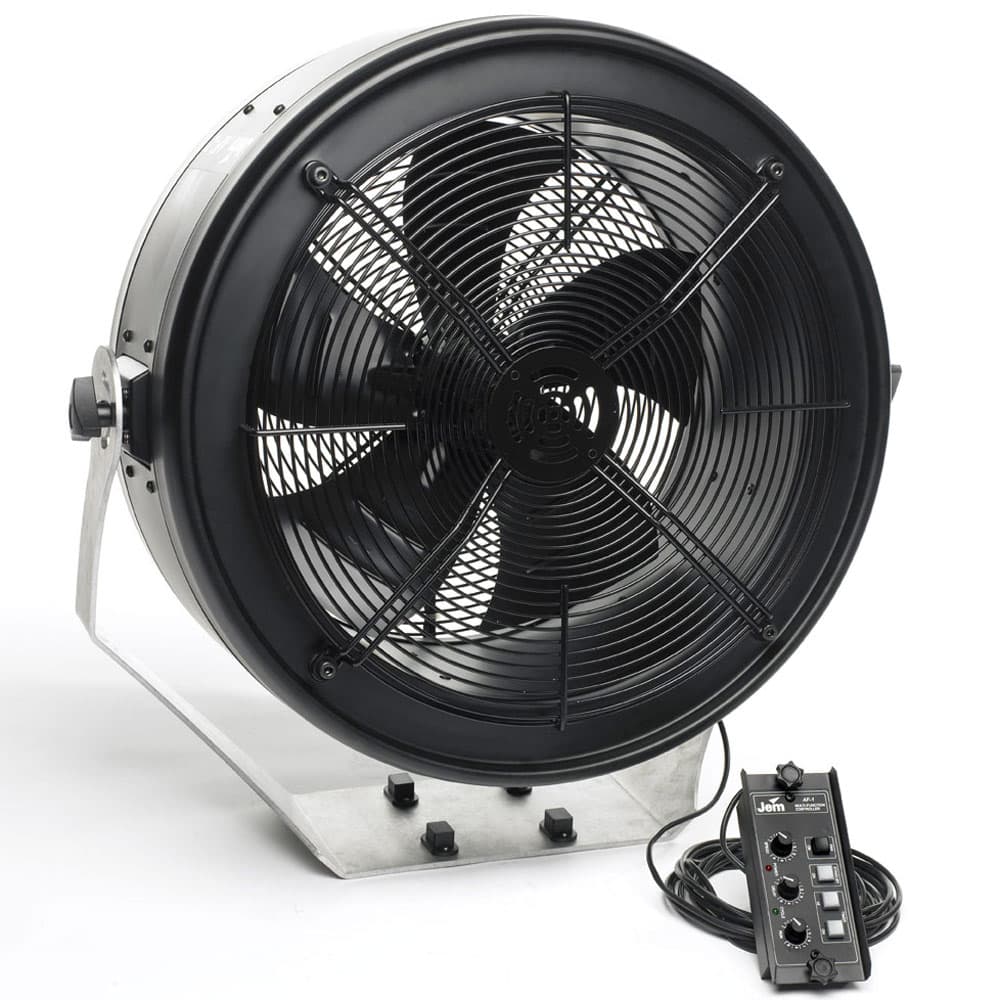

JEM AF-2
24-inch DMX effect fan — high-output airflow, instant on, quiet 73 dBA at full output.
Applications
ConcertFestivalsLive eventsStage designTV / Broadcast
Features
- 24" sealed motor that resists moisture and condensation
- Variable speed range and control; instant on; low minimum speed
- Integrated DMX (single channel)
- Multi-functional timer remote control included
- High airflow up to 5,700 m³/h, yet only 73 dBA at maximum
- Floor-standing or truss mounting; optional steel “Touring Frame”
- Broad regulatory compliance
Specifications
Type
High-output effect fan, 24" sealed axial motor
Maximum airflow
5,700 m³/h (3,355 CFM)
Variable speed
0–1,400 rpm, 0–100%
Maximum noise
73 dBA
Control
Integrated DMX (1 ch) · analog timer remote · test switch
Remote cable
3-pin XLR, 5 m (max 50 m)
Mounting
Floor or hanging; omega-bracket compatible
Housing
Aluminium, black
Optional
Steel “Touring Frame” with remote storage
Dimensions
600 × 600 × 310 mm
Weight
15.7 kg (17.5 kg with flying bracket)
