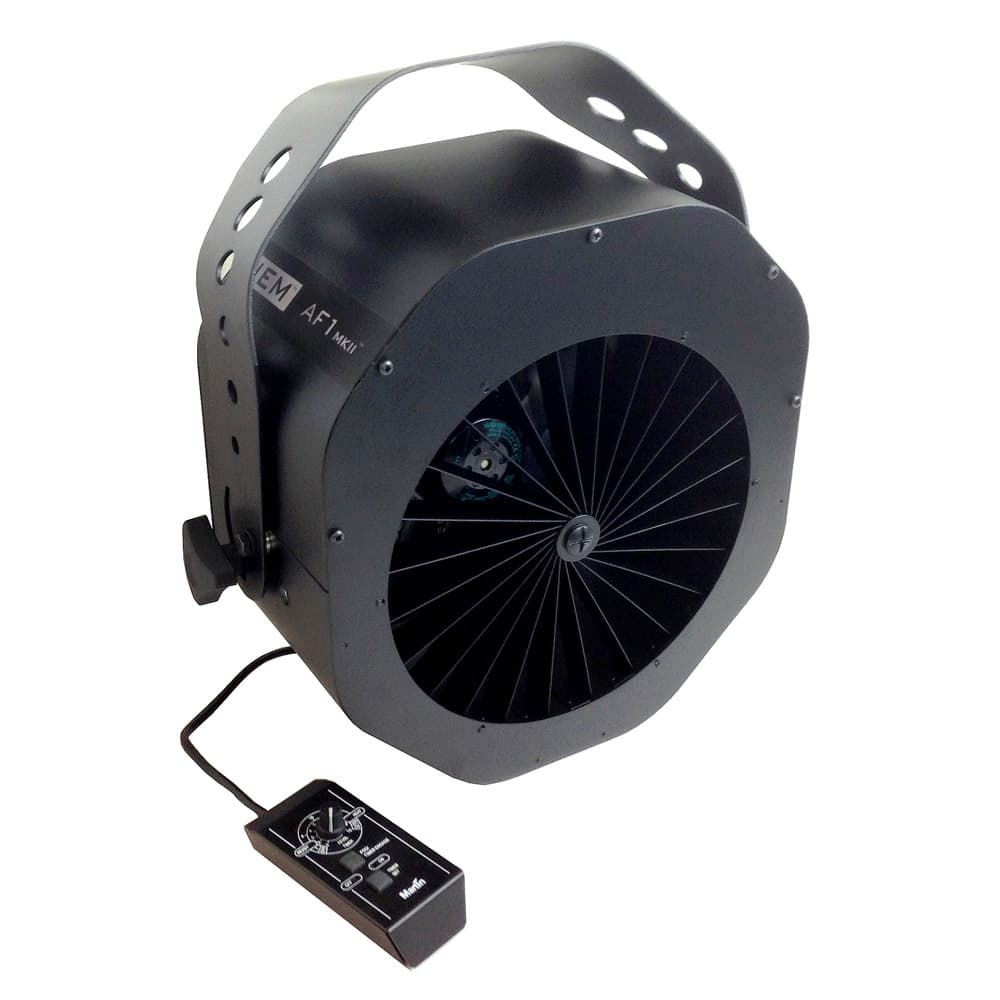

JEM AF-1 MkII
12-inch DMX effect fan — variable speed, instant on, quiet 70 dBA at full output.
Applications
ConcertLive eventsStage designTheatreTV / Broadcast
Features
- 12" sealed motor that resists moisture
- Variable speed range and control; instant on; low minimum speed
- Integrated DMX (single channel)
- Included analog timer remote control with on-board test switch
- Reduced motor noise at low speeds; 70 dBA at maximum
- Floor-standing or truss mounting in any orientation
- Broad regulatory compliance
Specifications
Type
Compact effect fan, 12" sealed axial motor
Maximum airflow
1,815 m³/h (1,083 CFM)
Variable speed
200–2,500 rpm, 0–100%
Maximum noise
70 dBA
Control
Integrated DMX (1 ch) · analog timer remote · test switch
Remote cable
3-pin XLR, 3 m (max 50 m)
Connectors
DMX 3- & 5-pin XLR · remote 3-pin XLR
Power
220–240 V, 50/60 Hz
Mounting
Floor or hanging, any orientation
Housing
Steel, black
Dimensions
320 × 350 × 176 mm
Weight
8.5 kg
