Instagrid ONE

230 V portable battery power — pure sine wave, silent and emission-free.

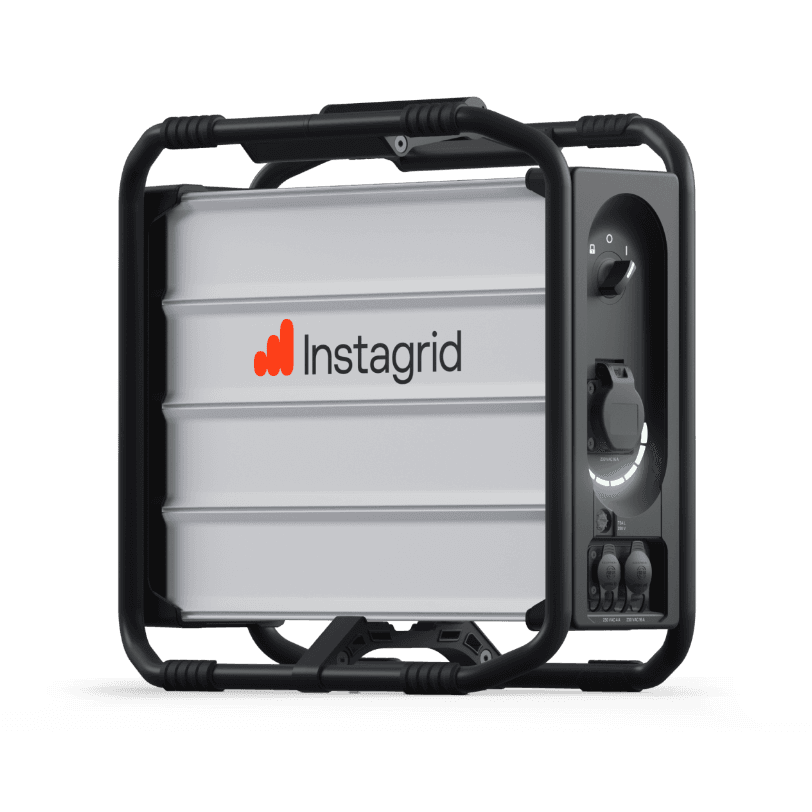

Instagrid ONE portable battery power supply — front view

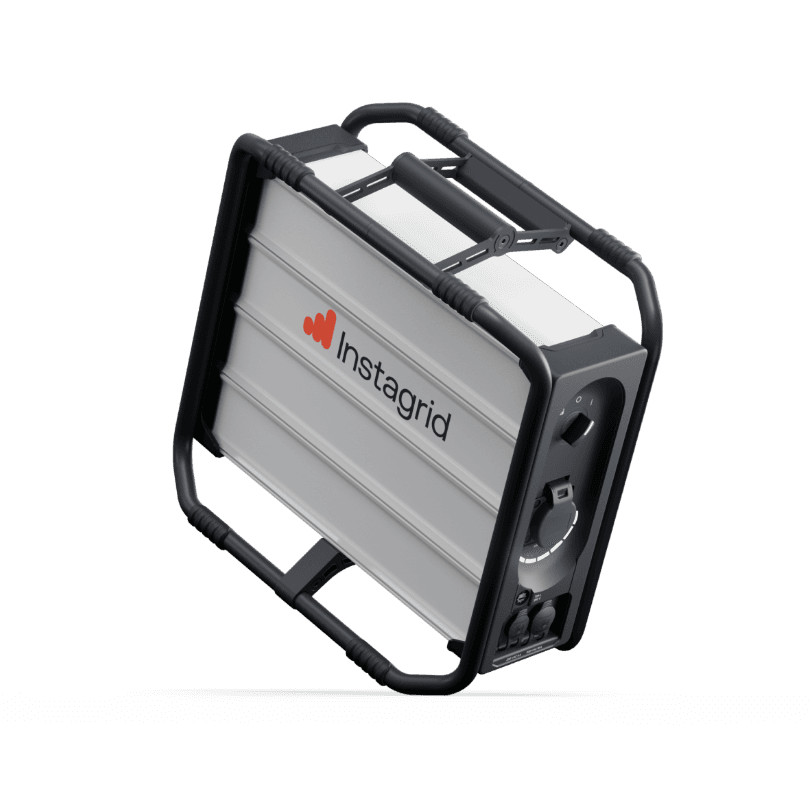

Instagrid ONE — three-quarter view showing the carry frame

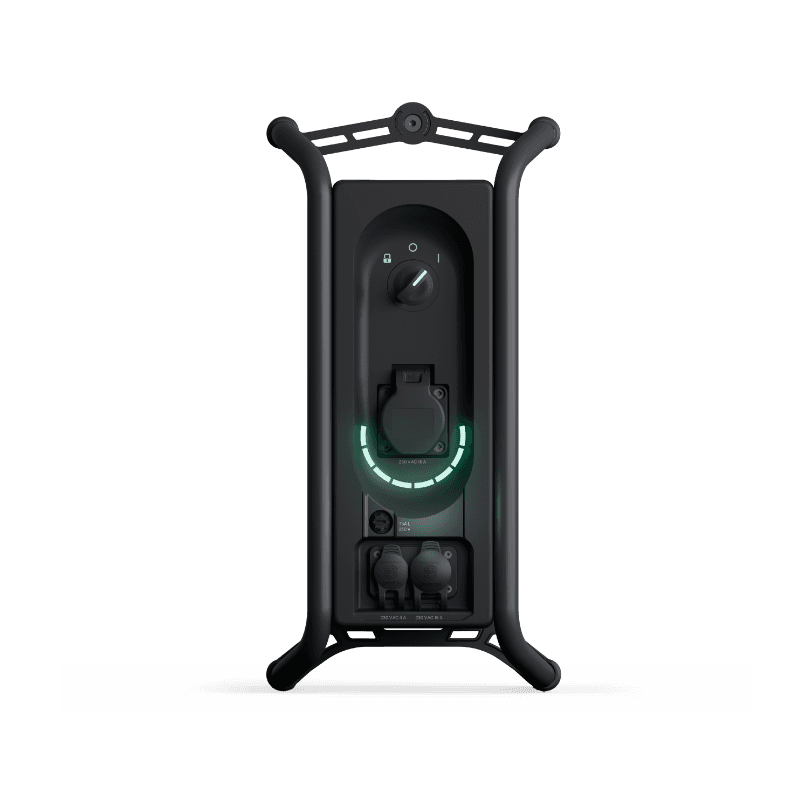

Instagrid ONE — side view with the output socket and control panel

Applications

FestivalsLive eventsOff-gridOutdoor / InstallTouringTV / Broadcast

Features

  • Pure sine-wave 230 V output — powers anything you would run from the mains
  • 3,600 W continuous output, 18 kW peak (80 A) to start demanding loads
  • 2.1 kWh battery, expandable by linking units; full recharge in under 3 hours
  • Completely silent, fanless design with zero local emissions
  • Rugged IP54 housing for reliable use outdoors in any weather
  • Just 20 kg — carried in one hand; built-in IoT for fleet, location and usage data

Specifications

Output voltage

230 V AC / 50 Hz

Continuous output

3,600 W (16 A)

Peak power

18 kW (80 A)

Energy capacity

2.1 kWh

Charge time

< 3 h to 100%

Output sockets

BS1363 (13 A) + Neutrik powerCON TRUE1 TOP®

IP class

IP54

Operating temperature

−20 °C to 60 °C

Noise emissions

< 10 dB(A)

Dimensions

420 × 210 × 420 mm

Weight

20 kg
