Instagrid LINK MAX

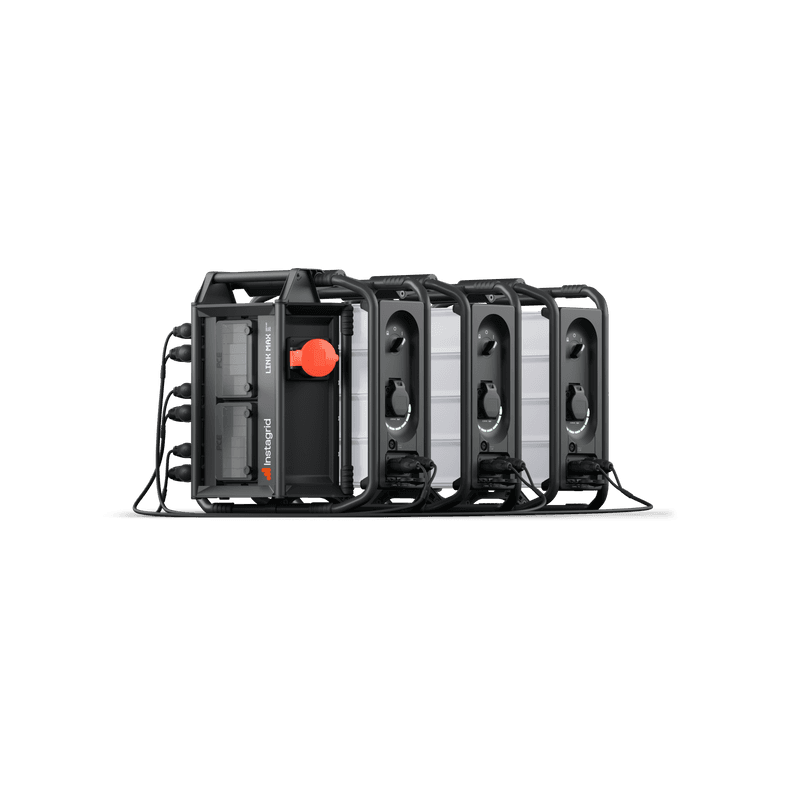

The world’s most portable 400 V — combine three Instagrid ONE units into 3-phase power.
Applications
Live eventsOutdoor / InstallRiggingStage designTouringTV / Broadcast
Features
- Combines three Instagrid ONE units into one 400 V, 3-phase output
- The world’s most portable 400 V power solution — set up by a single person
- 11 kW nominal power, 54 kW peak to start highly demanding equipment
- Runs demanding loads with zero added noise or exhaust fumes
- Modular: units also work as standalone 230 V supplies
- Ideal for chain hoists, motorised stages, robotic camera arms and SFX
Specifications
Output voltage
400 V AC / 50 Hz
Output current
16 A (3-phase)
Nominal power
11 kW
Peak power
54 kW
Output receptacle
1 × CEE 5-pole 6h 16 A
Input receptacles
3 × Neutrik powerCON TRUE1 TOP®
Protection
Phase monitoring (PMD) + insulation monitoring (IMD)
IP class
IP54
Operating temperature
−20 °C to 50 °C
Dimensions
391 × 320 × 140 mm
Weight
5.1 kg
