Instagrid LINK

Smart safety distributor — link up to three Instagrid ONE units for 6.3 kWh of run time.

Instagrid LINK smart safety power distributor — single unit

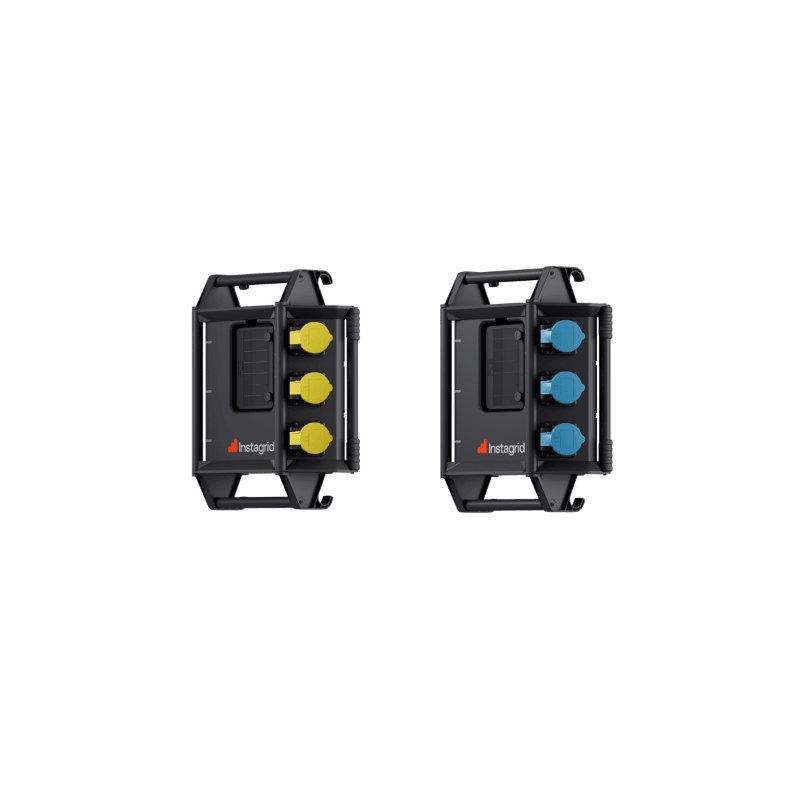

Instagrid LINK — 230 V and 110 V versions side by side

Applications

FestivalsLive eventsOff-gridOutdoor / InstallTouringTV / Broadcast

Features

  • Links up to three Instagrid ONE units into one supply — up to 6.3 kWh of capacity
  • Seamless hot swap in under 20 ms for uninterrupted, mission-critical power
  • Three protected outputs, each with its own 30 mA type-A RCD
  • Continuous 3,600 W (16 A) at 230 V AC
  • Rugged IP54 housing — unaffected by dust or water
  • Available in 230 V (Instagrid ONE) and 110 V (Instagrid GO) versions

Specifications

Output voltage

230 V AC / 50 Hz (also 110 V version)

Output current

16 A

Continuous output

3,600 W

Capacity

up to 6.3 kWh (3 × Instagrid ONE)

Switching time

< 20 ms

Output receptacles

3 × CEE 16 A

Input receptacles

3 × Neutrik powerCON TRUE1 TOP®

Residual current device

3 × 1P+N RCD type A, 30 mA

IP class

IP54

Dimensions

400 × 310 × 140 mm

Weight

4.5 kg
