Hazer²

Energy-saving 350 W hazer in a road-ready cube — fine, even haze with no compressor.

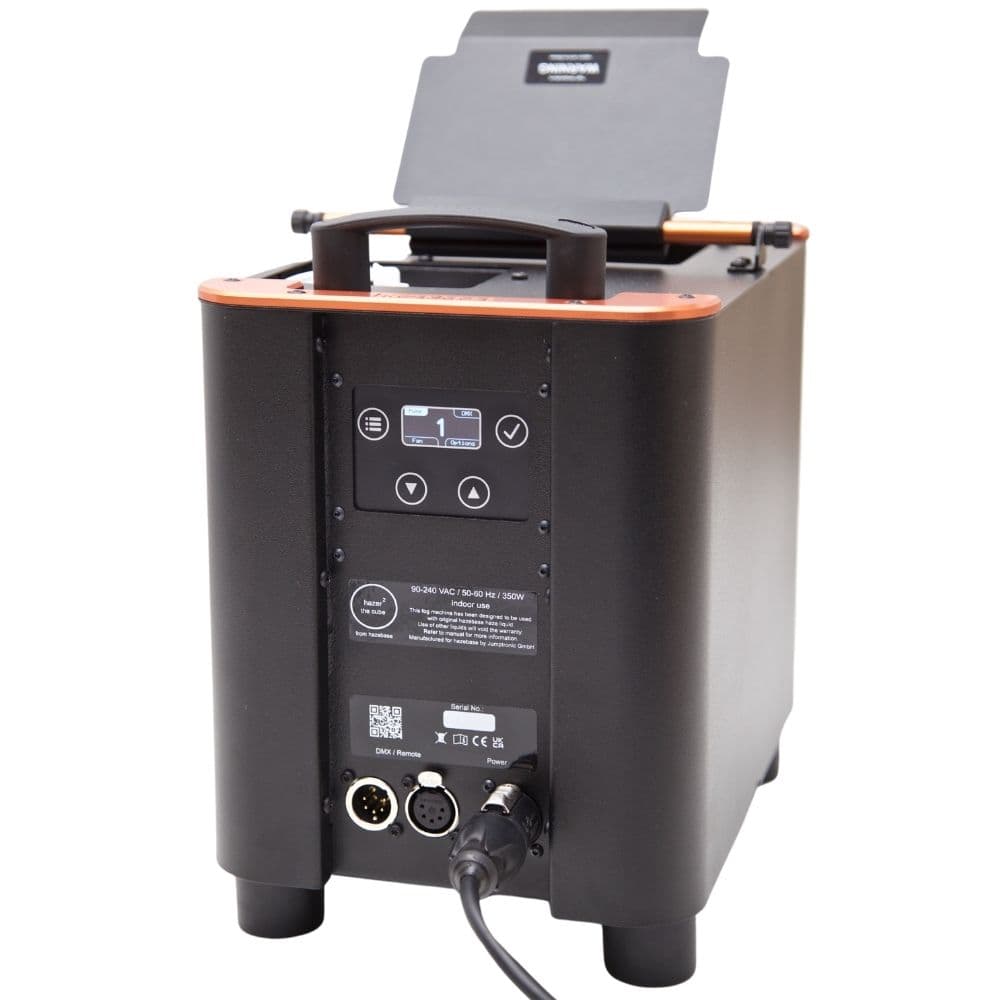

hazebase hazer² “the cube” energy-saving hazer — three-quarter studio view

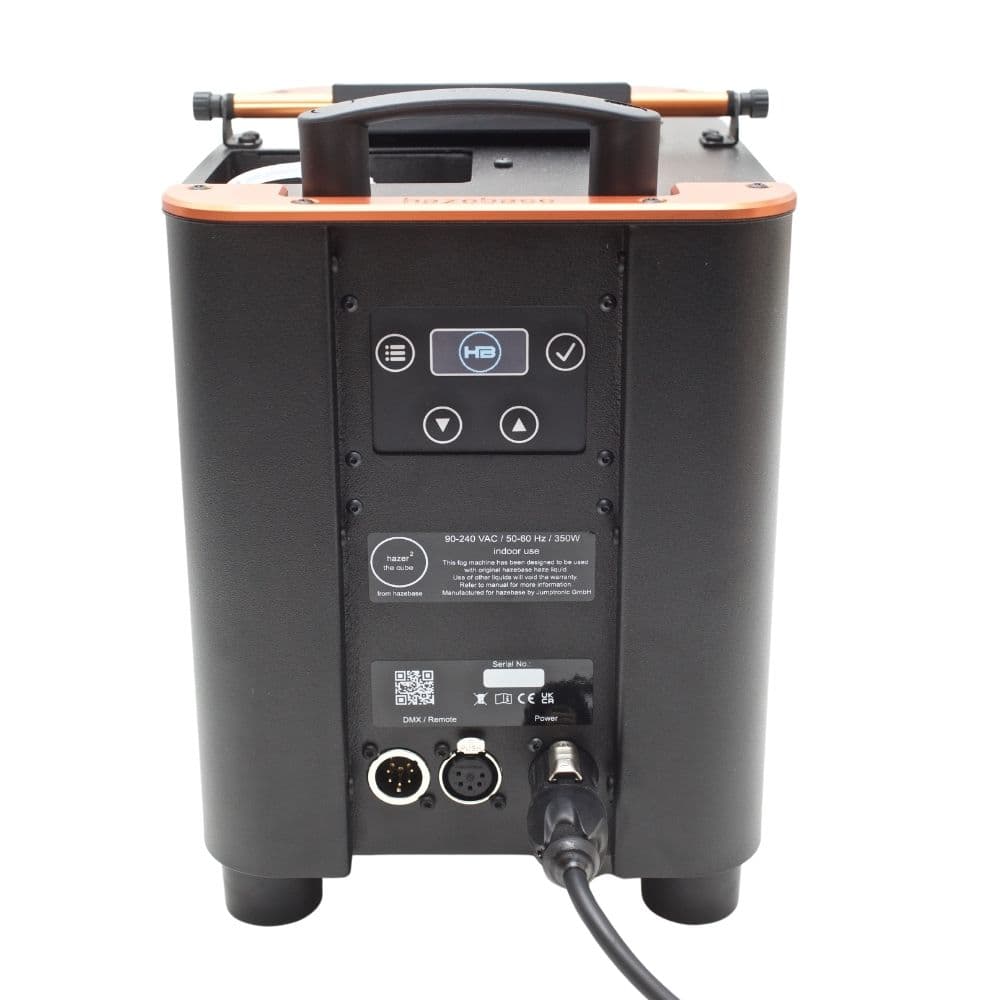

hazebase hazer² “the cube” energy-saving hazer — front view
hazebase hazer² “the cube” — control panel and connections

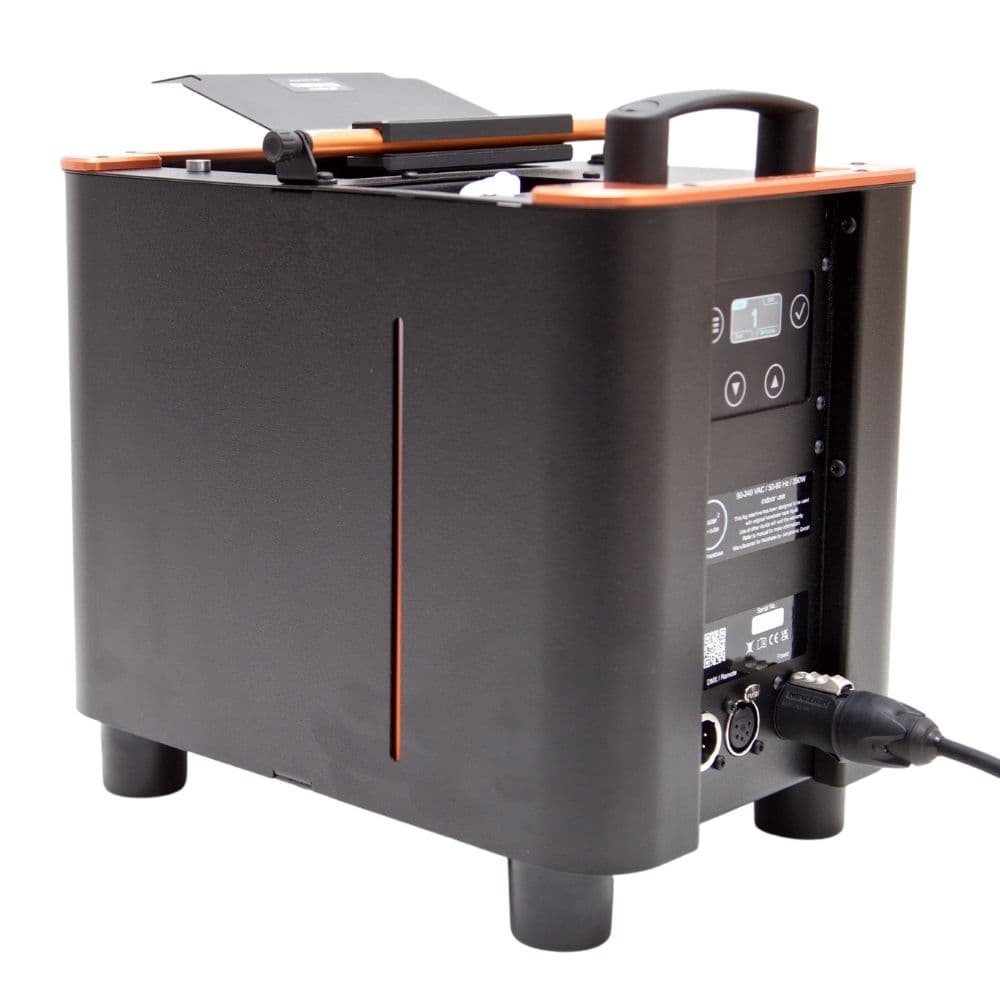

hazebase hazer² “the cube” — with the air baffle raised

Applications

ConcertLive eventsStage designTheatreTV / Broadcast

Features

  • Energy-saving, directly heated 350 W engine — no compressor to service or hum on a quiet stage
  • Ready in roughly 10 seconds from cold, with haze output controllable from 1–100 %
  • Built-in axial fan moving up to 170 m³/h to carry the haze across the room
  • Air baffle adjustable through ±45° to aim the plume from a soft spread to a directed column
  • Full DMX512 / RDM control with JT Remote, set from the on-unit display
  • Compact and light — 7 kg in a 305 × 205 × 300 mm cube; runs base*V and base*B fluids

Specifications

Type

Hazer (directly heated, no compressor)

Power

350 W (PowerCON TRUE1)

Warm-up time

approx. 10 seconds

Tank capacity

1,000 ml

Haze output

1–100 % controllable

Fan

Axial, up to 170 m³/h, 0–100 % controllable

Air baffle

Adjustable ±45°

Control

DMX512 · RDM · JT Remote

Fluids

base*V, base*B

Dimensions (L×W×H)

305 × 205 × 300 mm

Weight

7 kg
