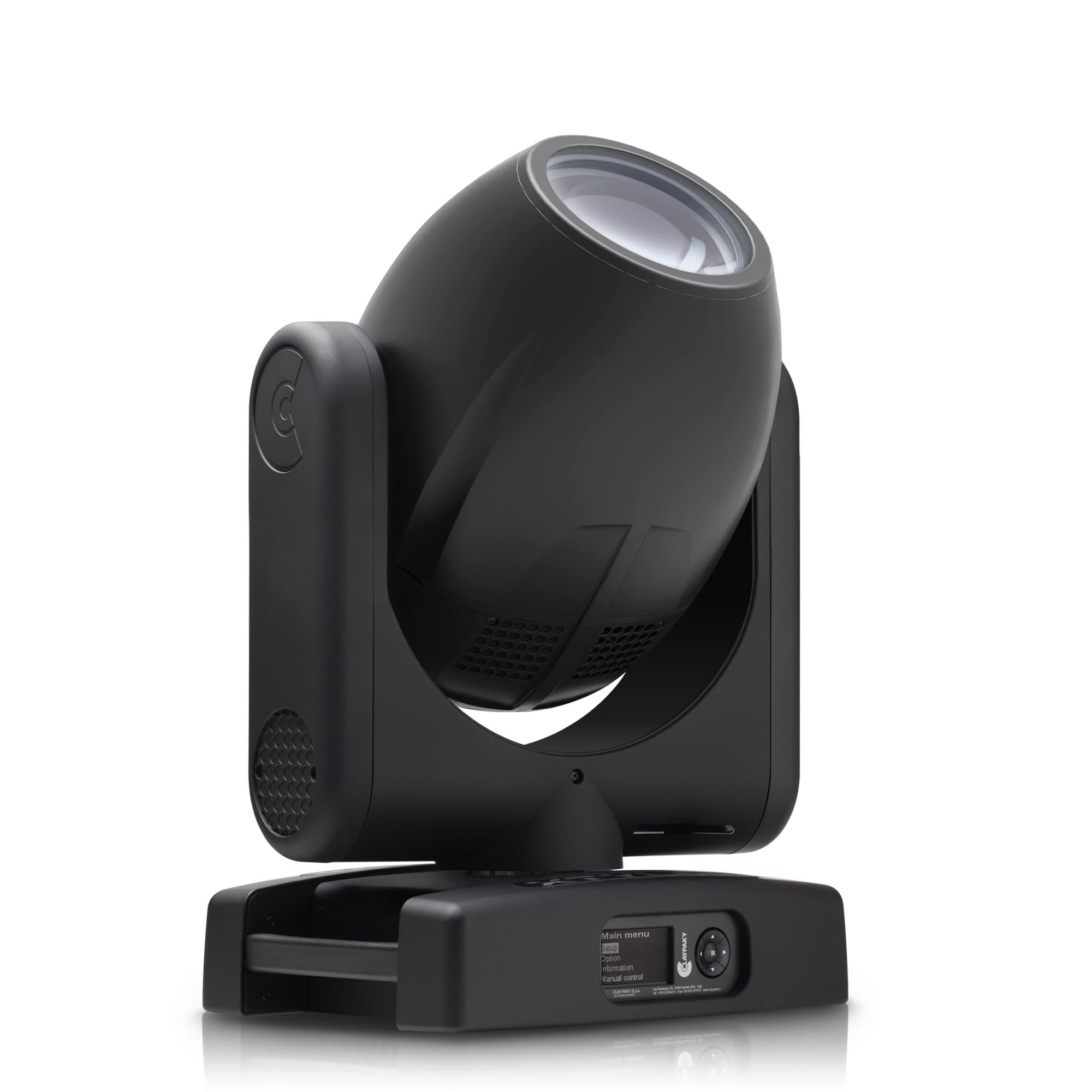

Xtylos Aqua

The first IP66-rated laser moving head — 2,900 lm of weatherproof RGB-laser beam.

Applications

ConcertFestivalsLive eventsOutdoor / InstallTouringTV / Broadcast

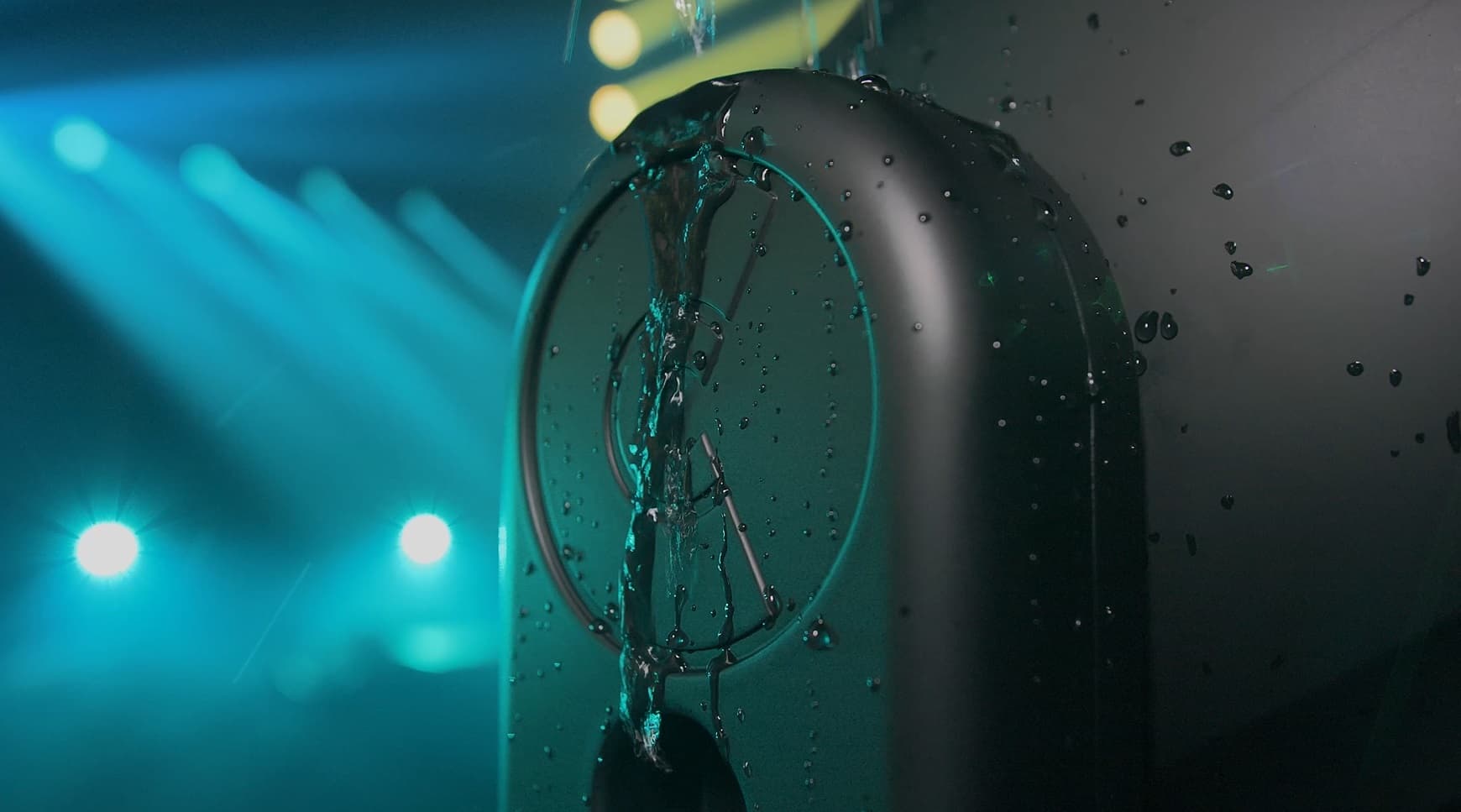

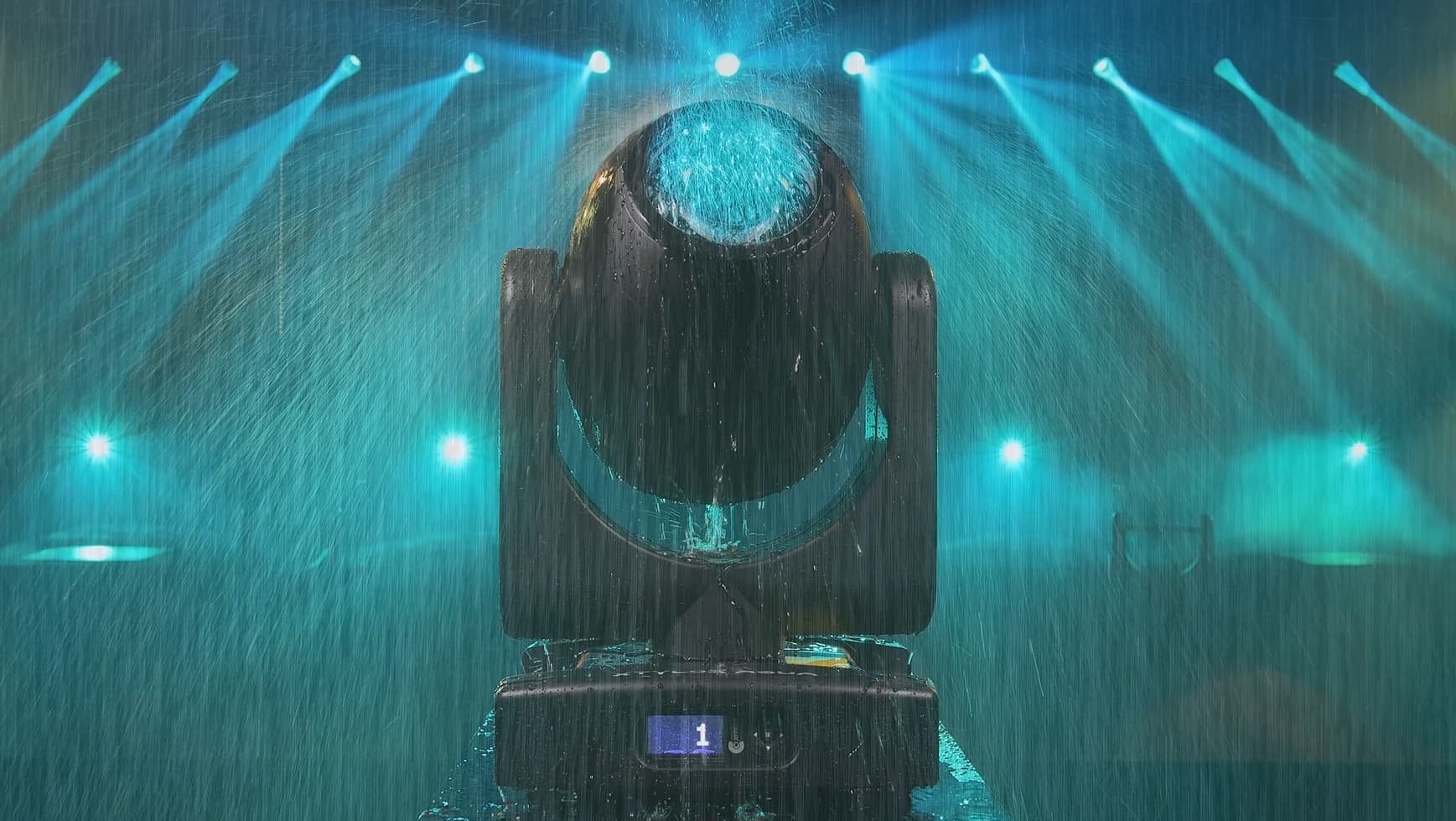

IP66-rated — the first laser moving head certified for harsh outdoor use
Tailor-made 6,500 K RGB laser source with Turbo-Colours, ~20,000-hour life
Marine-grade protection supplied as standard for coastal and cruise use
Integrated fan clears front-lens condensation for consistent output
Wireless DMX integrated as standard

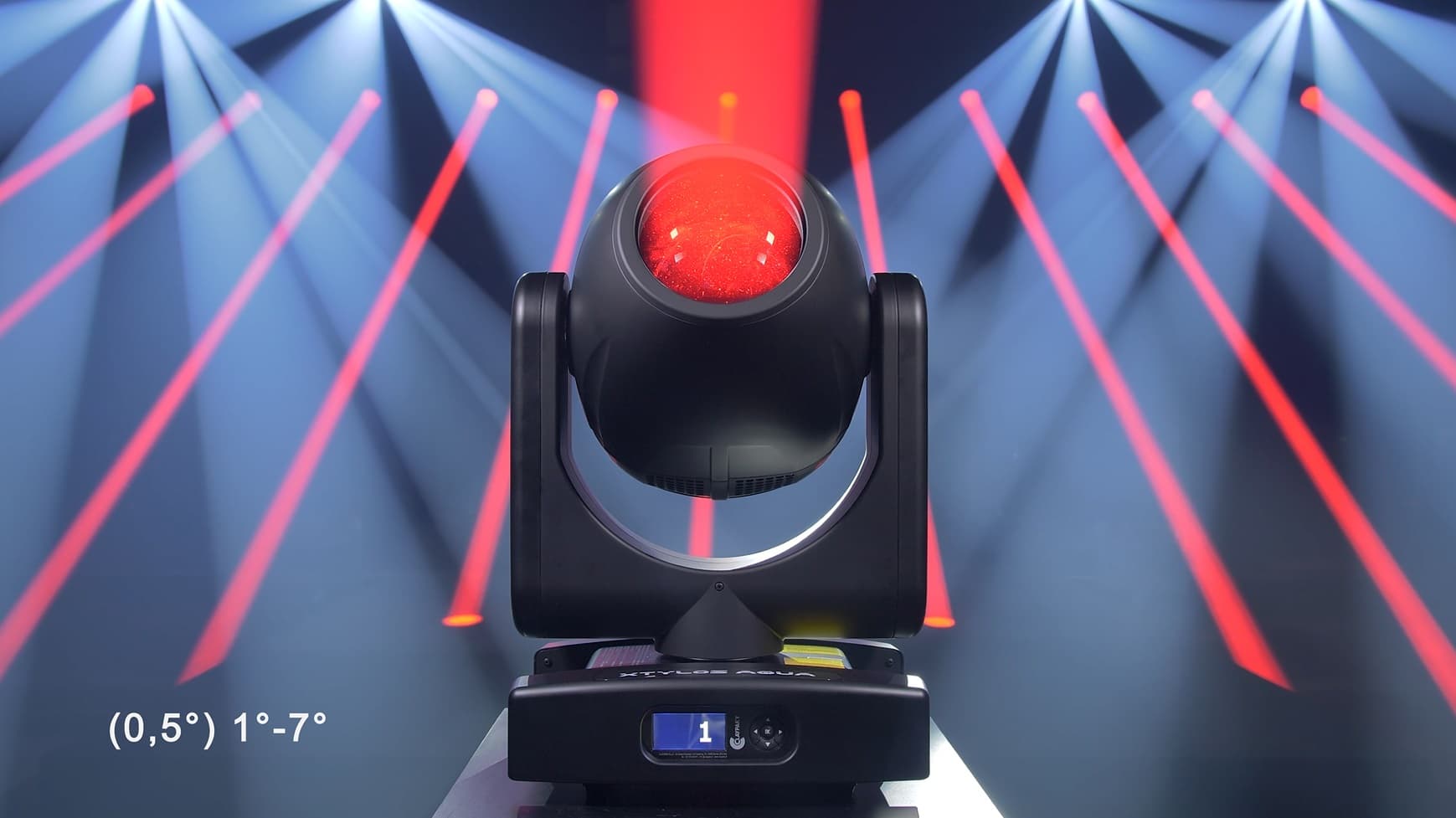

Narrow 1°–7° beam, reducible to 0.5° with beam reducers
Two gobo wheels, three rotating prisms, frost and a dedicated sixteen-facet prism

Light source

Tailor-made RGB laser engine (~20,000 hrs)

Source power

250 W

Light output

2,900 lm

Colour temperature

6,500 K (virtual CTO 2,500–6,500 K)

Zoom

1°–7° (down to 0.5° with reducers)

Front lens

Ø 150 mm

Gobos

7 HD rotating + 12-slot static (5 gobos, 7 reducers)

Prisms

3 rotating + frost; 16-facet on dedicated channel

Movement

Pan 540° / tilt 248° (16-bit)

Control

DMX · Art-Net · sACN · RDM; wireless DMX standard

Connections

5-pin XLR IN/OUT + RJ45 IN

Power

PowerCon True1 — 400 VA max

Ingress protection

IP66 (Shield Family); marine-grade

Weight

30.4 kg
