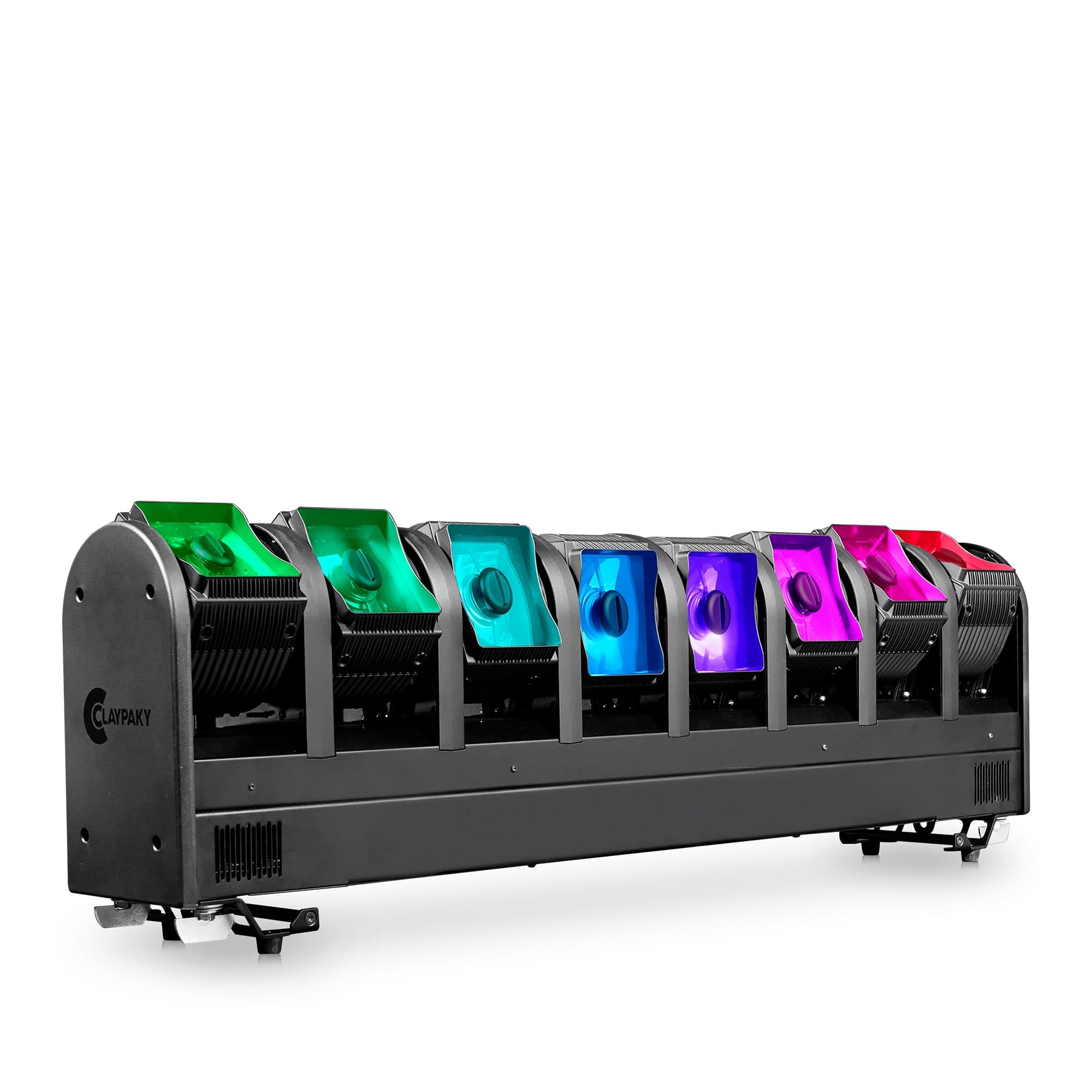

Volero Wave
IP66 LED bar of eight independent moving heads — a signature wave effect.
Applications
ConcertFestivalsLive eventsOutdoor / InstallTouringTV / Broadcast
Features
- Eight independent moving heads, each tilting 220° while holding consistent intensity
- Mirror-based optical system with 40 W RGBW LEDs for high beam intensity
- Very narrow 2.9° aperture producing sharp, collimated, parallel beams

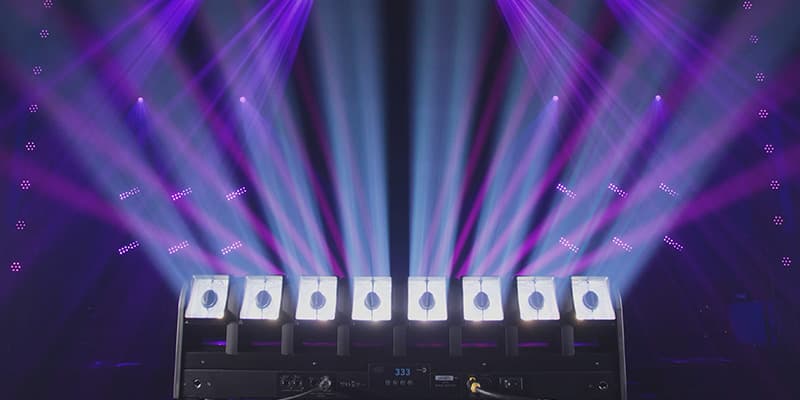

- Signature wave effect from synchronised head movement, scaling across multiple units

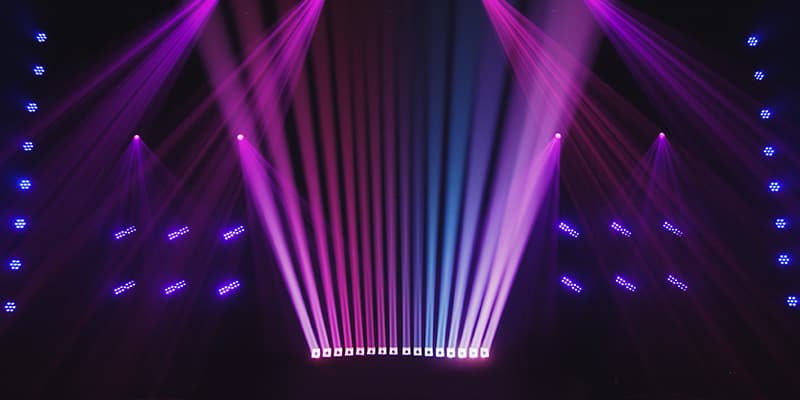

- Per-pixel mapping with Advanced Layers Management for simultaneous effect layers
- Precise truss alignment, with an optional Panify mount for continuous pan rotation
- Comprehensive control via DMX, Art-Net, sACN and RDM with a built-in web server
Specifications
Light source
8 × 40 W RGBW Osram LEDs
Light output
2,336 lm (292 lm per pixel)
Pixels
8 single pixels with pixel mapping
Aperture
2.9°
Colour temperature
Linear CTC 2,500–8,000 K (16-bit)
Tilt
220° per module (independent), ±0.08°
Dimmer
24-bit electronic
Control
DMX · Art-Net · sACN · RDM (web server)
Connections
5-pin XLR IN/THRU + RJ45 IN/OUT
Power
PowerCon True1 — 400 VA max
Ingress protection
IP66 (Shield Family)
Weight
20.8 kg
Dimensions
1,000 × 329 × 182 mm
