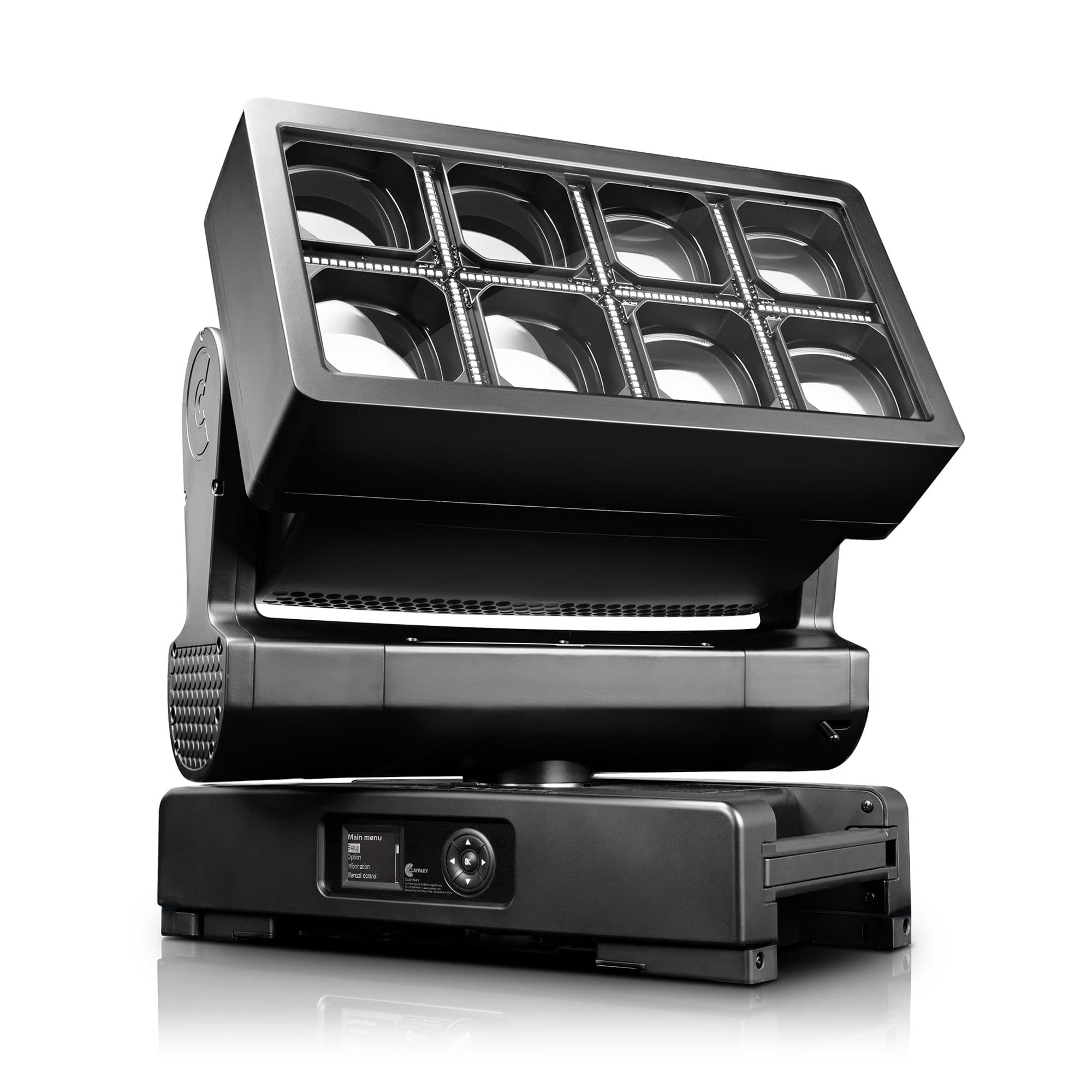

IP66 hybrid batten — eight 60 W RGBW cells plus a 20-area cold-white strobe.
Applications
Features
- Hybrid batten merging effect-light output with moving-head versatility
- Eight square lenses producing dense, solid concentrated beams
- Cold-white strobe engine of 10 lines split into 20 addressable areas
- Advanced Layer Management: background colour, internal shape and pixel mapping
- Independent pixel mapping on both the RGBW array and the cold-white array

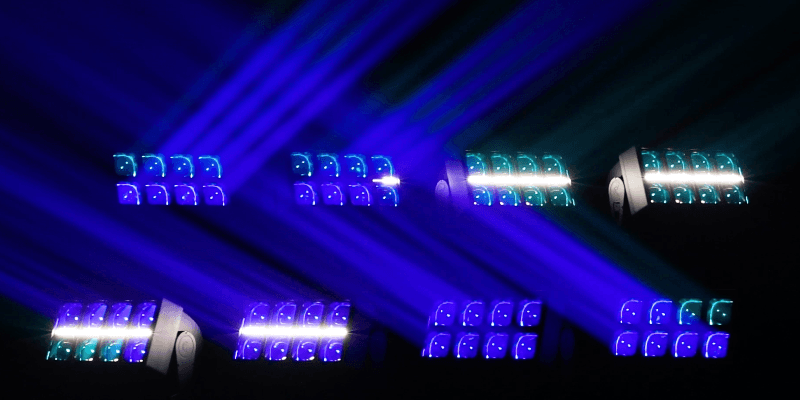

- Endless pan for continuous sweeping movement
- IP66-rated (Shield Family) and CloudIO ready
Specifications
Light source
8 × 60 W RGBW + 10 lines cold-white strobe (20 areas)
Light output
RGBW 39,800 lm
Zoom
3.8°–45°
Lenses
8 square lenses (80 × 80 mm)
Pixel mapping
RGBW 2 × 4 array; CW 20 segments
Movement
Endless pan / tilt 194°
Control
DMX · Art-Net · sACN · RDM
Connections
5-pin XLR IN/THRU + RJ45 IN/OUT
Power
PowerCon True1
Ingress protection
IP66 (Shield Family); CloudIO ready
Weight
29.3 kg
Dimensions
Base 447 × 240 mm; height 495 mm
