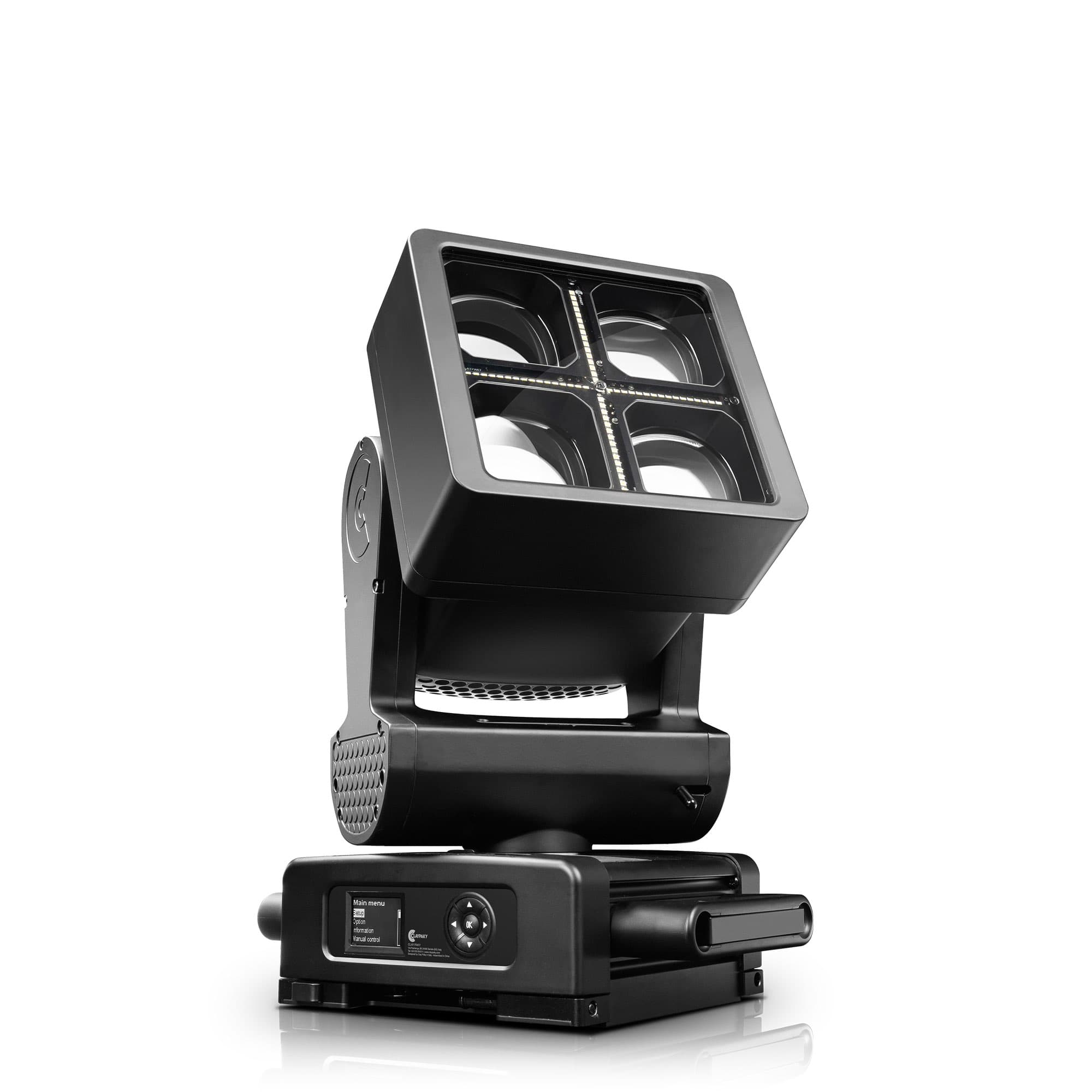

IP66 hybrid moving head — beam, wash and strobe across four square lenses.
Applications
Features

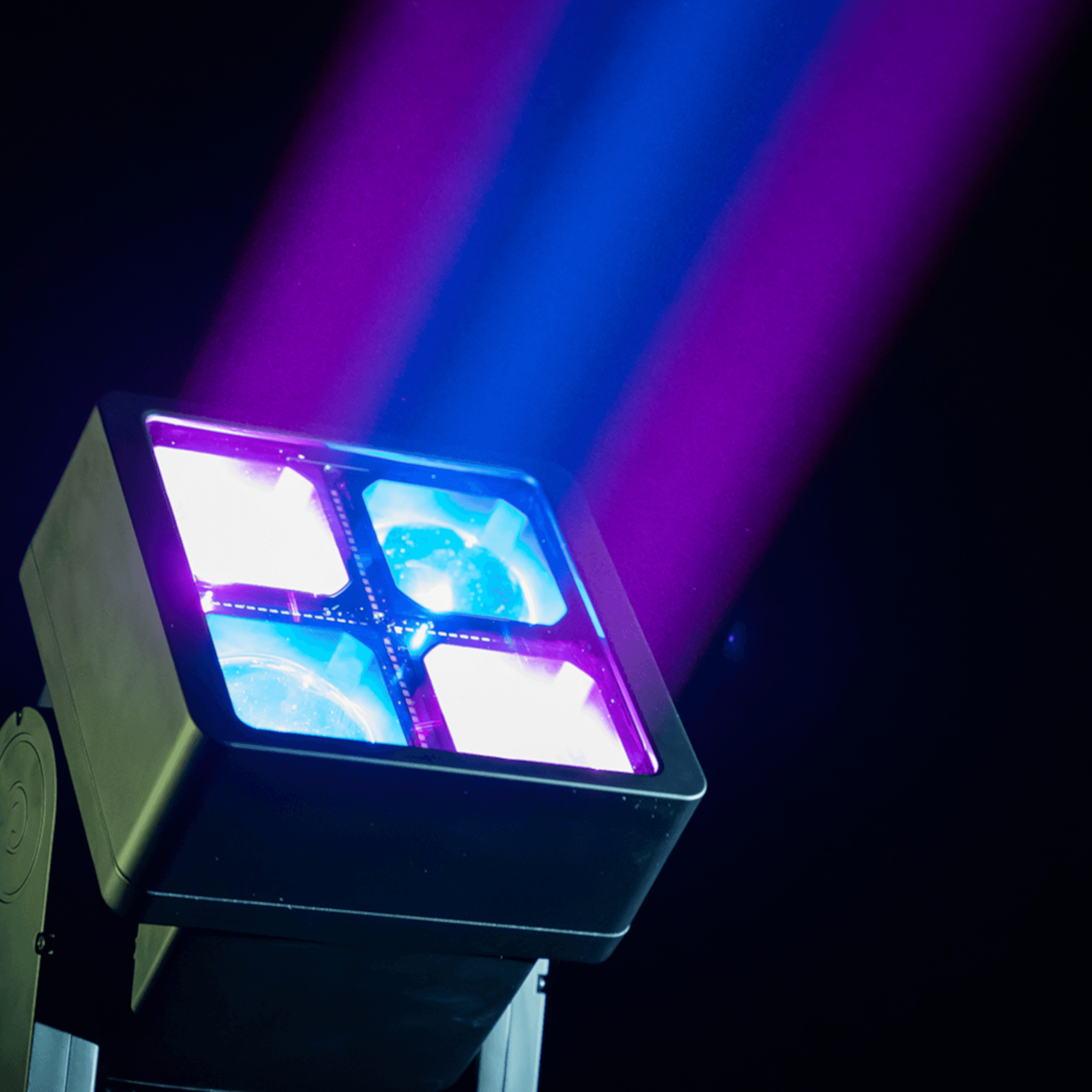

- Four-in-one fixture combining beam, wash, strobe and pixel mapping
- Advanced Layer Management: background colour, internal shape and pixel mapping
- Dedicated cold-white strobe engine with white CT emulation from 8,000 K to 2,500 K

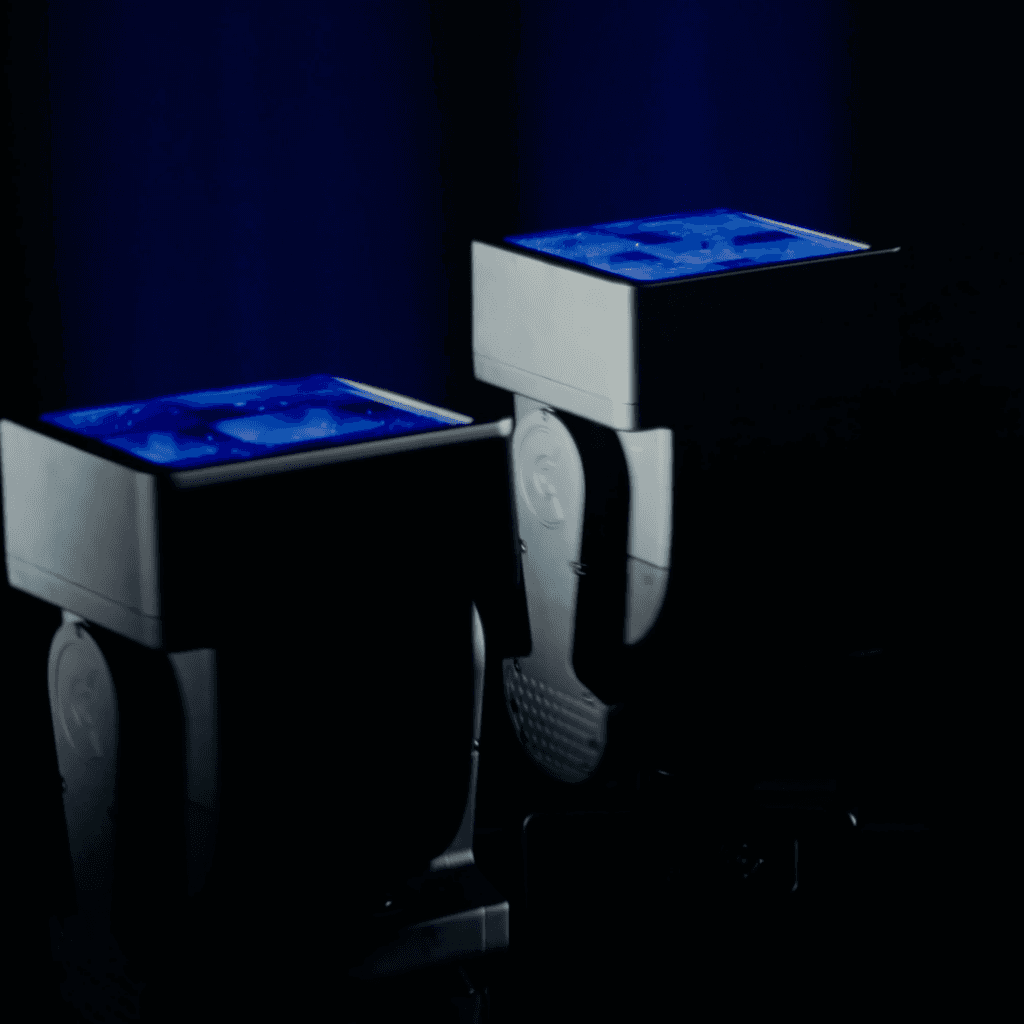

- Infinite pan for continuous, uninterrupted movement effects
- Motorised zoom for spot-to-wash transitions
- Modular design for tiling multiple units into synchronised matrices
- IP66-rated (Shield Family) for indoor and outdoor use
Specifications
Light source
4 × 60 W RGBW + 4 lines cold-white strobe
Light output
RGBW 3,819 lm / White 8,866 lm
Zoom
4°–55°
White CT emulation
8,000–2,500 K
Lenses
4 square lenses (80 × 80 mm)
Movement
Infinite pan / tilt 194°
Control
DMX · Art-Net · sACN · RDM
Connections
5-pin XLR IN/THRU + RJ45 IN/OUT
Power
PowerCon True1 IN/OUT
Ingress protection
IP66 (Shield Family)
Weight
15.4 kg
Dimensions
Base 245 × 338 mm; height 476 mm
