Volero Batten Aqua

IP66 LED bar — ten 60 W RGBW pixels behind wide square lenses with dual-group zoom.

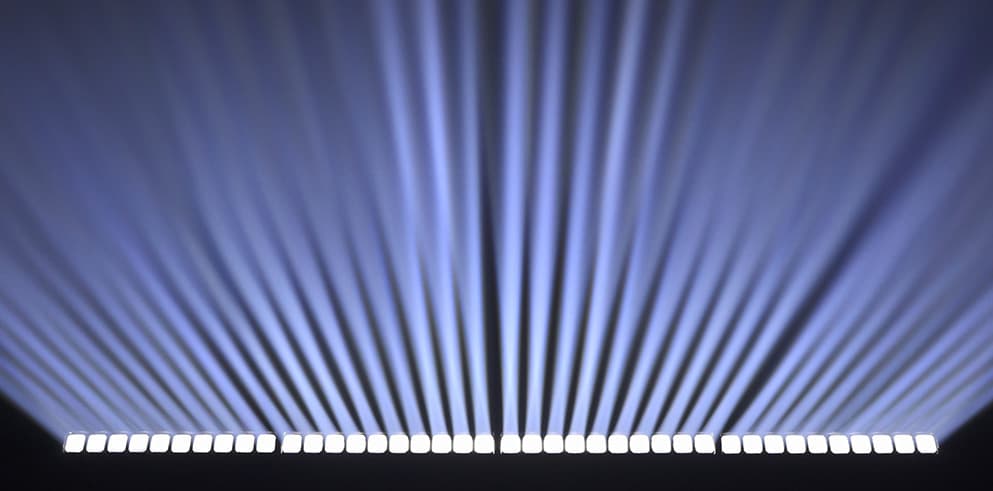

Claypaky Volero Batten Aqua IP66 LED bar — studio render

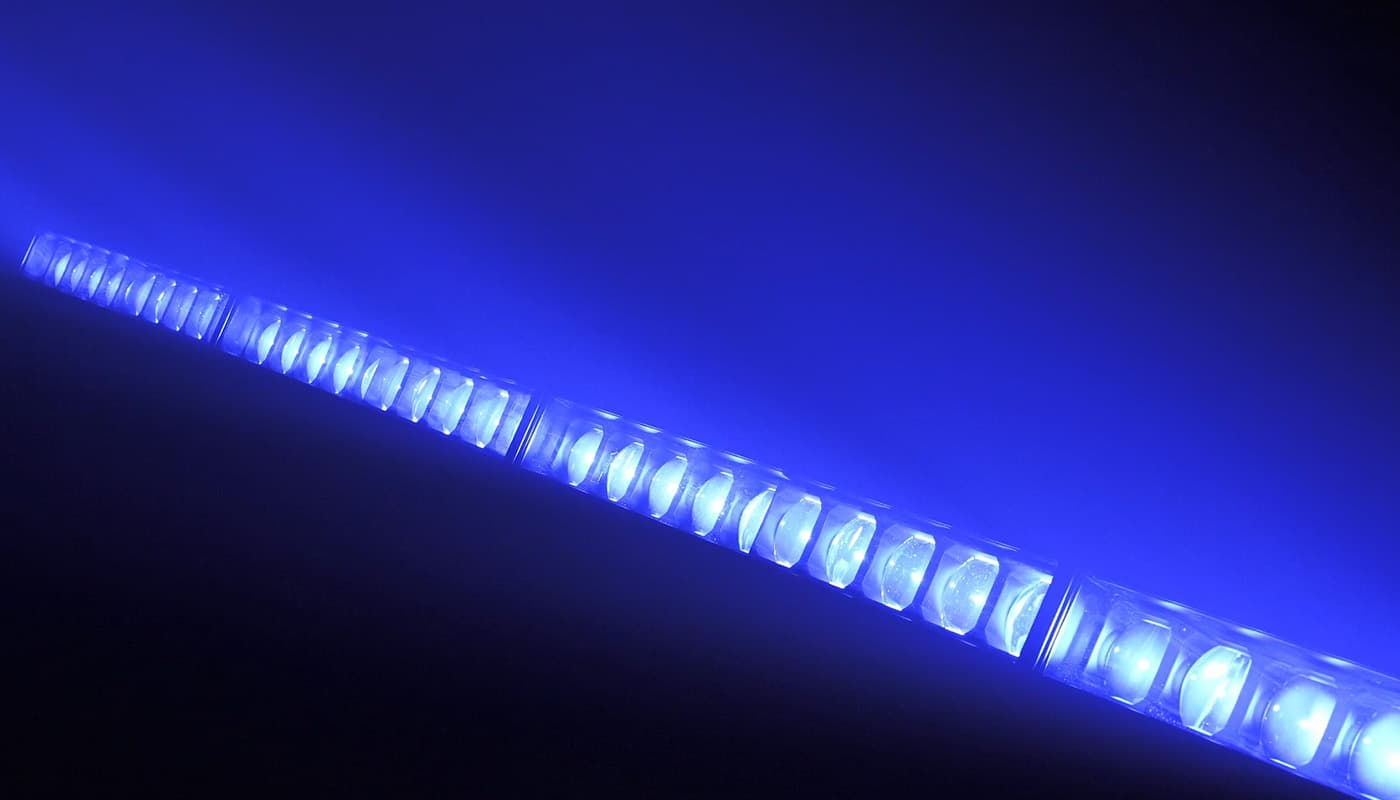

Claypaky Volero Batten Aqua — product view

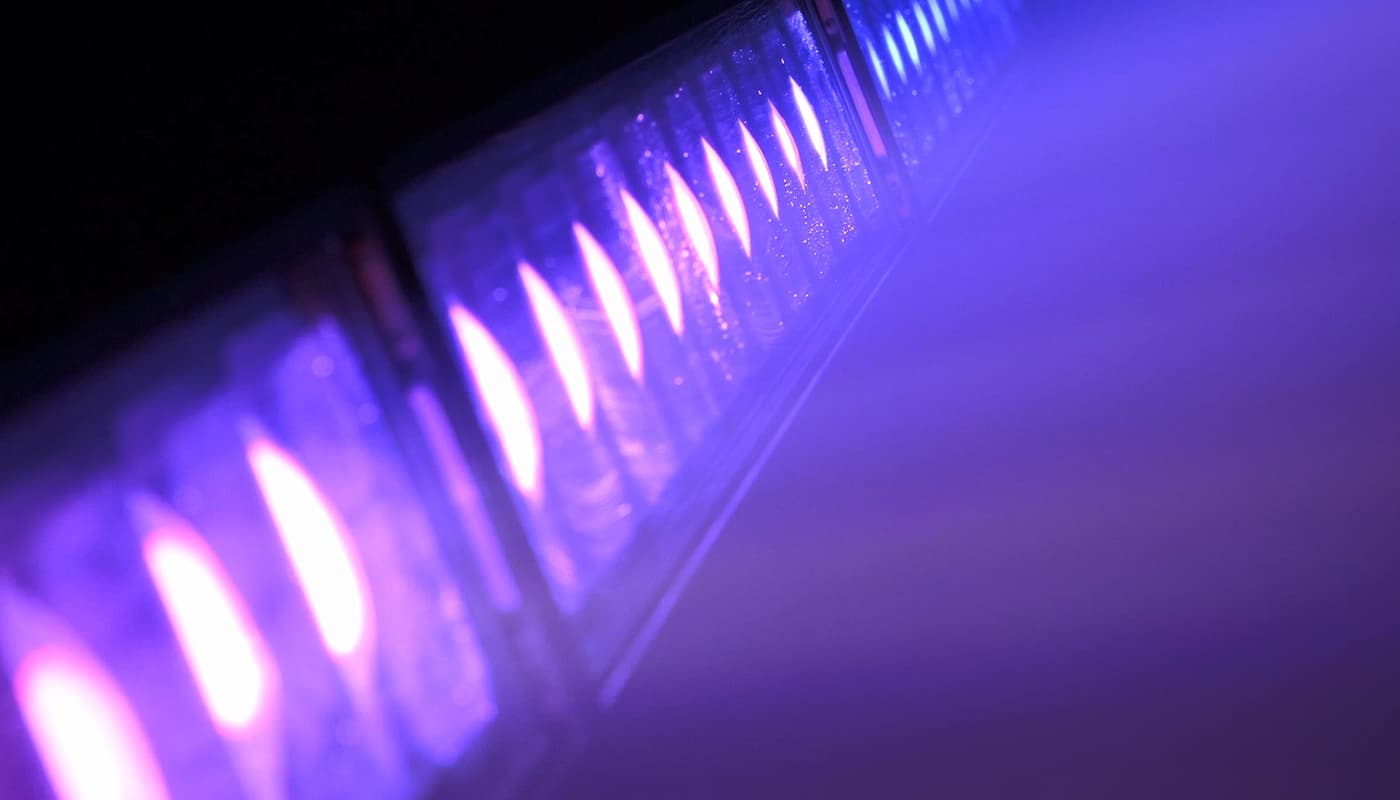

Claypaky Volero Batten Aqua — product view
Claypaky Shield Family IP66 badge — the Volero Batten Aqua’s weatherproof rating

Applications

ArchitecturalFestivalsLive eventsOutdoor / InstallTouringTV / Broadcast

Features

  • Ten 60 W Osram RGBW LEDs with ten individually controllable pixels for full pixel mapping
  • Wide 4°–55° zoom with two independent zoom groups, each driving five adjacent lenses
  • Advanced Layers Management combining background colour, internal shape and pixel mapping
  • IP66-rated weatherproof body for reliable indoor and outdoor operation (Shield Family)
  • Tilt greater than 215° with a repeatable, camera-friendly electronic engine
  • Standard wireless DMX plus broad protocol support and CloudIO readiness
  • Optional Panify mounting for volumetric projection effects

Specifications

Light source

10 × 60 W Osram RGBW LEDs

Light output

7,518 lm

Pixels

10 single pixels with pixel mapping

Lenses

80 × 80 mm square lenses

Zoom

4°–55° (2 independent zoom groups)

Colour temperature

Virtual CTO 2,500–8,000 K

Dimmer

24-bit electronic; strobe to 25 f/s

Tilt

> 215°

Control

DMX · Art-Net · sACN · RDM · Kling-Net; W-DMX

Power

800 VA @ 230 V

Ingress protection

IP66 (Shield Family); CloudIO ready

Weight

29 kg

Dimensions

1 m length
