Next-generation IP66 beam moving head — 100,000 lux at 20 m from a 19.5 kg body.

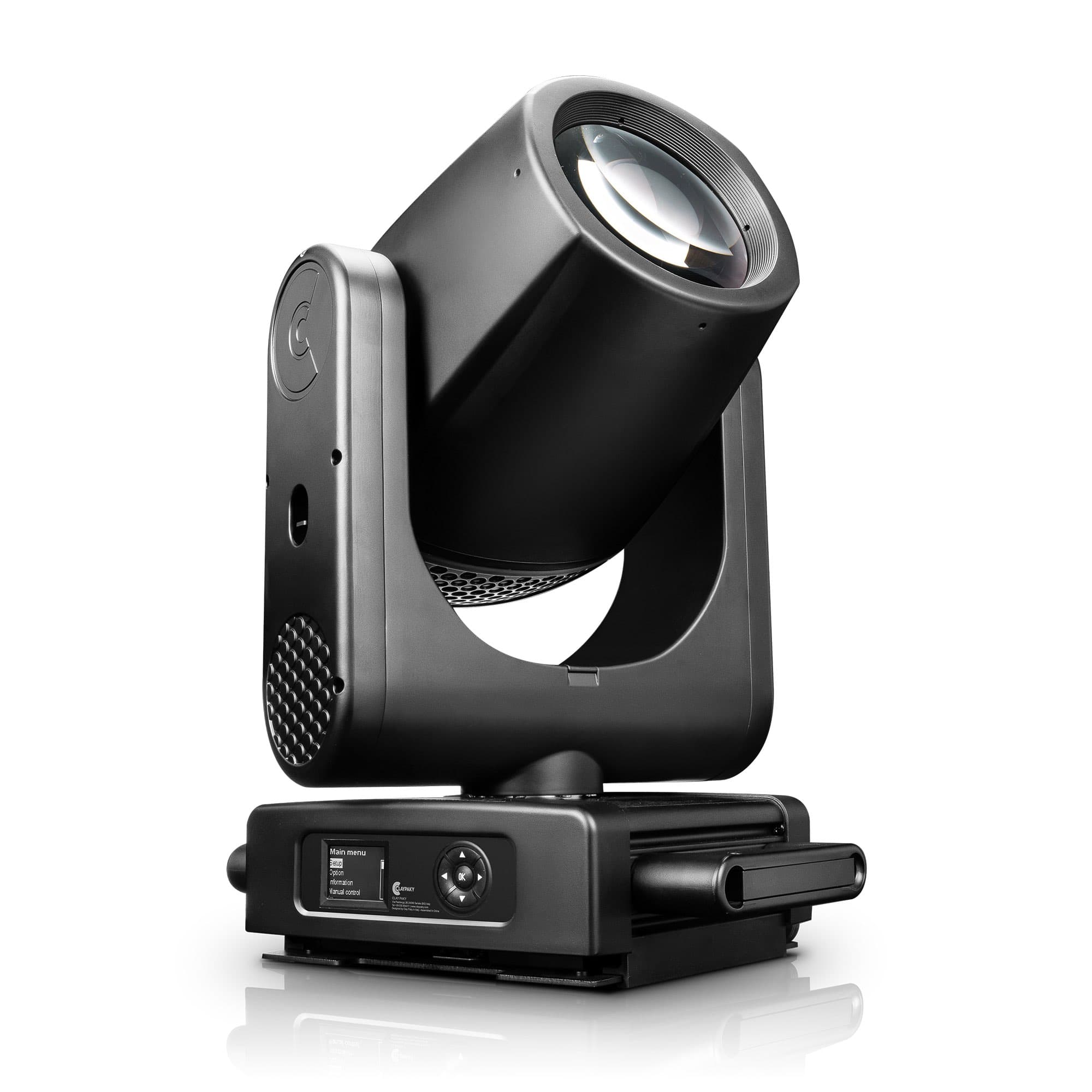

Claypaky Ultimo Sharpy beam moving head — three-quarter studio view

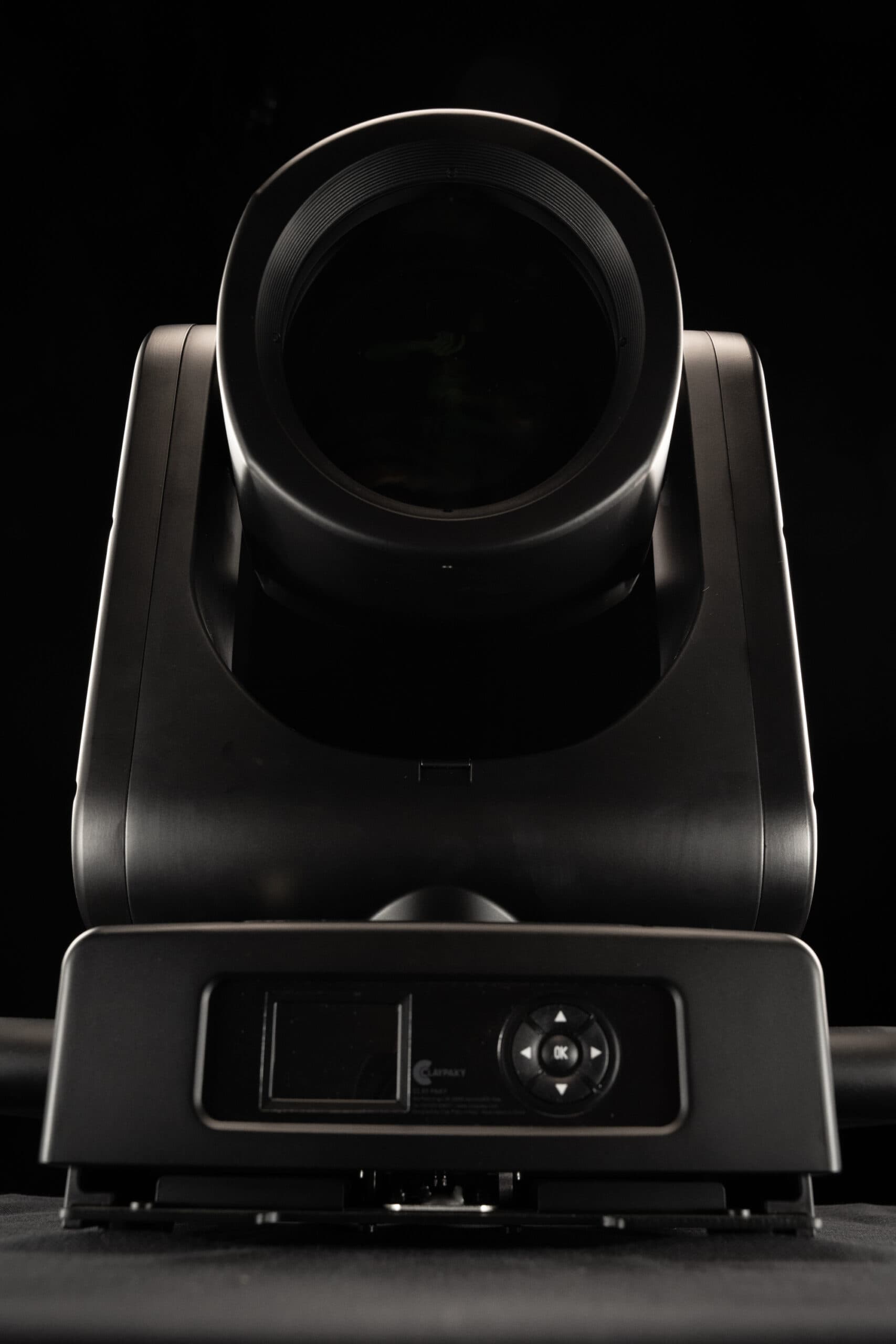

Claypaky Ultimo Sharpy — front view with the head upright and front lens

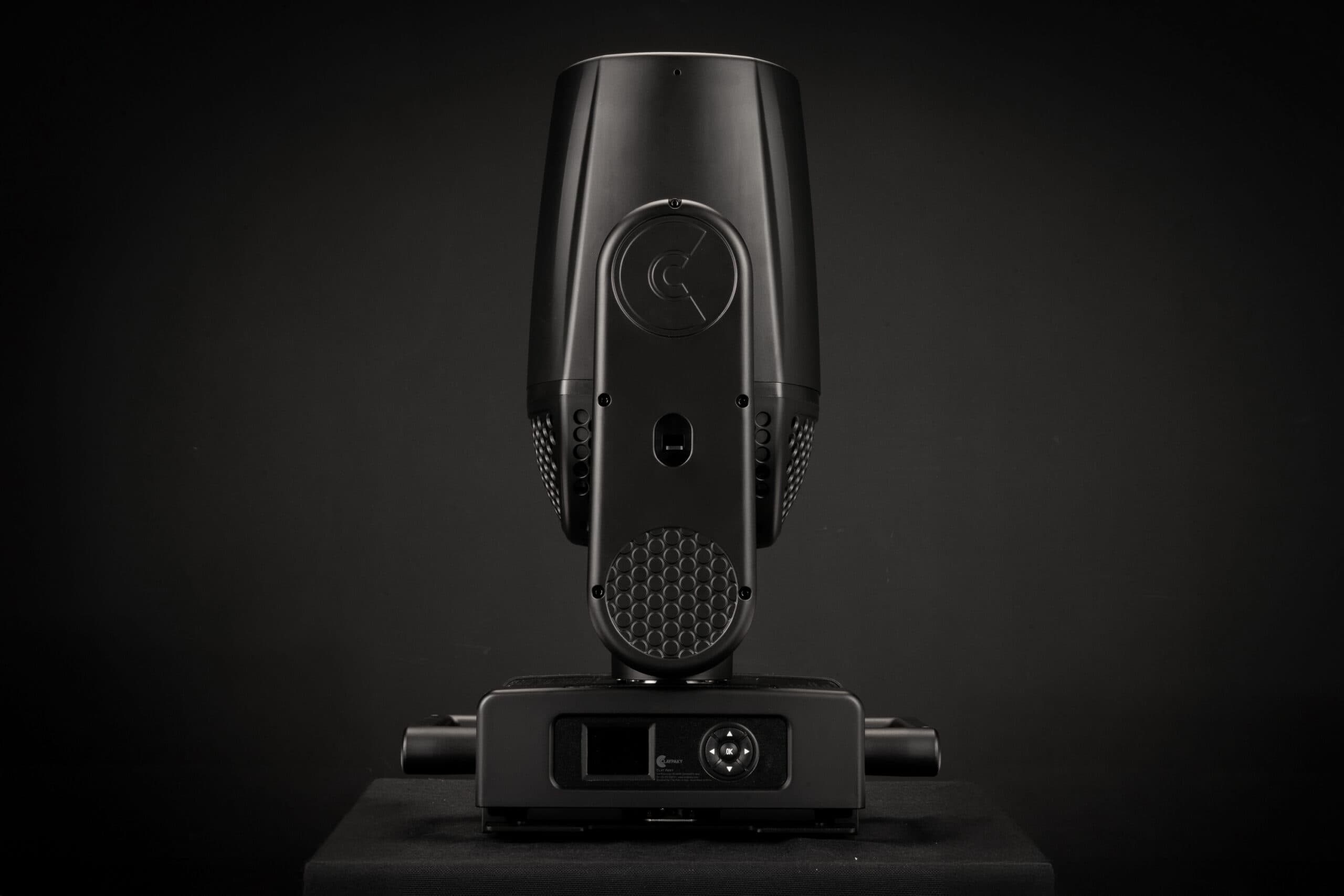

Claypaky Ultimo Sharpy — rear view showing the Claypaky badge and cooling grilles

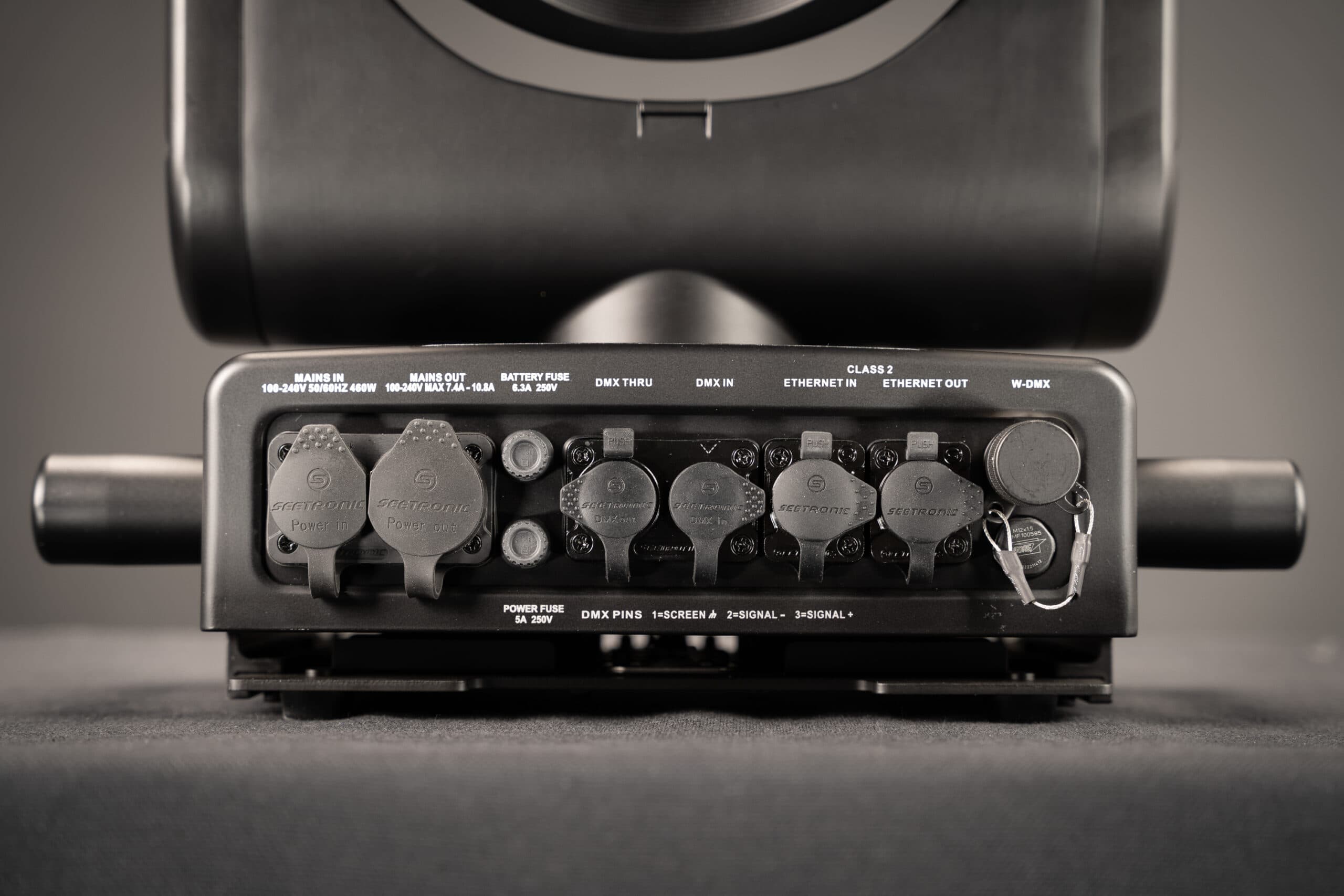

Claypaky Ultimo Sharpy — rear connection panel: PowerCon True1, 5-pin XLR DMX, etherCON and wireless DMX
Claypaky Ultimo Sharpy projecting a sharp beam at sunset — “Sharpy Returns, Sharper Than Ever”

Applications

ConcertFestivalsOutdoor / InstallTheatreTouringTV / Broadcast

Features

  • Compact power, massive output — 100,000 lux at 20 m from a 19.5 kg body
  • Low-noise mode keeps roughly 90% of the output while running 7 dB quieter (50.0 dB → 43.0 dB)
  • IP66-rated for permanent outdoor use, with optional Marine Shield for salt-air environments
  • True CMY colour mixing, a 14-colour wheel, dual rotating prisms, frost and a 17-gobo wheel
  • Blazing-fast, precise movement with infinite pan rotation and 275° tilt
  • Eco-conscious short-arc HID lamp — up to 6,000 hours, with recyclable components
  • Flicker-free output with 24-bit high-resolution dimming and a Sharpy emulation mode for plug-and-play legacy compatibility

Specifications

Light source

Short-arc HID lamp

Colour temperature

7,200 K

CRI

Up to 74

Lamp life

Up to 6,000 hrs

Light output

11,200 lm (integrating sphere)

Illuminance

100,000 lux @ 20 m

Zoom

2° beam angle with focus lens

Front lens

Ø 140 mm

Colour

14 dichroic colours + true CMY

Gobos

17 static gobos

Prisms

8-facet + 6-facet linear (rotating)

Frost

Linear heavy frost 10°

Movement

Infinite pan / 275° tilt

Control

DMX · Art-Net · sACN · RDM · CRMX

Connections

5-pin XLR + RJ45 (etherCON)

Power

PowerCon True1 IN/OUT — 460 W max

Ingress protection

IP66

Noise

50.0 dB (auto) / 43.0 dB (low-noise)

Weight

19.48 kg (42.95 lbs)
