Ultimo Hybrid

IP66 hybrid — beam, spot, wash and profile in one 19,000 lm weatherproof body.

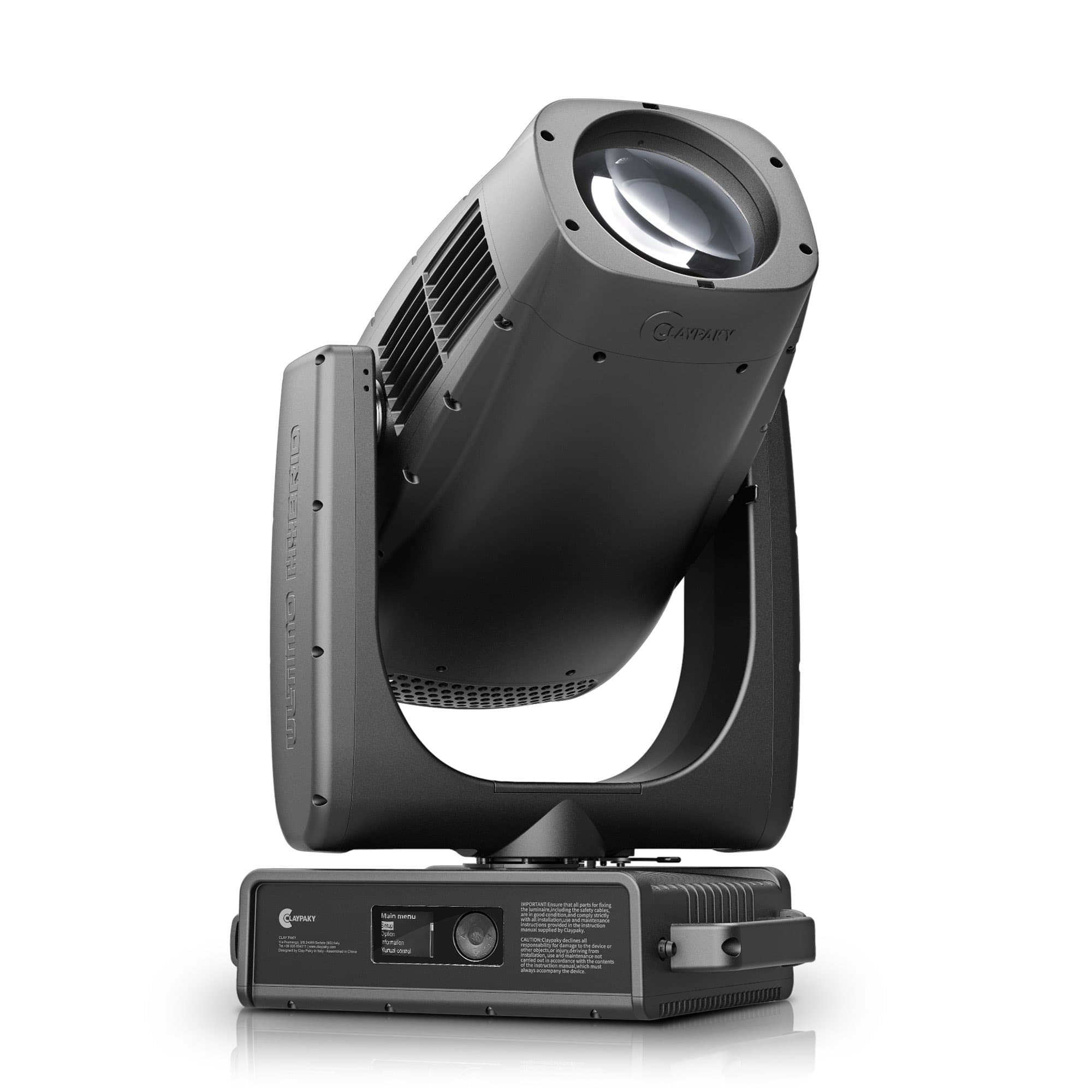

Claypaky Ultimo Hybrid IP66 hybrid moving head — three-quarter studio view
Claypaky Ultimo Hybrid — 100% hybrid fixture highlight
Claypaky Ultimo Hybrid — four-focal-plane shutter system highlight

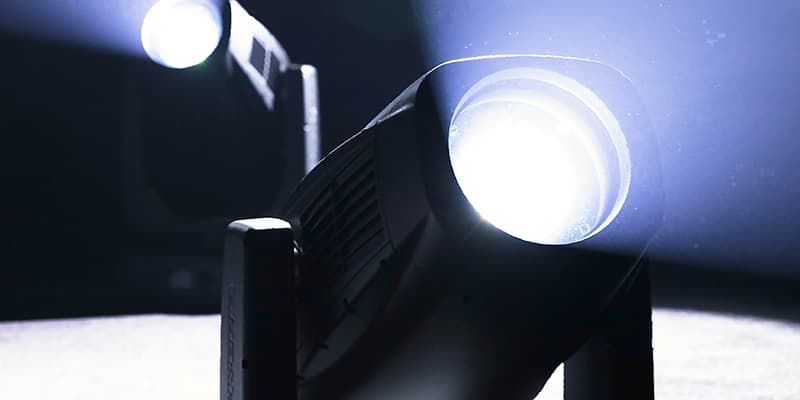

Claypaky Ultimo Hybrid — absolute position highlight
Claypaky Shield Family IP66 badge — the Ultimo Hybrid’s weatherproof rating

Applications

ConcertFestivalsLive eventsOutdoor / InstallTouringTV / Broadcast

Features

  • IP66-rated hybrid (Shield Family) for reliable indoor and outdoor use
  • 550 W short-arc lamp with a 4,000-hour life delivering 19,000 lm
  • Single fixture covering beam, spot, wash and profile modes
  • Advanced four-focal-plane shutter system with independent blade control and full blackout
  • Absolute position tracking that recovers fixture position after power loss
  • Full effects engine: rotating and static gobos, four- and eight-facet prisms, linear frost
  • Electronic tilt brake for rock-solid head stability

Specifications

Light source

Short-arc HID lamp, 550 W

Colour temperature

6,000 K

CRI

>80

Lamp life

4,000 hrs (L70)

Light output

19,000 lm (integrating sphere)

Zoom

3°–52° (spot) / 2°–29° (beam)

Front lens

Ø 160 mm

Colour

Linear CMY + CTO, 14-colour dichroic wheel

Gobos

8 rotating glass + 18 static (6 beam reducers)

Prisms

4-facet + 8-facet rotating; animation wheel

Framing

4 blades, 4 focal planes, ±60°, Total Curtain

Movement

Pan 540° / tilt 270° (16-bit)

Control

DMX · Art-Net · sACN · RDM · CRMX

Power

PowerCon True1 — ~940 W max

Ingress protection

IP66 (Shield Family)

Weight

41.9 kg
