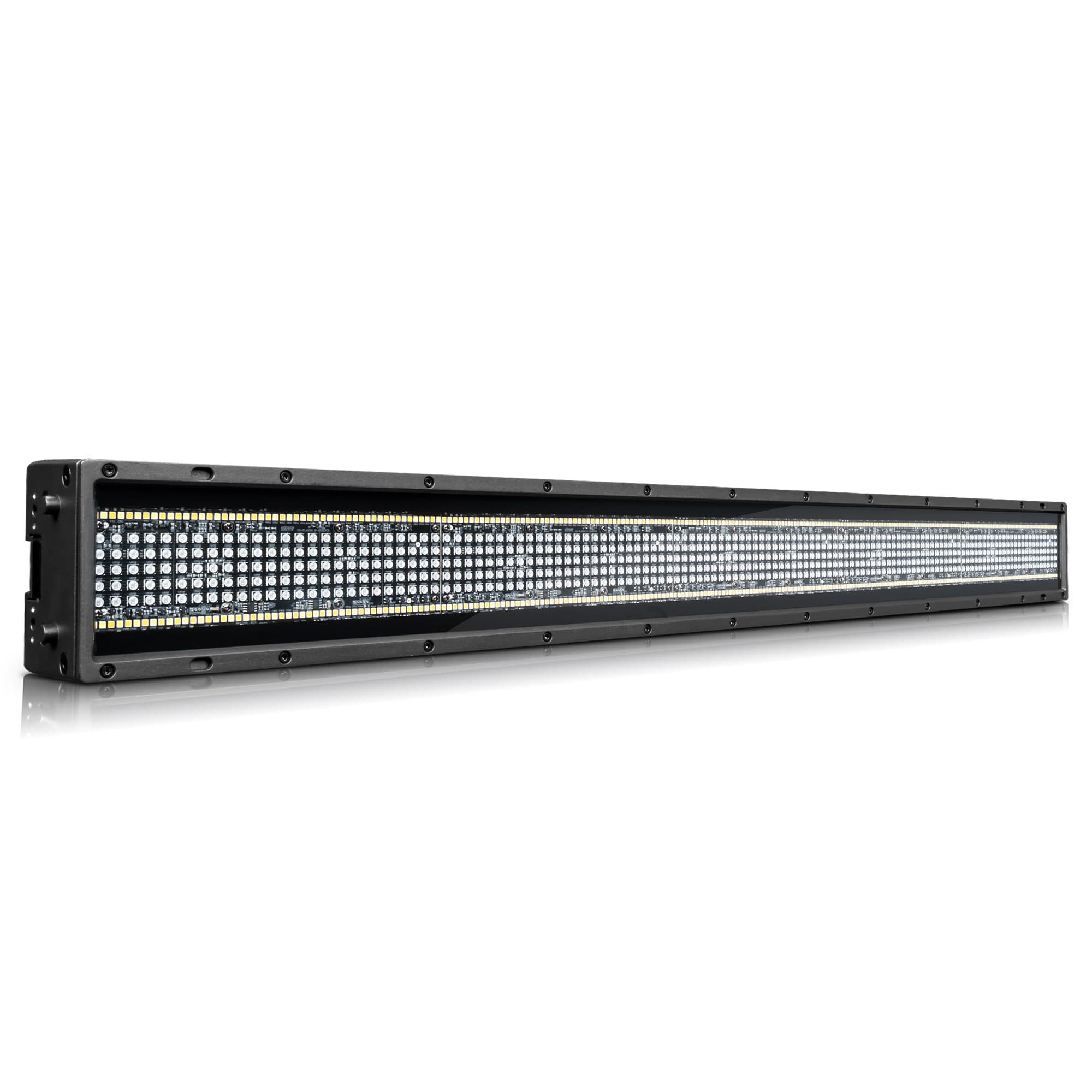

IP66 hybrid strobe bar — a 5×5 RGB engine plus a twin-line WW/CW strobe.
Applications
Features

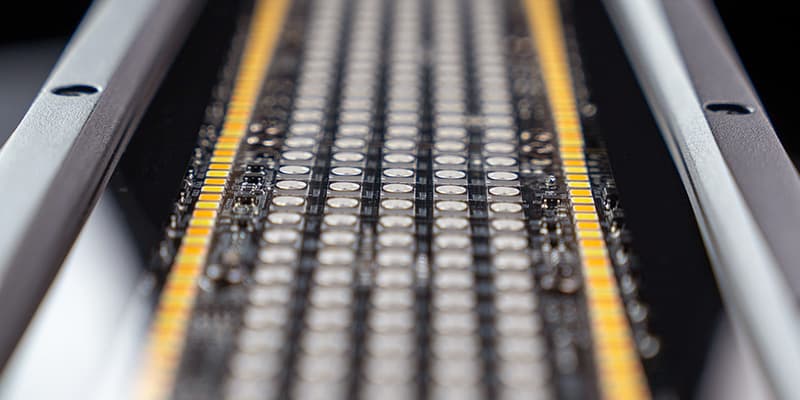

- Dual-engine design: 5×5 SMD RGB main engine plus twin-line WW/CW strobe engine
- Main engine of 25 addressable areas with pixel control
- Strobe engine of two lines, 125+125 × 1 W WW/CW LEDs, 25 segments per line
- Advanced Layer Management System blending multiple effect layers

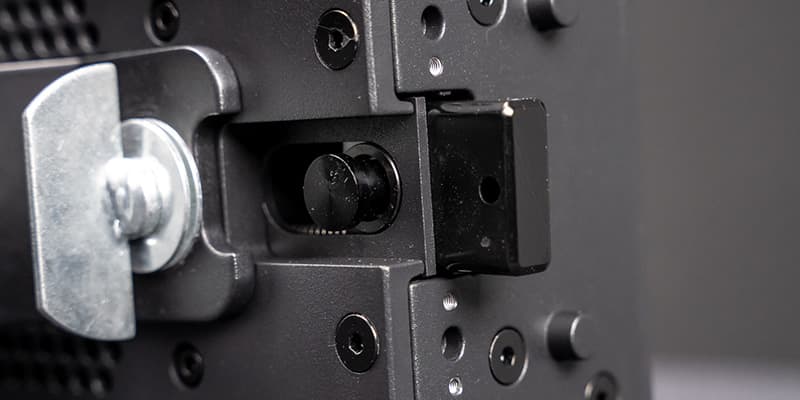

- IP66 Shield Family rating; built-in lock system for horizontal setup
- Frost and neutral-density filters available as accessories; CloudIO ready
- Accessories and mounting shared with Tambora Glare
Specifications
Main engine
5 × 5 SMD RGB LEDs (25 areas, pixel control)
Strobe engine
2 lines of 125 + 125 × 1 W WW/CW LEDs
Light output
26,776 lm (integrating sphere)
Aperture
120° (RGB and WW/CW)
Colour temperature
2,500–8,000 K
Control
DMX · Art-Net · sACN · RDM
Connections
5-pin XLR + RJ45 + PowerCon True1
Power
480 W @100 V max
Ingress protection
IP66 (Shield Family)
Weight
13.6 kg
Dimensions
1,000 × 198 × 106 mm
