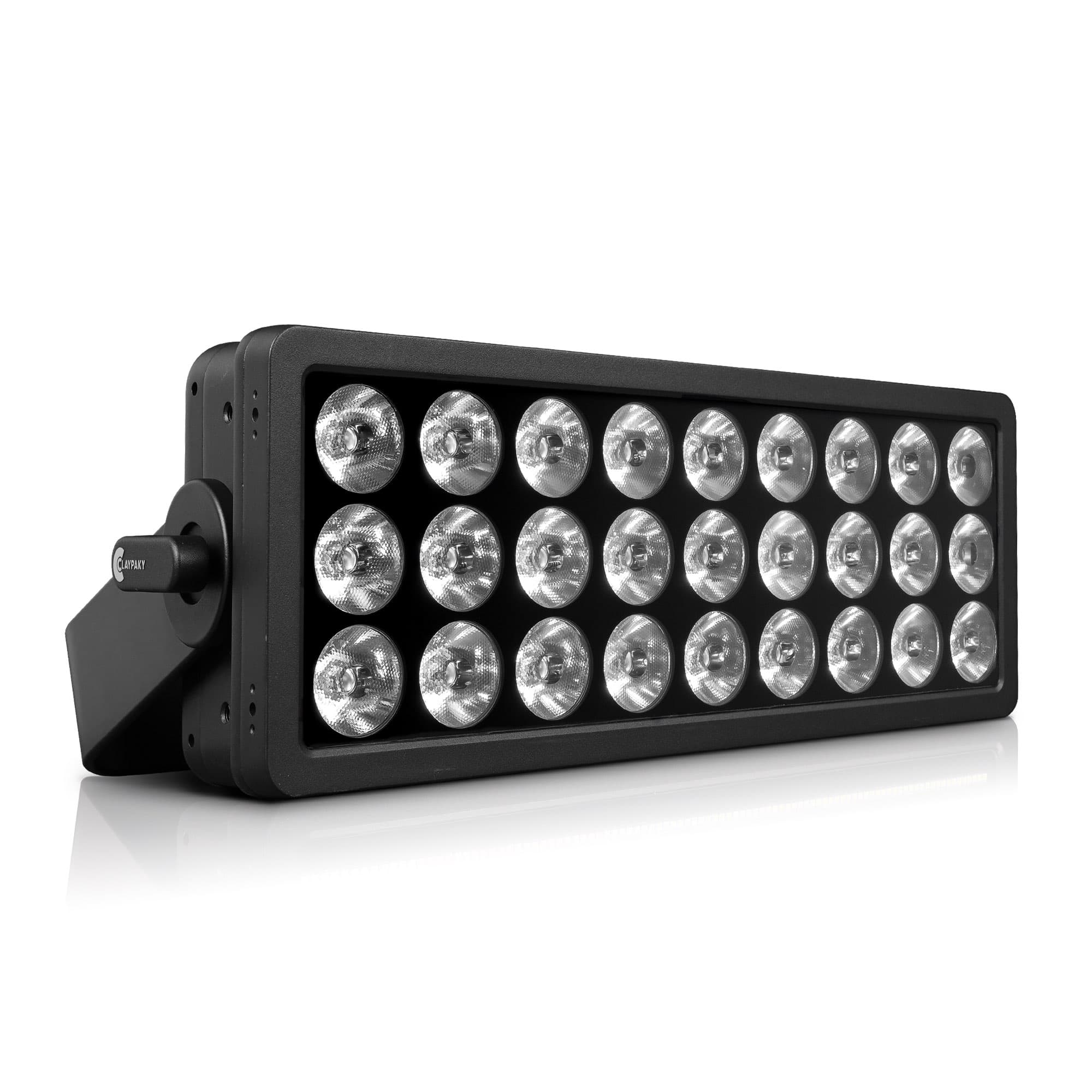

Tambora Rays
IP66 effect light — 27 high-power RGBWW LEDs in a tight 7° beam.
Applications
ConcertFestivalsLive eventsOutdoor / InstallStage designTouring
Features

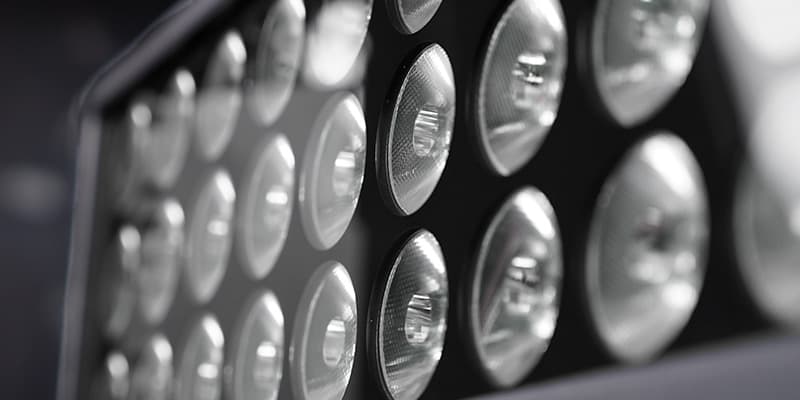

- 9 × 3 rows of high-power RGBWW LEDs — 27 emitters with pixel-to-pixel control
- 7° narrow beam aperture for tight, defined shafts; optional frost filters
- Advanced Layer Management for running several effects simultaneously
- Single pixel mapping across 27 segments
- Dedicated electronic dimmer and strobe
- IP66 Shield Family rating for outdoor and permanent installation

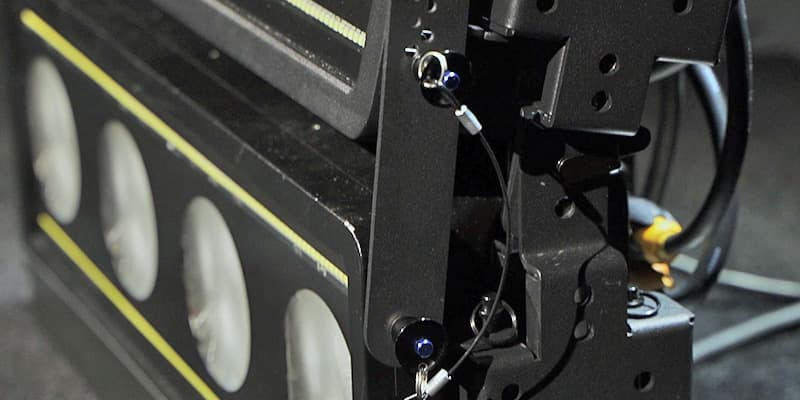

- Combines in grids with other Tambora fixtures for larger arrays
Specifications
Light source
27 × 40 W RGBWW LEDs
Light output
19,000 lm
Aperture
7°
Colour
RGB+W; linear CTO 2,700–8,000 K
Pixel mapping
Single pixel, 27 segments
Strobe
Dedicated electronic, 1–30 f/s
Control
DMX · Art-Net · sACN · RDM · WebServer
Power
PowerCon True1 — 720 W max
Ingress protection
IP66 (Shield Family)
Weight
10.4 kg
Dimensions
497 × 180 × 186 mm (without handle)
