Tambora Linear 60

Compact hybrid pixel bar — 240 RGB pixels plus a 120-LED white strobe.

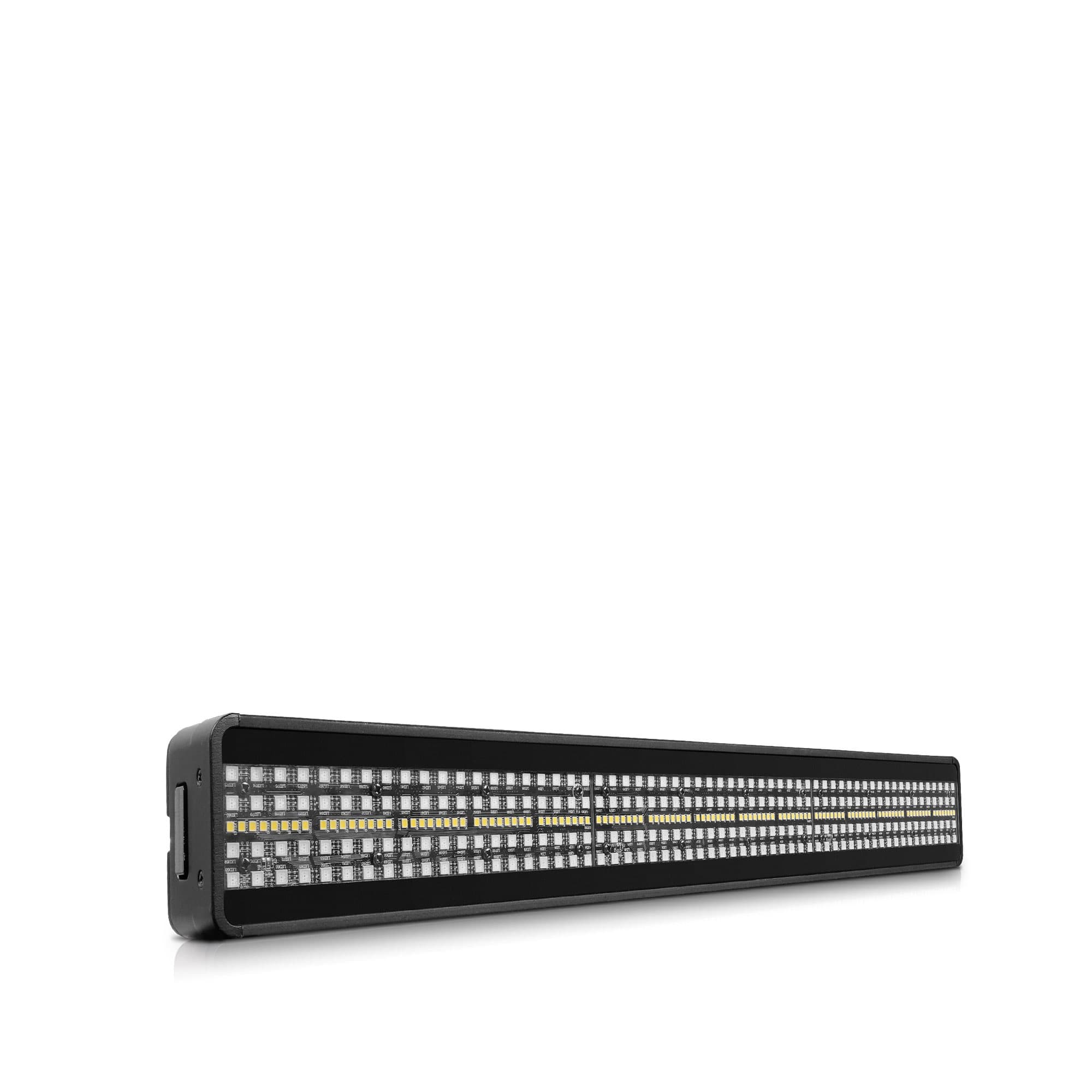

Claypaky Tambora Linear 60 compact hybrid LED pixel bar — studio render

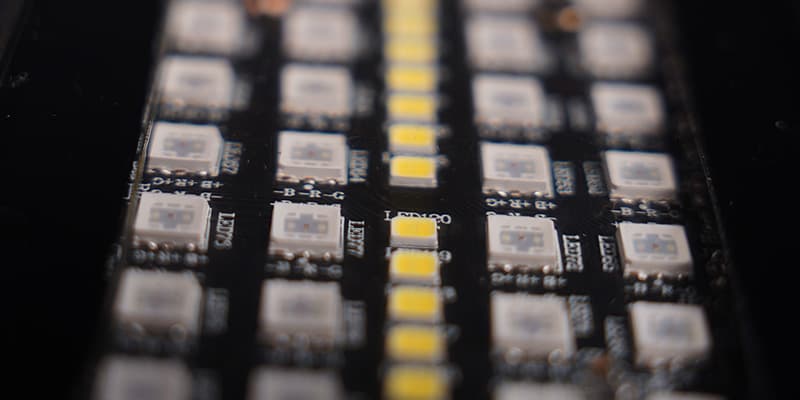

Claypaky Tambora Linear 60 — hybrid RGB and white-strobe architecture highlight
Claypaky Tambora Linear 60 — Advanced Layer Management highlight

Applications

ArchitecturalConcertLive eventsStage designTouringTV / Broadcast

Features

  • Hybrid engine combining 240 RGB pixel LEDs with 120 white strobe LEDs
  • Advanced Layer Management blends background colour, internal shape and pixel-mapped video
  • 15 independently controllable RGB areas for motion graphics
  • Dedicated white-LED strobe across 15 zones, 0.3–25 flashes/sec
  • Four fan modes — Constant, Auto, Silent and Theatre — for noise control
  • Full networked control via DMX, Art-Net, sACN, RDM, WebServer and Kling-Net
  • Slim, lightweight build with mechanical linking for seamless arrays

Specifications

Colour engine

240 × 3-in-1 RGB LEDs (15 areas)

Strobe engine

120 × 8,000 K white LEDs (15 areas)

Light output

10,114 lm (integrating sphere)

Aperture

120° (strobe); RGB zoom 69°/113°

White CT emulation

2,800–8,000 K

Dimmer

24-bit, 5 curves; strobe 0.3–25 f/s

Fan modes

Constant / Auto / Silent / Theatre

Control

DMX · Art-Net · sACN · RDM · WebServer · Kling-Net

Connections

5-pin XLR IN/OUT + RJ45 IN/OUT

Power

PowerCon True1 — 240 W max

Ingress protection

IP20

Weight

5.3 kg

Dimensions

600 × 74 × 172 mm
