Tambora Linear 100

Hybrid LED pixel bar — 400 RGB pixels plus a 200-LED white strobe.

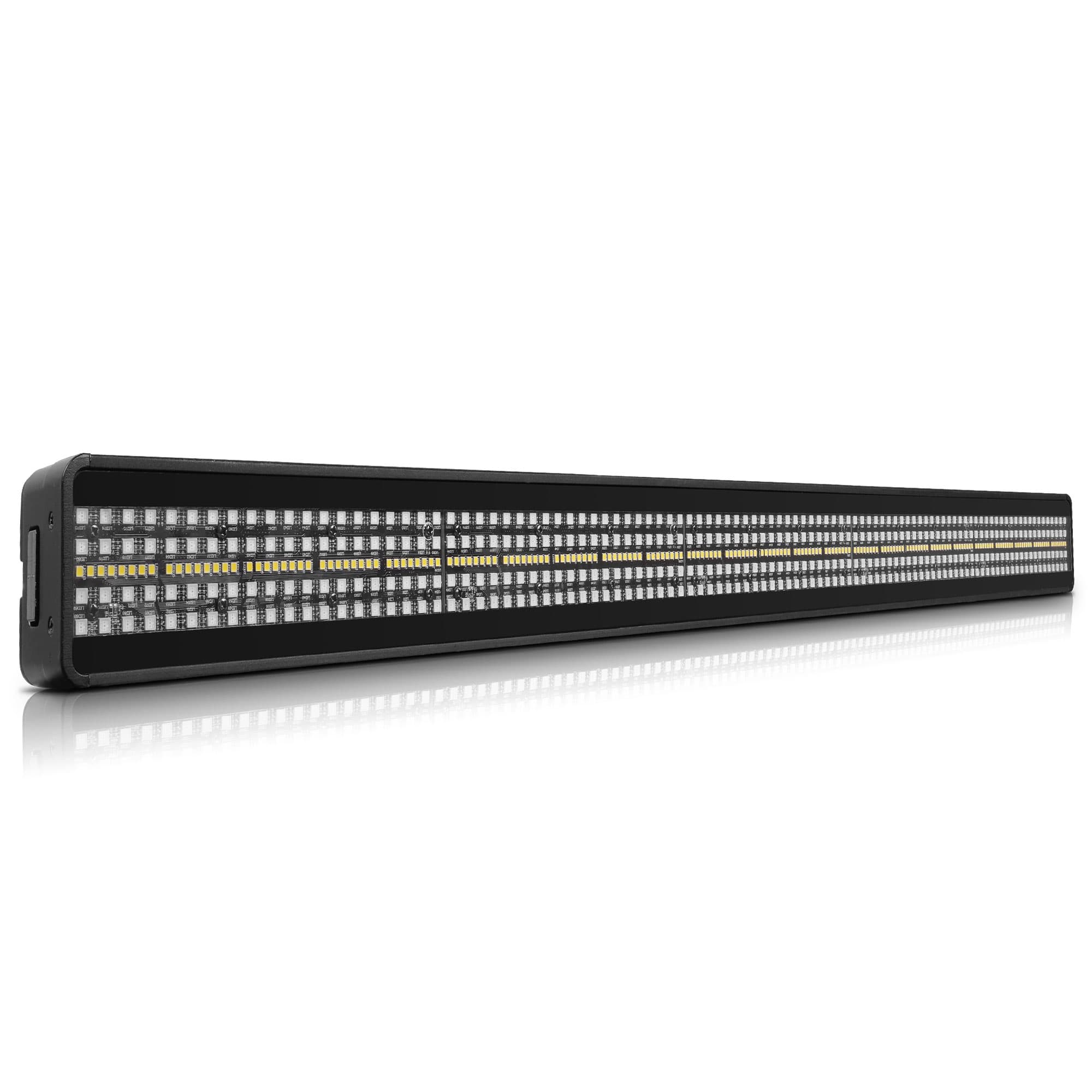

Claypaky Tambora Linear 100 hybrid LED pixel bar — studio render

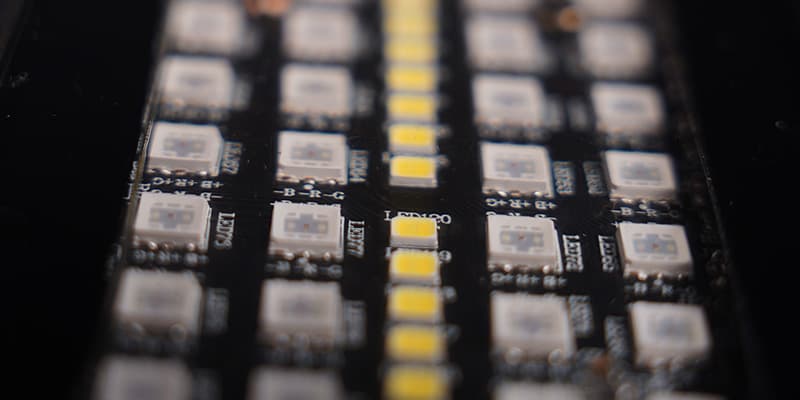

Claypaky Tambora Linear 100 — hybrid RGB and white-strobe architecture highlight

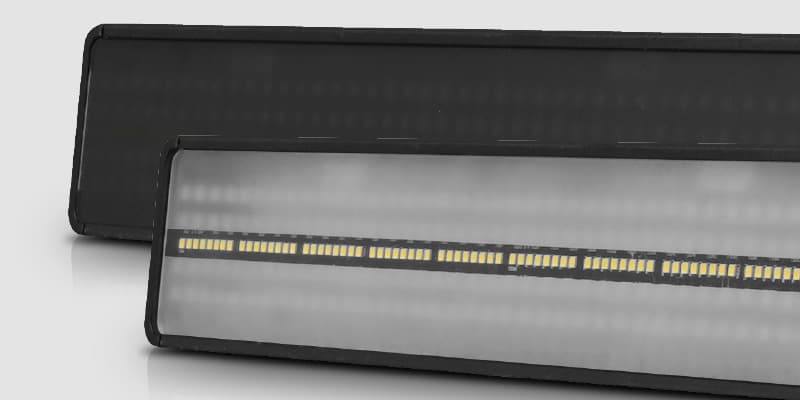

Claypaky Tambora Linear 100 — optional frost and neutral-density filters highlight

Applications

ArchitecturalConcertLive eventsStage designTouringTV / Broadcast

Features

  • Hybrid engine pairing 400 RGB pixel LEDs with 200 white strobe LEDs in one bar
  • Advanced Layer Management runs background colour, internal shape and pixel-mapped video at once
  • 25 independently controllable RGB areas for high-quality motion graphics
  • Dedicated white-LED strobe split across 25 areas, 0.3–25 flashes/sec
  • Networked control via DMX, Art-Net, sACN, RDM, WebServer and Kling-Net
  • Mechanical linking lets multiple units operate as a single seamless fixture
  • Optional frost and neutral-density filters for beam shaping and camera use

Specifications

Colour engine

400 × 3-in-1 RGB LEDs (25 areas)

Strobe engine

200 × 8,000 K white LEDs (25 areas)

Light output

26,526 lm (integrating sphere)

Aperture

120° (strobe); RGB zoom 72°/115°

White CT emulation

2,800–8,000 K

Dimmer

24-bit, 5 curves; strobe 0.3–25 f/s

Control

DMX · Art-Net · sACN · RDM · WebServer · Kling-Net

Connections

5-pin XLR IN/OUT + RJ45 IN/OUT

Power

PowerCon True1 — 440 W max

Ingress protection

IP20

Weight

5.7 kg

Dimensions

1,000 × 74 × 172 mm
