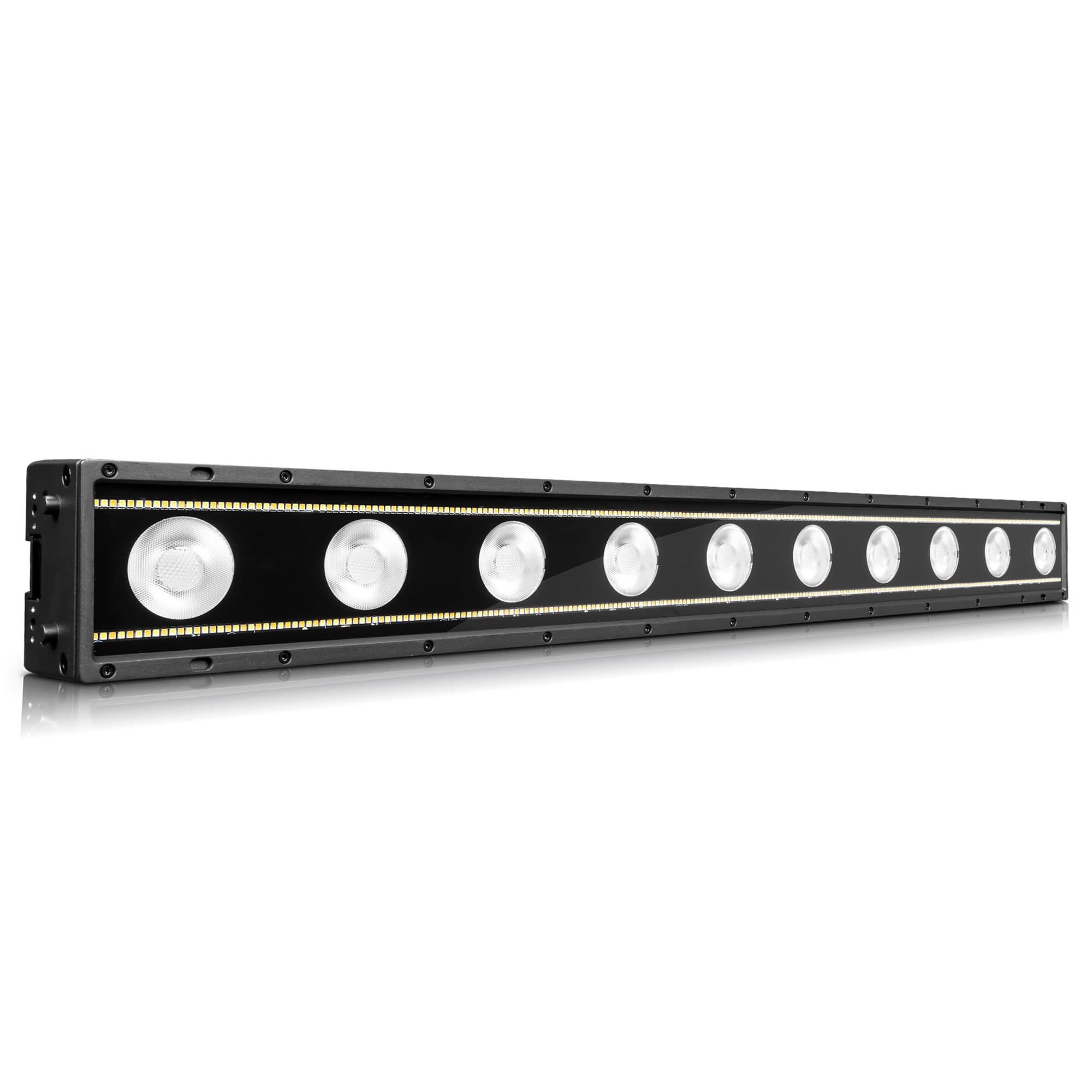

IP66 hybrid bar — a 10-cell RGBA blinder plus a twin-line WW/CW strobe in one metre.
Applications
Features

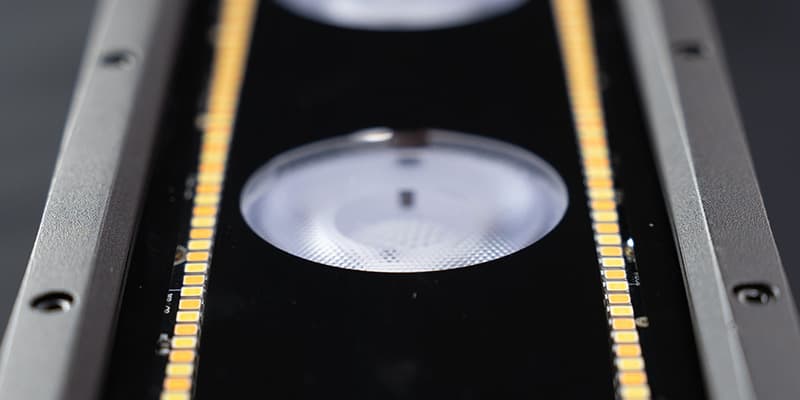

- Hybrid bar pairing a 10 × 50 W RGBA blinder engine with a twin-line WW/CW strobe engine
- Single-pixel control and Advanced Layer Management for composited effects
- 22° aperture (blinder) and wide 120° aperture (strobe)
- IP66 Shield Family rating for indoor and outdoor use
- Built-in lock system for horizontal setup
- Frost and neutral-density filters available as accessories
- CloudIO ready; shares mounting with Tambora Stormy Linear
Specifications
Blinder engine
10 × 50 W RGBA LEDs, single-pixel, 22°
Strobe engine
2 lines WW/CW LEDs, 25 segments per line, 120°
Light output
19,874 lm
Colour temperature
2,500–8,000 K
Strobe
0.3–25 f/s
Dimmer
24-bit, 5 curves
Control
DMX · Art-Net · sACN · RDM
Connections
5-pin XLR IN/THRU + RJ45 IN/OUT
Power
PowerCon True1 — 480 W @100 V
Ingress protection
IP66 (Shield Family)
Weight
13.5 kg
Dimensions
1,000 × 198 × 106 mm
