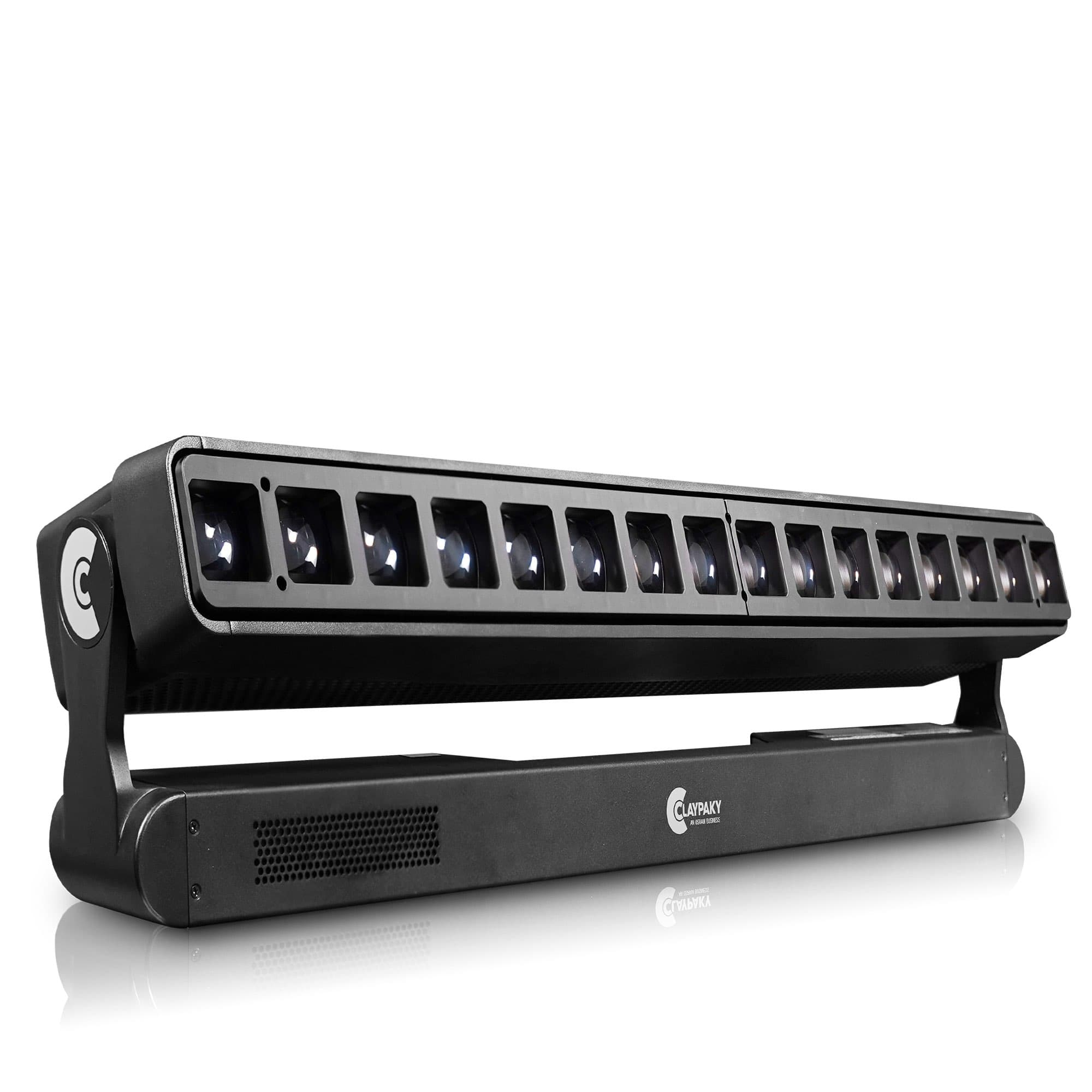

Tambora Batten
High-power RGBW batten — 16 individually controllable 40 W micro-beams with 4°–50° zoom.
Applications
ConcertLive eventsStage designTouringTV / Broadcast
Features
- Sixteen 40 W Osram RGBW LEDs with individual control of every parameter per cell

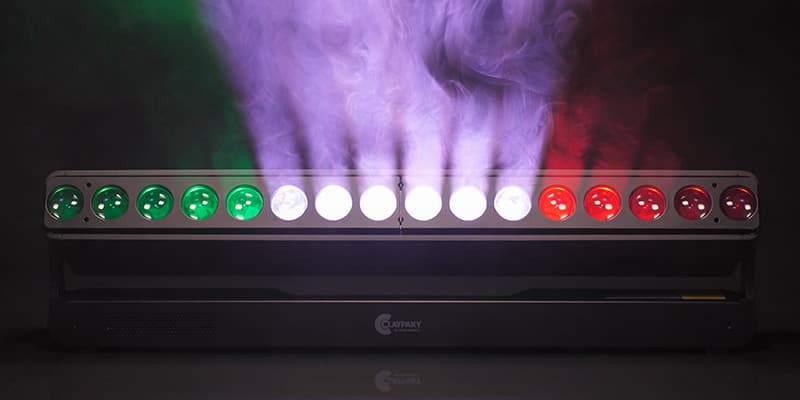

- Exclusive parallel beam of individually controllable micro-beams for pixel mapping
- Unique three-layer system: colour, internal shape and pixel mapping
- Motorised linear zoom from 4° to 50° plus beam-edge softening for uniform washes
- Head tilt over 220° (16-bit) with selectable fast/normal speed

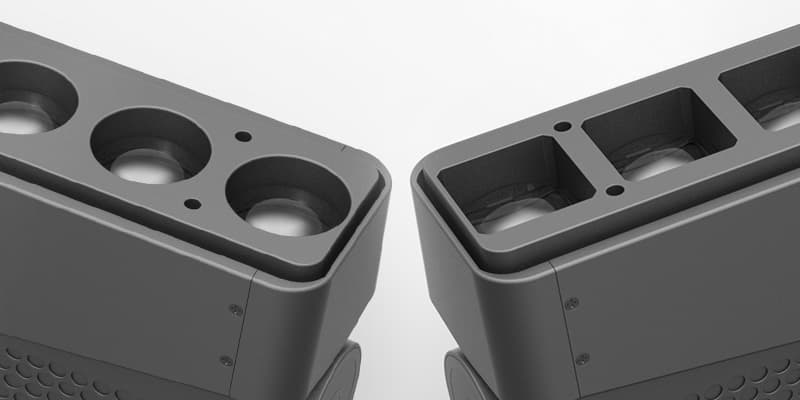

- Interchangeable round or square lens options
- Networked control via DMX, Art-Net, RDM, Kling-Net and built-in WebServer
Specifications
Light source
16 × 40 W RGBW Osram LEDs
Light output
9,934 lm
Zoom
4°–50°
White CT emulation
2,500–8,000 K
Tilt
220° (16-bit), fast/normal speed
Dimmer
16-bit, 5 curves; strobe 1–25 f/s
Lens options
Round Ø 52 mm or square 47 × 47 mm
Control
DMX · Art-Net · RDM · Kling-Net · WebServer
Connections
5-pin XLR IN/OUT + RJ45 IN
Power
PowerCon True1 — 660 VA max
Ingress protection
IP20
Weight
15.5 kg
Dimensions
1,000 mm length, 291 mm height with head
