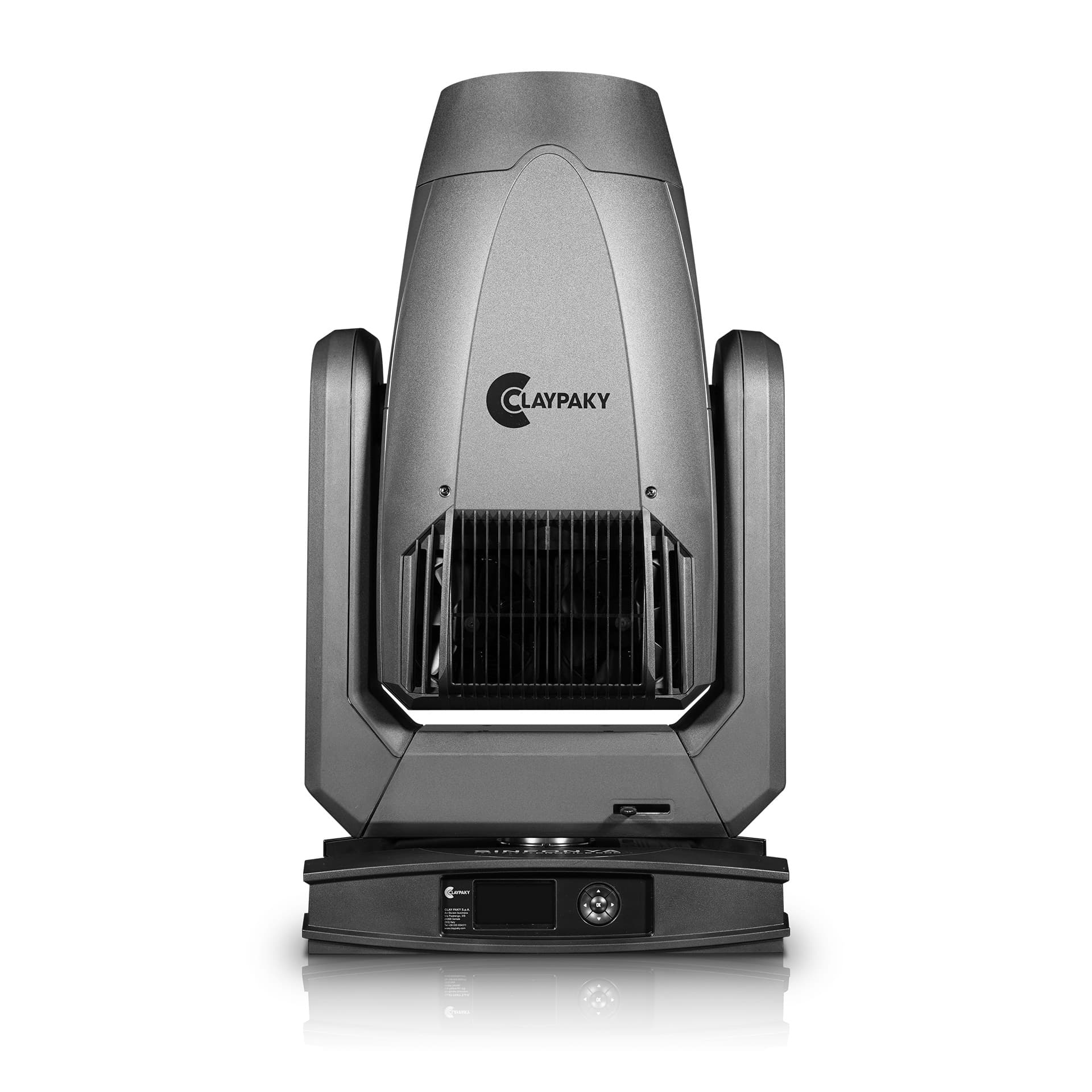

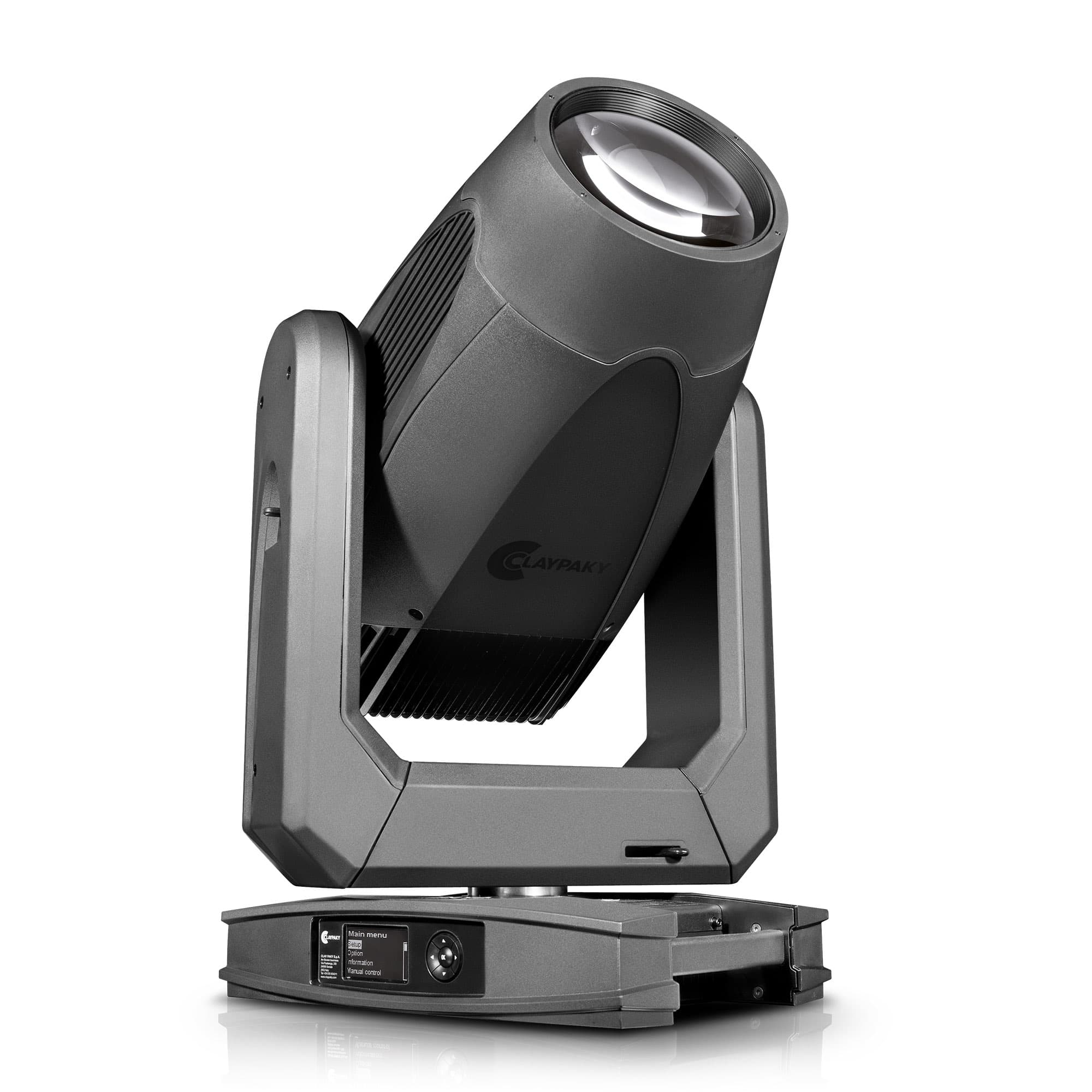

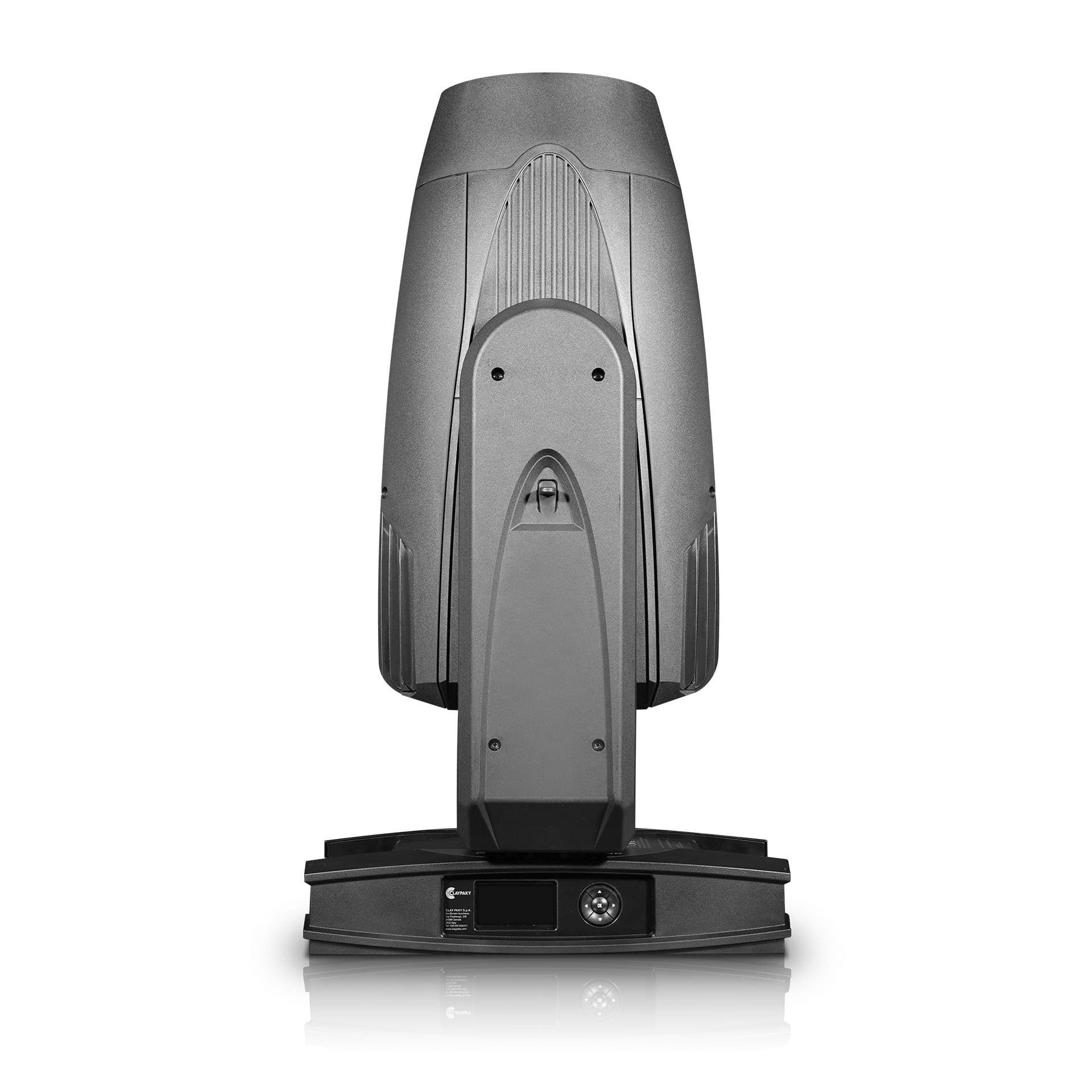

Whisper-quiet RGBAL LED profile built for theatre — 12,050 lm, CRI >95, as low as 27 dBA.

Applications

Features

600 W RGBAL five-colour LED engine with virtual CTO, adjustable CRI and ±green correction
TONEDOWN fan control for very quiet running, as low as 27 dBA, plus a fanless mode
ACCUFRAME framing: 4 blades on 2 focal planes with ±45° rotation and a full “Total Curtain” blackout
LINEGUARD twin-blade frost for uniform, adjustable diffusion
ABSOLUTE POSITION sensing with 16-bit pan/tilt for repeatable repositioning
Rotating gobo wheel, four-facet prism, animation wheel and 16-blade iris
ColorMatch in-field calibration and CloudIO compatibility

Light source

LED RGBAL (five-colour), 600 W

Light output

12,050 lm (integrating sphere)

CRI

>95

Colour temperature

2,500–10,000 K

Zoom

5°–60°

Optical system

14 high-efficiency lenses, Ø 165 mm

Gobos

1 rotating wheel, 6 HD indexable gobos

Prism

4-facet rotating, bidirectional

Framing

ACCUFRAME — 4 blades, 2 focal planes, ±45°

Iris

16-blade motorised

Movement

Pan 540° / tilt 270° (16-bit), absolute position

Control

DMX · Art-Net · sACN · RDM · CRMX (opt.)

Connections

5-pin XLR IN/OUT + RJ45 IN

Power

PowerCon True1 — 770 VA max

Noise

27 / 30 / 35 dBA presets; fanless mode

Weight

36.8 kg
