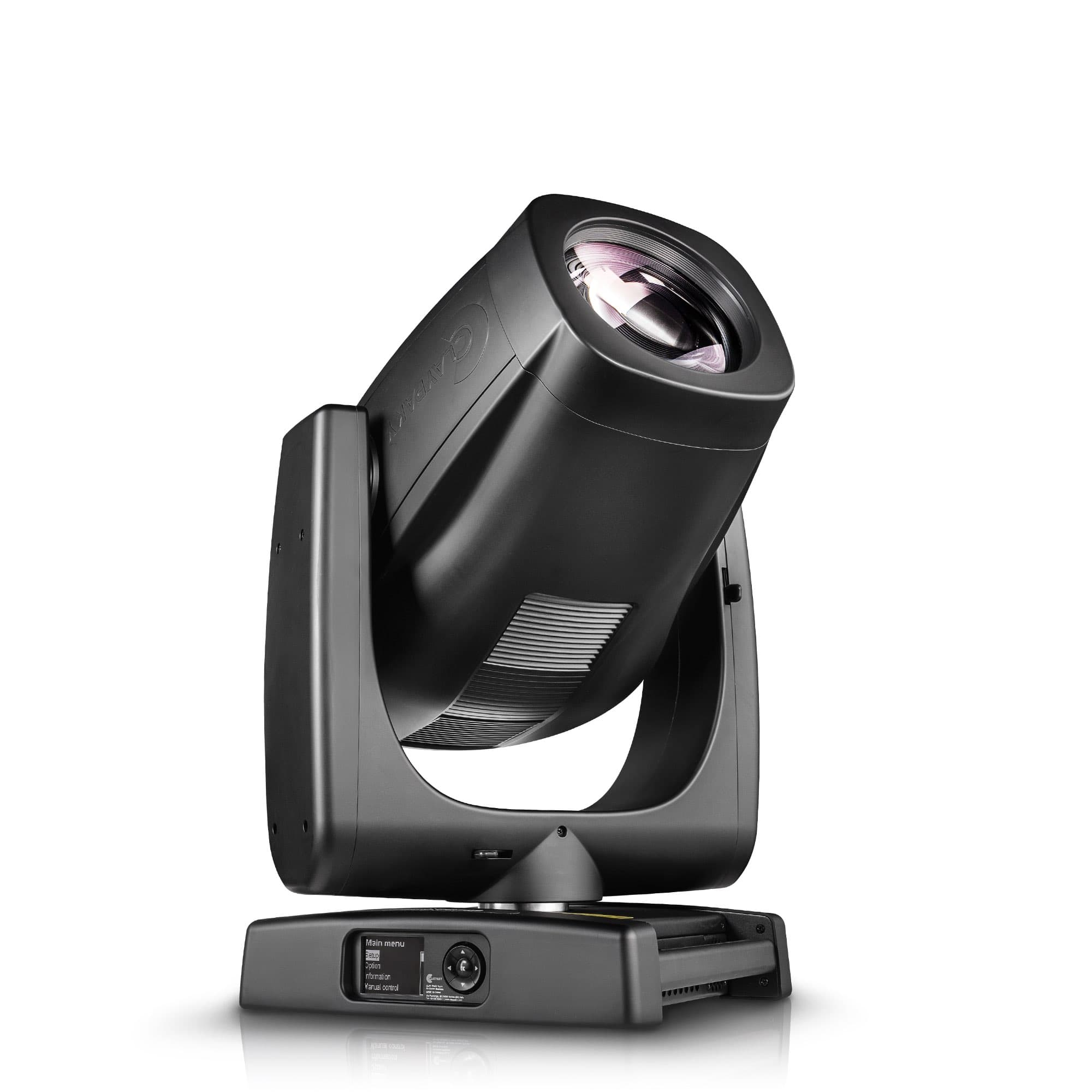

Sharpy X Frame
Compact hybrid with full framing — 18,800 lm of beam, spot and wash from a 550 W lamp.
Applications
ConcertFestivalsLive eventsTheatreTouringTV / Broadcast
Features
- Compact, lightweight hybrid delivering 18,800 lm from a 550 W discharge lamp

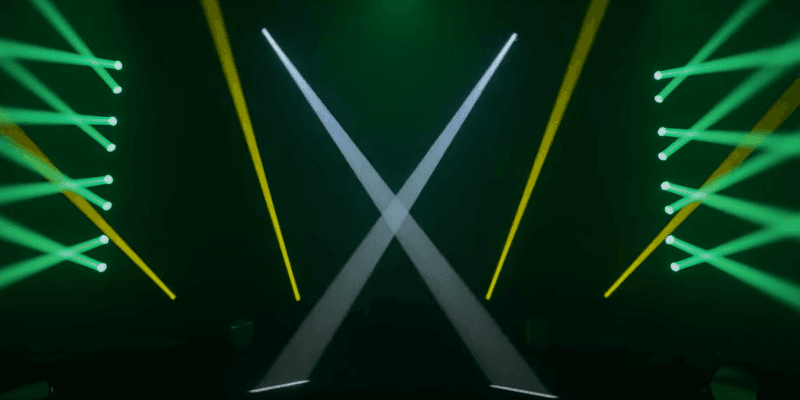

- Four-focal-plane shutter system: four blades, ±60° rotation, full-curtain blackout and macros

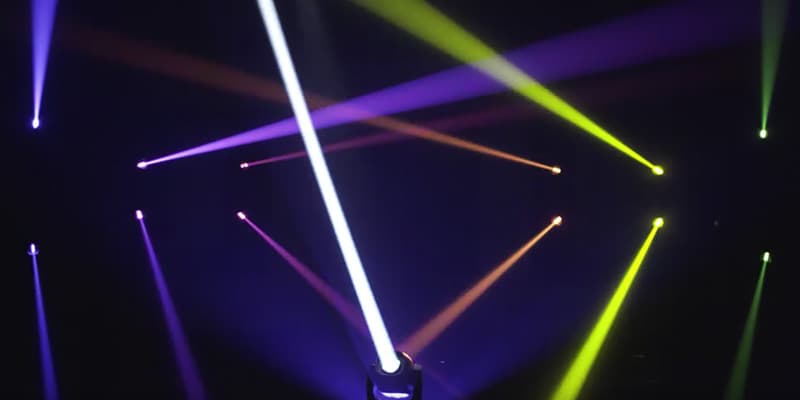

- Operates as beam, spot or wash, replacing several single-function fixtures

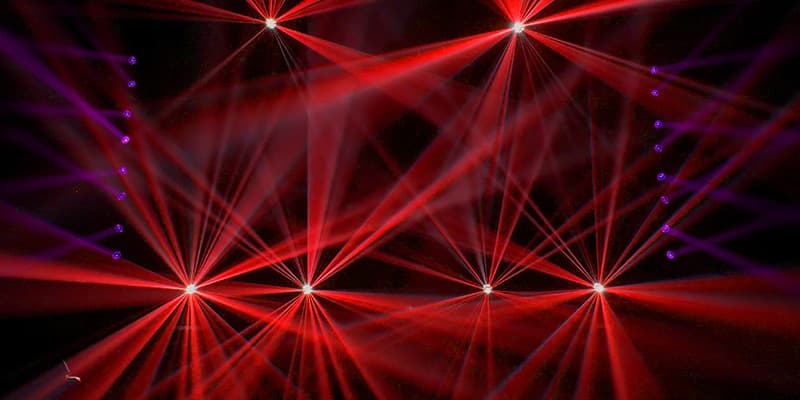

- Linear CMY and CTO mixing plus a 14-colour dichroic wheel
- 8 rotating HD gobos plus an 18-position static gobo wheel and animation wheel
- Four- and eight-facet rotating prisms on dedicated channels, with motorised iris and linear frost
- Wide motorised zoom: 3°–52° in spot mode, 2°–29° in beam mode
Specifications
Light source
Philips MSD Platinum 25R, 550 W
Colour temperature
8,000 K
CRI
>80
Light output
18,800 lm (integrating sphere)
Zoom
3°–52° (spot) / 2°–29° (beam)
Front lens
Ø 160 mm
Colour
Linear CMY + CTO, 14-colour dichroic wheel
Gobos
8 HD rotating + 18 static
Prisms
4-facet + 8-facet rotating (dedicated channels)
Framing
4 blades, 4 focal planes, ±60°, Total Curtain
Iris
Motorised, pulse and random effects
Movement
Pan 540° / tilt 270° (16-bit)
Control
DMX · Art-Net · sACN · RDM
Power
PowerCon True1 — 750 VA max
Ingress protection
IP20
Weight
28 kg
