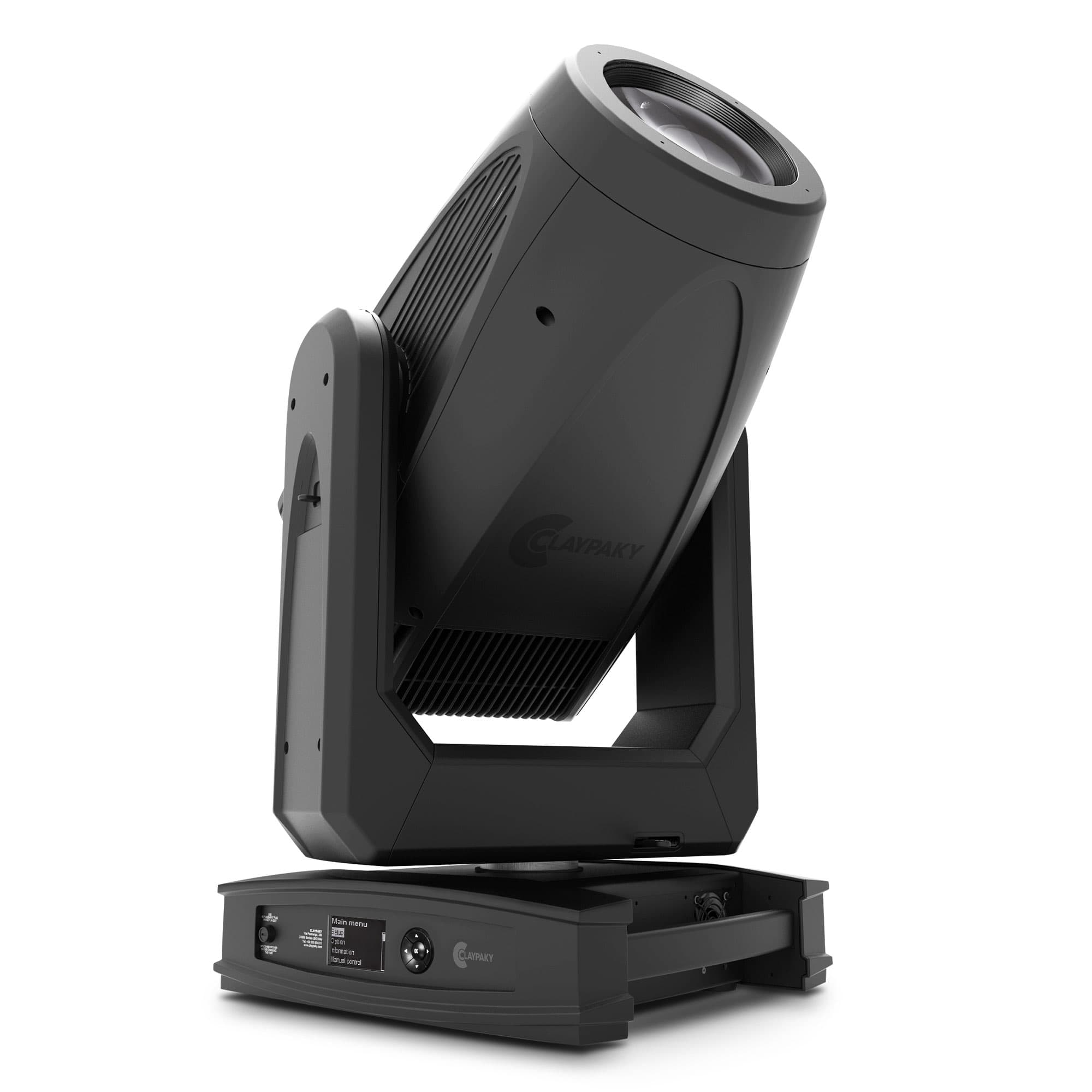

Rhapsodya
Low-noise multi-spectral RGBAL LED profile — 24,000 lm at CRI up to 94.
Applications
ConcertLive eventsStage designTheatreTouringTV / Broadcast
Features
- Multi-spectral 1,200 W RGBAL LED engine — 24,000 lm at CRI up to 94
- ACCUFRAME framing for a major step up in shutter precision
- TONEDOWN fan management for operation as quiet as 27 dBA, plus a fanless mode
- COLORSTRING individual LED-stripe control and AccuTune colour calibration
- Wide 6.2°–63.3° zoom through a 180 mm front lens and a 14-lens optical system
- Twin HD gobo wheels, a rotating 4-facet prism and a 16-blade motorised iris
- 24-bit dimming with absolute-position tracking
Specifications
Light source
LED RGBAL, 1,200 W
Light output
24,000 lm (integrating sphere)
CRI
Up to 94
Colour temperature
2,500–10,000 K
Zoom
6.2°–63.3°
Front lens
Ø 180 mm (14-lens optical system)
Gobos
2 wheels, 6 HD indexable gobos each
Prism
4-facet rotating, bidirectional
Framing
ACCUFRAME — 4 blades, ±60°, 2 focal planes
Iris
16-blade motorised
Movement
Pan 540° / tilt 270° (16-bit), ±0.12°
Control
DMX · Art-Net · sACN · RDM · CRMX (opt.)
Connections
5-pin XLR IN/THRU + 2× RJ45 IN/OUT
Power
PowerCon True1 — 1,600 W max
Noise
27 / 30 / 35 dBA presets; fanless mode
Ingress protection
IP20
Weight
48.1 kg
