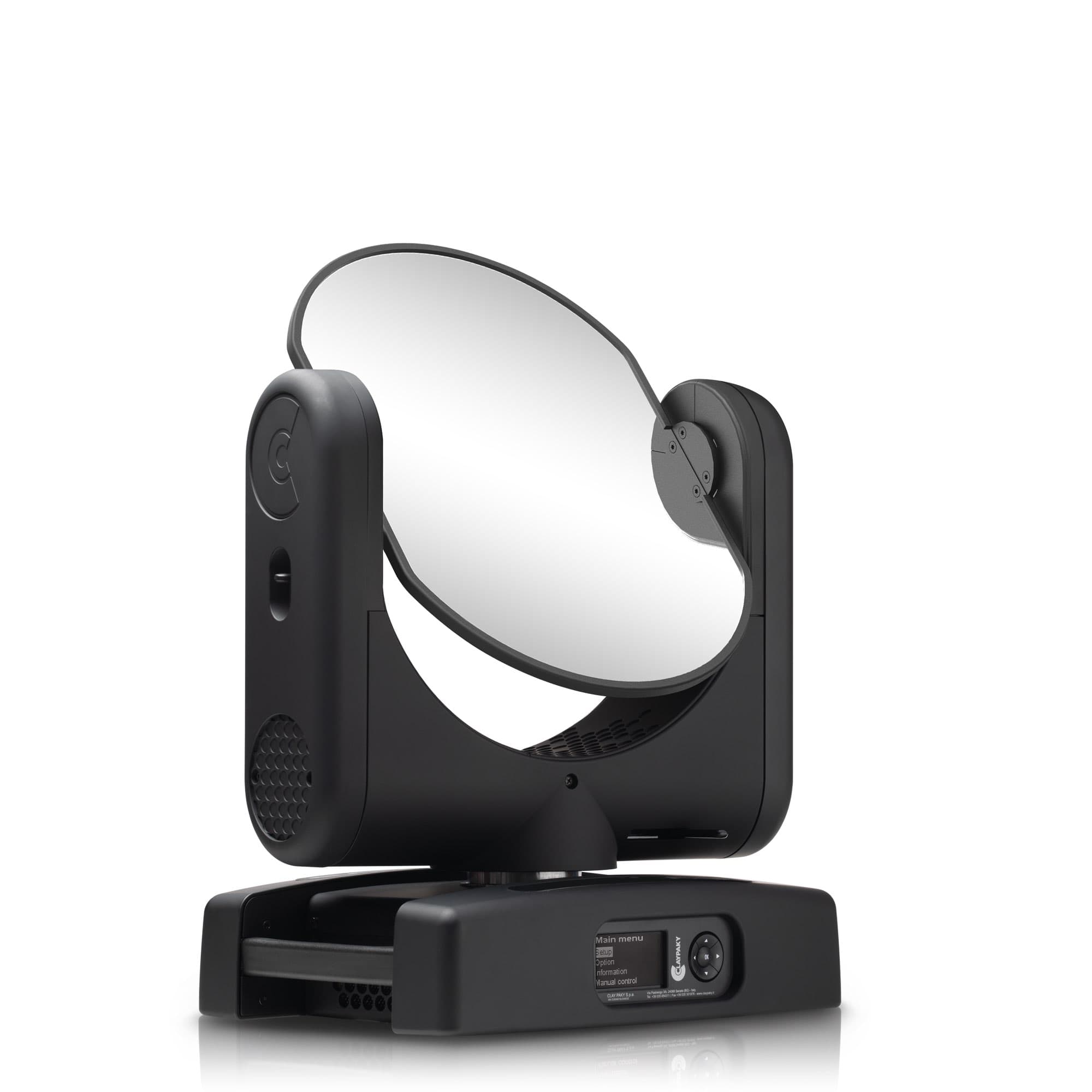

ReflectXion

Next-generation moving mirror — redirect any beam across 540° pan and continuous tilt.

Applications

Moving mirror that redirects the beam of any separate light source at full intensity
Double-sided 390 × 280 mm mirror with up to 99% reflectance and no chromatic aberrations
540° pan with unique, continuous tilt movement
Adjustable rotation speed for both pan and tilt
16-bit pan and tilt resolution for precise positioning
Six-channel DMX control with a user-friendly onboard LCD menu
Omega-clamp rigging in any working position; CloudIO ready

Mirror size

390 × 280 mm (15.4 × 11 in)

Mirror type

Double-sided, up to 99% reflectance

Pan

540°

Tilt

Continuous

Pan/tilt resolution

16-bit

Rotation speed

Adjustable

DMX channels

Control

DMX; onboard LCD menu; CloudIO compatible

Hanging system

Omega clamps, any position

Weight

13.5 kg (29.8 lbs)

Dimensions

390 × 390 × 600 mm
