Panify 2

IP66 motorised platform — endless pan up to 50 RPM for fixtures, scenery, signs and screens.

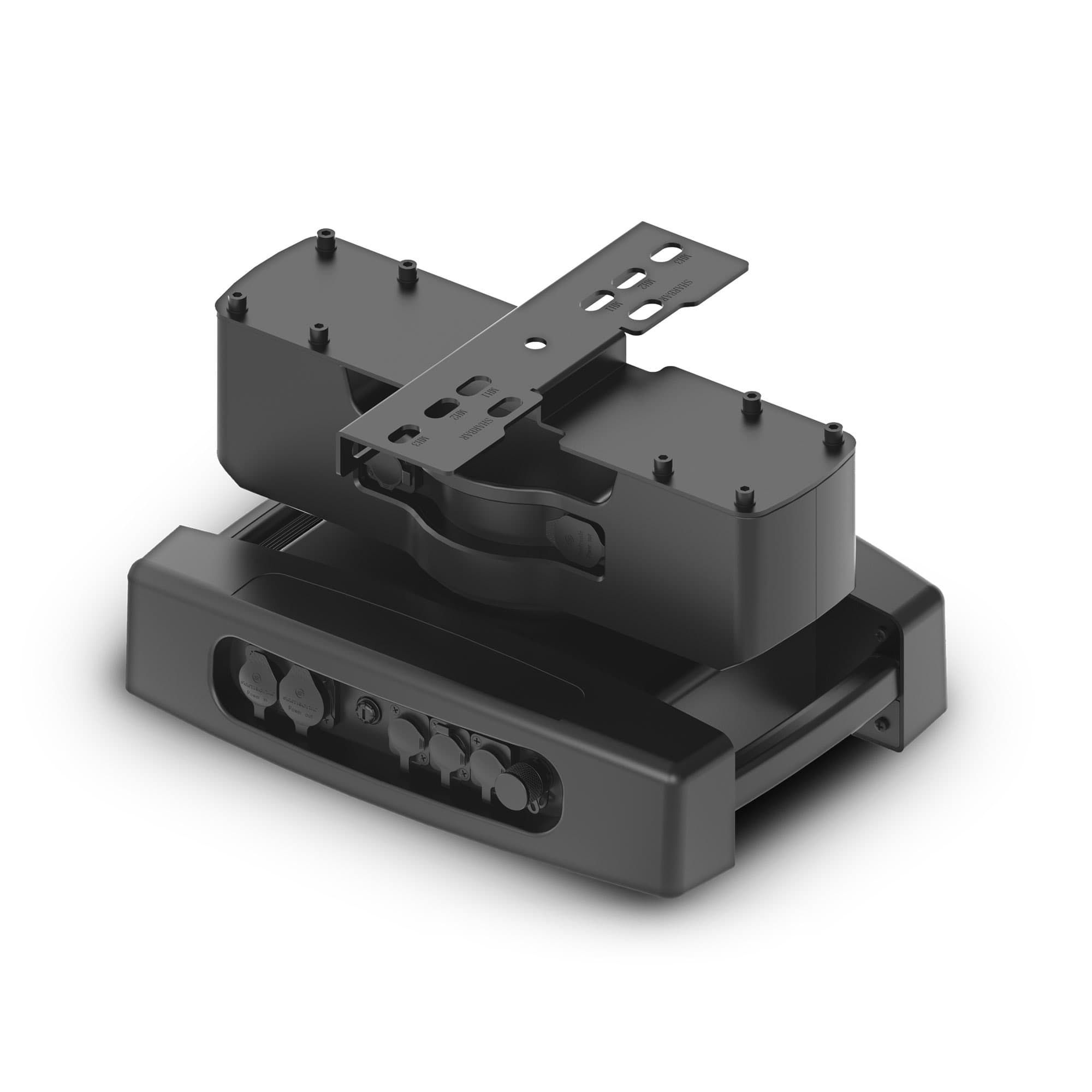

Claypaky Panify 2 IP66 motorised lighting platform — studio render

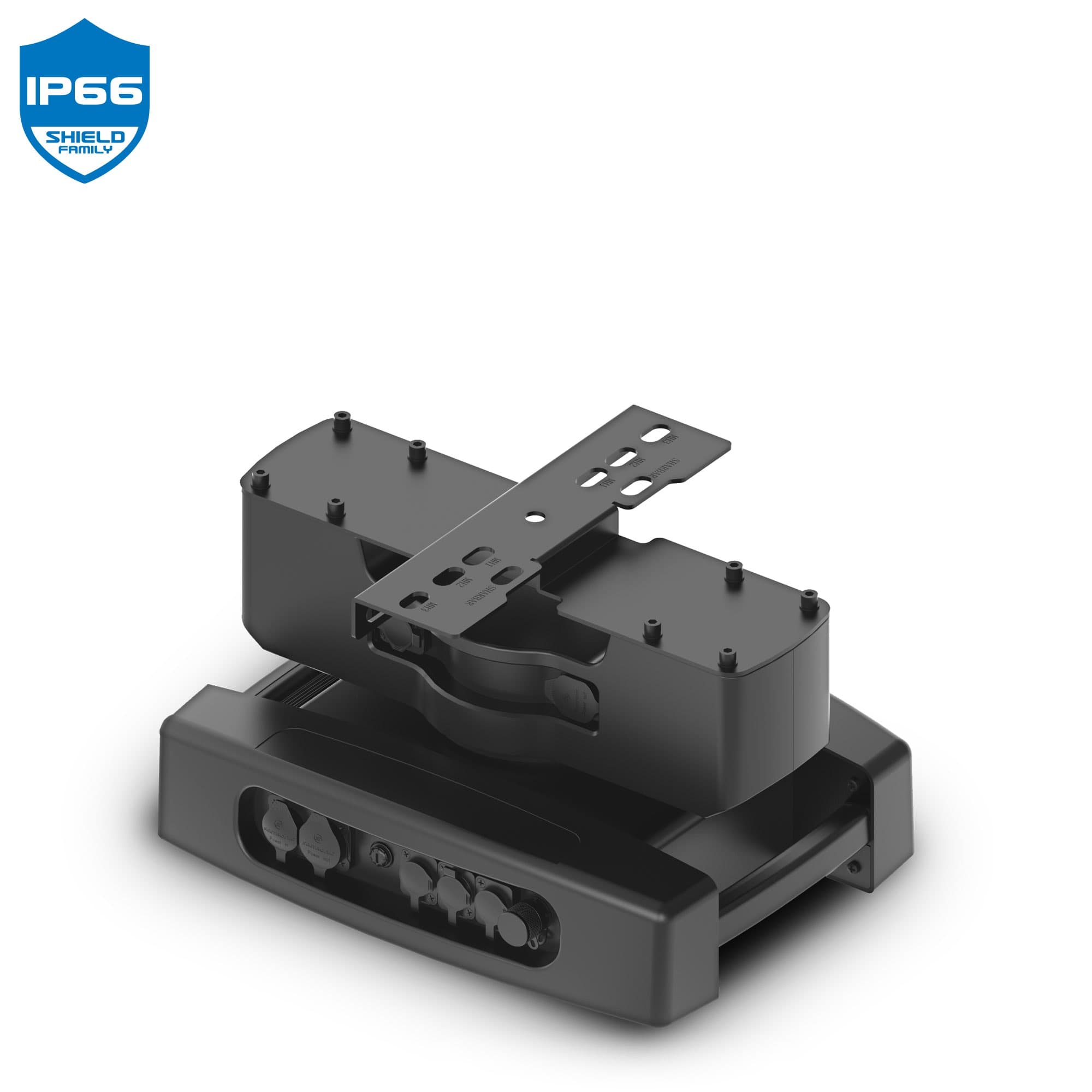

Claypaky Panify 2 — with a fixture mounted

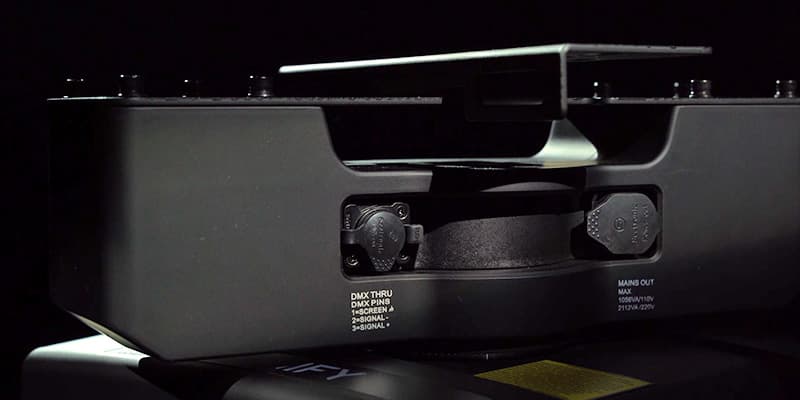

Claypaky Panify 2 — endless pan rotation highlight
Claypaky Shield Family IP66 badge — the Panify 2’s weatherproof rating

Applications

ArchitecturalConcertFestivalsOutdoor / InstallTheme parksTouring

Features

  • Turns static fixtures, scenery, signs and screens into dynamic, moving effects
  • Endless pan rotation at variable speeds up to 50 RPM
  • Carries an applied load of up to 30 kg (66 lbs) and can be hung in any position
  • Accepts most fixtures on the market, not just Clay Paky products
  • Art-Net / Ethernet pass-through to the mounted fixture for media-server integration
  • Two power inputs with a crossbeam design for tidy cable management during endless pan
  • IP66 (Shield Family) for indoor and outdoor use; fully CloudIO ready

Specifications

Movement

Endless pan at various speeds (up to 50 RPM)

Maximum applied load

30 kg (66 lbs)

Hanging position

Any position

Control

DMX · Art-Net · sACN · RDM; WDMX (optional)

Connectivity

Ethernet (Art-Net pass-through); two power inputs

Power consumption

~150 W

Ingress protection

IP66 (Shield Family); CloudIO ready

Weight

13.8 kg (30.4 lbs)

Dimensions

390 × 295 × 253 mm
